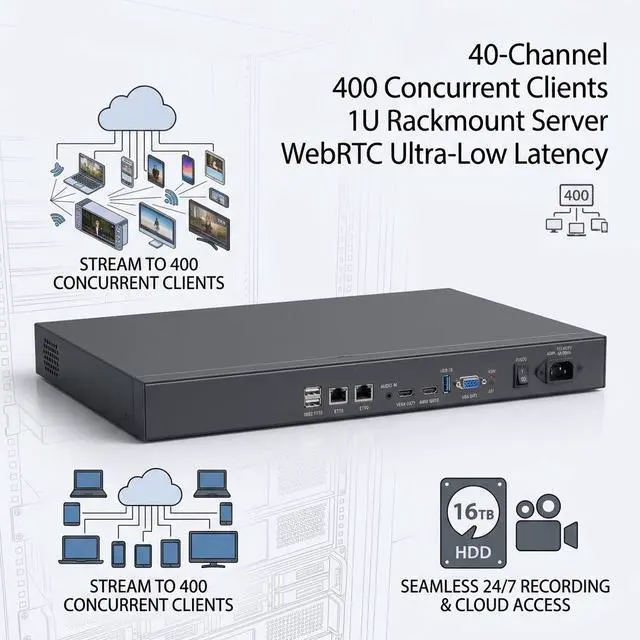

40-CH IP Video Streaming Distribution Server - 400 Concurrent Clients, WebRTC/RTSP/RTMP/GB28181 Multi-Protocol Gateway, 400Mbps Throughput, Dual LAN, 1U Server for Surveillance
- -40-Channel Video Ingest & 400 Concurrent Clients: Supports processing up to 40 network video input channels and streaming to up to 400 concurrent viewing clients with a total maximum throughput of 400 Mbps (actual performance depends on stream protocols and video bitrates).
- -Broad Protocol Interoperability: Features multi-protocol translation capabilityIngest: HTTP, RTSP, RTMP, RTP, UDP-TS, GB28181, WebRTC; Egress: HTTP-FLV, RTSP, RTMP, RTMPS, UDP-TS, HLS, WS-FLV, WS-RAW, ONVIF, GB28181, WebRTC.
- -Dual Ethernet Interfaces: Includes 2 x RJ45 network ports to support multi-network configurations

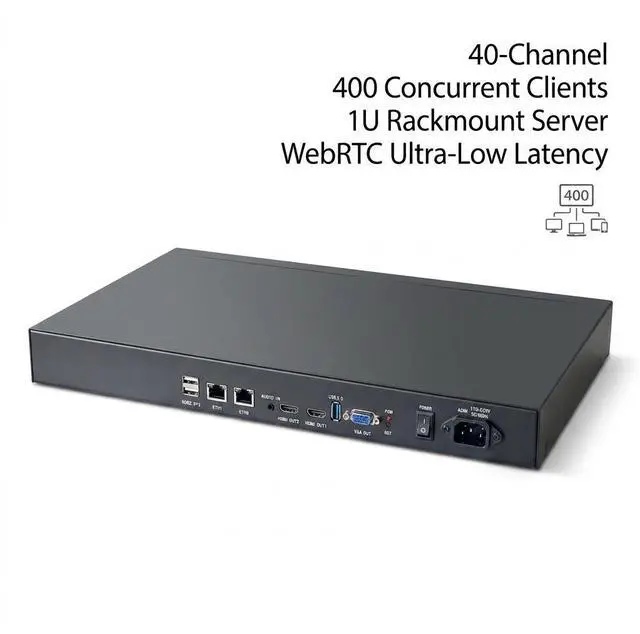

- -1U Rackmount Hardware Design: Enclosed in a standard 1U metal chassis (440 x 216 x 45 mm) with ONVIF discovery support.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description
The Xstrive 40-Channel Streaming Media Server is an advanced 1U rackmount hardware gateway designed for robust, multi-protocol video stream processing and network video management. Supporting up to 40 simultaneous video input channels and up to 400 concurrent viewing clients, it delivers a maximum aggregate throughput of 400 Mbps, making it ideal for demanding enterprise, broadcast, or surveillance applications.
Features
- Multi-Protocol Stream Bridge:Supports versatile protocol conversion for integration across diverse video systems.
- Ingest Protocols: HTTP, RTSP, RTMP, RTP, UDP-TS, GB28181, WebRTC.
- Egress Protocols: HTTP-FLV, RTSP, RTMP, RTMPS, UDP-TS, HLS, WS-FLV, WS-RAW, ONVIF, GB28181, WebRTC.
- WebRTC Browser Playback:Supports native WebRTC streaming for sub-second, low-latency video feeds directly accessible via standard web browsers without requiring extra plugins.
- Dual Network Interfaces: Equipped with 2 x RJ45 Gigabit Ethernet ports (ETH0 and ETH1) to facilitate network segregation between dedicated video VLANs and general local networks.
- Industrial Design: Durable 1U metal chassis with built-in AC power supply.
This server is engineered for reliability and flexibility, making it a dependable choice for professional video streaming environments.
| Model | XSWTVS-400M40CH/F |
| Network Device Discovery | ONVIF |
| Network video input protocol | HTTP/RTSP/RTMP/RTP/UDP-TS/GB28181/WEBRTC |
| Network video output protocol | HTTP-FLV/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/ONVIF/GB28181/WEBRTC |
| Video input encoding format | H.264/H.265 |
| Audio input encoding format | AAC/G.711/MP3/AC3 |
| Video output encoding format | H.264/H.265 |
| Audio output encoding format | AAC |
| Maximum number of network video channels | 40 |
| Maximum number of viewing terminals | 400 |
| Video re-encoding capability | Not supported |
| Number of network ports | 2 |
| Maximum total code rate | 400Mbit(it will varies with different protocols and encoding formats specifically) |
| Recording /VOD | Built-in 7GB internal storage, supports expansion with one external hard drive up to 16TB(self-installation is not supported). |
| Remote upgrade | Support |
| Remote management | Support remote modification of device parameters and recording playback |
| Language | Chinese, English |
| Power Supply | AC 100-240V |
| Working temperature | 0~70 |
| Dimension | 440X216X45mm(1U rack-mounted shell) |
| Product weight | 2014g |
