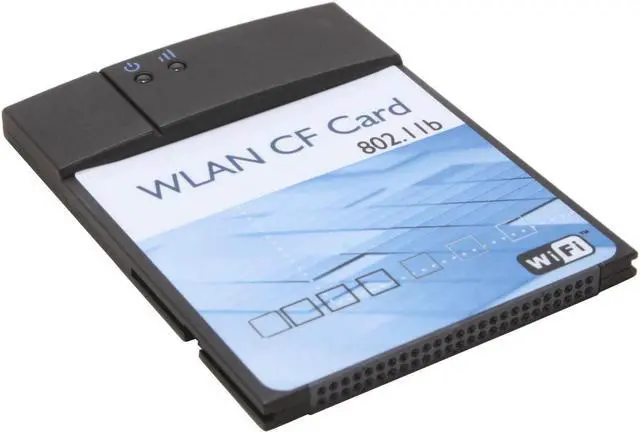

XTERASYS CWB1K Wireless Card IEEE 802.11b, Wi-Fi compliant CompactFlash Type-I Up to 11Mbps Wireless Data Rates

Name: XTERASYS CWB1K CompactFlash Type-I Wireless Card
Brand: Xterasys
SKU: N82E16833147119
Rating: 4 (22 reviews)

Specs

Reviews (22)

Learn more about the Xterasys CWB1K

Model
Brand	XTERASYS
Model	CWB1K

Details

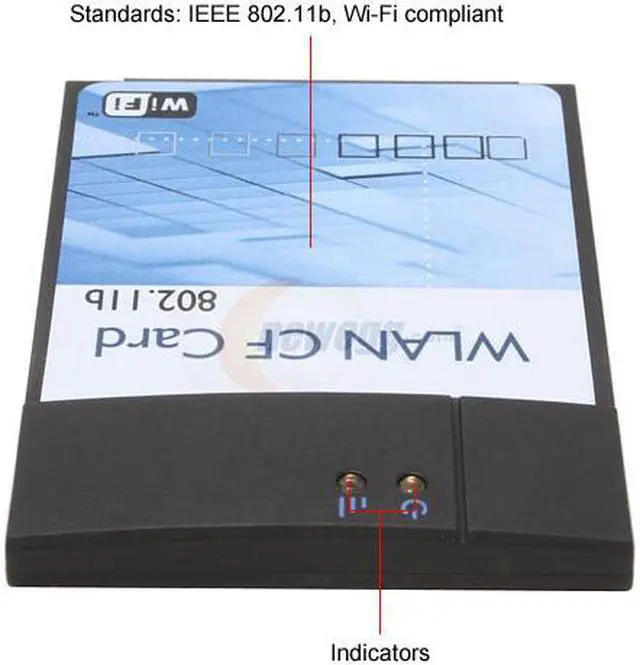

Standards	IEEE 802.11b, Wi-Fi compliant
Wireless Data Rates	Up to 11Mbps
Security	0/64/128 bit WEP
Interface	CompactFlash Type-I
Frequency Band	2.412 GHz - 2.4835 GHz
Channels	11 CH (US, Canada), 13 CH (EU), 14 CH (Japan)
Modulation	Direct Sequence Spread Spectrum(CCK, DQPSK, DBPSK)
LEDs	LINK: Orange ACT: Green
Antenna	Internal Chip Antenna
System Requirements	OS Supported For Notebook: Windows 95 OSR2/98/ME/2000/XP/NT For Handheld/Pocket PC: Windows CE

Feature
Features	Power Requirement: Operating Voltage: 5V or 3.3V TX consumption : 300mA (Max) RX consumption: 200mA (Max) Sleep Mode: 50mA Plug-and-Play Operation provides easy setup Works with all existing network infrastructure Compatible with specific wireless products and services Freedom to roam while staying connected Rich diagnostic LED indicators with Integrated Antenna Lower power consumption and power save mode Easy to install and configure Spreading 11 chip Barker sequence Media Access Protocol CSMA/CA (Collision Avoidance) with ACK

Dimensions & Weight
Dimensions	2.7" x 1.7" x 0.3"
Weight	0.03 lbs.

Environmental
Temperature	0°C - 65°C (32°F - 149°F)
Humidity	95% Maximum, Non-Condensing

Packaging
Package Contents	CWB1K Resource Disk Quick Installation Guide
