    XWORKS Wisecat Flex 700W 80+ Gold Modular PSU, Black (ENP-7760B)

    • The Wisecat Flex 700W 80+ Gold Modular PSU is based on the ENP-7760B PSU design. The PSU rated output power is 700W. It is a high efficiency design with 80 Plus Gold certification. It has a fully modular design with black silicone cables.
    • 1x 14-to-24-Pin motherboard connector 1x 4+4-Pin EPS connector 2x 6+2-Pin PCIE connector 2x SATA connector 1x MOLEX connector.
    • Product No: ENP-7760B Max.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

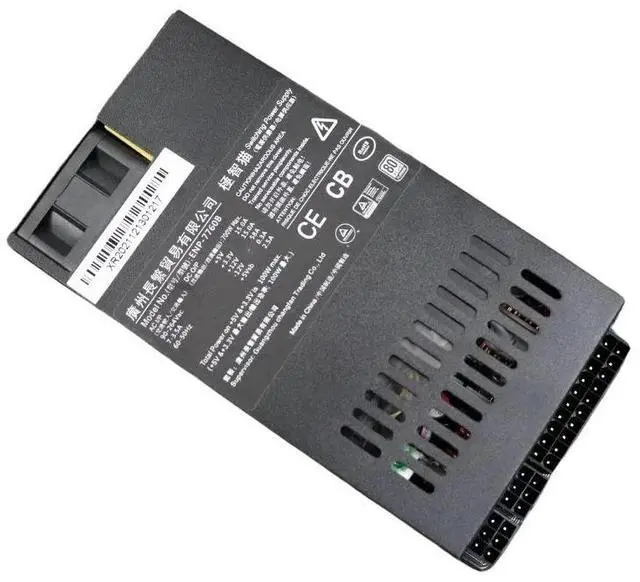

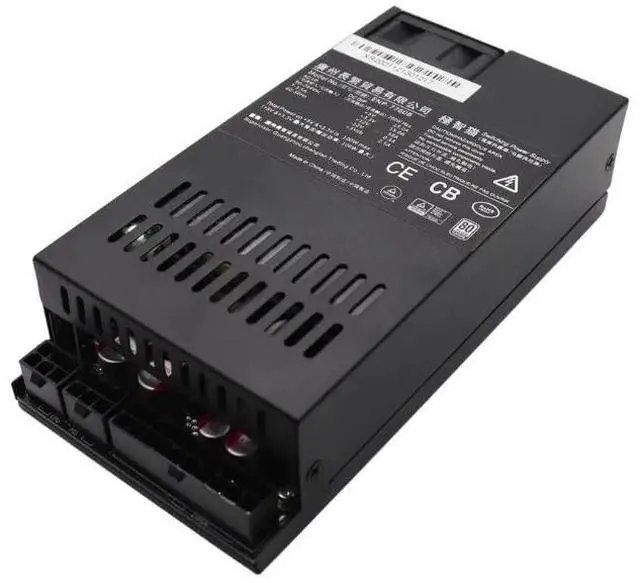

    The Wisecat Flex 700W is a fully modular Flex ATX power supply based on the ENP-7760B design, sold by XWORKS for its small form factor cases. It delivers 700 W, nearly all of it on a single 12 V rail, from a 40 x 80 x 161 mm housing, and comes with black silicone cables.

    Properties

    • Type: Flex ATX power supply, fully modular
    • Rated output: 700 W
    • Efficiency: 80 PLUS Gold, up to 91%
    • Input voltage: 100 to 240 V
    • Dimensions: 40 x 80 x 161 mm
    • Cables: Black silicone

    700 W in a Flex housing

    Flex ATX power supplies are what tiny cases such as the XWORKS X32 are built around. This unit puts 700 W into that format, with up to 58 A on the 12 V rail for the CPU and graphics card. It is 80 PLUS Gold certified, and XWORKS rates its efficiency at 89 to 91% from 20 to 100% load.

    Fully modular with silicone cables

    Every cable plugs into the unit, so only what your build needs is installed. The cables are flexible black silicone, which makes routing in a small case easier.

    Connectors

    • 1x 14-to-24-pin motherboard connector
    • 1x 4+4-pin EPS connector
    • 2x 6+2-pin PCIe connector
    • 2x SATA connector
    • 1x Molex connector

    Technical data

    • Product number: ENP-7760B
    • Max. DC output: 700 W
    • +3.3 V: 15 A max.
    • +5 V: 15 A max.
    • +5 VSB: 2.5 A max.
    • +12 V: 58 A max.
    • -12 V: 0.3 A max.
    • Input voltage: 100 to 240 V
    • Efficiency: 89 to 91% at 20 to 100% load
    • Certification: 80 PLUS Gold
    • Dimensions: 40 x 80 x 161 mm
    • Modularity: Fully modular
    • Warranty: 2 years

    In the box

    • 1x Wisecat Flex 700W modular PSU
    • 1x 24-pin motherboard cable, 14.5 cm
    • 1x 4+4-pin EPS cable, 25 cm
    • 1x SATA power cable with 2 connectors, 37 cm overall
    • 2x 6+2-pin PCIe cable, 26 cm
    • 6x Zip tie, 14 cm
    • 4x 6-32 x 6 mm PSU screw
    • 1x 120 V AC power cord
