Name: Yankok [RJ45 RJ12 RJ11 Modular Crimper] for CAT5/5e CAT6 Network Connectors 8P/6P/4P and UTP/STP Ethernet Cables Strip Cut and Crimp Tool N5684R Black
Brand: Yankok
SKU: 1W9-00K7-00022
Price: 19.99 USD
Availability: InStock

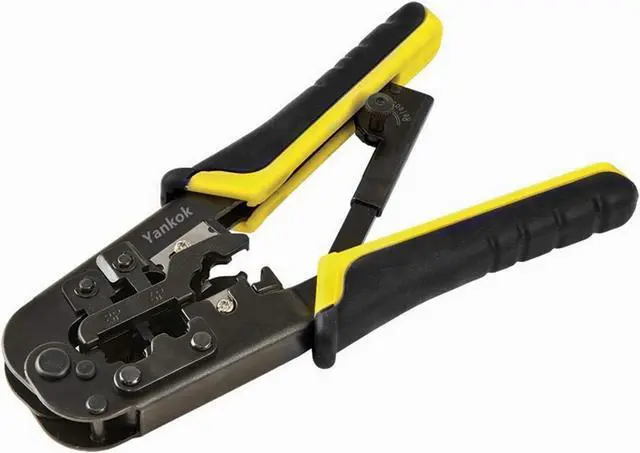

Yankok [RJ45 RJ12 RJ11 Modular Crimper] for CAT5/5e CAT6 Network Connectors 8P/6P/4P and UTP/STP Ethernet Cables Strip Cut and Crimp Tool N5684R Black Handle (Ratcheting Mechanism. Easy to Storage)

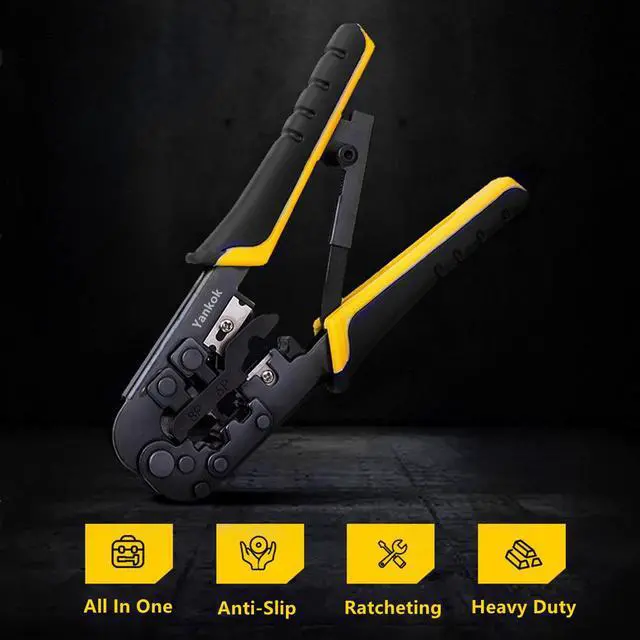

All-in-one Modular Crimper Fast and reliable modular-crimp connector installation for RJ45 Cat 3/4/5/5e/6 (8x8) (8P8C), RJ12 6-position (6x6) (6P6C), RJ11 4-position (6x4) (6P4C) and RJ11 2-position (6x2) (6P2C).
Built-in Cable Stripper Cutter Come with SK5 replacement blade set. Strips and cuts Ethernet cables, paired-conductor cables, Twisted Pair, voice and data cables, no need to buy a cable stripper separately.

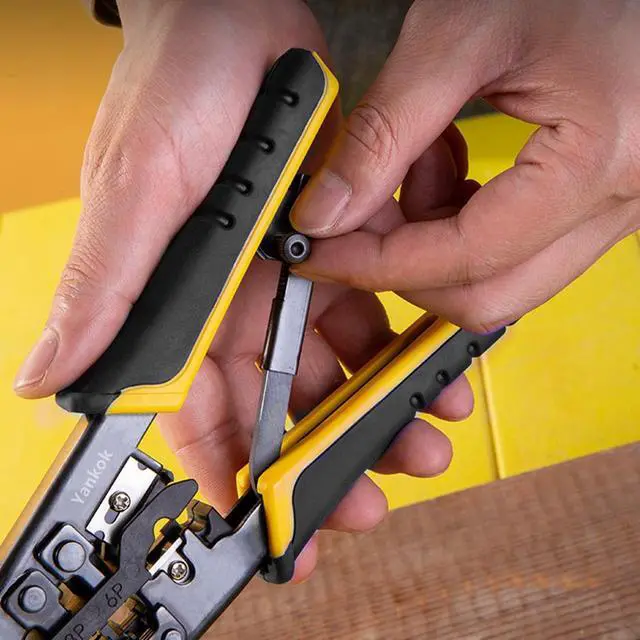

Full-cycle Ratchet Mechanism Ratcheting prevents the release of the connector prior to full compression and makes the release easy to get back to ready position with a simple press after successfully crimp the plug.

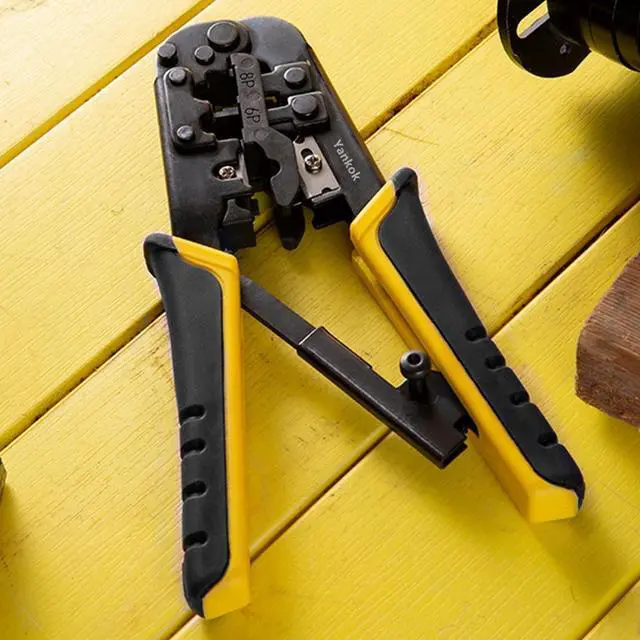

High-carbon Steel Construction Crimping dies are precision ground from high-carbon steel, steel body with black-oxide finish for excellent performance and durability.
Whats in the Package? Package includes 1x RJ45 RJ12 RJ11 Modular Crimper, 1x Blade Set and 3x Network Connectors. NOTE: NOT for use on pass thru connectors.

Choking Hazard Small parts. Not for children under 3 years.

About Yankok:

Yankok offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.

Yankok has manufactured premium-quality, professional-grade hand tools that deliver the performance, durability and precision needed to get the job done right.

We only use the high quality materials, superior workmanship, and keeping manufacturing as close to home as we can and make great products that stand up to the demands of the professionals who use them every day.

Item Features:

Ratchet modular crimper provides fast, reliable modular-crimp connector installation for voice and data applications.

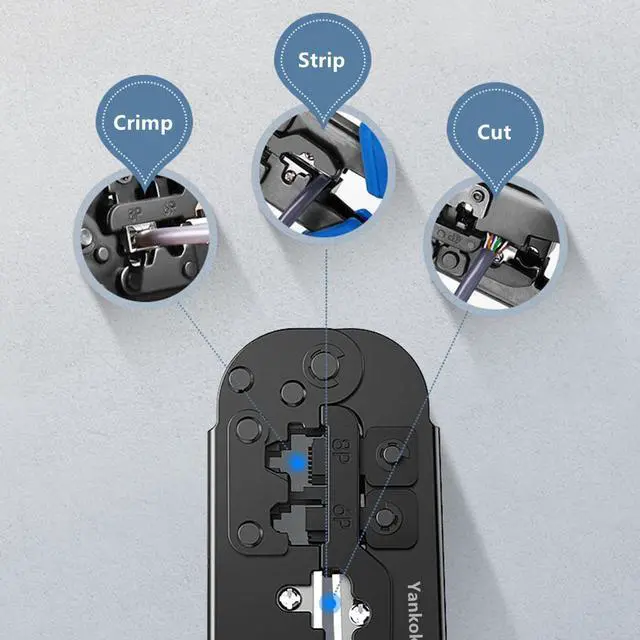

Cuts, strips, and crimps pair-conductor cables (round STP/UTP and flat-satin phone cable) all in one tool.

Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45).

Steel body with black-oxide finish for excellent performance and durability.

Ergonomic comfort grips enhance comfort, visibility, and allow quick identification.

NOTE:

Not for use on AMP/TYCO style plugs and does NOT crimp EZ-RJ45 (pass through connectors).

Top-ranked RJ45 RJ12 RJ11 Modular Crimper

It doesnt matter whether you are an IT professional who is dealing with network cables and connectors daily or just a home user who is a newbie to the Ethernet network, you should get the Yankok Ethernet crimping tool. Combines strips, cuts, crimps and tests functionalities, fits almost all kinds of network cables & connectors and budget friendly; all together make this network tool from Yankok is a top-ranked RJ45 RJ12 RJ11 crimper today.

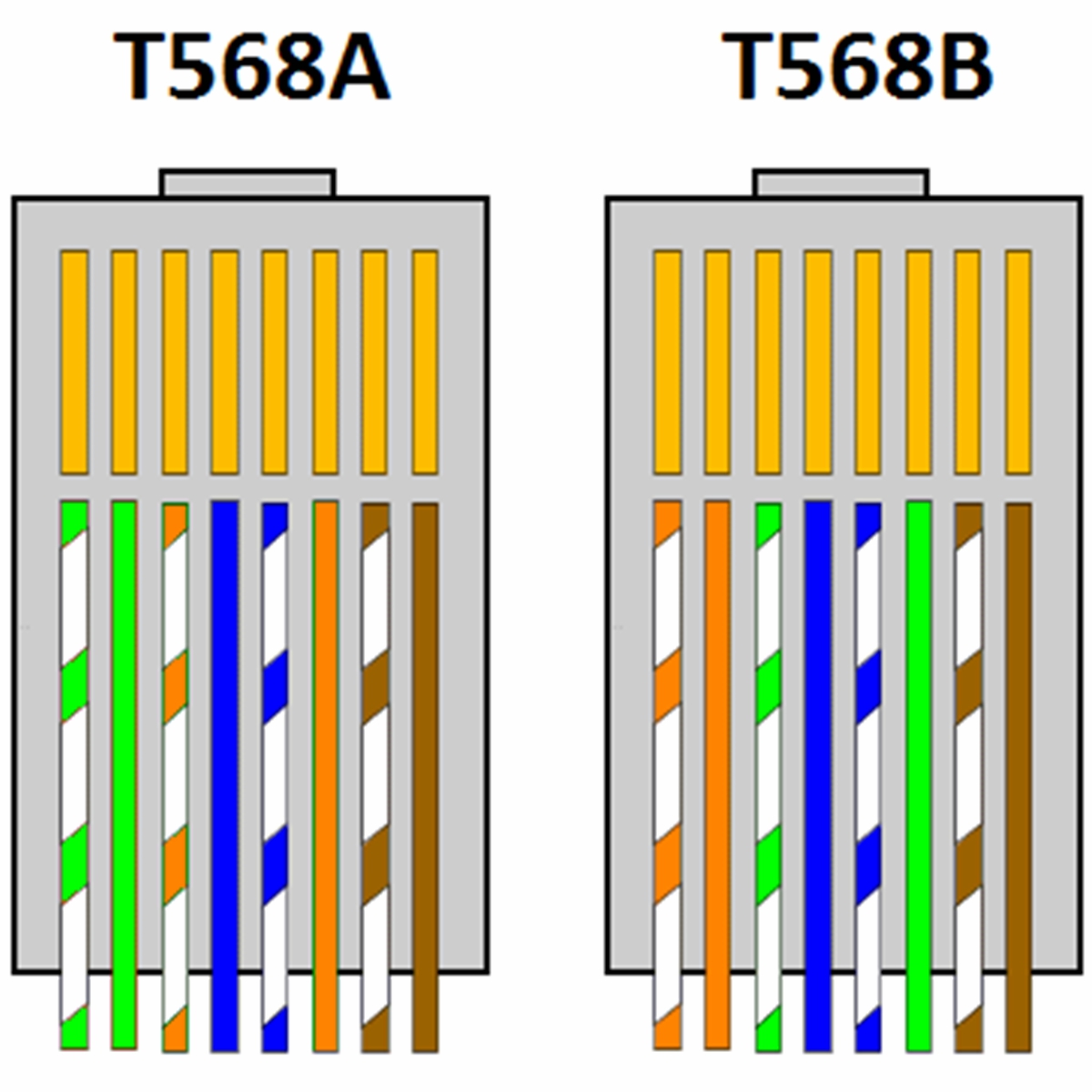

T568A or T568B - Which One Should I Use?

If the installation is residential, choose T568A unless other conditions apply. If components used within the project are internally wired either T568A or T568B, duplicate this wiring scheme. Use your fingers to put the wires in the correct order so they can be properly crimped. The proper sequence is as follows from left to right: T568A - White/Green, Green, White/Orange, Blue, White/Blue, Orange, White/Brown, Brown. T568B - White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown.

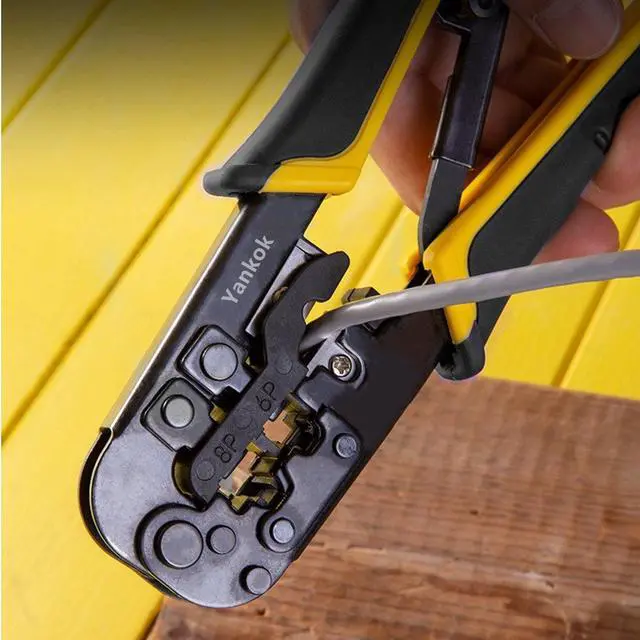

Strip and cut the cable

Strip the cable back 1 inch (25 mm) from the end. Insert the cable into the stripper section (round hole) then rotate the crimping tool around the cable to create a clean cut then remove the sheathing. Untwist and straighten the wires inside of the cable, cut off the small plastic wire separator or core so it's out of the way and cut the wires into an even line ½ inch (13 mm) from sheathing.

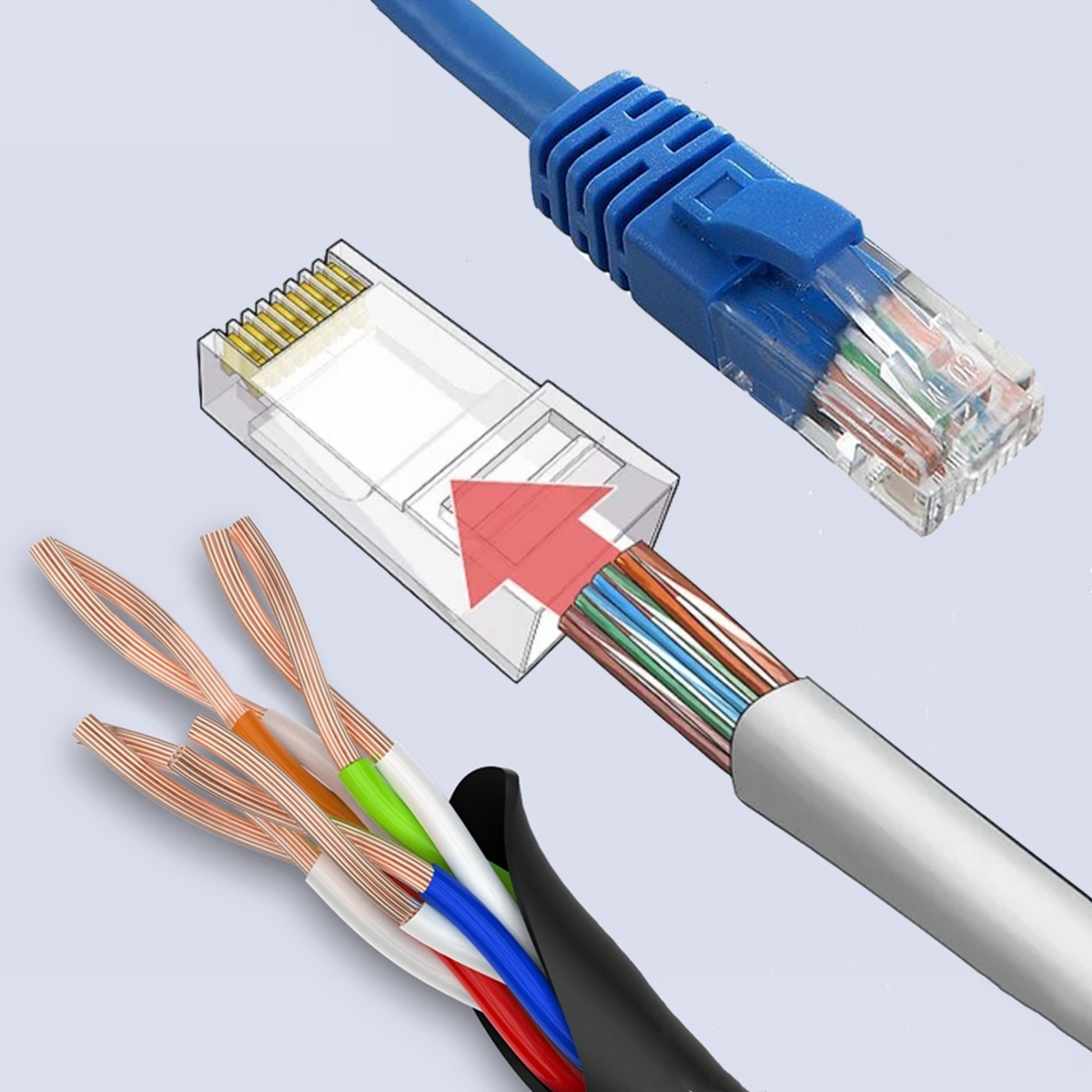

Insert the wires to connector

Insert the wires into the RJ45 connector with right orders (T568A/B), then insert the cable into the connector so that each of the small wires fits into the small grooves in the connector. The sheathing of the cable should fit just inside of the connector so it's past the base. Each wire must fit into a groove before you crimp the connector.

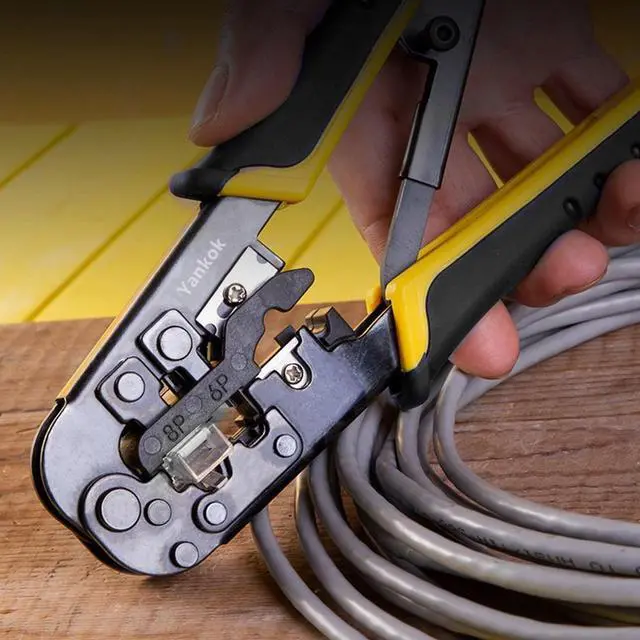

Full-cycle connector crimping

Stick the connector into the crimping part of the tool and squeeze twice. Insert the connector in the crimping section of the tool until it can't fit any further. Squeeze the handles to crimp the connector and secure the wires. Release the handles, then squeeze the tool again to make sure all of the pins are pushed down.

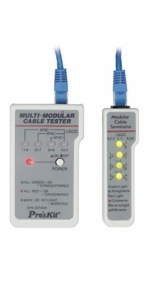

Test the cable and done

Use the Yankok network cable tester will help you save time and effort - Powered by 6F22 9V 25MA battery (which is not included), come with user manual and instruction. LED display with power switch, scanning mode switch and test switch for manual scan. Verify cable continuity, open short and miswiring, with remote kit, test on wall plate, patch panel and test grounding.

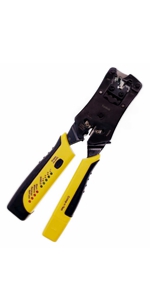

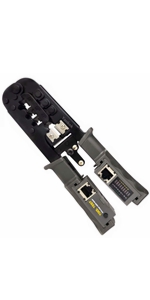

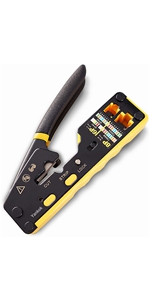

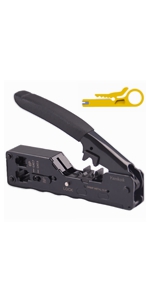

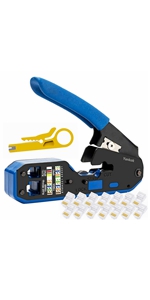

Products	Click for - Yankok RJ45 RJ12 RJ11 Cable Tester Crimper (468ST)	Click for - Yankok RJ45 RJ12 RJ11 Cable Tester Crimper (HY376)	Click for - Yankok RJ45 RJ12 RJ11 Network Crimper (HT668A)	Click for - Yankok CAT5 CAT6 CAT7 Modular Crimper (HT7018)	Click for - Yankok RJ45 RJ12 RJ11 Pass Through Crimper (HT6028)	Click for - Yankok RJ45 RJ11 Network Cable Tester (1088B)
Registered Jack	RJ45 RJ12 RJ11	RJ45 RJ12 RJ11	RJ45 RJ12 RJ11	RJ45 RJ12 RJ11	RJ45 RJ12 RJ11	RJ45 RJ11
Number of Pins	8P 6P 4P	8P 6P 4P	8P 6P(6C/4C/2C)	8P 6P(6C/4C/2C)	8P 6P(6C/4C/2C)	8P 6P(6C/4C)
Category	CAT5/5e and CAT6	CAT5/5e and CAT6	CAT5/5e and CAT6	CAT5/5e CAT6/6a and CAT7	CAT5/5e and CAT6	CAT5/5e CAT6/6a and CAT7
Function	Crimp Strip Cut and Test	Crimp Strip Cut and Test	Crimp Strip and Cut	Crimp and Clamp	Crimp Strip Cut and Pass Through	Network Cable Test
Crimp Style	Crimps Standard Connectors	Crimps Standard Connectors	Crimps Standard Connectors	Crimps Standard and Shielded Connectors	Crimps Standard and Pass Through Connectors	Tests Standard and Shielded Cables
Note	Use LR44 Button Batteries (NOT INCLUDED)	Use LR44 Button Batteries (NOT INCLUDED)	Come with Mini Cable Stripper & 15x Network Connectors	Come with Mini Cable Stripper & 3x Network Connectors	Come with Mini Cable Stripper & 3x Network Connectors	Use 6F22 9V Batteries (NOT INCLUDED)
