Yankok [HDMI Audio Extractor Converter] 4K 60Hz 1080P HDMI to HDMI Audio Splitter with SPDIF Output and RCA Supports HDMI 2.0, 18Gpbs Bandwidth, HDCP 2.2, Dolby Digital/DTS Pass-through CEC

MPN

YKAD-HDMI-5.1CH

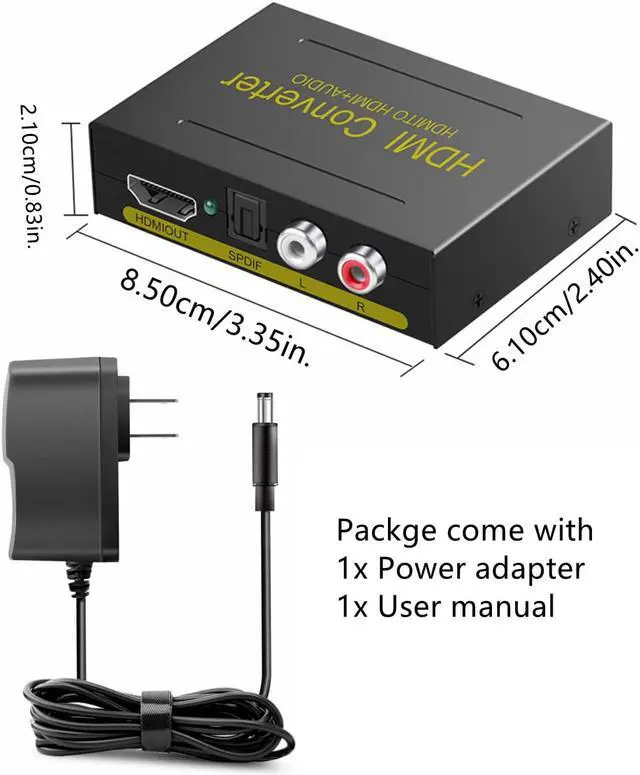

What's in the Package?

1x HDMI Audio Extractor

1x Power Adapter

1x User Manual



Trouble Shooting

HDR Issue: Your HDMI cable must meet HDMI 2.0 specifications. Replace cable if it not meet the standard.

Dolby/DTS Issue: check your display compatibility about those formats. Our device does not decode only pass it to your display.



NOTE

Our device does not decode the digital audio, you will still need an end display that is compatible with those formats.



Specifications

Max Resolution: 1080p (60Hz)

Input Port: 1 HDMI

Output Port: 1 HDMI+1 Optical+1 RCA R/L

Split Audio: Yes



Features

Three Audio EDID settings features 5.1CH, 2CH, and PASS Mode for different configurations.

The Optical SPDIF supports incoming 2CH PCM, DTS, 5.1CH Dolby digital, while the RCA L/R supports the incoming 2CH PCM stereo Audio.

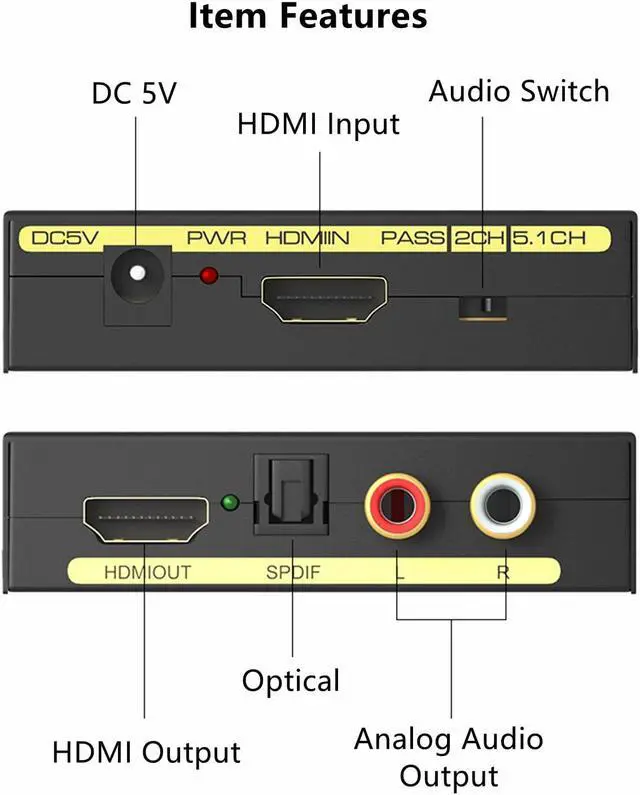

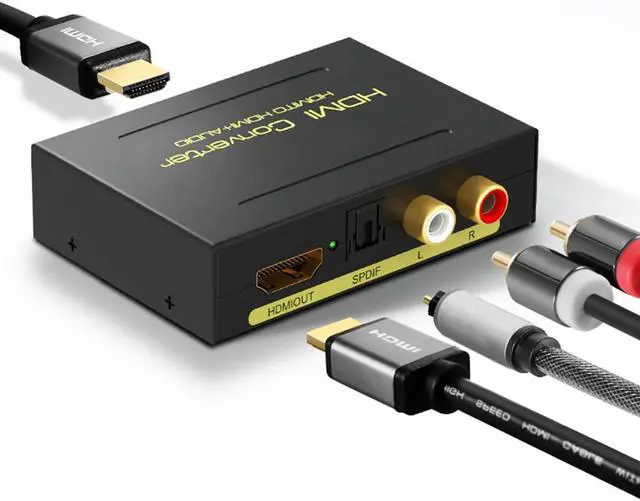

Extracts audio from 1 HDMI input to 1 HDMI output, 1 RCA R/L Stereo Audio output, and 1 SPDIFAudio Output.

Supports 3D, 36-bit deep color, Full HD 1080p with sync sound for premium quality.

Split 2CH/5.1CH Audio from HDMI source devices like Chromecast, pS3/4, Blue-ray players, Apple TV, etc.

Supports Blue-ray formats such as Dolby True HD and DTS HD Master Audio. Plus, a video signal pass is also supported.



Stand Out Features

The Yankok HDMI Audio Extractor can extract audio from 2CH/5.1CH audio from devices that support HDMI like Playstation 3&4, Blu-ray players, Chromecast and Apple TV, to mention a few.

The RCA inputs support inbound 2CH PCM audio. In contrast, the Optical S/PDIF input supports 2CH PCM stereo audio and other high definition inputs like 5.1CH Dolby Digital and DTS.
