Surface Mount Infrared CCD AV Rear View Backup Camera with Wide View Angle and Night Vision for Bus, RV, Truck,

When You Purchase Through Us This Is What You'll Get:

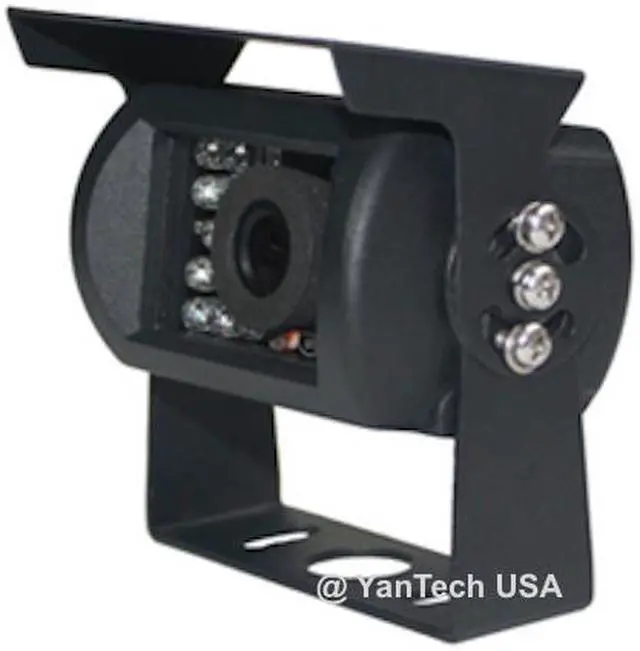

-One CCD COLOR Weather/Water-Proof Wide Angle Vehicle Rear View Camera (AV Connector). Approx. 2.8" width x 3.0" height x 2.6" length (size includes surface-mount attachment).
-Male Power Lead Plug to get your camera up and running

The Camera has following Features:
-Durable, rustproof stainless steel bodied camera and surface mount (comes with assembly materials to surface mount on outside of vehicle)
-Two extra screw holes at two sides of the camera surface mount
Weather and Waterproof casing with the rain shield. Please note: The casing is weather and waterproof under normal use only and doesn't require any further adjustment on your part. However, the cables may not be weather and waterproof. To make proofing enabled, the cable connections will require additional sealing/protection that you must provide. Remember, improper installation and using the product in opposition to the manufacturer's instructions and the manufacturer's defined terms and conditions of normal usage may result in damage to the weather/waterproofing properties of the camera.
-1/3" CCD image sensor
-18 infrared tubes - auto activate at night - ability to sense low and high light levels and adjust image accordingly
-High resolution 700 TV lines
-Low illumination requirement - 0.2 LUX (w/LEDs on)
-Reverse image - set to display a reversed camera image on the monitor by default(for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror)
-120 Degree Wide Angle View - Essential to get a wide picture view especially when backing up a towed vehicle or a vehicle with wide turning radius
-Standard RCA video output - When in need of replacement cables you can simply buy them off the shelves of any store selling video cables. There's no need to shop around for some "special type" of cable. The connectors are compatible with this product as they would be with any VCR, DVD player, TV, or Monitor.
-Uses standard 12V DC power supply found in most land vehicles

The Camera has following Technical Specifications:
-Image Sensor 1/3" SHARP CCD Sensor
Video output <1.0V peak-to-peak, 75 Ohm
Effective Pixel 512 x 492 pixels
Sensing Area 9.6mm x 6.34mm
Resolution 420 TV Line
SNRMAX 48 dB
Wide View Angle 120°
Image Reverse Left-right mirror
Shutter 1/60-1/15000 Seconds
Power Supply DC 12V+10%
Power Consumption Under 300mA
Waterproof Level IP67-IP68
Sync System Internal
S/N Ratio Better than 48dB
TV System NTSC
Weight Approx 350 g
AGC and BLC Auto
Matic White Balance Auto
Operation Temperature -20°C to +75°C (RH 95% Max.)
Storage Temperature -40°C to +85°C (RH 95% Max.)
Material Aluminum Alloy
Cable Input/Output (2 Sockets) low Socket - DC Power Output, Red Socket - Vedio Output
Automatic IFP (image flow processor) Features Auto exposure, auto white balance (AWB), auto black reference (ABR), auto flicker avoidance, auto color saturation, and auto defect identification and correction
