How does the Yealink MeetingBoard 86 Pro handle audio input and output?

The device has a built-in 16 MEMS microphone array with a pickup distance of 12 meters and a signal-to-noise ratio of 70dB. It features stereo speakers with a frequency response of 90~20KHz and a rated power of 30W, supporting RCA input and output.

What are the main features of the camera in the Yealink MeetingBoard 86 Pro?

The Yealink MeetingBoard 86 Pro features a built-in triple 50MP camera with a wide-angle viewing angle of 98.2 degrees, electronic pan-tilt, 4x digital zoom, and supports a maximum resolution of 3840 x 2160 at 60Hz. It also includes AI Smart Framing and an electric privacy shutter.

$6,898^.20

$7,495.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Sold by Zyngear

Shipped by Zyngear

Price alert

Add to Wish List

Meet Your Seller

Zyngear

See Seller Store

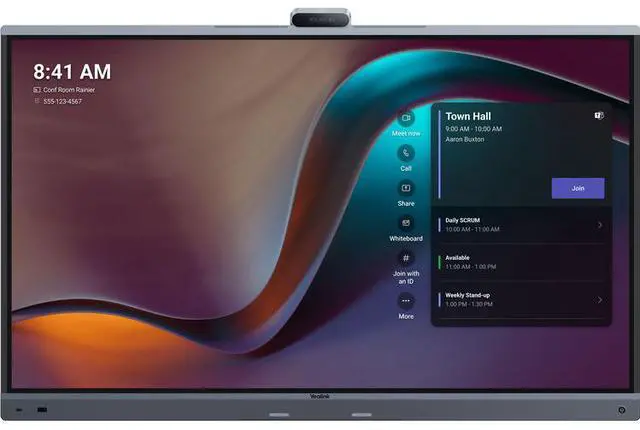

Main image of Yealink MeetingBoard 86 Pro, All-in-one and Interactive Meeting Device for Medium Rooms

Shop All Yealink Network Technology Co., Ltd Products | Visit Zyngear Store

Yealink MeetingBoard 86 Pro, All-in-one and Interactive Meeting Device for Medium Rooms

Be the first to review this product...

Streamline Installation and Deployment
Triple-eye Camera System (3*50MP)
AI-Powered View: IntelliFocus, Video Fence
Pro Sound: 12-meter full duplex (39 feet), noise cancellation, and noise reverberation
Support native Teams, Zoom, and General Mode
Dual-Solution (MTRA/MTRW)
Support whiteboard collaboration

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Yealink Network Technology Co., Ltd MeetingBoard

General
Brand	Yealink
Model	MeetingBoard

Model
Part Number	MB86PRO-A02

General
Type	Video Conference Device

Phone Features
Camera	Max Resolution: Built-in triple 50MP camera Image Sensor: Sony Sensor X3 Viewing angle: Wide-angle HFOV 98.2 degrees PTZ type: Electronic pan-tilt Zoom/Digital zoom: 4x digital zoom Max resolution: 3840 x 2160 Max frame rate: 60Hz Video output resolution: 3840 x 2160 Autofocus: Supported Wide dynamic range: Supported High dynamic range imaging: Supported Exposure: Auto White balance: Auto/Manual/ATW Number of presets: 9 Privacy shutter: Electric privacy shutter Swappable optical zoom camera module AI Smart Framing

Additional Features
Additional Features	Optional Accessories (sold separately) Mounting Accessories: - Wall Mount - MB-WallMount-650: for 65 inch - MB-WallMount-860: for 75 inch & 86 inch - Wall Stand - MB-WallStand-650W: for 65 inch - MB-WallStand-860W: for 75 inch & 86 inch - Floor Stand - MB-FS-P650T: for 65 inch - MB-FS-P750T: for 75 inch - MB-FS-P860T: for 86 inch - MB-FS-Lift: for 65 inch, 75 inch & 86 inch Audio Accessories: - Wired microphone: VCM35 - Wireless microphone: VCM36-W - Ceiling speaker: CS10 - Celling microphone: CM20 Casting Accessories: - Wireless presentation pod (unavailable in the United States) - Wired sharing box: VCH51 Camera Accessories: - Pluggable optical zoom camera module MB-12X Pro - Video conferencing camera UVC86 Controller: - Touch panel CTP25 - Remote controller MB-Remote Windows OPS Module: - MCore-OPS - MCore-OPS-T: Teams Certified - MCore-OPS-G2 - MCore-OPS-G2T: Teams Certified
Specification	INSTALLATION METHODS Wall-mounted installation Wall-stand installation Floor-stand installation CONTENT SHARING Wired screen sharing: Wireless screen sharing SECURITY Encryption protocols: supports H.235/TLS/signaling encryption Encryption algorithms: supports SRTP media stream encryption and AES-256 encryption Security mechanisms: supports VLAN, 802.1P/Q, Diffserv, and other QoS services Security protocols: supports 802.1X, LLDP-MED, and other network security protocols Web security: supports HTTPS web security management Secure connection: supports OpenVPN Other security mechanisms

Modem / Comm.
Data Link Protocol	NETWORK PROTOCOLS Wi-Fi 6: 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax, 2x2 MIMO Bluetooth 5.1 TCP/IP (IPv4/IPv6), DHCP/Static IP HTTPS secure web access

Audio
Microphone	Built-in 16 MEMS microphone array Pickup distance: 12 meters full-duplex Signal-to-noise ratio: 70dB@1KHz Max sound pressure level: 130dB SPL Equivalent noise level: 24dB SPL Dynamic range: 24-130dB SPL Sensitivity: -38±1dBV/Pa Frequency response: 20Hz~20KHz Sampling rate: 48KHz Bit depth: 24-bit Expansion input: supports RCA input
Speakerphone	Stereo Speakers Frequency response: 90~20KHz Sensitivity: 87±3 dB [email protected], 1W Sampling rate: 48KHz Expansion output: Supports RCA output THD (Total Harmonic Distortion): at 20W, 1KHz, <5% Rated impedance: tweeter-4ohm,full-range speaker-8ohm Rated power: 30W Max power: 36W

Display
Display	Anti-glare panel Resolution: 3840 x 2160 Color Gamut: 72% NTSC/99% sRGB Color Depth: 1.07G (10bit) Contrast Ratio: 1200:1 Brightness: 400 cd / square meters Refresh Rate: 60 Hz Viewing Angle: 178 degrees (H)/178 degrees (V) System wake-up: Motion sensor
Display Size	86 inch
Resolution	VIDEO RESOLUTION Lens resolution: supports up to 4K30fps Content sharing: supports up to 4K60fps (HDMI In) locally, and up to 4K15fps in meetings

Additional Information
First Listed on Newegg	May 30, 2026
