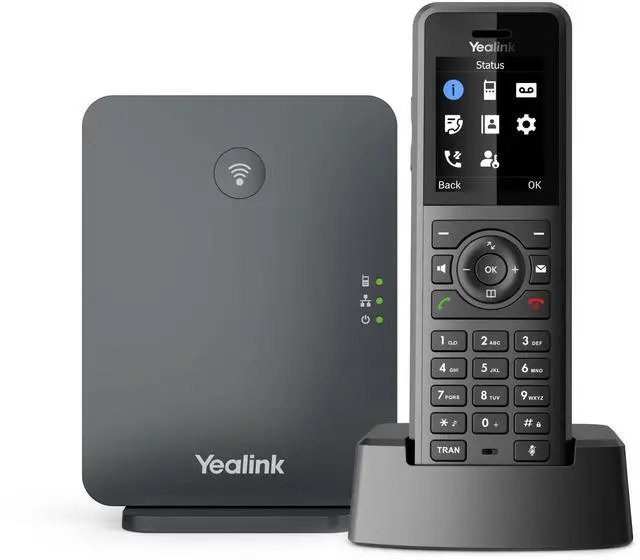

The Yealink W77P, a high-performance ruggedizedSIP cordless phone systemthat can register 10 Yealink DECT W57R handsets, is the ideal solution for stressful situations.
Learn more about the Yealink Network Technology Co., Ltd W77P
Model
Brand
Yealink
Model
W77P
Part Number
W77P
Type
Type
IP DECT Phone Kit
Spec
Security
NETWORK AND SECURITY
SIP v1 (RFC2543), v2 (RFC3261) SNTP/NTP VLAN (802.1Q and 802.1P) 802.1x, LLDP STUN Client (NAT Traversal) UDP/TCP/TLS IP assignment: Static/DHCP Support outbound proxy server backup Open VPN Transport Layer Security (TLS) HTTPS (server/client), SRTP (RFC3711) Digest authentication Secure configuration file via AES encryption Support SHA256/SHA512/SHA Three-level configuration mode: Admin/Var/User
Ports
1 x RJ45 10/100M Ethernet port Power over Ethernet (IEEE 802.3af), Class 1
Power
External Yealink AC adapter: AC 100-240 V Input and DC 5 V/600 mA Output
Battery of W57R (V0-V3): 1460 mAh, Lithium-ion, 3.7 V, 5.4 WH Up to 40 hours of talk time (in ideal conditions) Up to 575 hours of standby time (in ideal conditions)
Battery of W57R (V4): 3 x 3.7 V 350 mAh (1.295 Wh), Lithium-ion Up to 28 hours of talk time (in ideal conditions) Up to 320 hours of standby time (in ideal conditions)
Dimensions
Handset size: 157 mm x 51 mm x 24 mm Base station size: 130 mm x 100 mm x 25.1 mm
Features
Features
PHONE
Up to 20 simultaneous calls Up to 10 handsets Up to 10 SIP accounts Up to 2 simultaneous calls per handset Up to 6 repeaters per base station (RT30) Vibration alarm Alarm functions: push-button Handset selection for receiving call Handset and number selection for placing call Paging, intercom, auto answer, dial plan Call hold, call transfer, 3-way conference Switching between calls Call waiting, mute, silence, DND Caller ID with name and number Anonymous call/Anonymous call rejection Call forward: Always/Busy/No Answer Speed dial/Voice mail/Redial Message Waiting Indication (MWI) Music on hold (server-based) Local phonebook for up to 1000 entries (store in the base) Remote phonebook/LDAP/XML phonebook Phonebook search/import/export 100 call history per handset: All/Placed/Missed/Received Direct IP call without SIP proxy Reset to factory, reboot Keypad lock, emergency call BroadSoft directory, BroadSoft call log Broadworks feature key synchronization Shared Call Appearance (SCA) XML browser Action URI
