ESP32 LoRa V4 Expansion Kit with Touch Panel for Meshtastic LoRaWAN | Includes Protective Housing, Expansion Board, Whip Antenna, L76K GNSS Module, Sensors, Buzzer Supports WiFi BLE 915MHz LoRa

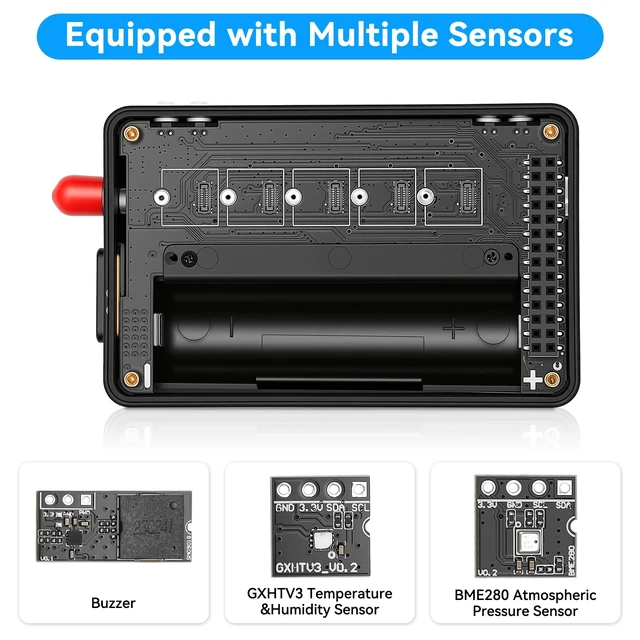

- Highly Customizable: ESP32 LoRa V4 expansion kit is a comprehensive set specifically designed for the newly released ESP32 LoRa V4. It includes a protective case, touch screen, L76K GNSS module, GXHTV3 temperature and humidity sensor, BME280 barometric pressure sensor, buzzer, expansion board, whip antenna, and more
- Powerful Communication Capability: Features ESP32-S3R2(Wi-Fi b/g/n, BLE) as master chip and matching SX1262 LoRa node chip, supports long transmission range, up to 5km in open environments, it is the first choice for IoT applications and projects

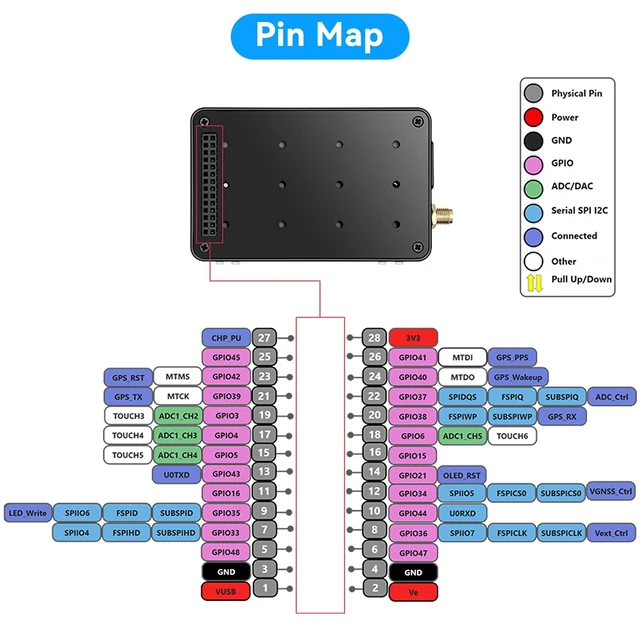

- Highly Extensible: Based on GPIO matrix and IOMUX functionality, most GPIO pins can be configured for I2C, SPI, I2S, PWM, or UART functions
- Power Management: Optimized lithium battery management system, supports charge and discharge management, overcharge protection, power detection and USB/battery power automatic switching
- Widely Applicaiton: Suitable for various IoT applications such as smart cities, agricultural monitoring, smart homes, industrial control, security systems, and wireless meter reading, providing you with a more efficient and flexible development experience
- Note: ESP32 LoRa V4 Expansion Kit comes without battery, you need to install any 18650 lithium battery with a voltage range of 3.3~4.2V
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
ESP32 LoRa V4 Expansion Kit is a comprehensive set specifically designed for the WiFi LoRa 32 series, including protective cases, expansion carrier boards, sensor modules, and more
Parameters:
Front Cover: Touch Screen
Side Cover: Aluminum Alloy
Rear Cover: Polycarbonate (PC)
Triaxial Accelerometer: DA217
Resolution: 320*240
Dimensions: 52×52×15mm
FAQ:
Q: What battery should I choose?
A: Any 18650 lithium battery with a voltage range of 3.3~4.2V.
Q: Does it include the ESP32 LoRa 32 V4 development board?
A: Yes.
Q: Is the device waterproof?
A: No, it does not feature waterproofing.
Q: Why is my buzzer making strange sounds?
A: When the device is identifying GPS, the timing of the buzzer is disrupted, causing it to sound somewhat unusual. This commonly occurs when the device is first started up, and it will return to normal after about one minute.
How to flash irmware?
1. Connect the USB-C cable to the computer.
2. Press and hold the USER key, then press the RST key once. Release the USER key afterward.
3. Flash the new firmware.
4. After the firmware is successfully flashed, press the RST key to restart the device

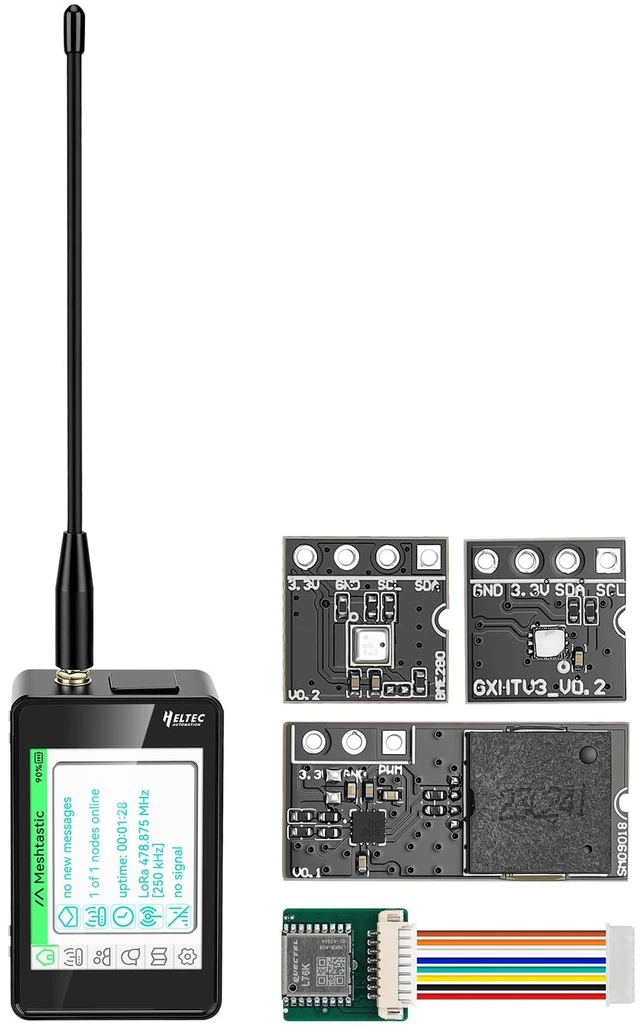

Packing Content:
1 x Housing
1 x WiFi LoRa 32 V4
1 x Expansion Board
1 x LoRa Antenna
1 x GNSS Antenna
1 x Temp&Humi Sensor(GXHTV3)
1 x Buzzer
1 x BME280 Atmospheric Pressure Sensor
