Yescom Hydraulic Hole Punch Knockout Die Manual Square Hydraulic Punching Die 45x45mm

Features:

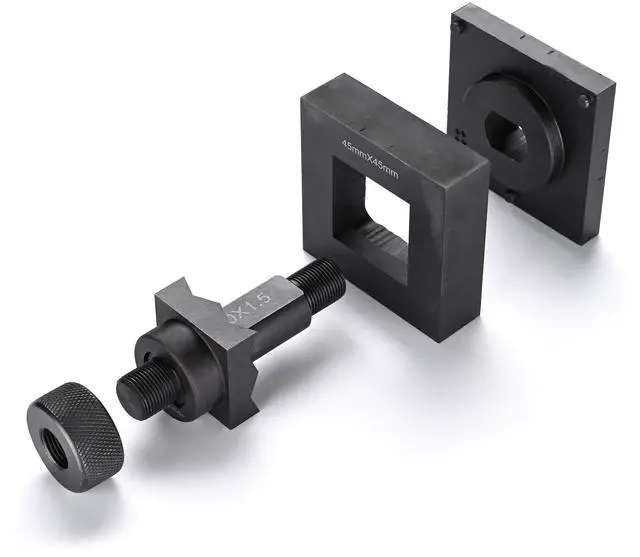

- Hydraulic Punch Die - This Square Hydraulic Hole Punch Die with 2 draw studs is designed to be installed on hydraulic punch to drill 1 3/4" x 1 3/4" holes on up to 16-gauge stainless steel, 11-gauge iron, steel, aluminum, brass, fiberglass, and plastics
- Compatibility - This square knockout die is compatible with our 8/10/15 Ton Hydraulic Knockout Punch Kit with model number of YES0543, YES0544, YES0545, YES0546, YES0547, if you have any question, please feel free to reach out to Customer Service

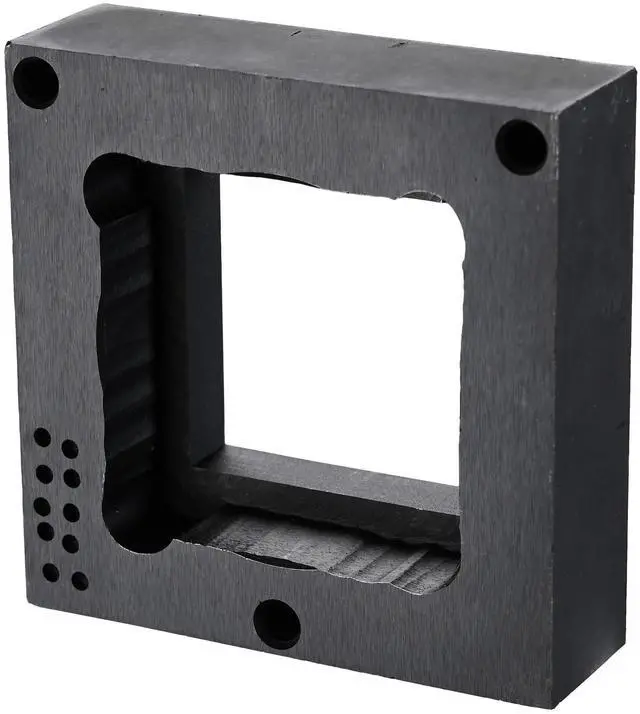

- Sturdy Steel Construction - Made of heat treated 40Cr Steel for enhanced hardness, tensile strength, and rust resistance, suitable for long-time punching and cutting for a large variety of materials like iron, stainless steel, aluminum, brass

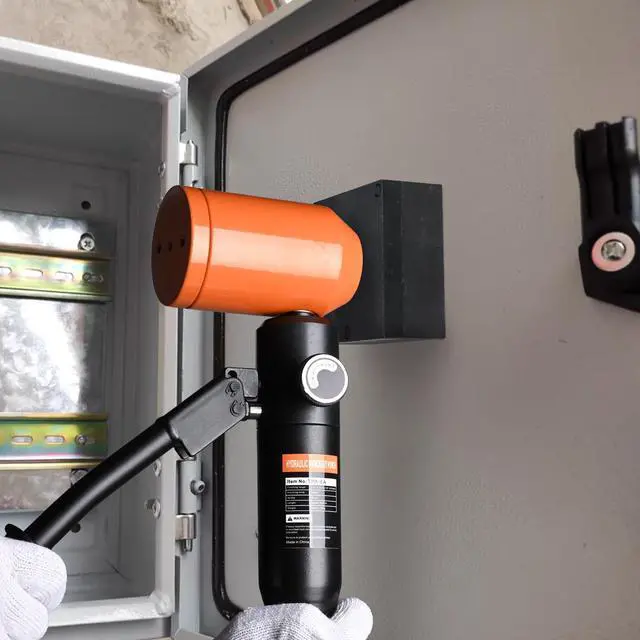

- Widely Used - The hydraulic knockout punch die is ideal for multiple usages such as sheet metal fabrication, electric service boxes, wire pipelines, signal lamps and instrument on construction sites, metallurgy, electronics, etc.

Specifications:

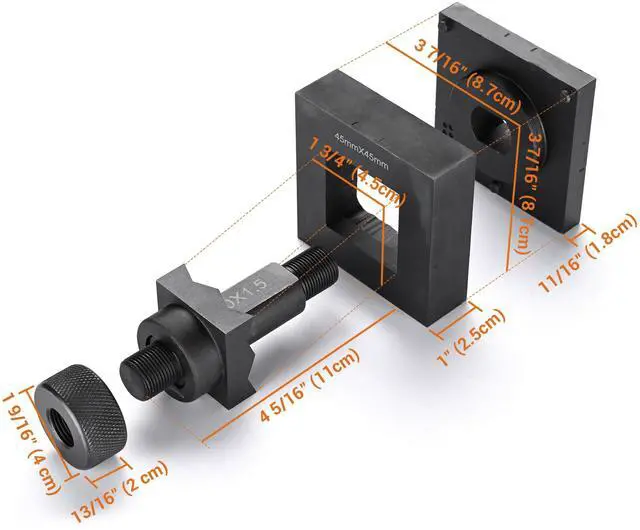

- Overall Dimension(LxWxH) 3 7/16" x 3 7/16" x 4 5/16" (8.8 x 8.8 x 11 cm)
- Conduit Size 1 3/4" x 1 3/4" (4.5 x 4.5 cm)
- Draw Stud Size 1" x 13/16" x 4 5/16" (2.6 x 2 x 11 cm)
- Draw Stud Thread Size M20×1.5, M3/4-16
- Max. Thickness for Iron 1/8" (11 gauge)
- Max. Thickness for Stainless Steel 1/16" (16 gauge)
- Material 40Cr Steel
- Net Weight 6.4 Lbs (2.9 kg)

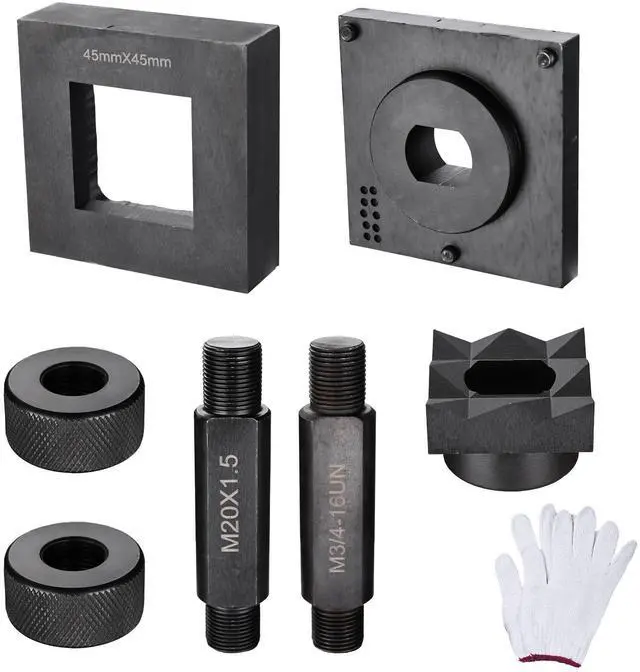

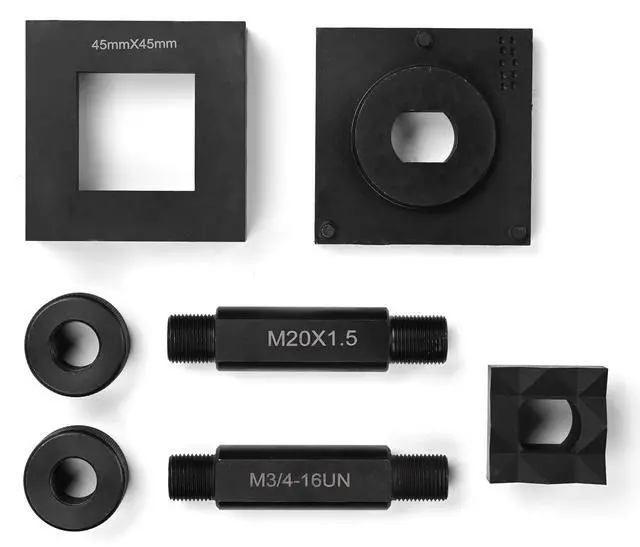

Package Contents:

- 1x Hydraulic Punching Die
- 2x Draw Studs
- 2x Nuts
- 1 Pair of Gloves
- 1x Manual
