Yescom 1/2" to 4" 15-Ton Hydraulic Knockout Punch Set 10-Die Conduit Punch Driver Kit for Sheet Metal Aluminum Stainless Steel

Features:

- Hydraulic punch tool kit features 1pc 15-ton pump, 2pcs draw studs, 1pc spacer and 10 sets of interchangeable dies & punches
- Hydraulic mechanism pump produces 15T strong pressure for providing high punching accuracy and fast punching speed, more labor-saving on punching uniform holes

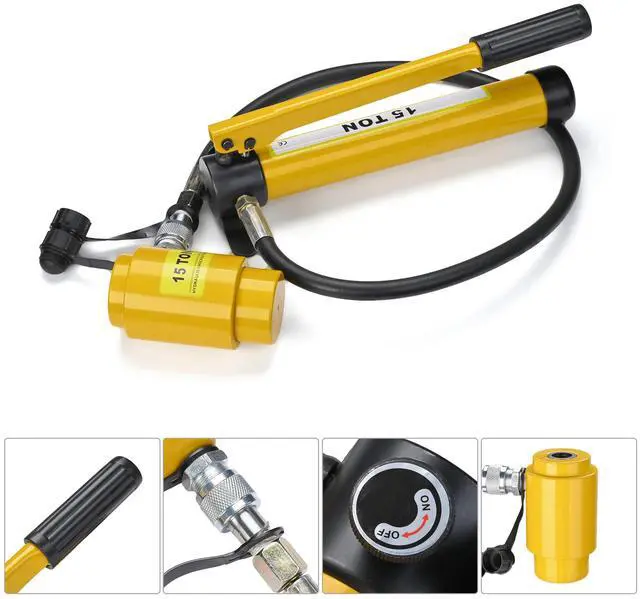

- Pump with pressure hose for adjusting the angle of the ram flexibly to meet your punching needs
- 40Cr steel dies and 45# steel pump body for ensuring high strength, sturdiness and durability, stable construction is suitable for heavy-duty and frequent punching works
- Rotatable "on/off" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value
- Sturdy metal case with handle and double metal locks for convenient and safe storage

Specifications:

- Pump Dimension(LxWxH): 12-5/8" x 4-5/16" x 4-5/16" (32 x 11 x 11 cm)
- Metal Case Dimension(LxWxH): 18-1/2" x 9-7/16" x 5-7/8" (47 x 24 x 15 cm)

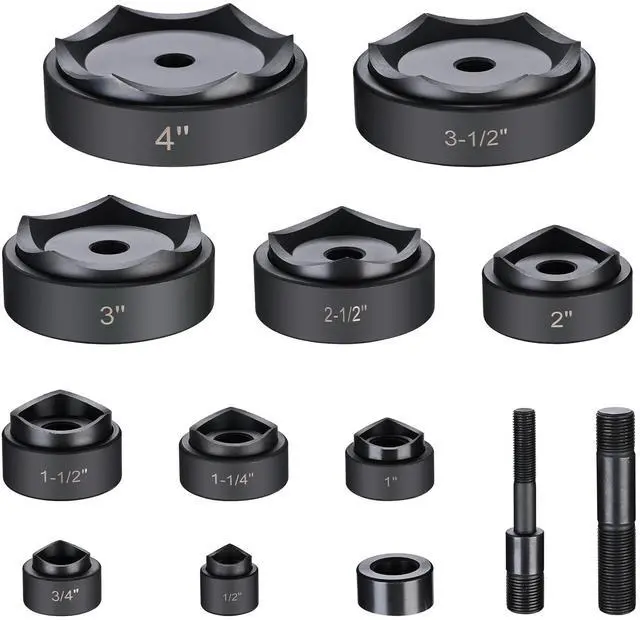

- 10 Dies & Punches Sizes: 1/2", 3/4", 1", 1 1/4", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4"
- Drilling Hole Size: 7/8 (22.5mm), 1-1/8 (28.3mm), 1-3/8 (34.6mm), 1-11/16 (43.2mm), 1-15/16 (49.6mm), 2-7/16 (61.5mm), 2-15/16 (74mm), 3-9/16 (89.9mm), 4-1/16 (102.7mm), 4-9/16 (115.4mm)
- Draw Stud Size(LxDia): 4-1/8" x 5/16" (10.5 x 0.78 cm)
- Hose Length: 39 3/8" (100 cm)
- Max Pressure: 15 ton
- Material: 45# Steel, Aluminum Alloy, 40Cr Steel
- Max Thickness for Iron: 1/8" (11 gauge)
- Max Thickness for Stainless Steel: 1/16" (16 gauge)
- Net Weight: 48.5 Lbs (22 kg)

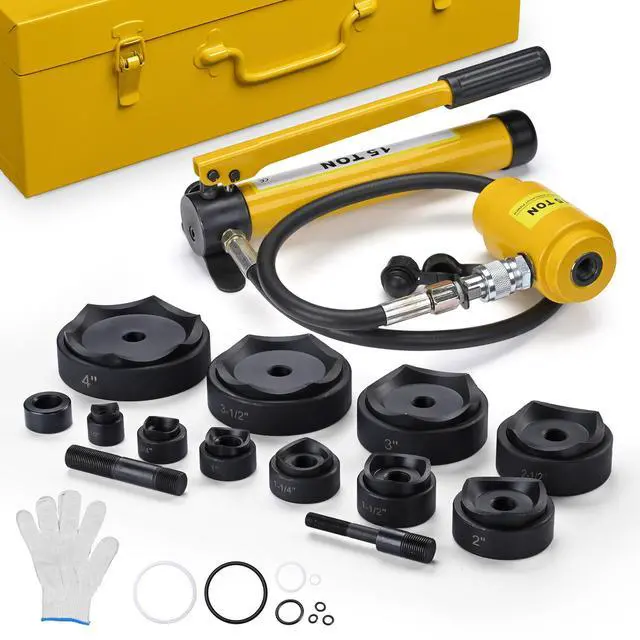

Package Contents:

- 1x 15-Ton Pump
- 1x Ram with Hose
- 10 Sets of Dies & Punches
- 1x Spacer
- 2x Draw Studs
- 1x Metal Carrying Case
- 1x Manual
