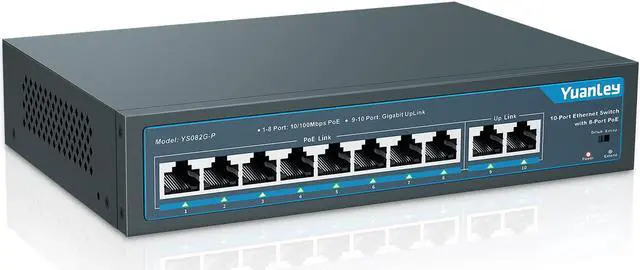

8 Port PoE Switch with 2 Gigabit Uplink, 8 PoE+ Port 100Mbps, 120W 802.3af/at, Extend Function, Metal, Fanless, Unmanaged Plug and Play Network Switch

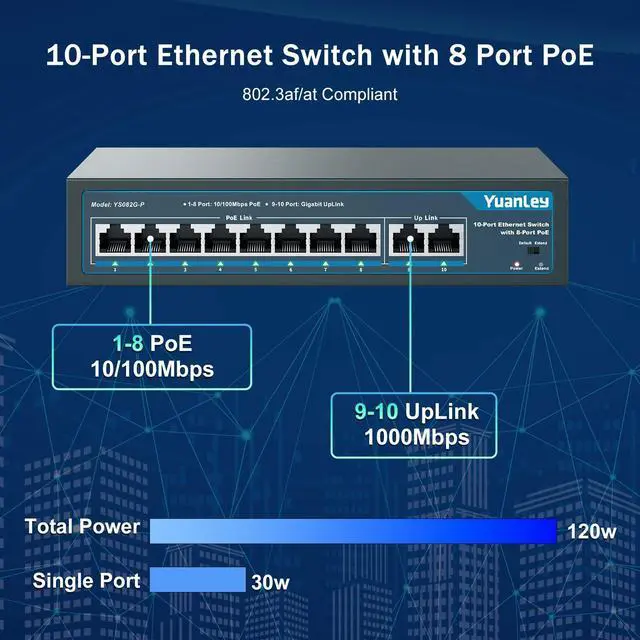

Port and rateThis poe network switch includes 8 POE ports (10/100Mbps) and 2 Gigabit UpLink ethernet(1000Mbps). The Gigabit Uplink can support more bandwidth than 100Mbps port.

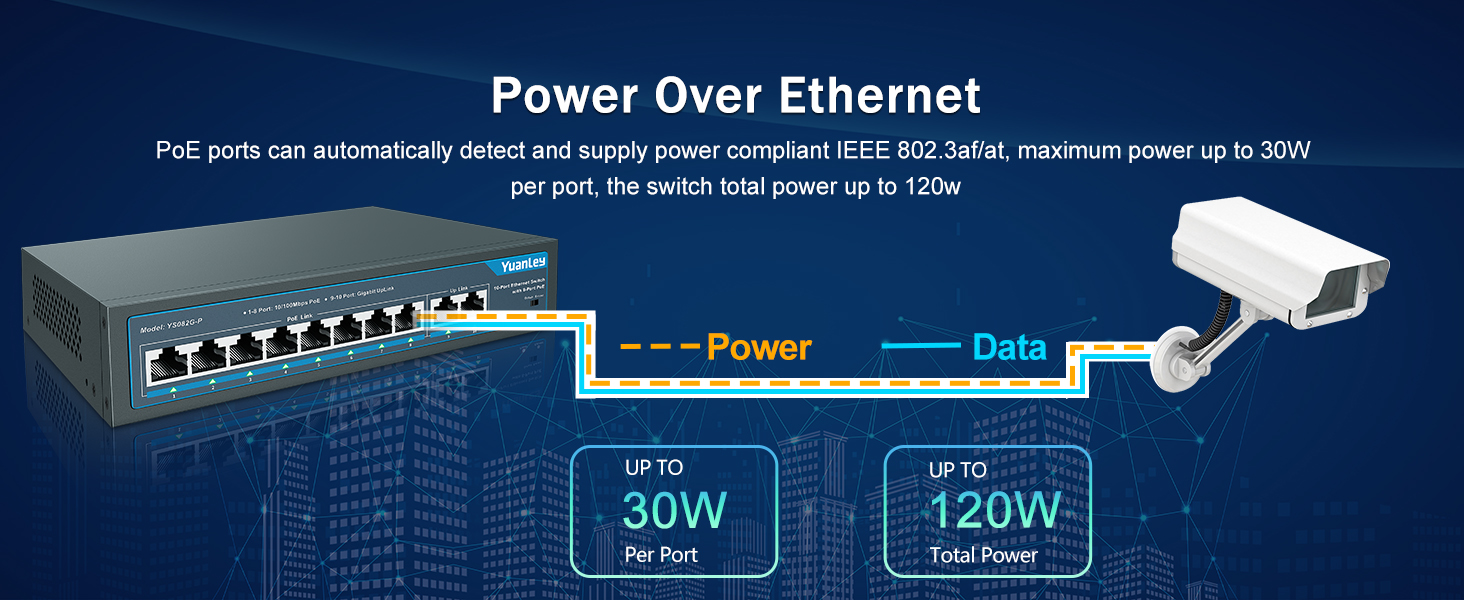

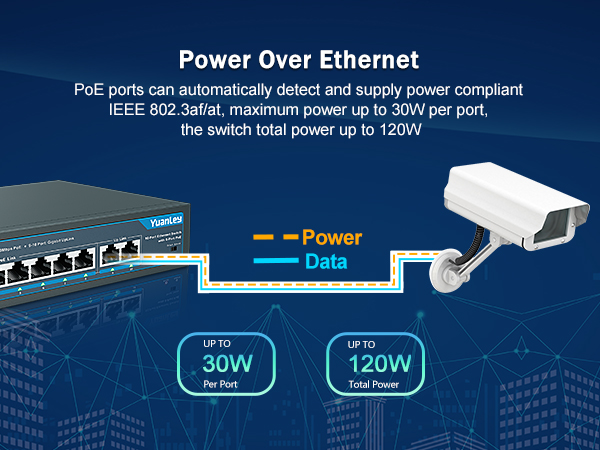

120W Power Supply Support IEEE 802.3af/at. Max 120W, built-in power, each port up to 30W and 15.4W in the same time.**Please note: If your device support 24V passive PoE, not support IEEE802.3at/at 48v PoE, it will not be compatible**

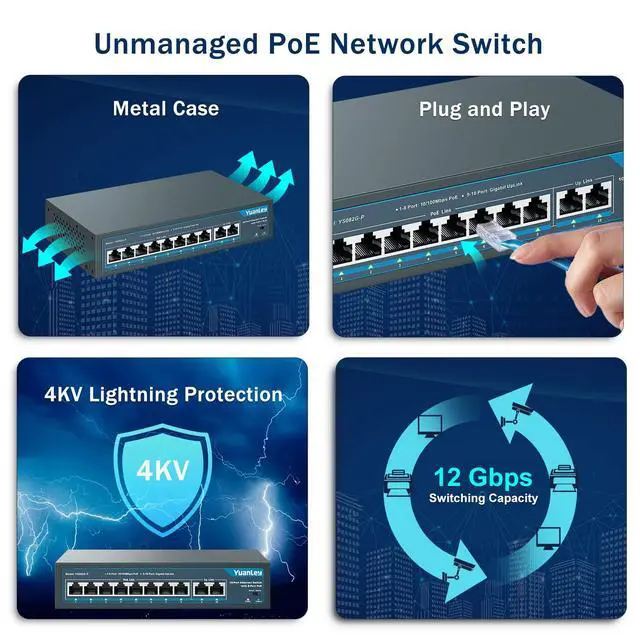

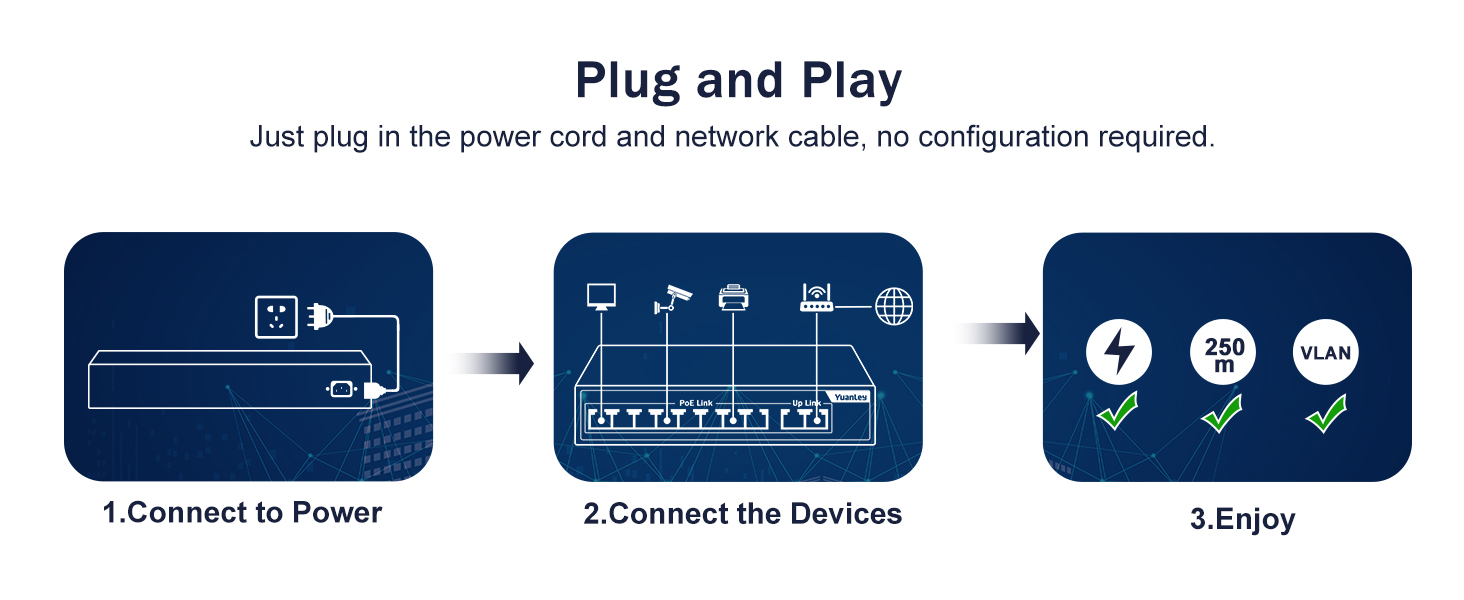

Plug and Play Support automatically detect devices, just plug in the power cord and network cable, no configuration required, easy to use.It is an unmanaged ethernet network switch

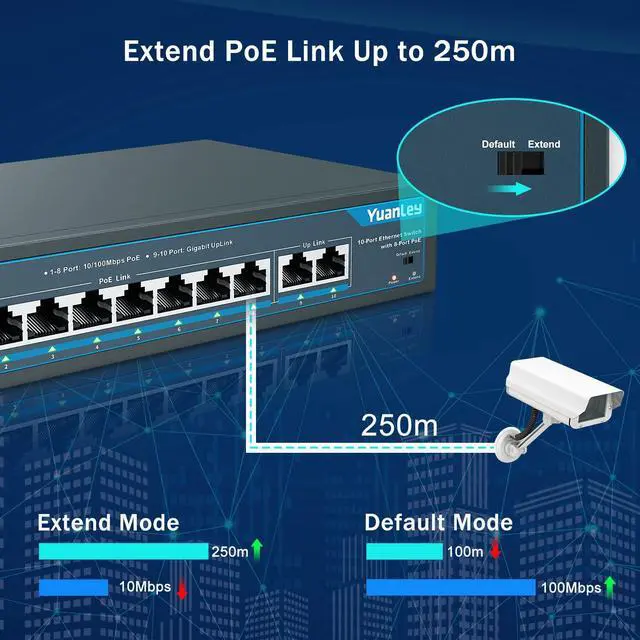

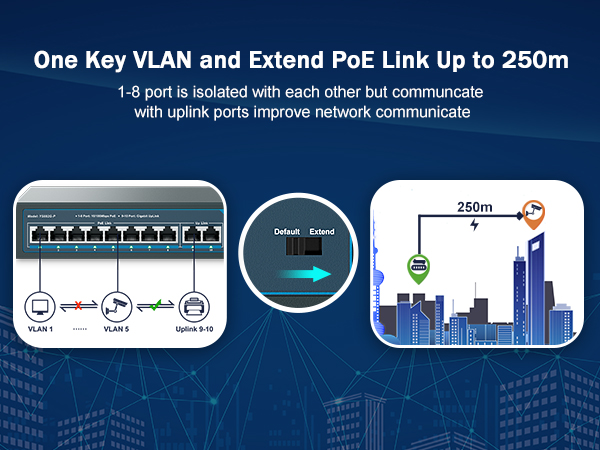

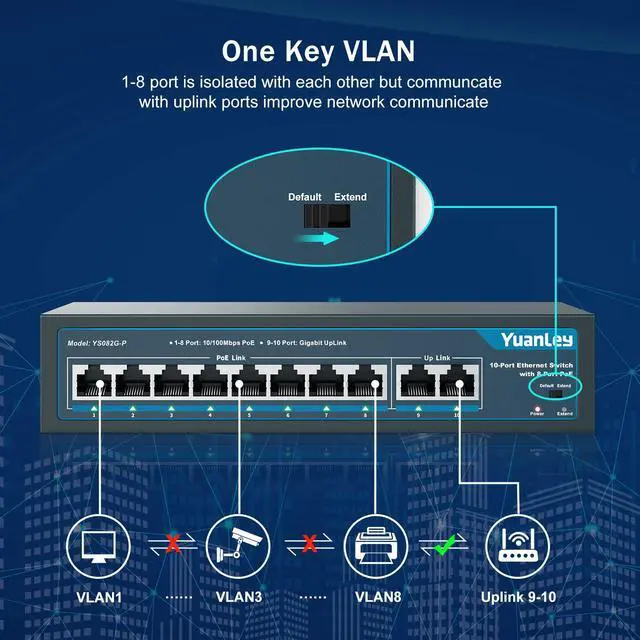

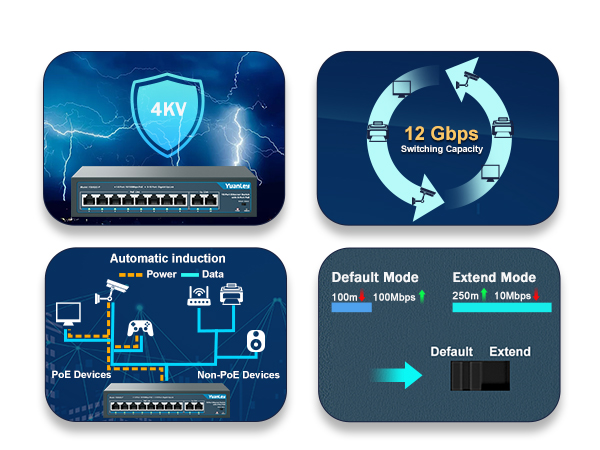

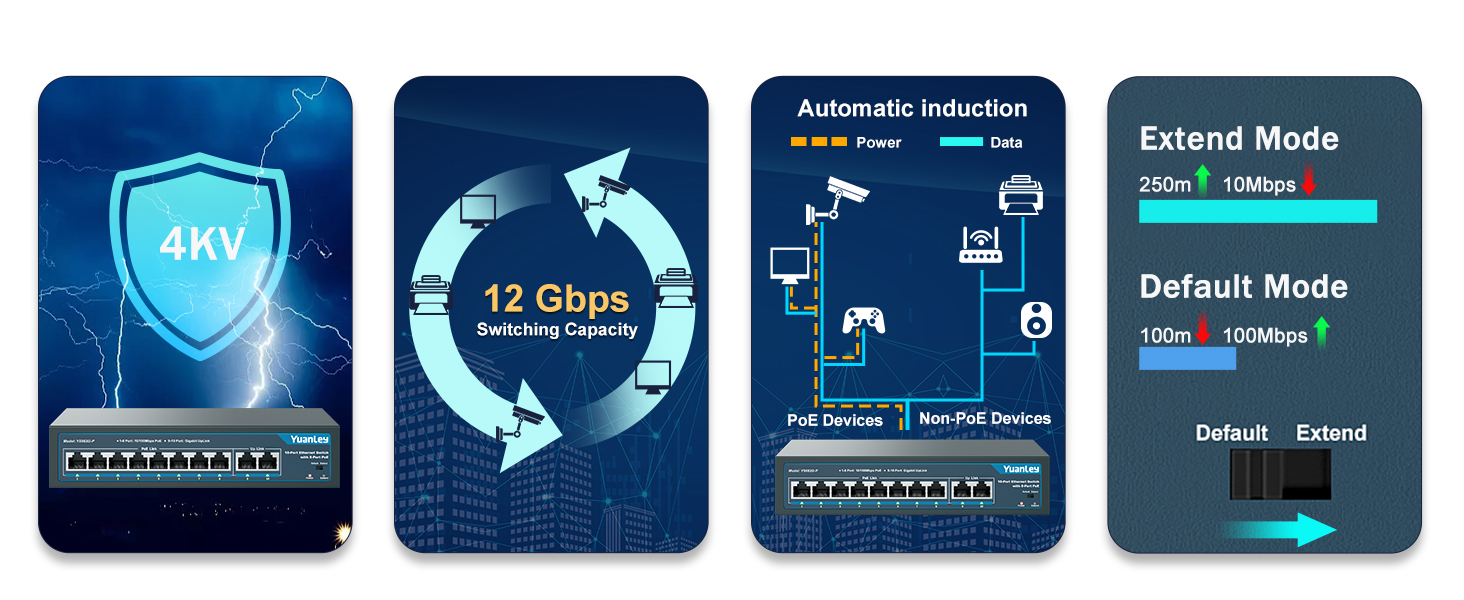

250m and VLAN support When the extend mode is enabled, single POE port supports 250m transmission distances and 10Mbps speed. 1-8 ports support VLAN isolation, reduce network congestion, improve the network safety.

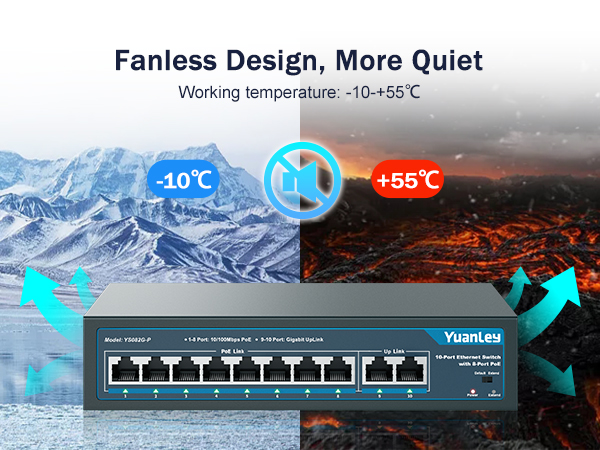

Wide Applications Compact design. Durable Metal. Bilateral heat dissipation. LED lights. Widely used in IP cameras, Wireless Access Point, IP Phone, Computer Networks, etc.. If you have any questions, please contact our official support, we will provide the best after-sales service

Which is the Best for You?

	YS082G-P	YS2083GS-P	YS2080G-P	YS2041G-P	YS042F-P	YS20242F-P	AI-YS082G-P
PoE Port	8x10/100Mbps	8x10/100/1000Mbps	8x10/100/1000Mbps	4x10/100/1000Mbps	4x10/100Mbps	24x10/100Mbps	8x10/100/1000Mbps
UpLink Port	2x10/100/1000Mbps	2x10/100/1000Mbps	N/A	1x10/100/1000Mbps	2x10/100Mbps	2x10/100/1000Mbps	2x10/100/1000Mbps
POE Power Output	120W	120W	120W	78W	78W	400W	120W
Switch Capacity	12Gbps	12Gbps	16Gbps	12Gbps	1.6Gbps	16Gbps	20Gbps
Dimensions (L x W x H)	7.9 x 4.7 x 1.7	7.9 x 4.7 x 1.7	7.9 x 4.7 x 1.7	7.9 x 4.7 x 1.7	7.9 x 4.7 x 1.7	10.6 x 7.1 x 1.7	7.7 x 5 x 1.6
Weight (lbs)	2.31	2.31	2.31	2.15	2.15	4.62	1.98
Extend Function
VLAN
Output Power	15.4W/30W	15.4W/30W	15.4W/30W	15.4W/30W	15.4W/30W	15.4W/30W	15.4W/30W
Metal Case
Fanless Design
Network Protocol	802.3AF/AT	802.3AF/AT	802.3AF/AT	802.3AF/AT	802.3AF/AT	802.3AF/AT	802.3AF/AT

2.5G Switch with 10G SFP
YuanLey 10G 2.5G Switch
YuanLey PoE Switch
YuanLey Outdoor PoE

Which is the Best for You?

	PoE Port	UpLink Port	POE Power Output	Switch Capacity	Dimensions (L x W x H)	Weight (lbs)	Extend Function	VLAN	Output Power	Metal Case	Fanless Design	Network Protocol
YS082G-P	8x10/100Mbps	2x10/100/1000Mbps	120W	12Gbps	7.9 x 4.7 x 1.7	2.31			15.4W/30W			802.3AF/AT
YS2083GS-P	8x10/100/1000Mbps	2x10/100/1000Mbps	120W	12Gbps	7.9 x 4.7 x 1.7	2.31			15.4W/30W			802.3AF/AT
YS2080G-P	8x10/100/1000Mbps	N/A	120W	16Gbps	7.9 x 4.7 x 1.7	2.31			15.4W/30W			802.3AF/AT
YS2041G-P	4x10/100/1000Mbps	1x10/100/1000Mbps	78W	12Gbps	7.9 x 4.7 x 1.7	2.15			15.4W/30W			802.3AF/AT
YS042F-P	4x10/100Mbps	2x10/100Mbps	78W	1.6Gbps	7.9 x 4.7 x 1.7	2.15			15.4W/30W			802.3AF/AT
YS20242F-P	24x10/100Mbps	2x10/100/1000Mbps	400W	16Gbps	10.6 x 7.1 x 1.7	4.62			15.4W/30W			802.3AF/AT
AI-YS082G-P	8x10/100/1000Mbps	2x10/100/1000Mbps	120W	20Gbps	7.7 x 5 x 1.6	1.98			15.4W/30W			802.3AF/AT

2.5G Switch with 10G SFP
YuanLey 10G 2.5G Switch
YuanLey PoE Switch
YuanLey Outdoor PoE

Brand	YuanLey
Number of Ports	10
Included Components	YuanLey 10 Port PoE Switch
Color	Gray
Compatible Devices	Camera, IP Phone, Wireless access point, computers

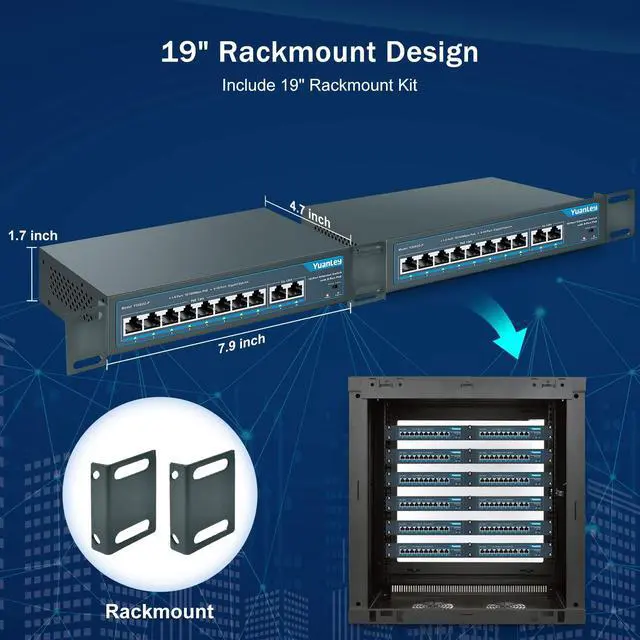

Product Dimensions	7.9"L x 4.7"W x 1.7"H
Item Weight	0.96 Kilograms
Voltage	48 Volts (AC)
Case Material	Metal

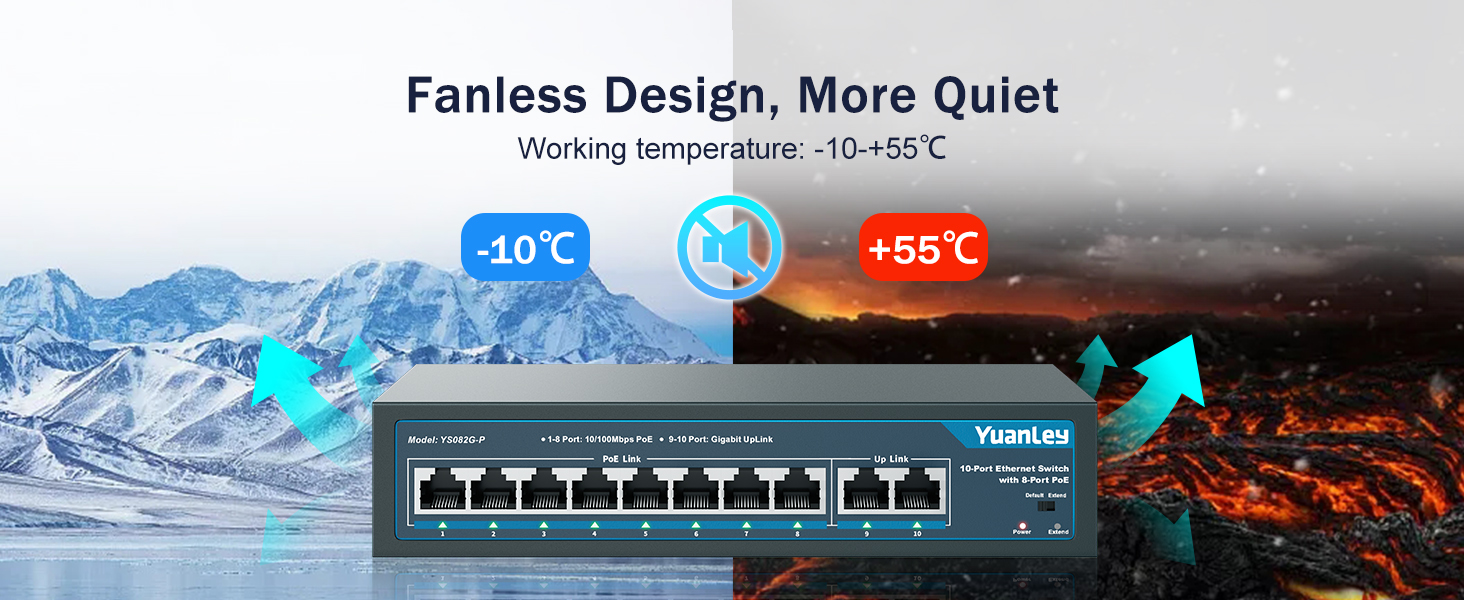

Upper Temperature Rating	55 Degrees Celsius
Interface Type	RJ45
Data Transfer Rate	1000 Megabits Per Second
Current Rating	2 Amps
Manufacturer	YuanLey
UPC	786118199798
Item model number	10 Port \| 8*PoE+ (120w)
Date First Available	December 10, 2019

Uplink Interface	RJ45
Primary Ports	RJ45
Primary Port Speed	1000 megabits_per_second
Primary Port Type	RJ45

PoE Ports	10 Port / 8*PoE+ (120w)
Power	48 volts_of_alternating_current,
