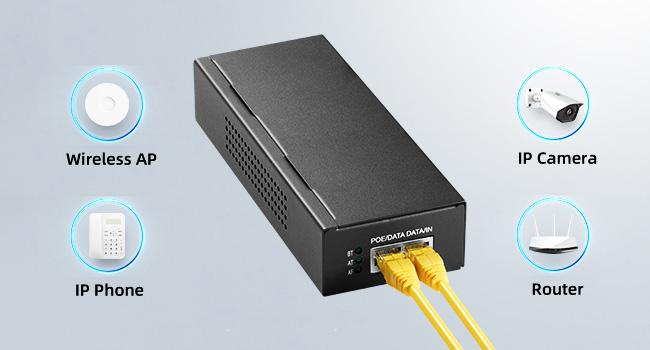

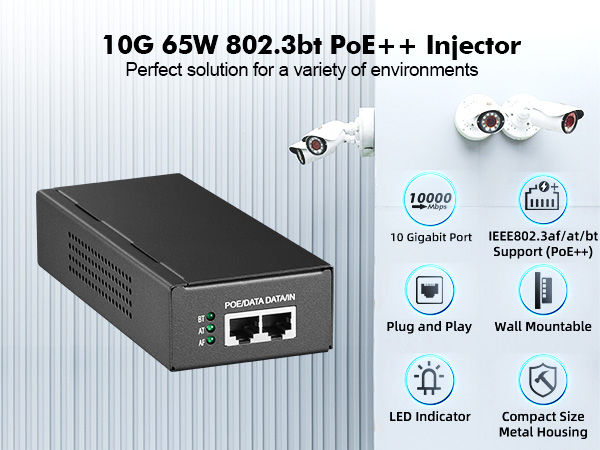

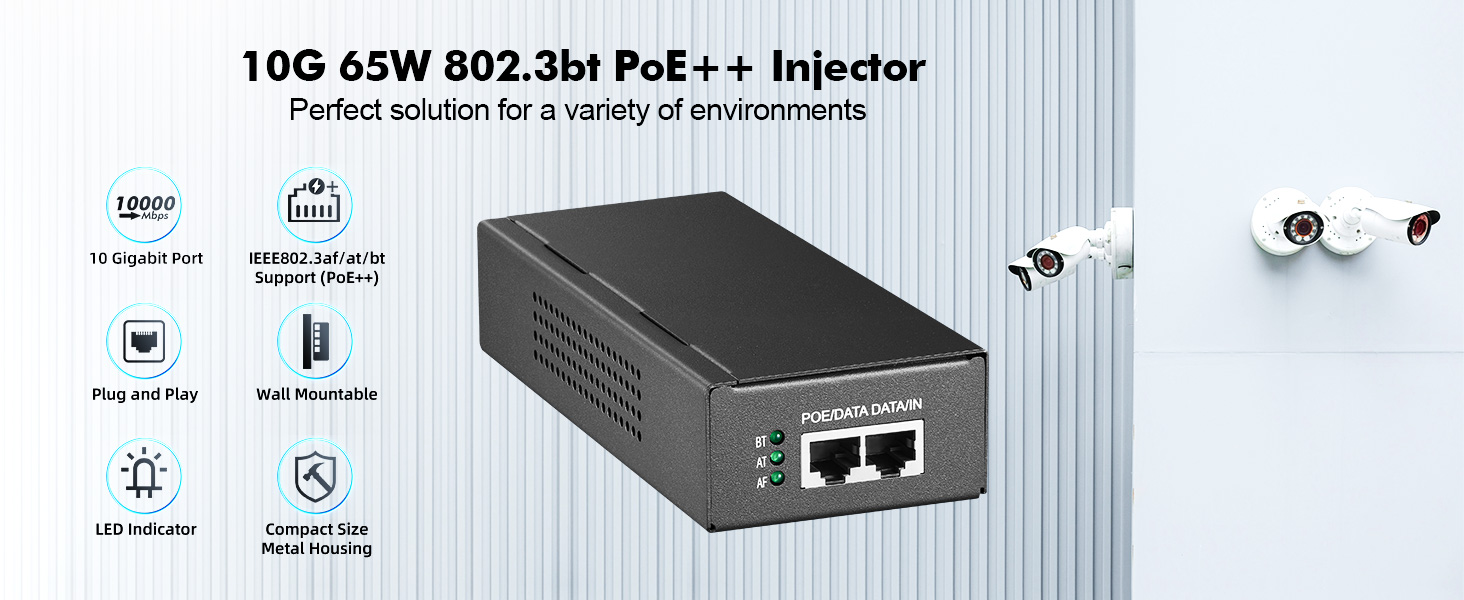

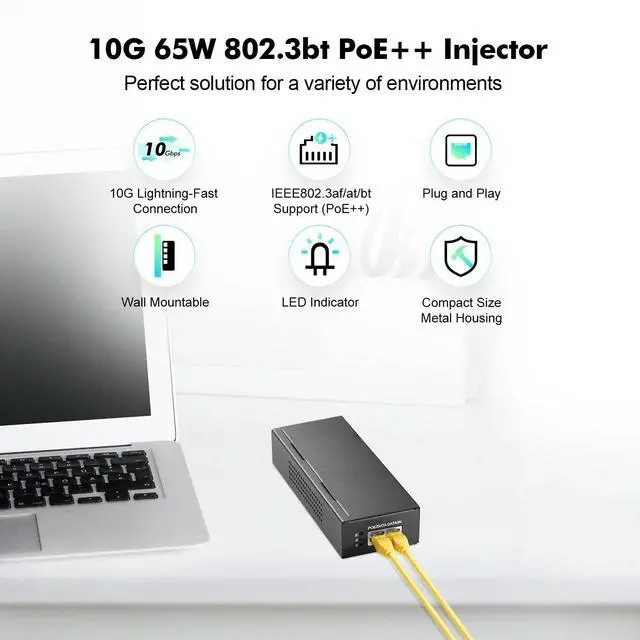

The P10GN65W 10 Gigabit PoE++ Injector fully complies with IEEE 802.3af/at/bt PoE standards with up to 65W power supply. Plug and Play, flexible wall-mount Installation. It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.

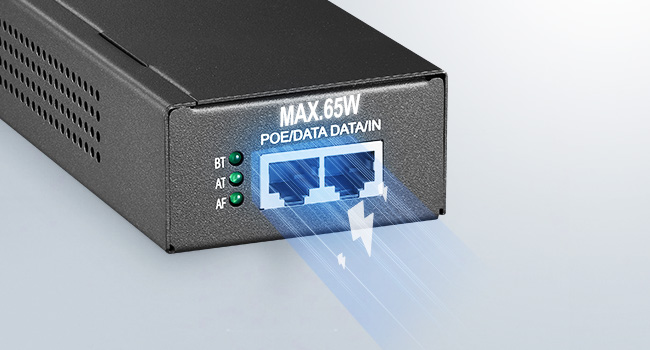

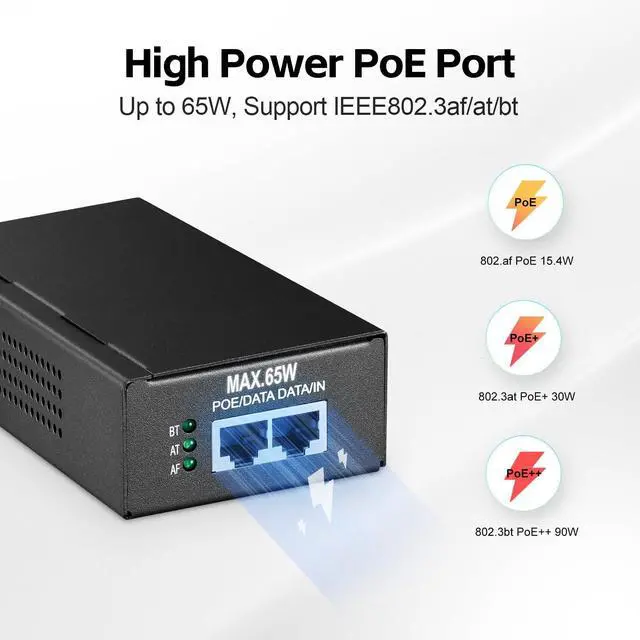

65W PoE Power Output
Complies with IEEE802.3af/at/bt standards, supplies up to 65W, It auto detect the required power for PDs.

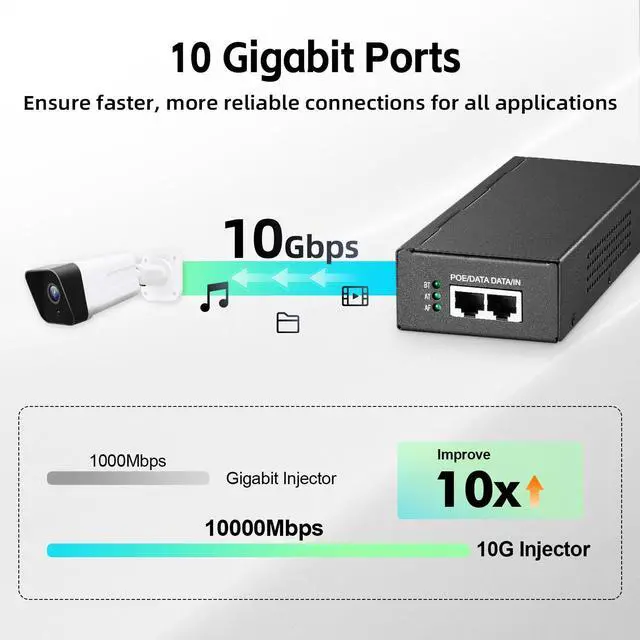

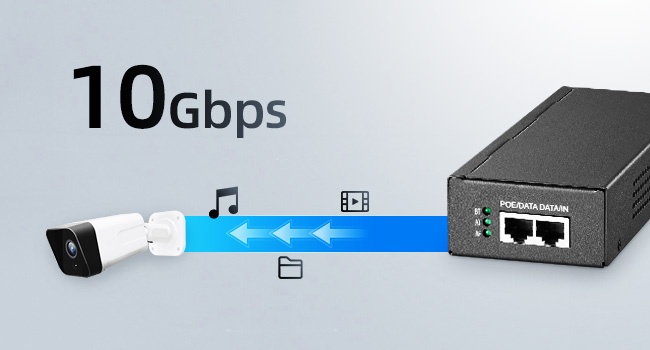

10 Gigabit Ports Ensure Faster Connections
Both the input and output port are 10 gigabit speed, ensure faster and more reliable connections for all devides. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.

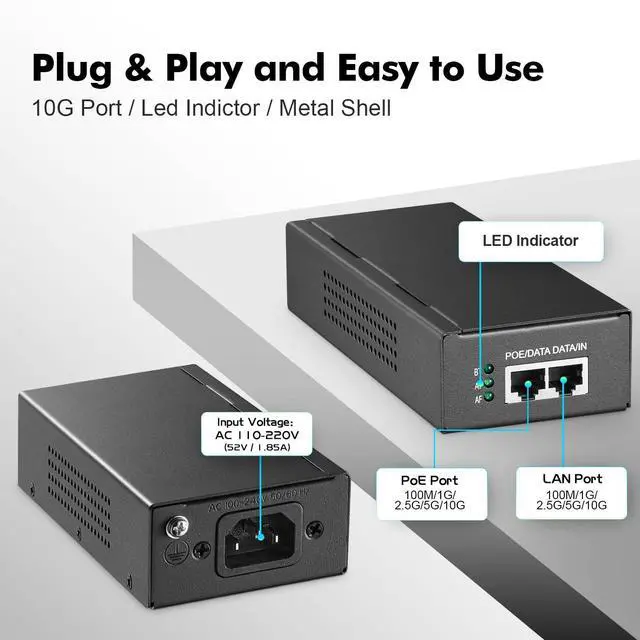

Plug and Play
Plug & Play installation, no software setup or configuratio required, Just plug the Ethernet enabled device into the injector.

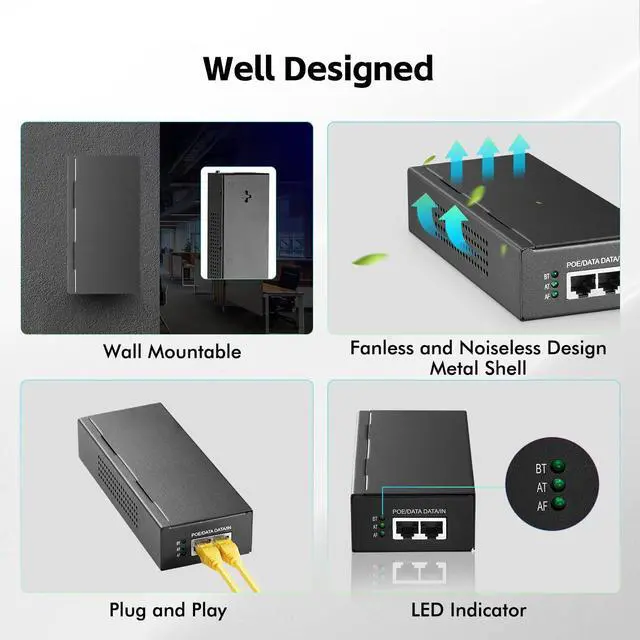

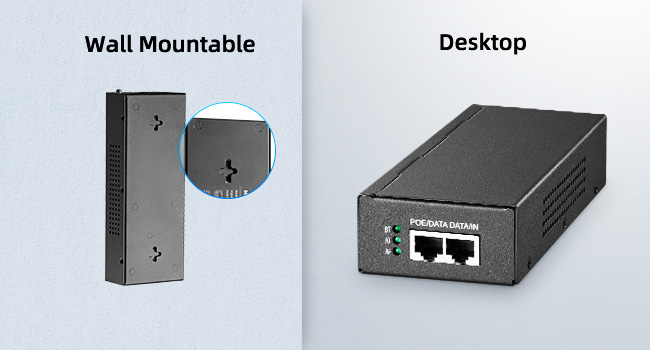

Wall-mounting and Desktop Design
Wall-mounting and desktop design provide flexible mounting options, It suitable for most installation scenarios.

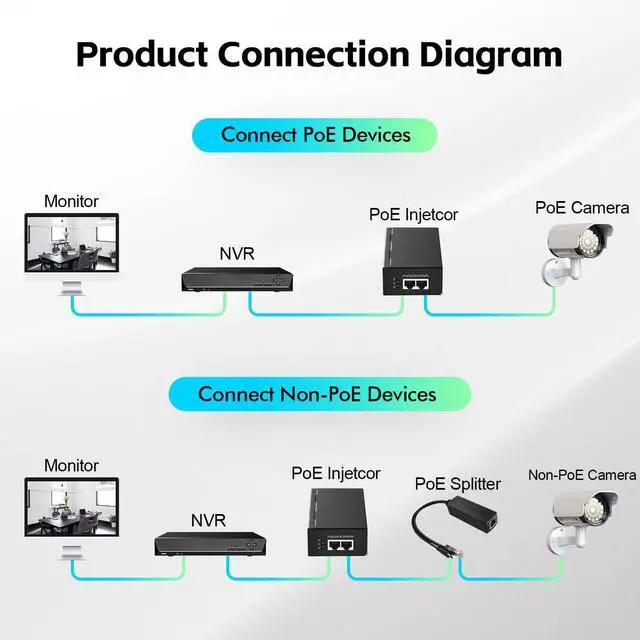

Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable. It is ideal for IP surveillance, digital signage and other PoE devices.
Technical Parameter
YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
The P10GN65W 10 Gigabit PoE++ Injector fully complies with IEEE 802.3af/at/bt PoE standards with up to 65W power supply. Plug and Play, flexible wall-mount Installation. It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.
65W PoE Power Output
Complies with IEEE802.3af/at/bt standards, supplies up to 65W, It auto detect the required power for PDs.
10 Gigabit Ports Ensure Faster Connections
Both the input and output port are 10 gigabit speed, ensure faster and more reliable connections for all devides. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Plug and Play
Plug & Play installation, no software setup or configuratio required, Just plug the Ethernet enabled device into the injector.
Wall-mounting and Desktop Design
Wall-mounting and desktop design provide flexible mounting options, It suitable for most installation scenarios.
Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable. It is ideal for IP surveillance, digital signage and other PoE devices.
Technical Parameter
| Model | P10GN65W |
|---|---|
| Ports | 1× 10G/1G/100M/10Mbps RJ45 data-in port, 1× 10G/1G/100M/10Mbps RJ45 power+data-out port (Max. 65 W), 1× AC socket |
| Standards and Protocols | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3ae (10GBase-TX) |
| PoE Protocols | IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m), 100BASE-TX: UTP category 5, 5e cable (maximum 100 m), 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m), 10GBASE-T: UTP category 5e, 6 cable(maximum 100 m) |
| Power Consumption | Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max. 65 W) |
| LED | Power / PoE |
| Dimensions ( W x D x H ) | 114mmx47mmx32mm |
| Product Weight | 0.6kg |
| Working Environment | Working Temperature:-0~40°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Package List | PoE Injector 1 pcs, Power cord 1 pcs, User manual 1 pc |
