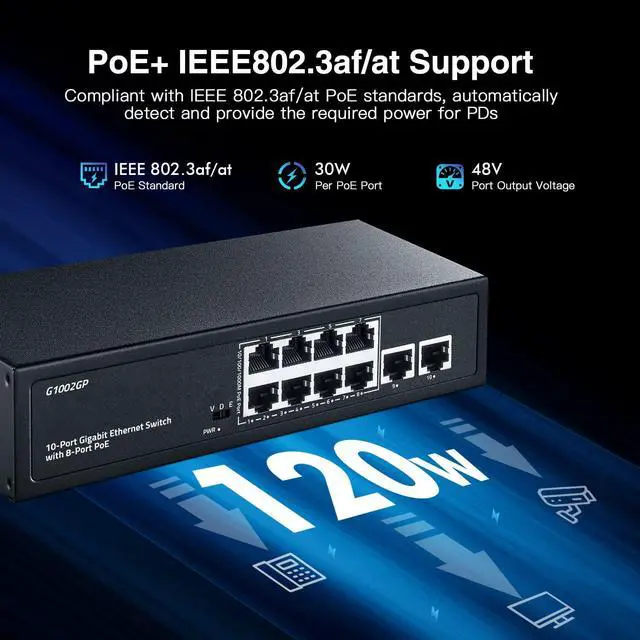

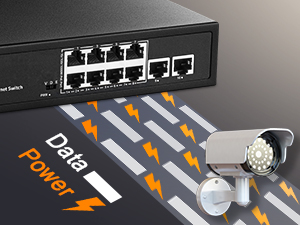

PoE Devices Auto Detection
With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE802.3af/at compliant.

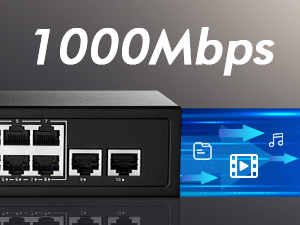

Full Gigabit Ports
Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.

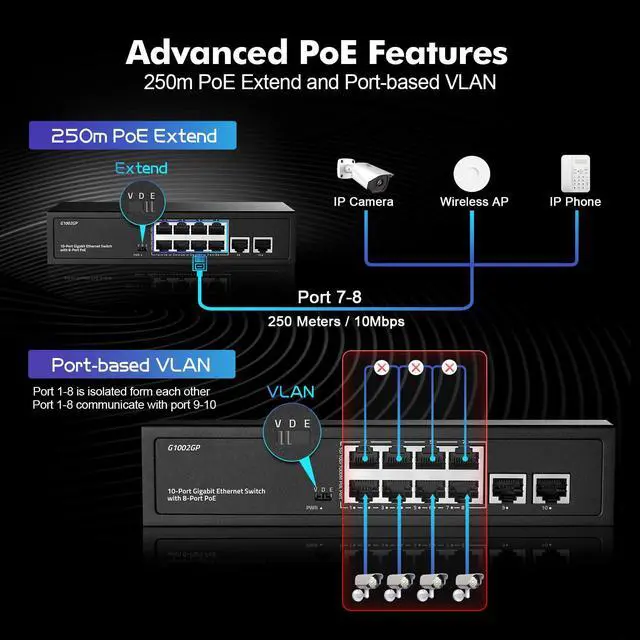

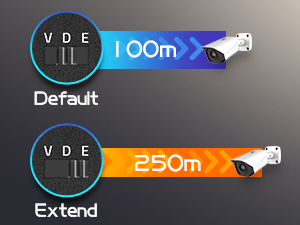

250m Distance Extend
7-8 ports force 10M, transmission distance extend to 250M.when you enable Extend(E) mode.

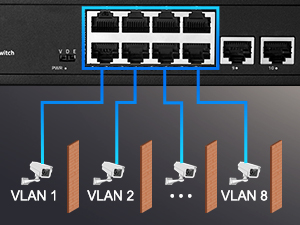

Port-based VLAN
Ports 1 to 8 are isolated and communicate with the upstream interface when you enable vlan mode. To prevent broadcast storm from affecting each other.

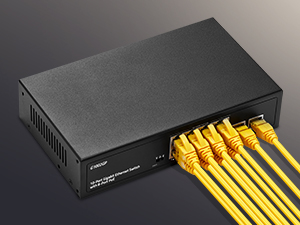

Plug and Play
The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.

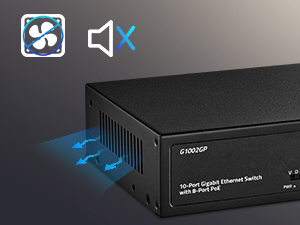

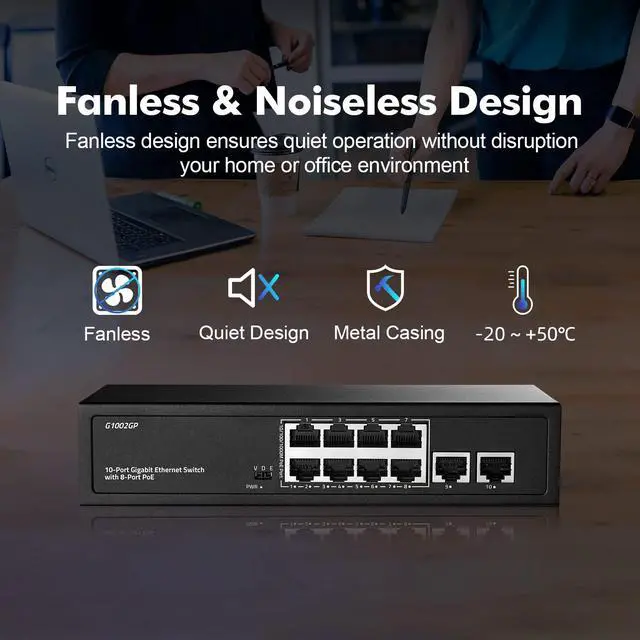

Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.

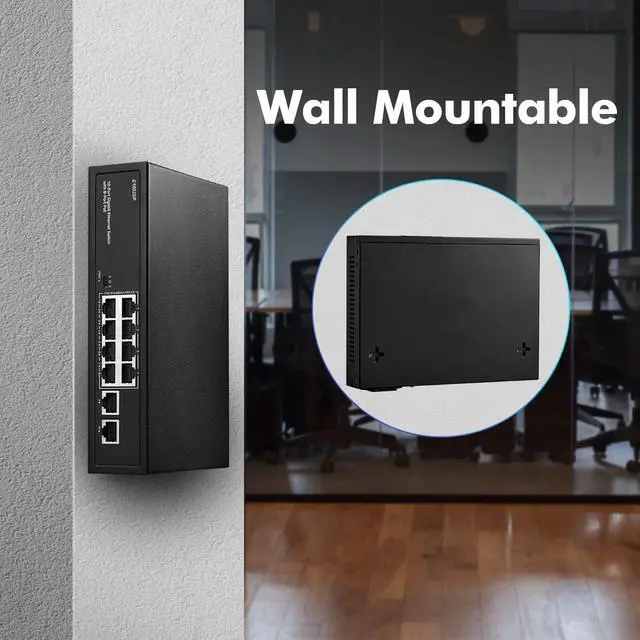

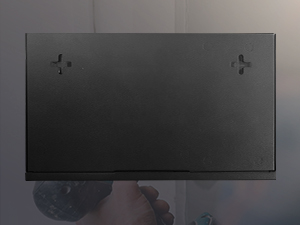

Wall-mount Support
The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.
Lighting Protection
The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Product Specifications
Product Compare
 G1002GP |  F1002GP |  G0602GS |  F1602GP |  F2602GP | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Ethernet Port | 8 x 1000M PoE + 2x 1000M RJ45 | 8x100M PoE + 2x 1000M RJ45 | 4 x 1G PoE+1x 1G RJ45 +1G SFP | 16x100M PoE + 2x 1000M RJ45 | 24x100M PoE + 2x 1000M RJ45 |
PoE Protocol | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at |
Total PoE Budget | 120W | 96W | 65W | 200W | 300W |
Switching Capacity | 20Gbps | 5.6Gbps | 12Gbps | 7.2Gbps | 8.8Gbps |
Size | 200x118x44mm | 200x118x44mm | 200x118x44mm | 268x181x44mm | 268x181x44mm |
Weight | 0.71kg | 0.71kg | 0.6kg | 1.29kg | 1.44kg |
Mount Method | Wall Mount | Wall Mount | Wall Mount | Rack Mount | Rack Mount |
YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
PoE Devices Auto Detection
With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE802.3af/at compliant.
Full Gigabit Ports
Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.
250m Distance Extend
7-8 ports force 10M, transmission distance extend to 250M.when you enable Extend(E) mode.
Port-based VLAN
Ports 1 to 8 are isolated and communicate with the upstream interface when you enable vlan mode. To prevent broadcast storm from affecting each other.
Plug and Play
The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.
Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.
Wall-mount Support
The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.
Lighting Protection
The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Product Specifications

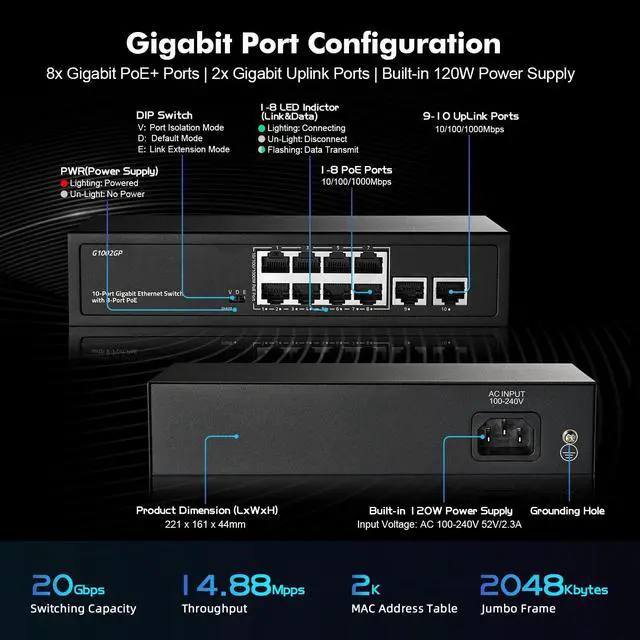

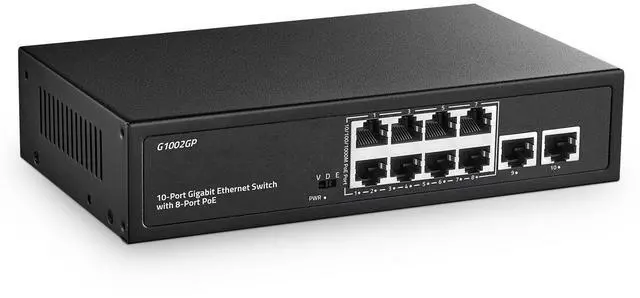

| Model | G1002GP |
|---|---|

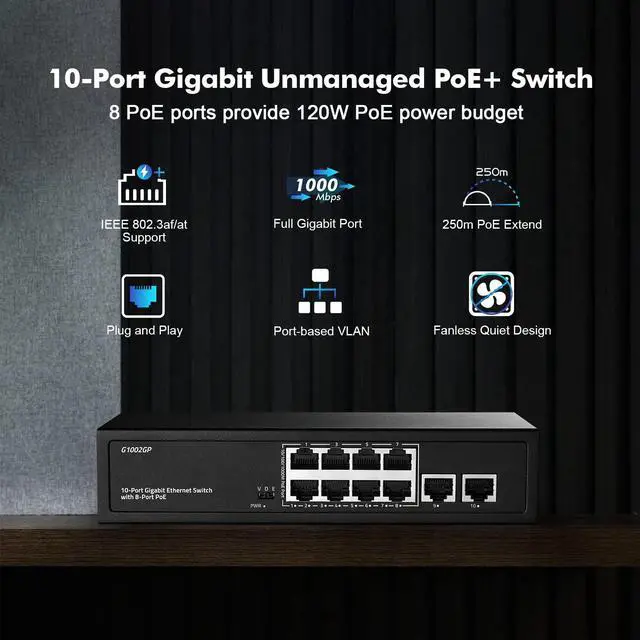

| Product Name | 10-Port Gigabit Ethernet Switch with 8-Port PoE |
| Ethernet | 8* Gigabit PoE Ethernet Ports + 2* Gigabit Uplink Ethernet Port |
| Bandwidth | 20Gbps |
| Pack forward rate | 14.88Mpps |
| Memory cache | 448K |
| MAC address | 2K |
| Jumbo Frame | 2048bytes |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af(15.4W), IEEE802.3at(30W) |
| Network Medium | 10Base-T : Cat3, 4, 5 or above UTP(=100m), 100Base-TX : Cat5 or above UTP(=100m), 1000Base-TX : Cat5 or above UTP(=100m) |
| Working Environment | Working Temperature: -10~50°C, Storage Temperature: -40~70°C, Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
| Indicator | PWR (Power), 1-10 Green Light (Link&Data) |
| DIP Mode | VLAN(V): Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default(D): Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled. Extend(E): Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M. |
| Structure Size | Product size: 200*118*44mm, Package size: 245*190*60mm, Net weight: 0.71KG, Gross weight: 0.99KG |
| Power Voltage | Input voltage :AC100-240V, Power supply: 52V2.3A (120W) |
Product Compare
G1002GP | F1002GP | G0602GS | F1602GP | F2602GP |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Ethernet Port | ||||
| 8 x 1000M PoE + 2x 1000M RJ45 | 8x100M PoE + 2x 1000M RJ45 | 4 x 1G PoE+1x 1G RJ45 +1G SFP | 16x100M PoE + 2x 1000M RJ45 | 24x100M PoE + 2x 1000M RJ45 |
| PoE Protocol | ||||
| IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at |
| Total PoE Budget | ||||
| 120W | 96W | 65W | 200W | 300W |
| Switching Capacity | ||||
| 20Gbps | 5.6Gbps | 12Gbps | 7.2Gbps | 8.8Gbps |
| Size | ||||
| 200x118x44mm | 200x118x44mm | 200x118x44mm | 268x181x44mm | 268x181x44mm |
| Weight | ||||
| 0.71kg | 0.71kg | 0.6kg | 1.29kg | 1.44kg |
| Mount Method | ||||
| Wall Mount | Wall Mount | Wall Mount | Rack Mount | Rack Mount |
