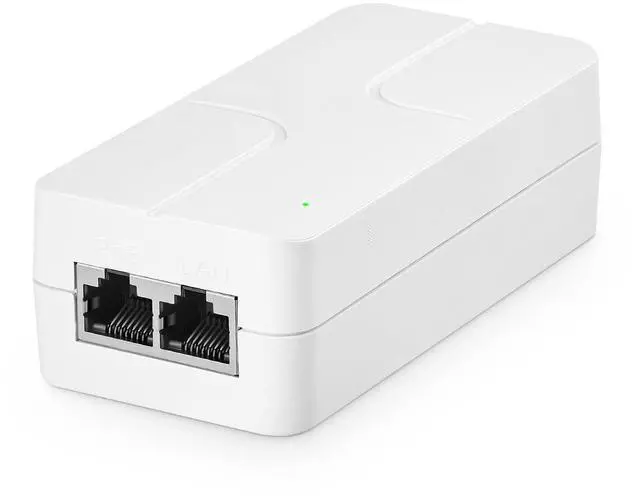

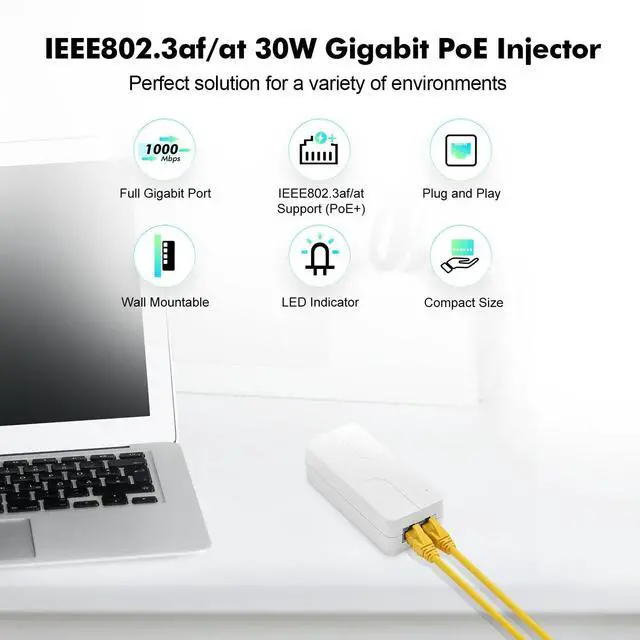

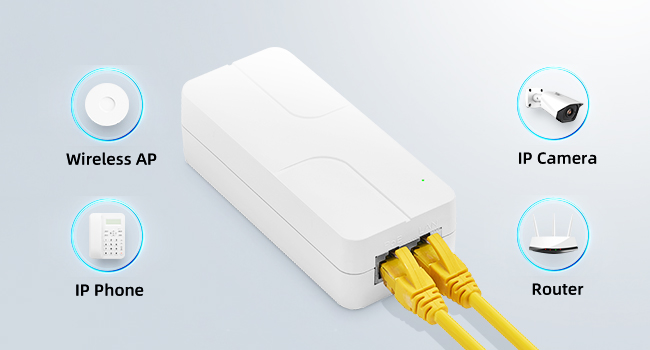

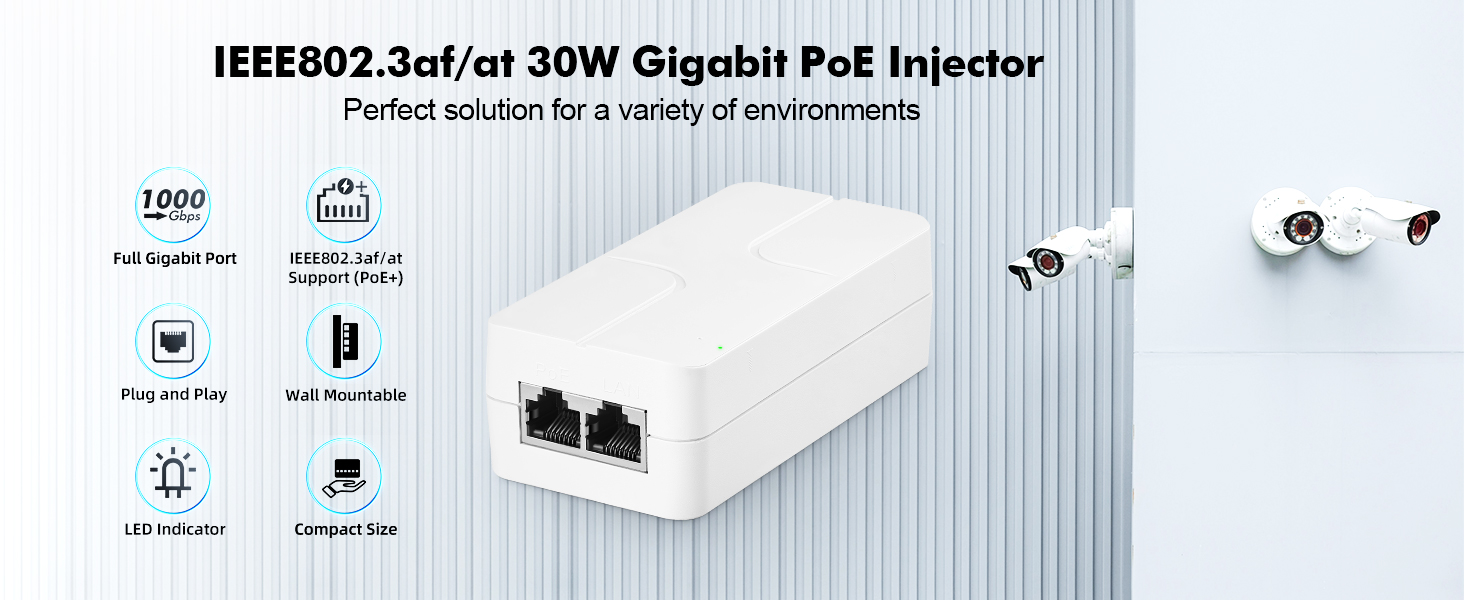

The PGN301W Gigabit PoE++ Injector fully complies with IEEE 802.3af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.

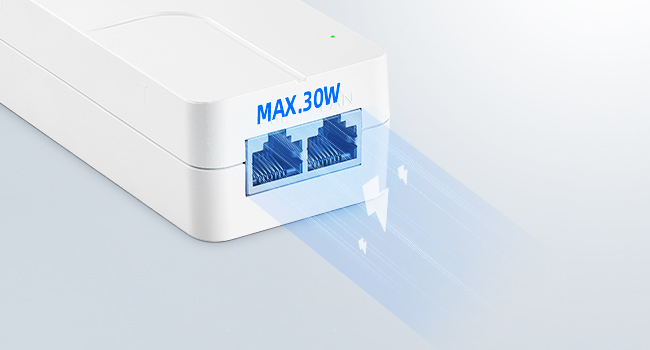

30W PoE Power Output
Complies with IEEE802.3af/at standards, supplies up to 30W, It auto detect the required power for PDs.

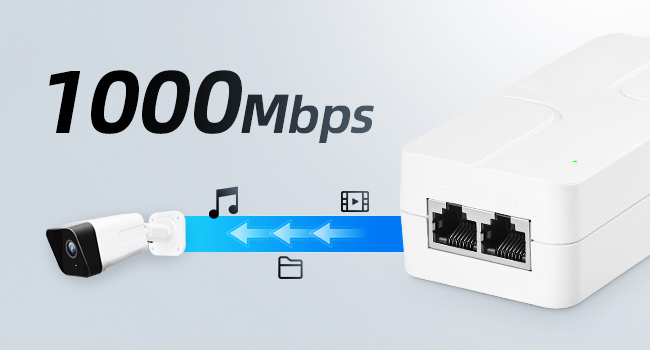

Gigabit Ports Ensure Faster Connections
Both the input and output port are gigabit speed, ensure faster and more reliable connections for all devides. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Plug and Play

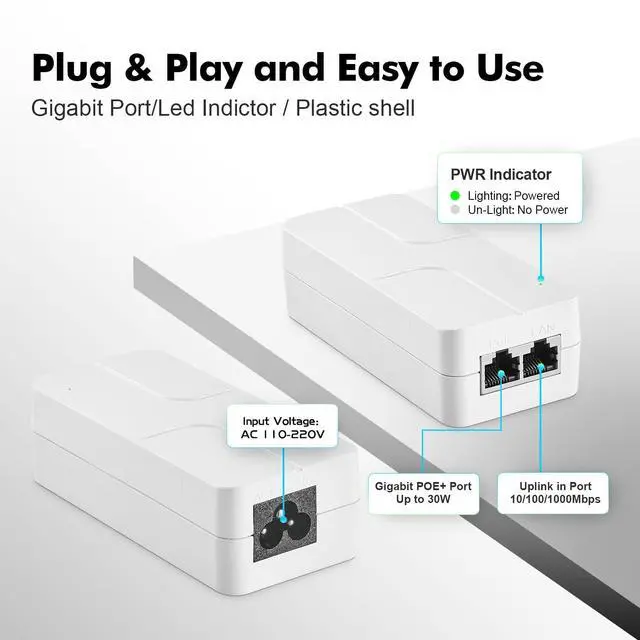

Plug & Play installation, no software setup or configuratio required, Just plug the Ethernet enabled device into the injector.

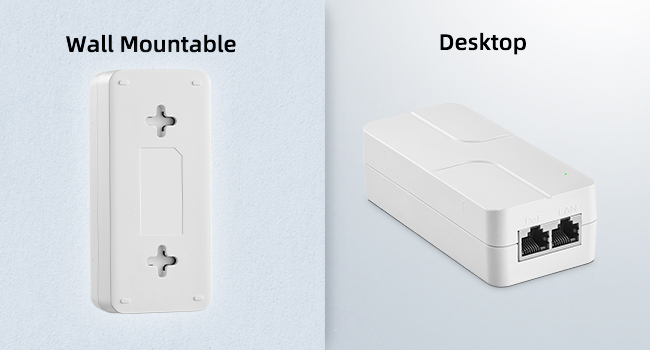

Wall-mounting and desktop design
Wall-mounting and desktop design provide flexible mounting options, It suitable for most installation scenarios.

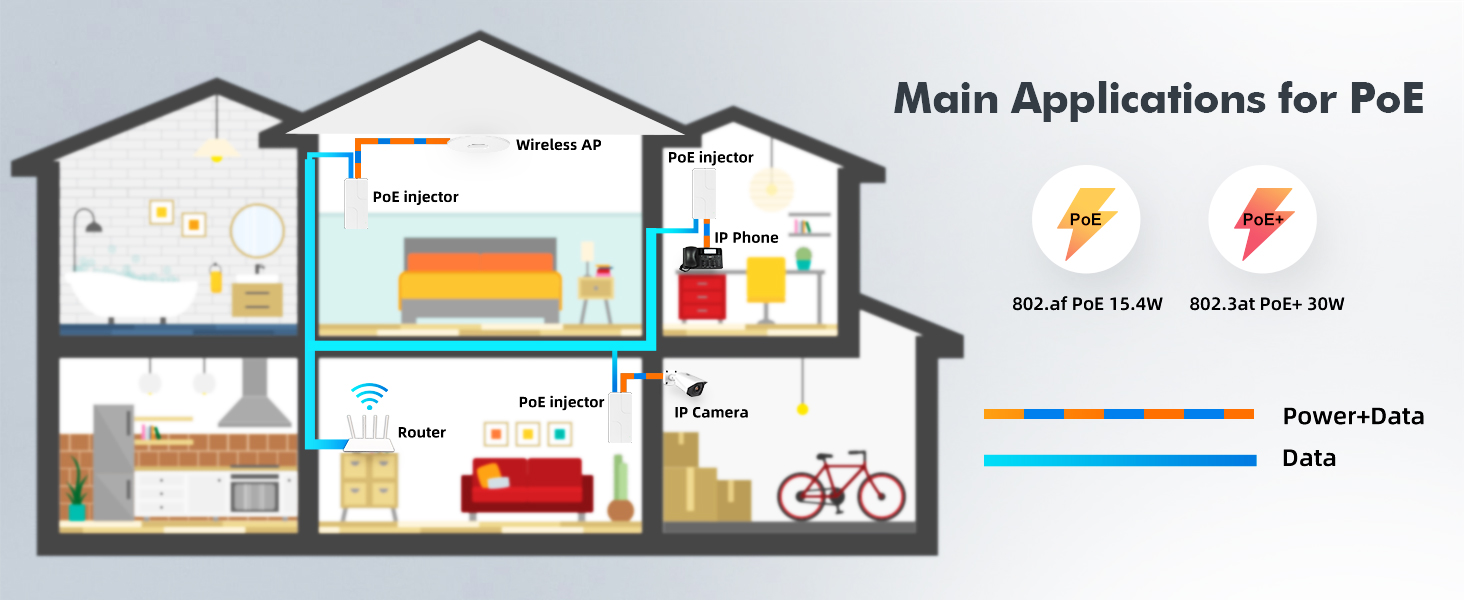

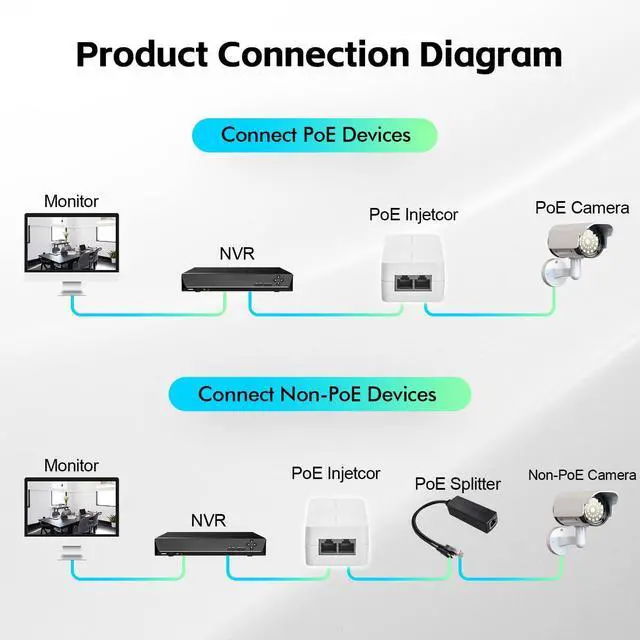

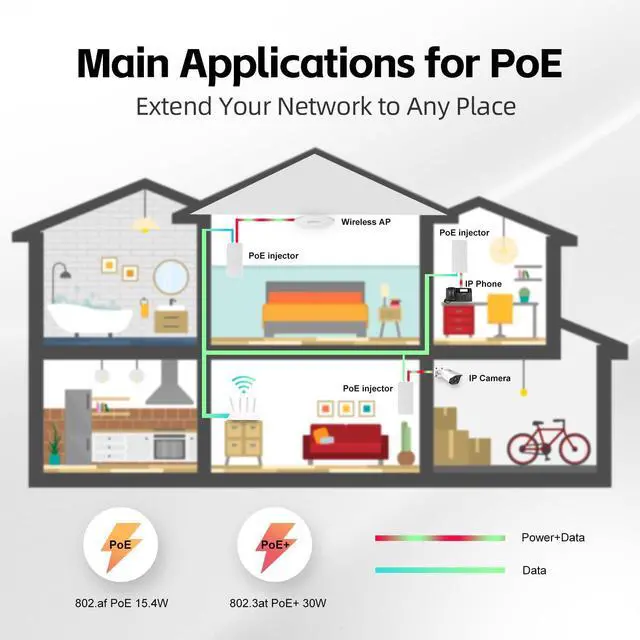

Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable. It is ideal for IP surveillance, digital signage and other PoE devices.
Technical Parameter
The PGN301W Gigabit PoE++ Injector fully complies with IEEE 802.3af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.
30W PoE Power Output
Complies with IEEE802.3af/at standards, supplies up to 30W, It auto detect the required power for PDs.
Gigabit Ports Ensure Faster Connections
Both the input and output port are gigabit speed, ensure faster and more reliable connections for all devides. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Plug and Play
Plug & Play installation, no software setup or configuratio required, Just plug the Ethernet enabled device into the injector.
Wall-mounting and desktop design
Wall-mounting and desktop design provide flexible mounting options, It suitable for most installation scenarios.
Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable. It is ideal for IP surveillance, digital signage and other PoE devices.
Technical Parameter
| Model | PGN301W |
|---|---|
| Ports | 1× 1Gbps/100Mbps/10Mbps RJ45 data-in port, 1× 1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 30W), 1× AC socket |
| Standards and Protocols | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) |
| PoE Protocols | IEEE802.3af, IEEE802.3at |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m), 100BASE-TX: UTP category 5, 5e cable (maximum 100 m), 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Power Consumption | Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max. 30 W) |
| LED | Power / PoE |
| Dimensions ( W x D x H ) | 115*52*34mm |
| Product Weight | 0.15kg |
| Working Environment | Working Temperature:-0~40°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Package List | PoE Injector 1 pcs, Power cord 1 pcs, User manual 1 pc |
