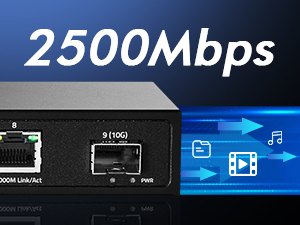

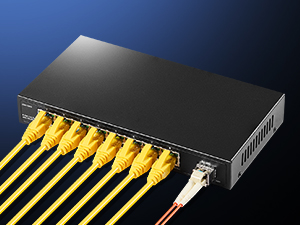

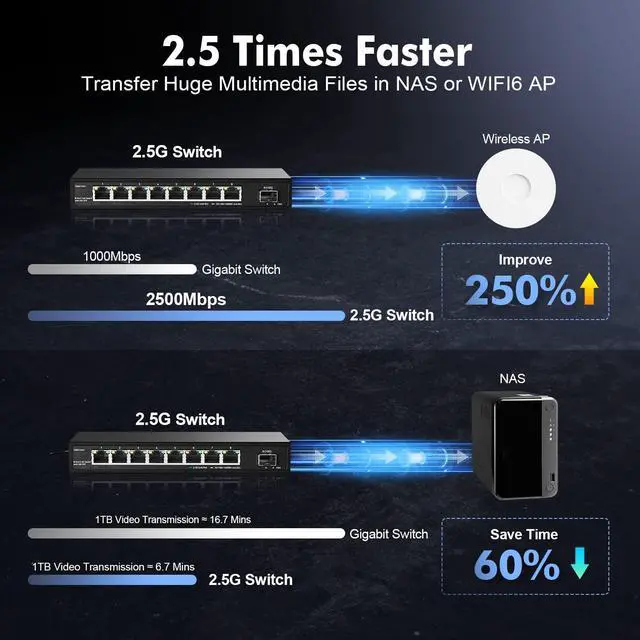

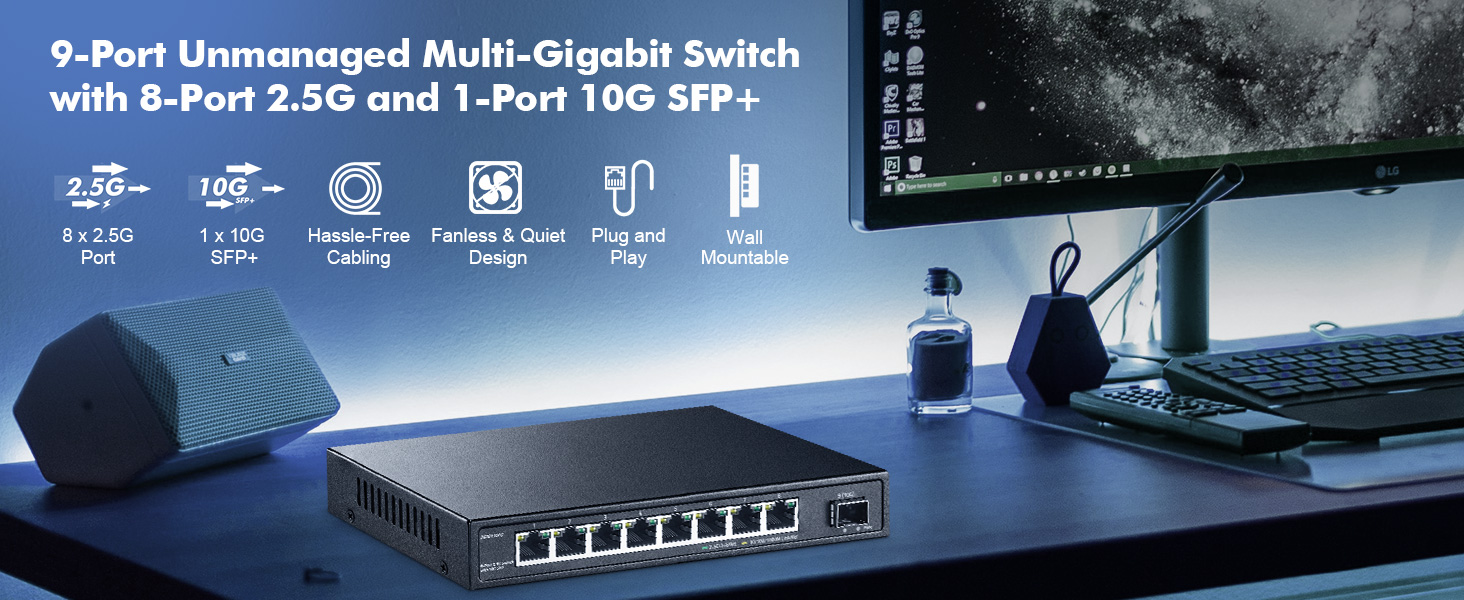

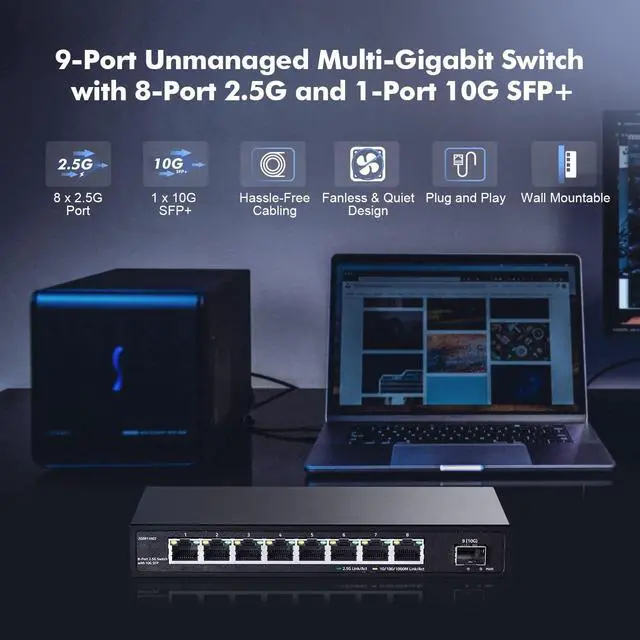

2.5 Gigabit High Speed
8x 2.5 Gigabit RJ45 ports with full-duplex and 12Kbytes jumbo frames support, to fit in various application scenarios.

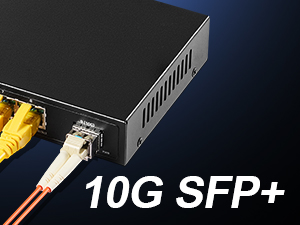

10G High-Bandwidth Support
1× 10Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, Compatiable with 1G/2.5G/10G SFP modules.

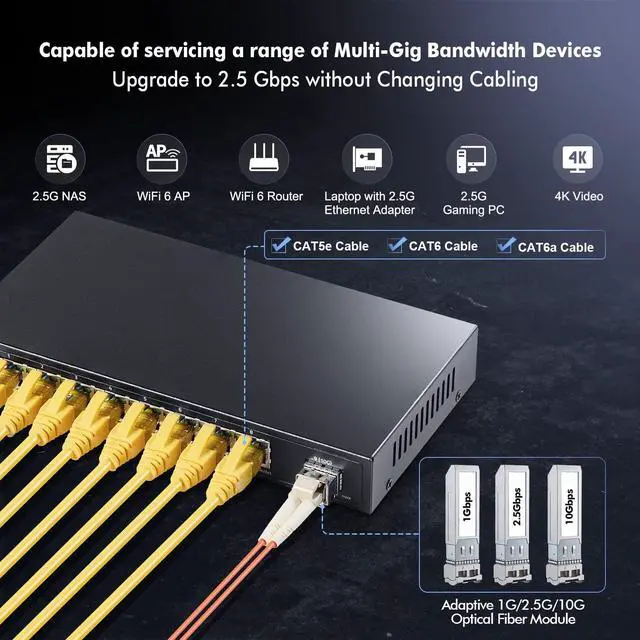

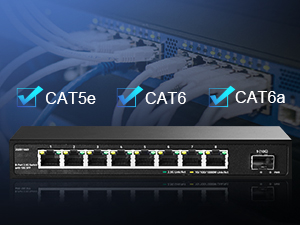

No need to upgrade cabling
Using existing CAT-5E cabling infrastructure, No need to upgrade it, Doubles your network bandwidth.

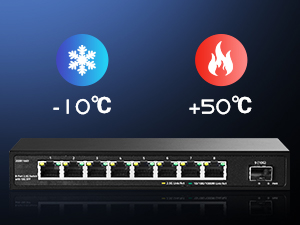

Various Operating Environments
The switch is designed to operate in severe environments and in temperatures ranging from –10°C to +50°C (14°F to 131°F).

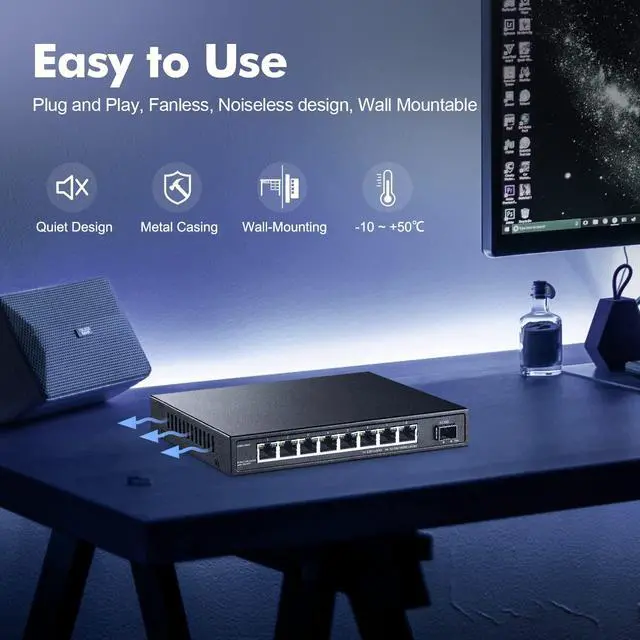

Plug and Play
The 2.5g switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.
Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.
Wall-mount Support
The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.

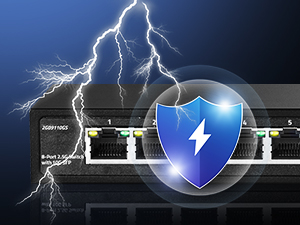

Lighting Protection
The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Product Specifications
Product Compare
 2G09110GS |  F1002GP | G1002GP |  F1602GP |  F2602GP | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Ethernet Port | 8x2.5G RJ45 + 1x 10G SFP+ | 8x100M PoE + 2x 1000M RJ45 | 8 x 1000M PoE + 2x 1000M RJ45 | 16x100M PoE + 2x 1000M RJ45 | 24x100M PoE + 2x 1000M RJ45 |
PoE Protocol | Not Support | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at |
Total Power Budget | 24W | 96W | 120W | 200W | 300W |
Switching Capacity | 60Gbps | 5.6Gbps | 20Gbps | 7.2Gbps | 8.8Gbps |
Size | 190x100x28mm | 200x118x44mm | 200x118x44mm | 268x181x44mm | 268x181x44mm |
| 0.49KG | 0.71kg | 0.71kg | 1.29kg | 1.44kg | |
Mount Method | Wall Mount | Wall Mount | Wall Mount | Rack Mount | Rack Mount |
YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
2.5 Gigabit High Speed
8x 2.5 Gigabit RJ45 ports with full-duplex and 12Kbytes jumbo frames support, to fit in various application scenarios.
10G High-Bandwidth Support
1× 10Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, Compatiable with 1G/2.5G/10G SFP modules.
No need to upgrade cabling
Using existing CAT-5E cabling infrastructure, No need to upgrade it, Doubles your network bandwidth.
Various Operating Environments
The switch is designed to operate in severe environments and in temperatures ranging from –10°C to +50°C (14°F to 131°F).
Plug and Play
The 2.5g switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.
Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.
Wall-mount Support
The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.
Lighting Protection
The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Product Specifications

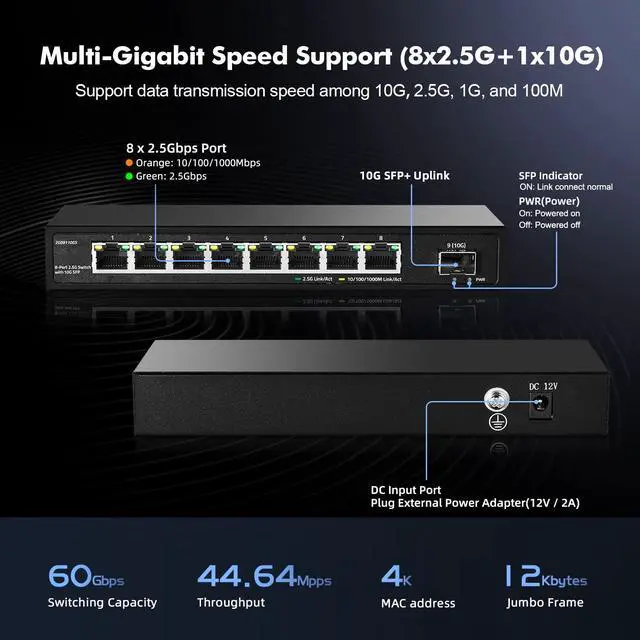

| Model | 2G09110GS |
|---|---|
| Product Name | 9 Ports 10G Uplink 2.5G Ethernet Switch |
| Ethernet | 8*2.5G RJ45 ports + 1*10G SFP ports |
| Bandwidth | 60Gbps |
| Pack forward rate | 44.64Mpps |
| MAC address | 4K |
| Jumbo Frame | 12Kbytes |
| Forwarding mode | Store forward |
| Network Protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Network medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(=100m) 100Base-TX: Cat5 or higher UTP/STP(=100m) 1000Base-TX: Cat5 or higher UTP/STP(=100 M) |
| Optical fiber medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working Environment | Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation |
| Indicator | PWR(Power indicator)On: Powered on, Off: Powered off, 1-8 Network port yellow indicator On: 2.5G Link connect normal, Off: Link off, Flashing: data transmitting, 1-8 Network port green indicator Lighting Connecting , Flashing:Data Transmit , Un-Light:Disconnect, Flashing: data transmitting |
| Structure Size | Product size: 190*100*28mm Package size: 245*190*60mm Product weight: 0.49KG Packing weight: 0.71KG |
| Power Voltage | Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V2A |
| Packing list | 2.5g Switch 1pc, .Quick Start Guide 1pc, Power adapter 1pc |
