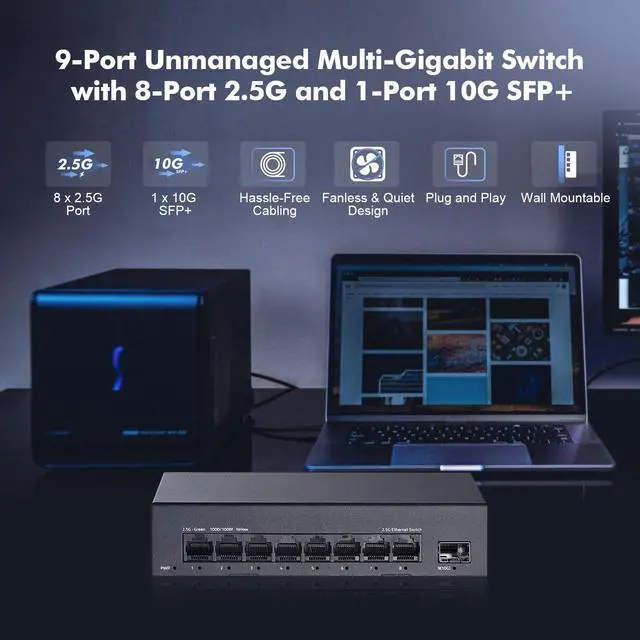

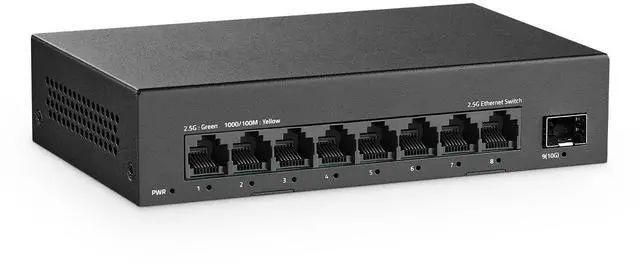

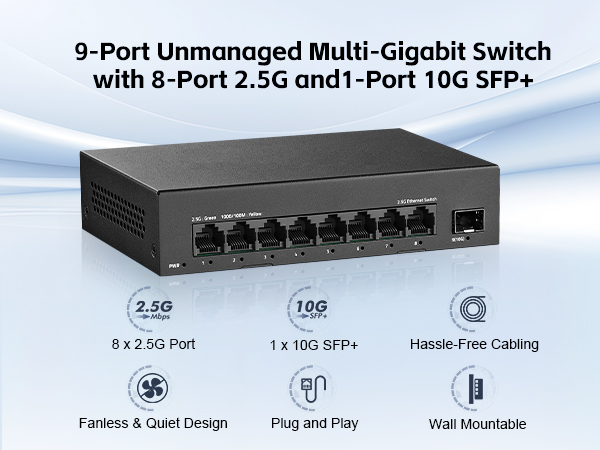

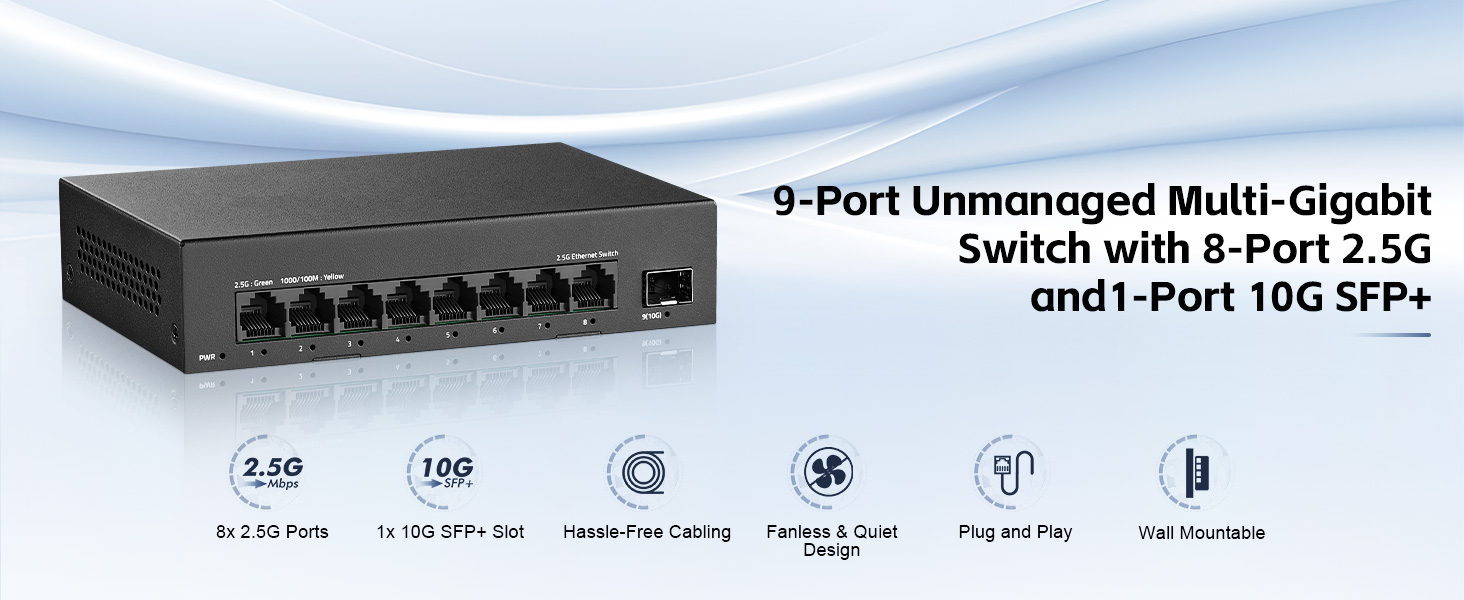

The 2G09110GSN come with 8x2.5G Ethernet ports and 1x10G SFP+ slot that provide 1G/2.5G/10G connectivity. Each port automatically detects which speed is needed. Small and silent desktop or wall mount form factor for quiet operation. Idel for 2.5G/10G server, APs, PCs and other switches.

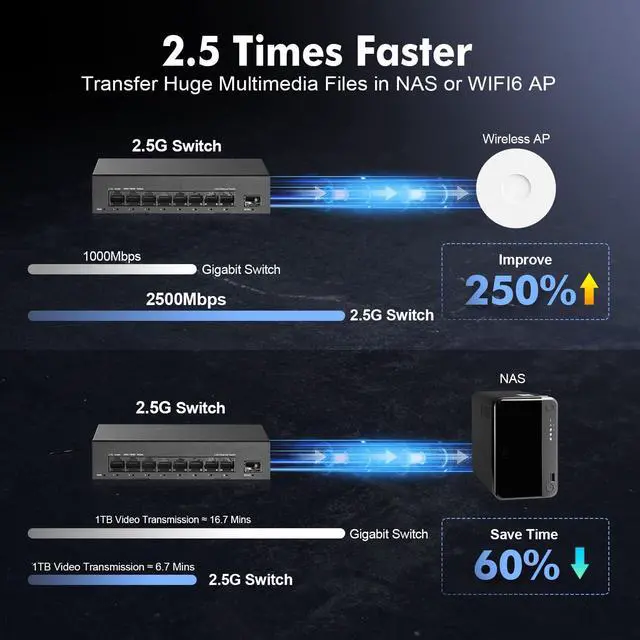

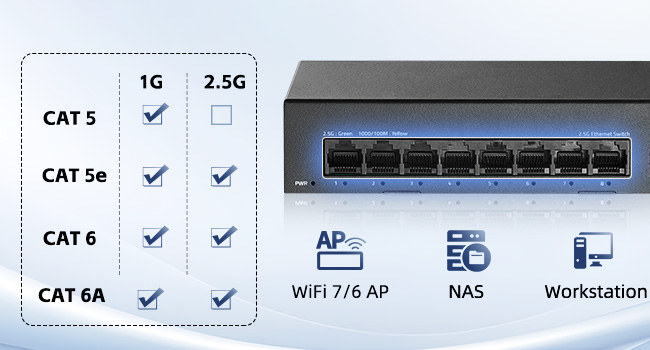

8x 2.5G Ports for NAS and WiFi 7/6 AP
8× 2.5 Gbps Ports Unlock the Full Potential of 2.5G Nas and WiFi 7/6 APs. leveraging existing CAT5E cabling infrastructure for cost saving with no additional cables required.

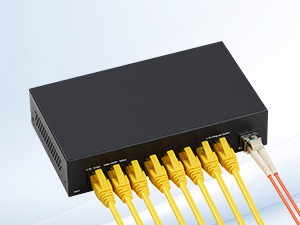

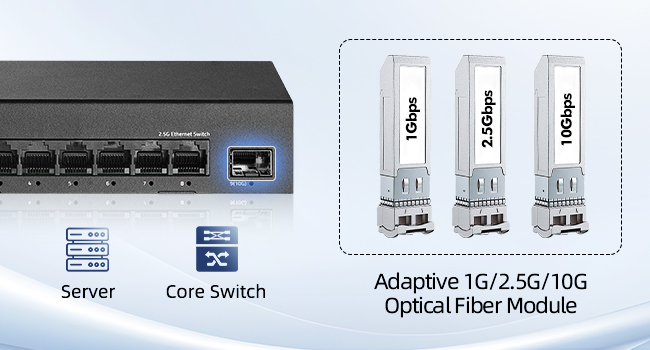

1x 10G SFP+ Port for Core Switch or Server
1× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, Idel for server and other switches. Open slot (unencrypted) compatible with most brands of 1G/2.5G/10G modules.

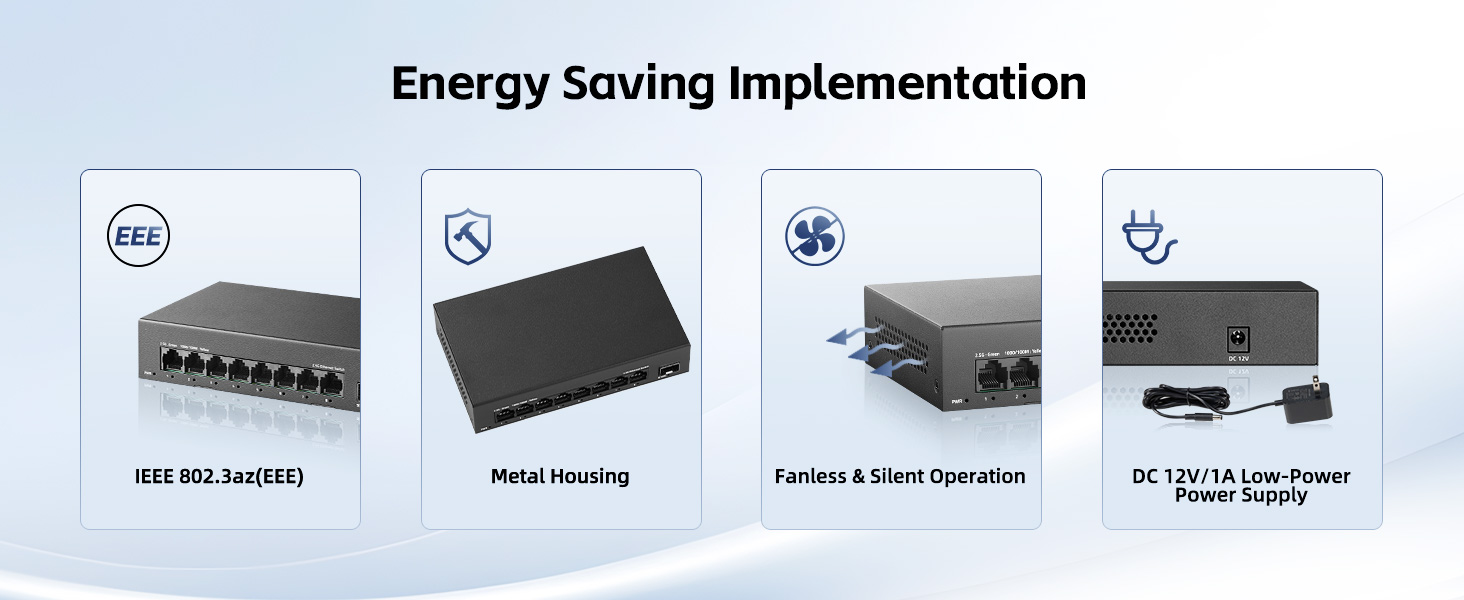

The fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Plug and Play
Automatic connectivity to your 8x 2.5G ethernet devices and 1x 10G SFP+ device. No need for an IT expert.
Desktop and Wall Mount
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.

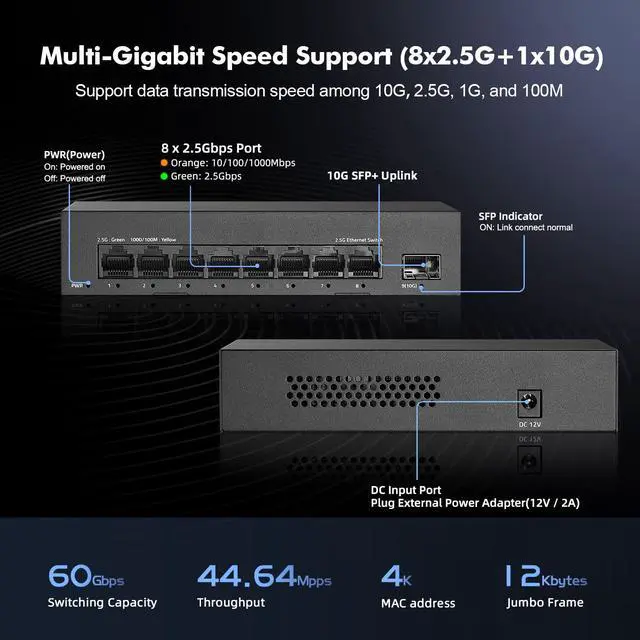

Led Indicator
The status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.
Safe Guard Your Devices
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Technical Parameter
YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
The 2G09110GSN come with 8x2.5G Ethernet ports and 1x10G SFP+ slot that provide 1G/2.5G/10G connectivity. Each port automatically detects which speed is needed. Small and silent desktop or wall mount form factor for quiet operation. Idel for 2.5G/10G server, APs, PCs and other switches.
8x 2.5G Ports for NAS and WiFi 7/6 AP

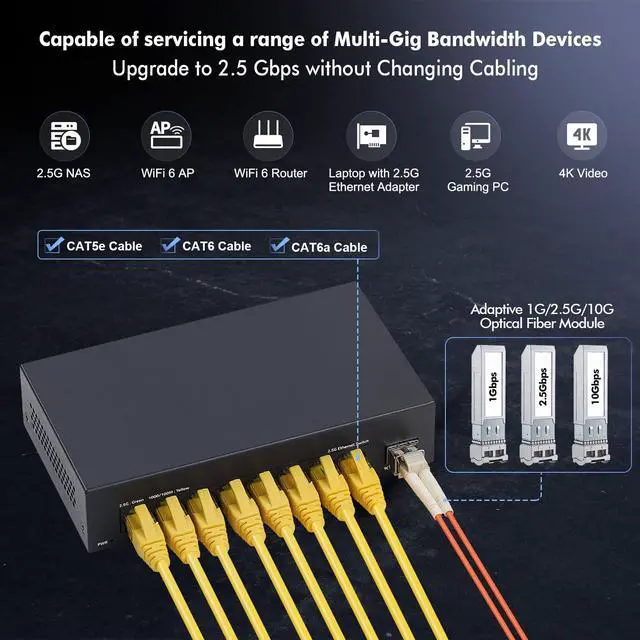

8× 2.5 Gbps Ports Unlock the Full Potential of 2.5G Nas and WiFi 7/6 APs. leveraging existing CAT5E cabling infrastructure for cost saving with no additional cables required.
1x 10G SFP+ Port for Core Switch or Server
1× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, Idel for server and other switches. Open slot (unencrypted) compatible with most brands of 1G/2.5G/10G modules.

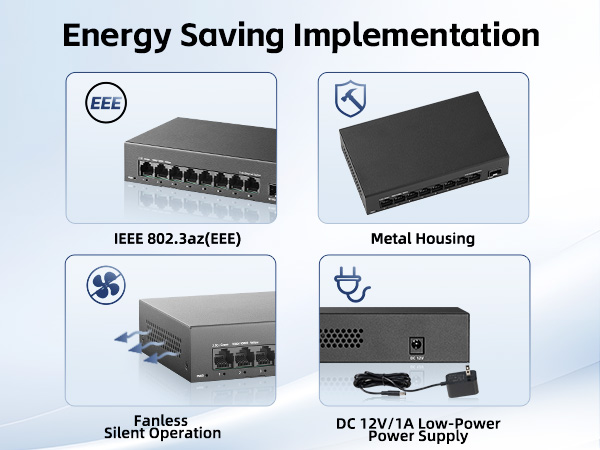

The fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Plug and Play
Automatic connectivity to your 8x 2.5G ethernet devices and 1x 10G SFP+ device. No need for an IT expert.

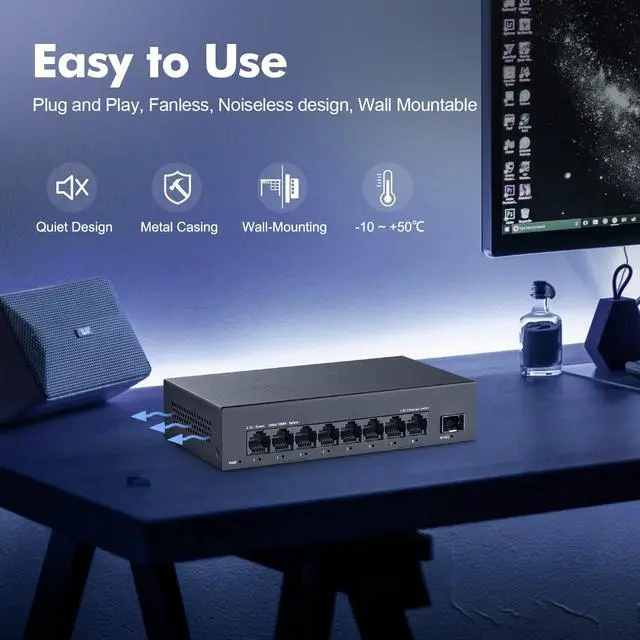

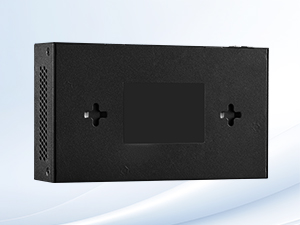

Desktop and Wall Mount
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.

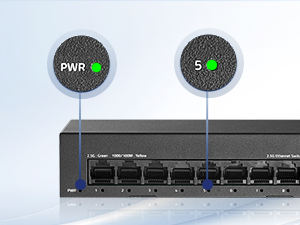

Led Indicator
The status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.
Safe Guard Your Devices
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Technical Parameter
| Interface | 8* 2.5G RJ45 port + 1 * 10G SFP+ port |
|---|---|
| Port Standard | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control) |
| Switching Capacity | 60Gbps |
| Packet Forwarding Rate | 44.64Mpps |
| Packet Buffer | 8Mbit |
| MAC Address Table | 4K |
| Surge Protection | Surge protection: common mode 4KV, differential mode 2KV (Class A) Electrostatic ESD: air 8KV, contact 6KV (Class A) |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |
| Power Supply | AC 100-240V , 50/60Hz DC 12V 1A, Mainboard Power Consumption: 8.75W |
| Structure Information | Product Dimensions :160*90*35mm, Packaging Dimensions : 175*120*63mm |
| Packing List | switch 1pcs, ac adapter 1pcs, instruction manual 1pcs |
| Fan Quantity | Fanless |
| Installation | Desktop and Wall mount |
| Indicator | PWR On: Powered on, Off: Powered off, 1-8 port Green Light On:2.5G Link normal, Yellow Light On:10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting, 9 SPF+ port Blue Light On:10G Link normal, Green Light On:2.5G Link normal, Off: Link blocked, Flashing: Data transmitting |
