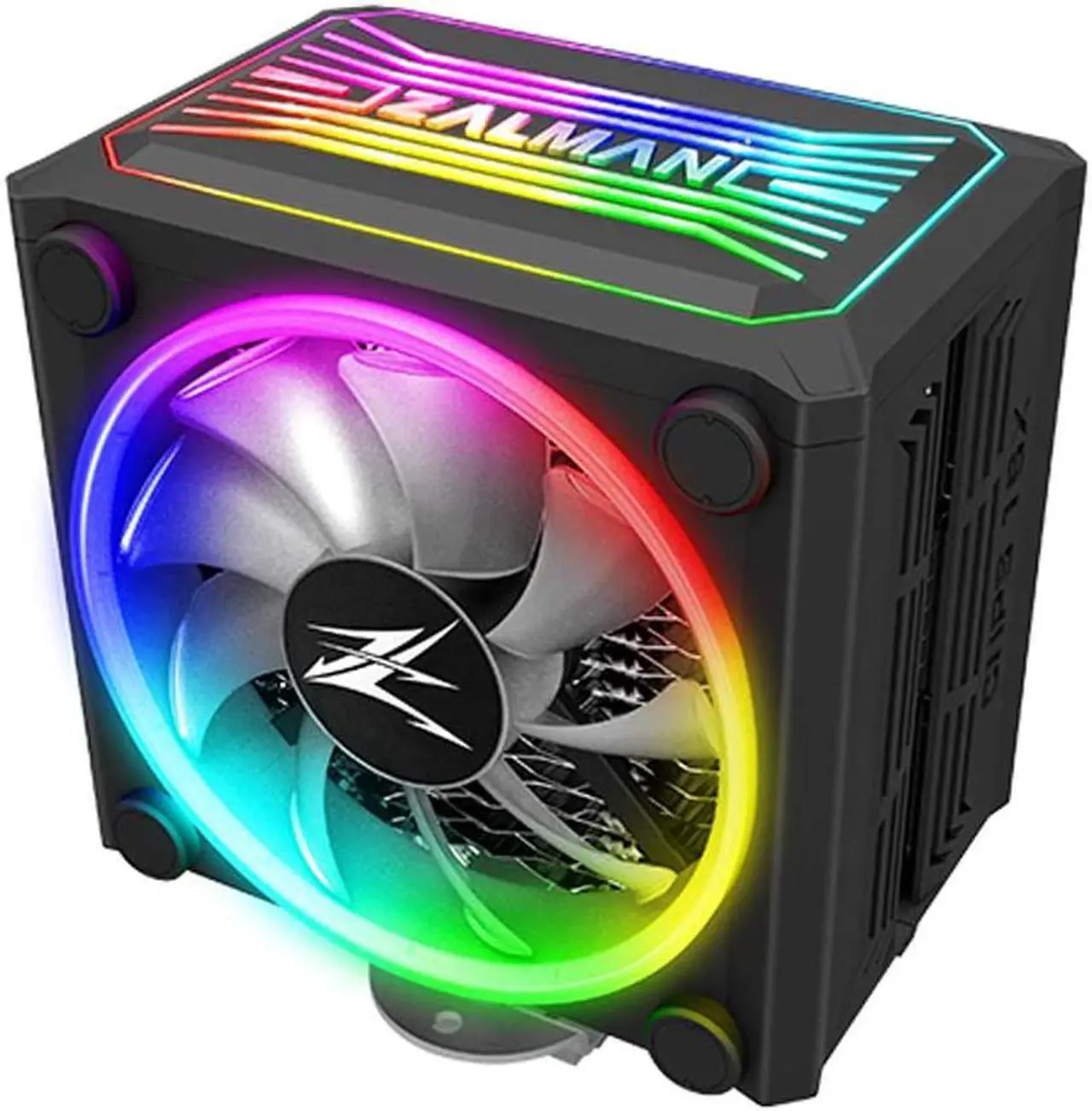

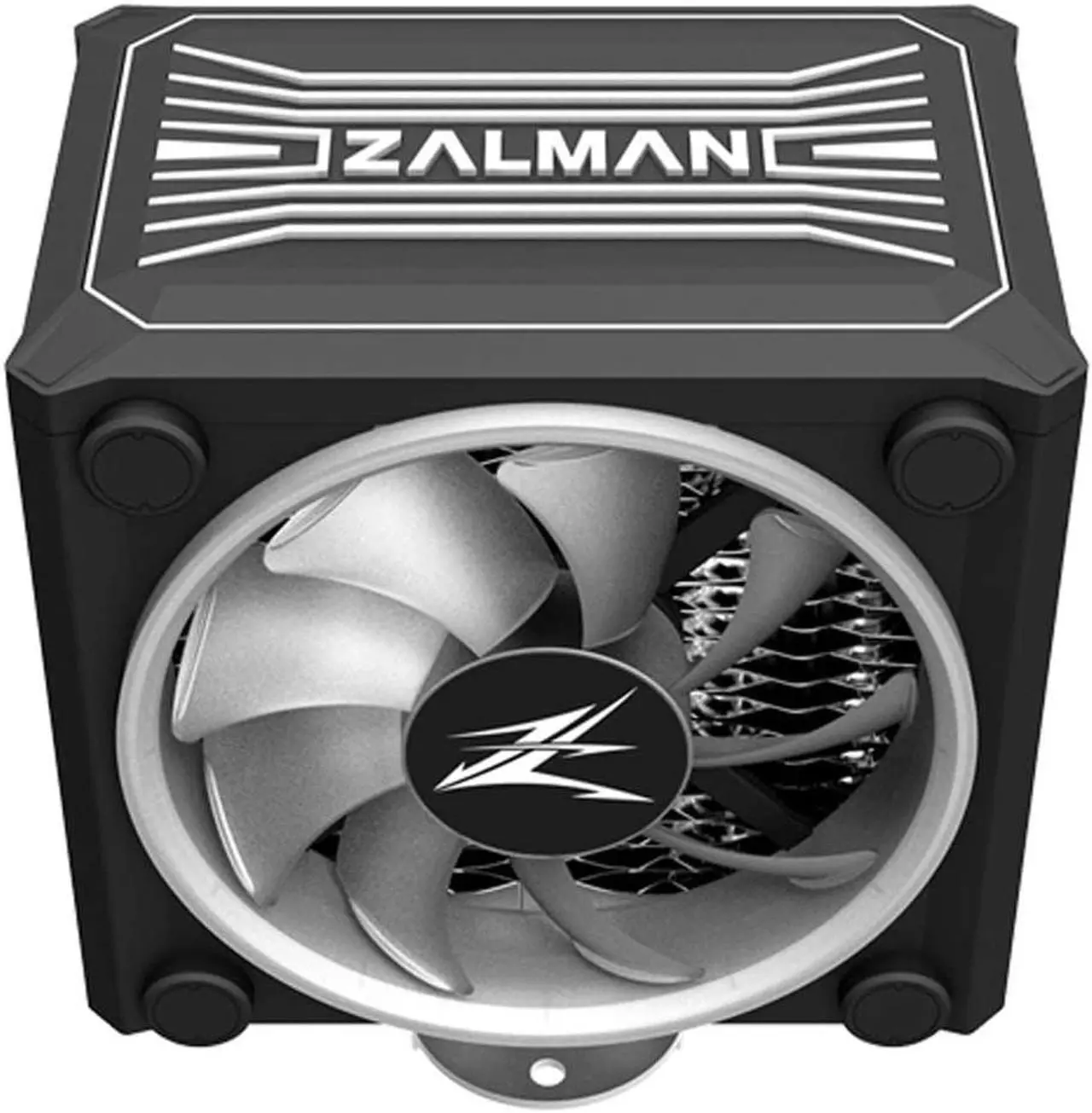

Zalman CNPS 16x, Real RGB LED CPU Cooler with 4D Patented Corrugated Fin Design, 120mm, for Intel & AMD (Black)

(1)(1) Write a Review
  • Zalman CNPS16x (CNPS 16x) is Compatible with AM3 AM4 and Intel 115X, 2066, 2011 V3, 2011.
  • Improved cooling performance by increasing the heat dissipation area 15% with the 4D stereoscopic corrugated cooling fin
  • 170 individual airflow passages are formed to improve the straightness of the airflow

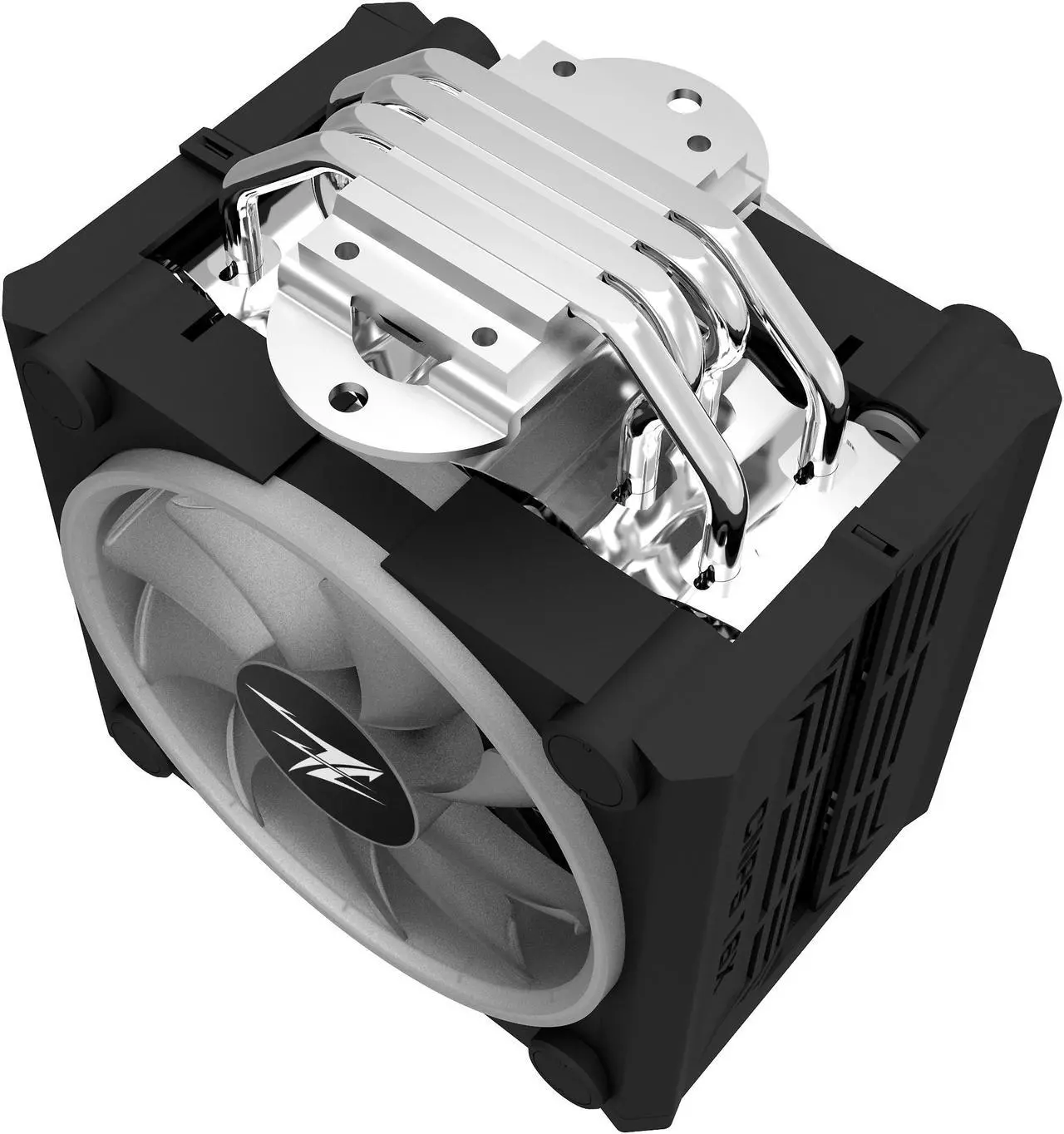

  • Application of ZALMAN DTH(Direct Touch Heatpipe) technology maximizes excellent performance and minimizes the heat resistance
  • Maximum cooling performance and exclusive RGB tuning effects are realized through the installation of two 120-mm ring fans (LF120) equipped with a noise and vibration reduction damper, ZALMAN's patented technology by default.
  • The tuning effect is maximized through exclusive RGB support of the top surface of the cooler and RGB support of the front and rear ring fans that enable the 3D RGB effect.
  • Addressable RGB Sync is supported through the motherboard.
Overview
Specs
Reviews (1)
Since its establishment in 1999, Zalman Tech has contributed to the development of the PC industry through innovative technology & products in the computer cooling solution industry. In a world filled with noisy computers, "silent cooling solutions” were sought everywhere and contributed to Zalman's rapid growth into the world's leader of high performance, and ultra-quiet PC cooling solutions. Zalman continues to lead in the industry through decisive R&D investments, peerless craftsmanship, intensive global marketing, and excellent customer support. Improved cooling performance by increasing the heat dissipation area 15% with the 4D stereoscopic corrugated cooling fin.

170 individual airflow passages are formed to improve the straightness of the airflow. Application of ZALMAN DTH (Direct Touch Heatpipe) technology maximizes excellent performance and minimizes heat resistance. Maximum cooling performance and exclusive RGB tuning effects are realized through the installation of two 120-mm ring fans (LF120) equipped with a noise and vibration reduction damper, ZALMAN's patented technology by default. The tuning effect is maximized through exclusive RGB support of the top surface of the cooler and RGB support of the front and rear ring fans that enable the 3D RGB effect. • High-performance thermal compound (ZM-STC8) is provided by default.

• It works with Razer Chroma RGB via a Chroma compatible motherboard or ZALMAN Z-SYNC (Sold separately)
cnps16x
cnps16x
cnps16x

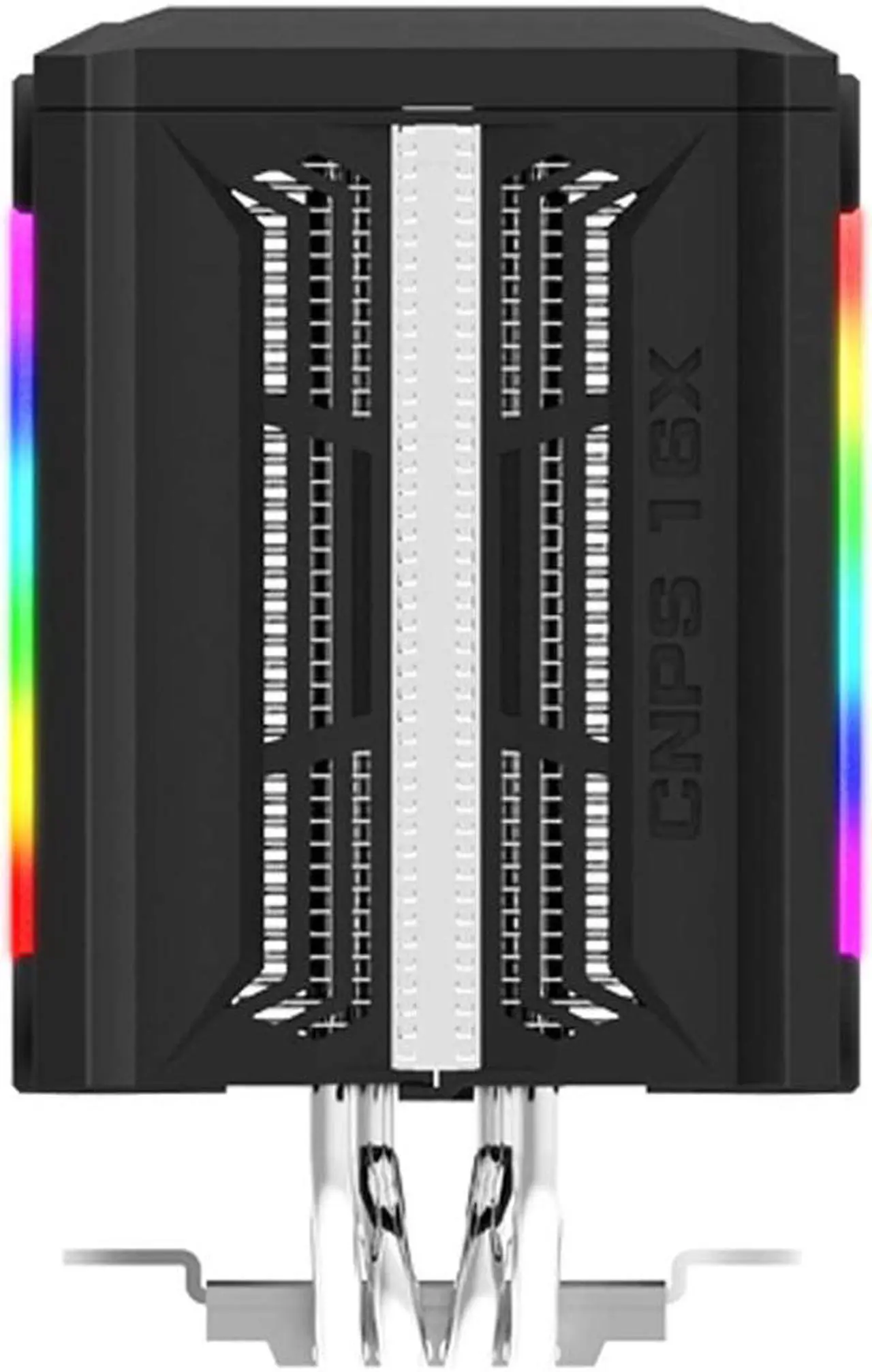

Aluminum Heat Sink
  • 4D Stereoscopic corrugated cooling fin (Increasing the heat dissipation area 15%)
  • 170 individual airflow passages
cnps16x
Addressable RGB LED Sync

Zalman's original LED design provides wider and brighter LED effect in all direction.

cnps16x

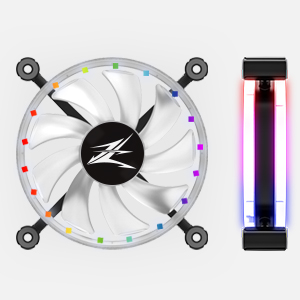

Made with "Ultrasonic Welding" Smaller Hosing Size, with Larger Impeller Fan Size

The first ring fan to use "Ultrasonic Welding" technology to minimize the thickness of the housing. This technology allows the impeller fan size to be more than 105mm.

cnps16x
High Thermal Conductivity ZM-STC8

The ZM-STC8, which comes with the CNPS16X, fills the fine space between the CPU and 16X, boosting the cooling effect and providing excellent cooling performance.

Specifications
Dimensions 140(L) x 100(W) x 165(H)mm
Materials Pure Aluminum, Pure Copper, ABS
Weight 880g
TDP 180W
Heat Dissipation Area 5,177cm2
Fan Bearing Type EBR Bearing
Fan Speed 800~1,500 RPM ± 10%
MAX Fan Noise Level 27.0dB(A) ± 10%
MAX Fan Air Flow 49 CFM
Fan Life Span 50,000 hours
MAX Fan Air Pressure 1.21mm H2O
Fan Connector Type Fan: 4-Pin PWM, Fan LED: 3-Pin Addressable, Top LED Cover: 3-Pin Addressable
Rated Voltage Fan: 12V, Fan LED: 5V, Top LED Cover: 5V
Rated Current Fan: 0.2A, Fan LED: 0.65A, Top LED Cover: 0.7A
Power Consumption Fan: 2.4W, Fan LED: 3.25W, Top LED Cover: 3.5W
Socket Compatibility Intel: LGA2066/2011-V3/2011/1200/ 115X CPUs, AMD: AM4/AM3+/AM3 CPUs
