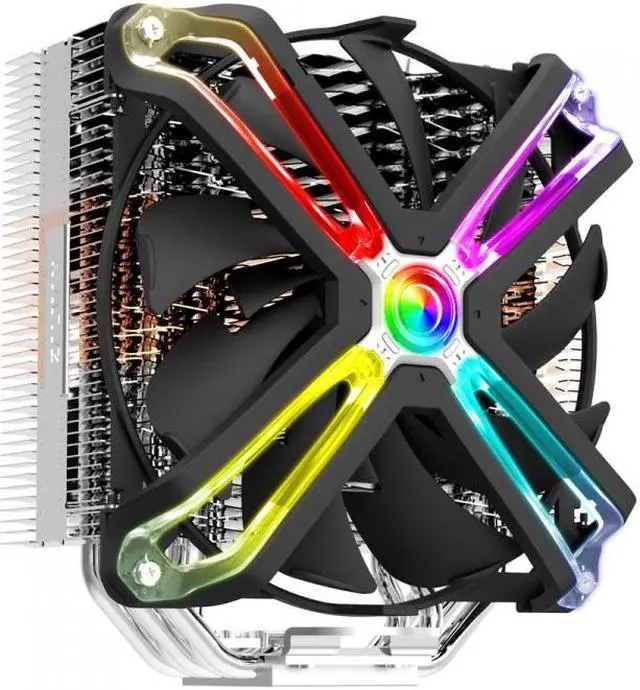

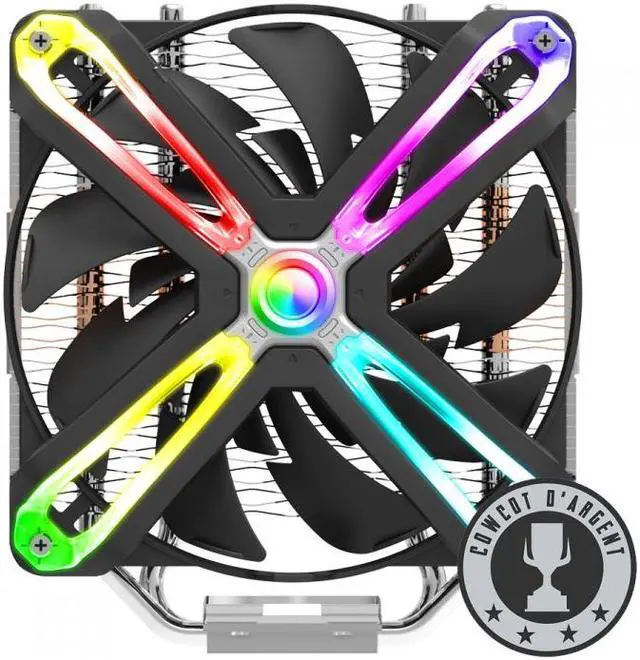

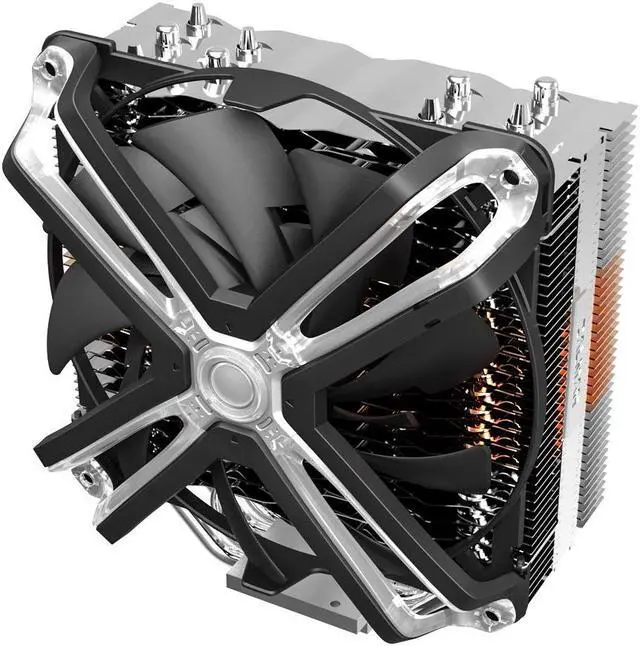

ZALMAN Dual Blade Fan
Patent# 10-1342746
Minimizing Vibration & Noise by Implementing Biomimetics

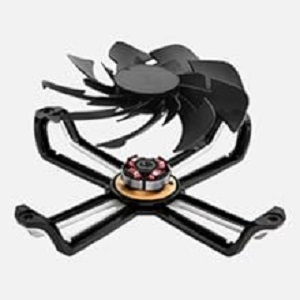

The housing leg structure of 4 x 2 absorbs the noise and vibration generated by the rotation of the impeller, providing a stable and quiet user environment.

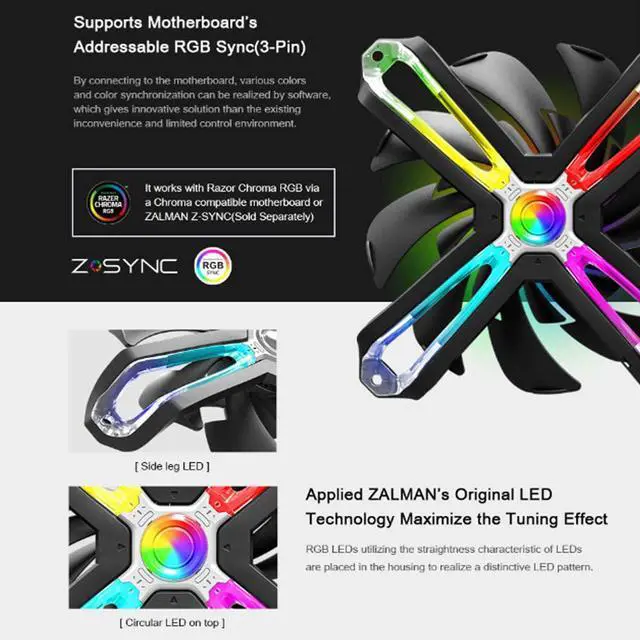

Applied ZALMAN's Original LED Technology Maximize the Tuning Effect
RGB LEDs utilizing the straightness characteristic of LEDs are placed in the housing to realize a distinctive LED pattern.
FDB (Fluid Dynamic Bearing) Fan
FDB, which is higher than sleeve bearing, is a thin oil layer that minimizes friction caused by the rotation of the shaft to minimize noise and heat, providing quietness and 100,000 hours lifespan.
Specifications
| Model | CNPS17X |
|---|---|
| Dimensions | 140(L) x 100(W) x 160(H)mm |

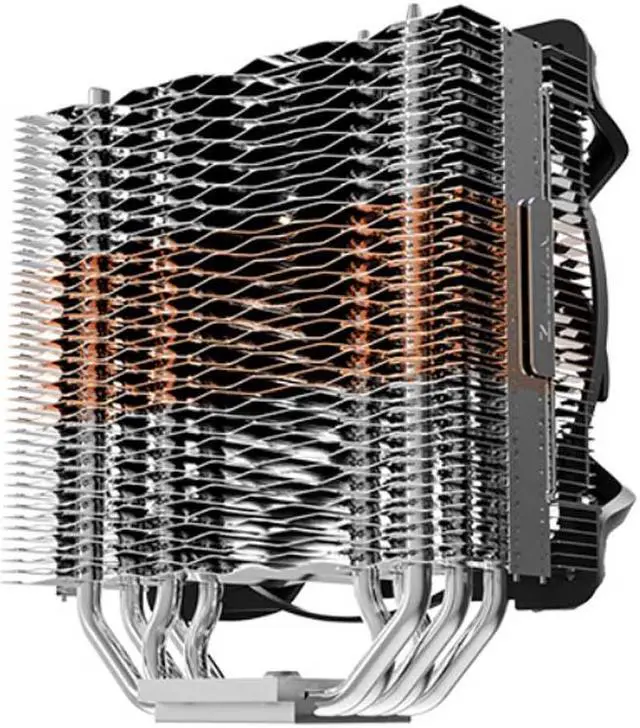

| Materials | Pure Copper, Pure Aluminum |
| Weight | 700g |
| Heat Dissipation Area | 6,243cm3 |
| Heat Pipe | 5 |
| Fan Dimensions | 140 x 140 x 26(H)mm |
| Fan Bearing Type | FDB(Fluid Dynamic Bearing) |
| Fan Speed | 800~1,500 RPM ±10% |
| Max. Fan Noise Level | 29.0 dB(A) ±10% |
| Max. Fan Air Flow | 61CFM |
| Fan Connector Type | Fan : 4-Pin PWM / LED : 3-Pin Addressable |
| Rated Voltage | Fan : 12V / LED : 5V |
| Rated Current | Fan : 0.28A / LED : 0.3A |
| Power Consumption | Fan : 3.36W / LED : 1.5W |
| Socket Compatibility | Intel: LGA 1200, 115X, 2066, 2011-V3, 2011 / AMD: AM4, AM3+, AM3 |
