    Zalman 20X Extreme Performance CPU Air Cooler, 300W TDP Dual-Blade 140mm ARGB Spider Fans for Intel LGA 1200/1151/2066/2011/X99/X79, AMD AM4/AM3, 6 Heat Pipes, 4D Patented Corrugated Fin

    • Zalman 20X is a powerful CPU air cooler that is compatible with Intel 2066, 2011, 1200, 115X and AMD AM4, AM3.
    • Improved cooling performance by increasing the heat dissipation area 15% with the 4D stereoscopic corrugated cooling fin
    • 350 individual airflow passages are formed to improve the straightness of the airflow
    • Application of RDTH (Reverse Direct Touch Heatpipe), IHD (Interactive Heatpipe transfer Design) for excellent performance with minimum heat resistance
    • 140mm Dual-Blade spider fans provide maximum cooling performance with unique RGB effect (ZALMAN Patent)
    • Supports motherboard addressable RGB sync (3-Pin, 5V)
    • Provides designated RGB software for Z-SYNC maximize user experience
    • 20X comes with high-performance thermal compound (ZM-STC8)
    • It works with Razer Chroma RGB via a Chroma compatible motherboard or ZALMAN ZSYNC (Sold separately)
    +
    +
    Overview
    Specs
    Reviews (3)

    Any questions? Ask CelesteSM will help you find out quickly.

    CNPS20X
    CNPS20X
    CNPS20X
    ZALMAN Dual Blade Fan

    Patent# 10-1342746

    CNPS20X

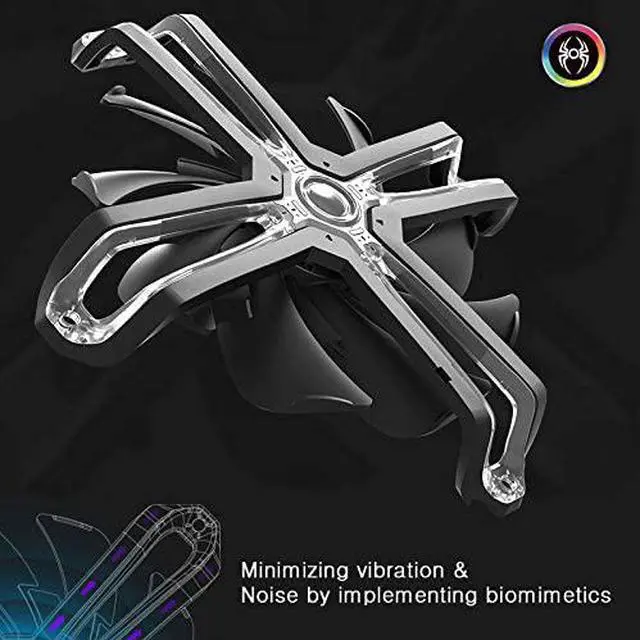

    Minimizing Vibration & Noise by Implementing Biomimetics

    The housing leg structure of 4 x 2 absorbs the noise and vibration generated by the rotation of the impeller, providing a stable and quiet user environment.

    CNPS20X

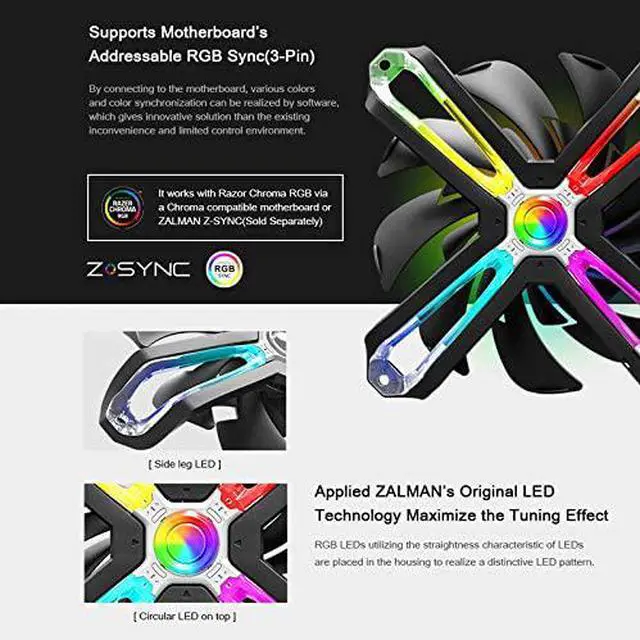

    Applied ZALMAN's Original LED Technology Maximize the Tuning Effect

    RGB LEDs utilizing the straightness characteristic of LEDs are placed in the housing to realize a distinctive LED pattern.

    CNPS20X
    High Thermal Conductivity ZM-STC8 (included)

    The ZM-STC8, which comes with the CNPS20X, fills the fine space between the CPU and 20X, boosting the cooling effect and providing excellent cooling performance.

    Specifications
    Model CNPS20X
    Dimensions 140 x 170 x 165(H)mm
    Materials Pure Copper, Pure Aluminum
    Weight 1,300g
    Heat Dissipation Area 15,242cm3
    TDP 300W
    Fan Dimensions 140 x 140 x 26(H)mm
    Fan Bearing Type FDB (Fluid Dynamic Bearing)
    Fan Speed 800~1,500 RPM ± 10%
    Max. Fan Noise Level 29.0 dB(A) ± 10%
    Max. Fan Air Flow 61CFM
    Fan Connector Type Fan : 4-Pin PWM / LED : 3-Pin Addressable
    Rated Voltage Fan : 12V / LED : 5V
    Rated Current Fan : 0.28A / LED : 0.3A
    Power Consumption Fan : 3.36 W / LED : 1.5 W
    Socket Compatibility Intel : LGA 1700, 2066, 2011-V3, 2011, 1200, 115X CPUs, LGA1200 / AMD : AM4, AM3+, AM3 CPUs
    Since its establishment in 1999, Zalman Tech has contributed to the development of the PC industry through innovative technology & products in the computer cooling solution industry. In a world filled with noisy computers, "silent cooling solutions were sought everywhere and contributed to Zalman's rapid growth into the world's leader of high performance, and ultra quiet PC cooling solutions. Zalman continues to lead in the industry through decisive R&D investments, peerless craftsmanship, intensive global marketing, and excellent customer support. Improved cooling performance by increasing the heat dissipation area 15% with the 4D stereoscopic corrugated cooling fin.

    350 individual airflow passages are formed to improve the straightness of the airflow. Application of RDTH (Reverse Direct Touch Heatpipe), IHD (Interactive Heatpipe transfer Design) for excellent performance with minimum heat resistance. Application of RDTH (Reverse Direct Touch Heatpipe), IHD (Interactive Heatpipe transfer Design) for excellent performance with minimum heat resistance. 140mm Dual-Blade spider fans provide maximum cooling performance with unique RGB effect (ZALMAN Patent), Supports motherboard addressable RGB sync (3-Pin, 5V).

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • Read full details
    • CONTACT

    Return Policies

    Manufacturer Contact Info

    LOADING...

    The Zalman CNPS20X is a 300W-rated dual-tower CPU air cooler with six heat pipes and two 140mm addressable-RGB fans, suited to high-performance desktop builds using its supported Intel or AMD sockets. Check that your case can fit its 165mm height.

    Recommended For

    • Desktop users running hot, high-power CPUs through sustained rendering, compiling, or other multi-threaded work who want a large air cooler; testing found the CNPS20X performed in line with other top-tier dual-tower air coolers under a heavy CPU load.
    • Gaming-PC builders with a full-size case who want high-end air cooling for a heat-intensive CPU instead of choosing a liquid cooler; independent testing found performance comparable to other large air coolers, though not a standout over them.
    • PC builders coordinating cooler lighting with a 5V, 3-pin addressable-RGB motherboard setup; the CNPS20X includes ARGB fans and supports motherboard lighting sync.

    Spec Summary

    AttributeValue
    Best ForDesktop CPU builds using supported Intel or AMD sockets and a dual-tower air cooler
    Socket CompatibilityIntel LGA 1700, 2066, 2011-V3, 2011, 1200, and 115X; AMD AM4, AM3+, and AM3
    Cooling PerformanceDual-tower air cooling rated for 300 W TDP, with airflow up to 61 CFM and fan speeds of 800–1,500 RPM ±10%; rated noise is 29 dB(A) ±10%
    Fan And Heatsink Construction140 mm fan with fluid dynamic bearing; aluminum and copper heatsink
    Power And Lighting4-pin fan power connector and addressable RGB lighting
    Physical Dimensions And WeightHeatsink measures 140 × 170 × 165 mm; maximum cooler height is 165 mm; weight is 1,300 g
    Included ComponentsCooler, backplate, fan cable, LED cable, thermal paste, and user manual
    Model IdentifiersZALMAN CNPS20X, black
