ZALMAN CNPS5X Performa 92mm FSB (Fluid Shield Bearing) Powerful Cooling Performance CPU Cooler

OUT OF STOCK.
  • 1400 ~ 2800rpm ± 10%
  • 20 ~ 32dBA ± 15%
  • Pure Copper, Aluminum
Overview
Specs
Reviews

The CNPS5X Performa is designed for users seeking a quieter, better performing, and more attractive solution than a stock cooler. If you are building a small form factor system or looking for a budget aftermarket cooler, this might be for you. If you are not sure, the reviews speak for itself.



ZALMAN CNPS5X Performa
Powerful Cooling Performance

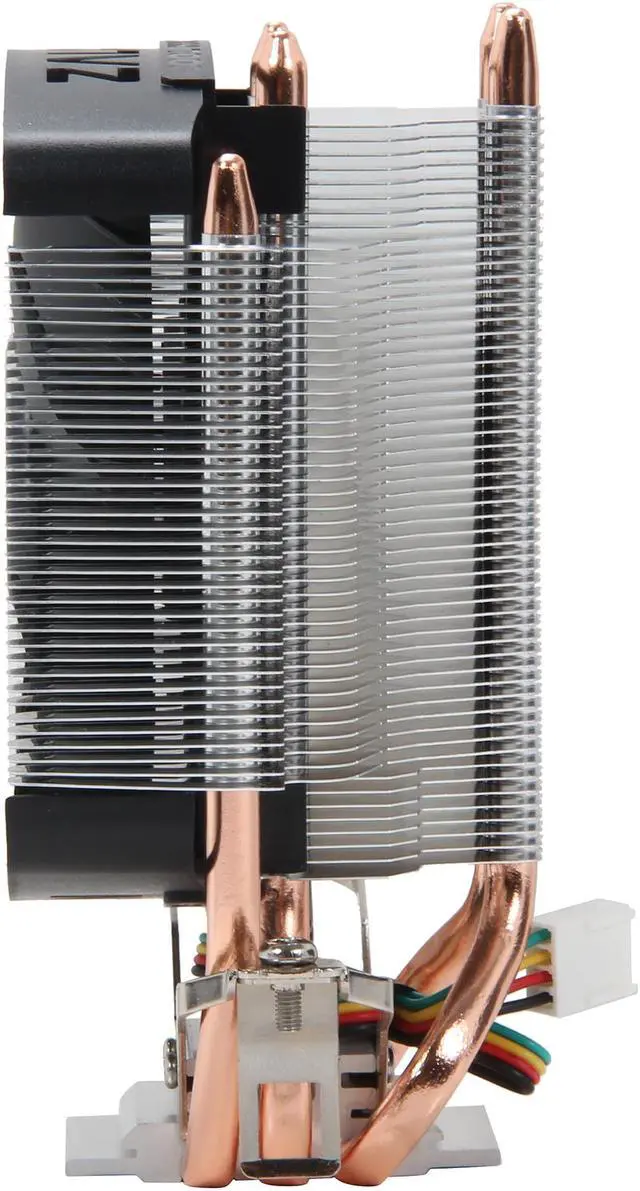

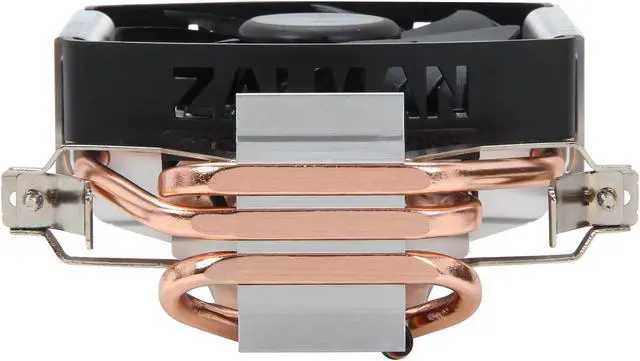

Three heatpipes and aluminum fins are designed for maximum cooling while the PWM fan rapidly expels hot air out of the case.

ZALMAN CNPS5X Performa

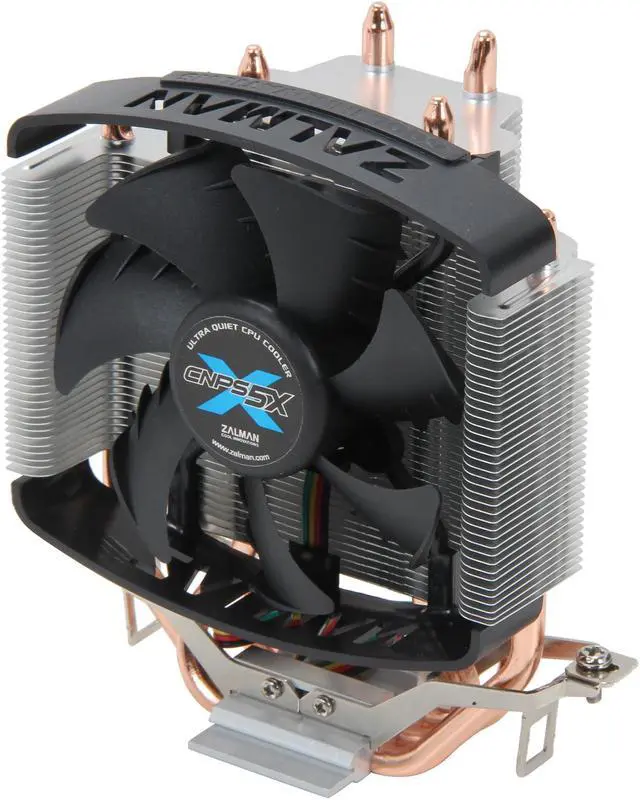

Ultra-Quiet 92mm Fluid Shield Bearing Fan

Ultra-quiet 92mm fan with FSB bearing is equipped for minimal noise and excellent cooling.

ZALMAN CNPS5X Performa
PWM Fan Control

The PWM (Pulse Width Modulation) Fan automatically adjusts fan speed (RPM) according to the CPU`s temperature.

ZALMAN CNPS5X Performa
Easy Installation

Secure the bracket with push pins, adjust the lever on the heatsink, and you are all set. Super quick and easy.

ZALMAN CNPS5X Performa
High Performance Super Thermal Grease ZM-STG2M

The ZM-STG2M thermal grease optimizes the heat transfer from the CPU to the base of CNPS5X by sealing air pockets and creating a strong viscous bond between the CPU and the cooler.

ZALMAN CNPS5X Performa
Versatile Compatibility

CNPS5X accommodates a broad range of sockets. Intel LGA 1150 / 1151 / 1155 / 1156 / 775
AMD FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2


INSTALLATION REQUIREMENTS

The cooler`s installation requires an unobstructed space of 127mm(L), 64mm(W), and 134mm(H), with the CPU as a central reference point. Please check if components such as ODD, VGA and PSU protrude into the required space.

Motherboard Installation Reference

ZALMAN CNPS5X PerformaZALMAN CNPS5X Performa

  Socket CPU CPU Compatibility
Intel 1155/1156 Core i7 Supports all speeds
Core i5
Core i3
1150/1151 Core i7 Supports all speeds
Core i5
775 Core 2 Quad Supports all speeds
Core 2 Duo
Core 2 Extreme
Pentium Dual Core
Pentium D
Pentium 4
Celeron D
AMD FM1 Llano Supports all speeds
FM2 Trinity Supports all speeds
AM3+ Vishera Supports all speeds
Zambezi Supports all speeds
AM3 Phenom II Supports all speeds
Athlon II
AM2+ Phenom II Supports all speeds
Phenom
Athlon FX
Athlon X2
Athlon
Sempron
AM2 Athlon FX Supports all speeds
Athlon X2
Athlon
Sempron
940 Dual-Core Opteron Supports all speeds
Opteron
Athlon FX
939 Dual-Core Opteron Supports all speeds
Opteron
Athlon FX
Athlon X2
Athlon
754 Athlon Supports all speeds
Sempron

FHS
Dimensions
127(L) x 64(W) x 134(H)mm
Weight 320g
Materials Pure Copper, Aluminum
Fan RPM 1,350 ~ 2,700rpm ± 10%
Noise 20 ~ 32dBA ± 15%
Fan Bearing FSB(Fluid Shield Bearing)
Input Voltage 12V
Function PWM Control, Auto Restart

THERMAL GREASES (ZM-STG2M)
Color Gray
Capacity 1g
Temperature Stability -40°C ~ +150°C (-40? ~ +302?)

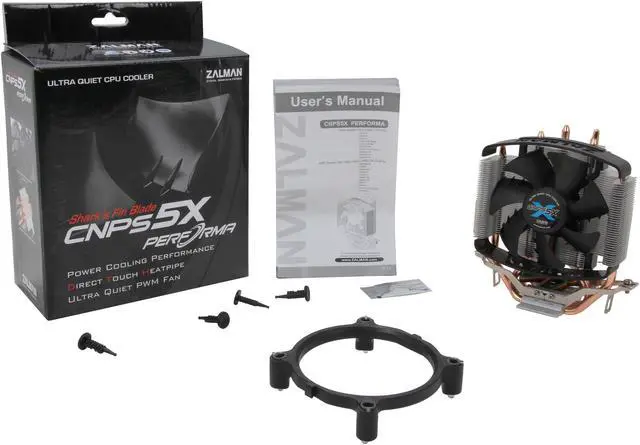

What's in the box
ZALMAN CNPS5X Performa
  • - Cooler
  • - Clip Support
  • - Pushpin
  • - Thermal Grease (ZM-STG2M)
  • - User`s Manual
  • neweggPowerful Cooling PerformanceThree heatpipes and aluminum fins are designed for maximum cooling while cooler setup quickly expels hot air out of the case.
  • neweggUltra Quiet 92mm Fluid Shield Bearing FanAn ultra quiet 92mm fan with FSB bearing is incorporated for minimized noise and excellent cooling.
  • neweggPWM Fan ControlThe PWM (Pulse Width Modulation) Fan automatically adjusts fan speed (RPM) according to the CPU’s temperature.
  • neweggEasy InstallationThe cooler is designed with tool-less installation clip, making installation convenient.
  • neweggHigh Performance Super Thermal Grease ZM-STG2MThe included all new high performance thermal grease ZM-STG2M maximizes heat transfer from the CPU to the base of CNPS5X for intensified cooling performance.
  • neweggVersatile CompatibilityCNPS5X accommodates a broad range of sockets including Intel LGA 1155 / 1156 / 775 and AMD FM1 / AM3+ / AM3 / AM2+ / AM2.
