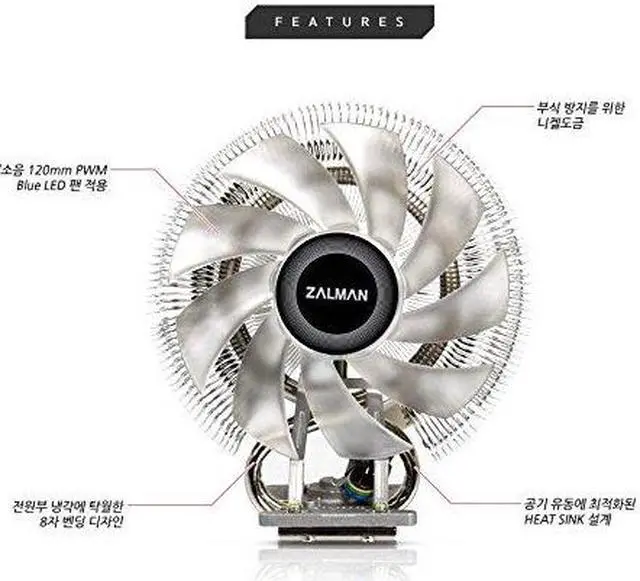

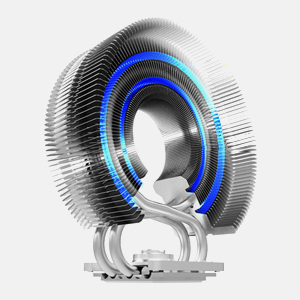

The 8-shaped bending design effectively cools motherboard and heated components.

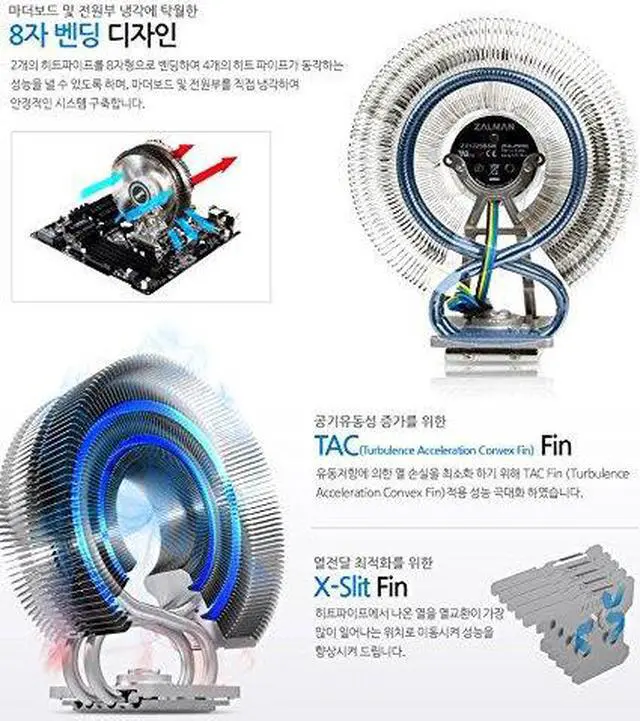

Two independent heatpipes are bent and twisted in an "8" configuration that creates stable weight distribution and cools down motherboard and surrounding components.

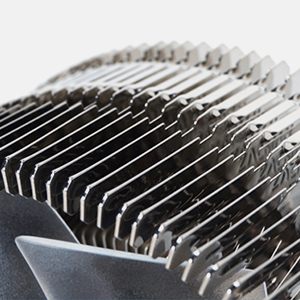

Strategically placed fins efficiently transfer the heat from the heatpipes.

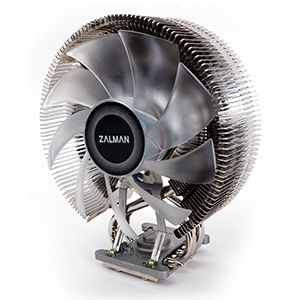

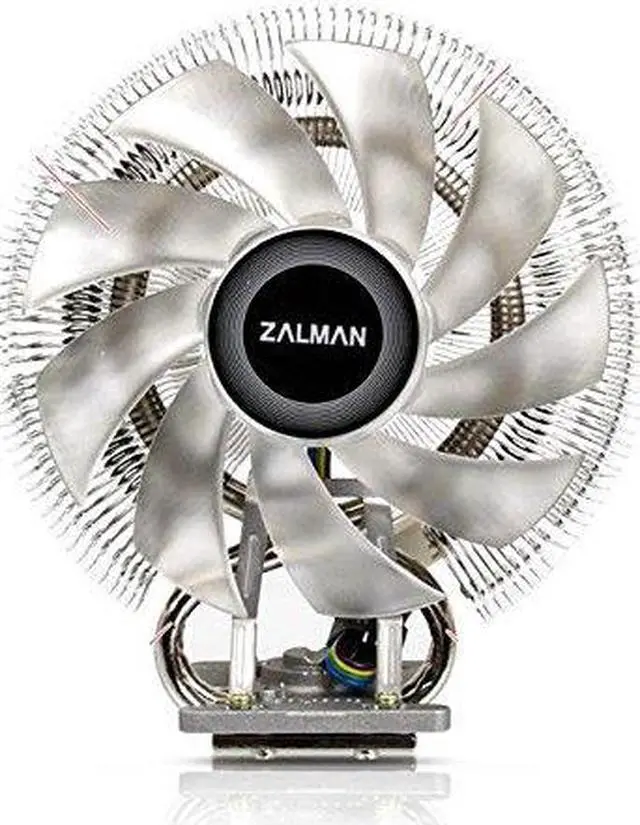

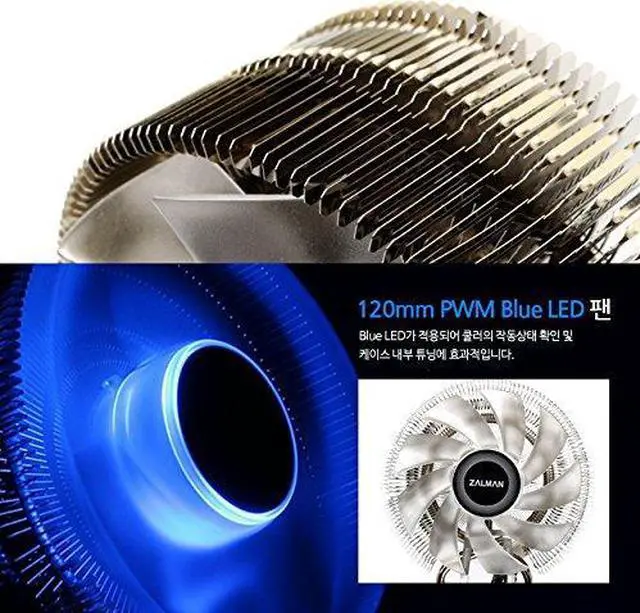

The nickel-plated body is resistant to corrosion even during prolonged use, and the black pearl finish along with the Blue LED emitted by the fan creates gorgeous aesthetics.
Users can visually confirm the status of the fan and provides more options in modding the case.

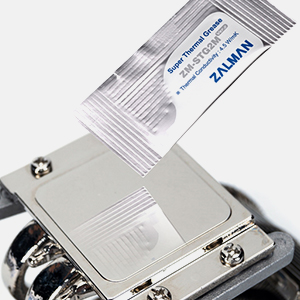

High performance ZM-STC2 thermal grease fills the air pockets between the CPU and the base of the cooler with minimal application and significantly increases the cooling performace.

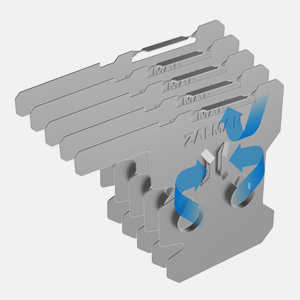

TAC Fin(Turbulence Acceleration Convex Fin) centralizes the heat concentration for effective cooling.
| Model | CNPS9800 MAX |
|---|---|

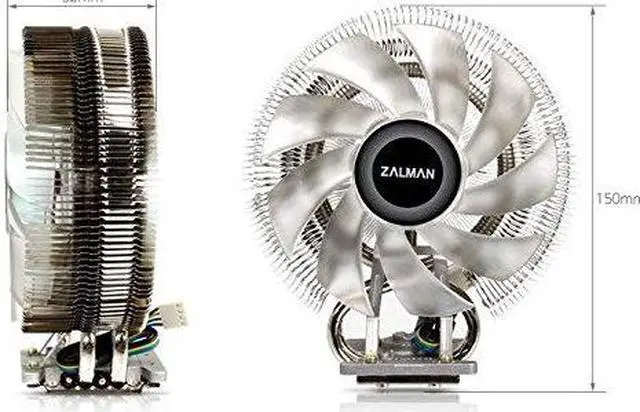

| Dimension | 120(L) x 60(W) x 150(H)mm |
| Weight | 480g |
| Material | Pure Copper |
| Fan speed | Normal Mode : 1,000 ~ 2,200rpm ±10%/Quiet Mode : 900 ~ 2,000rpm ±10% |
| Bearing Type | Long Life Bearing |
| Noise Level | Normal Mode : 19.5 ~ 36.7dBA ±10%/Quiet Mode : 18.5 ~ 34.3dBA ±10% |
| Fan Speed Control | PWM (Pulse Width Modulation) |
| Connector | 4Pin |
| Input Voltage | 12V |
