Question 1

Would this work with a horizontal PC case, or does it require a vertical case so that the heat can rise up and out?

Accepted Answer

i have both of mine in antec 900 tower cases, that case has a 200 mm top fan right next to the cpu cooler with a 4770k and 4790k cpu and NO GPU.  this combo works great.  i have for short periods of time operated the case, fan-off, side off in horizontal position and all seemed well from a temperature point of view.  so i think orientation isnt itself an issue, but rather making sure the cooler has access to lots of airflow.  intel graphics is enough for my workstation applications, so i have never attempted a GPU in the first slot.

Question 2

What is the max CPU wattage for fanless usage?

Accepted Answer

95 Watt's TDP is the max wattage you can it with. This is watt's as in heat watt's, not to be confused with power consumption. It's so quiet I can hear the HDD over the silence of my room. I would highly recommend it.

Question 3

how is it powered?

Accepted Answer

It's not powered; it is passive.  If you have a high wattage CPU (I believe more than 100W), you can attach a fan to the top of it.  But, otherwise, it provides sufficient cooling without needing any power.

It's big, so be sure you have enough clearance over your CPU in your case.  I believe it will fit fine in most cases.

And, it's quiet!

Question 4

If I put this Heat sink in a Full ATX Tower Case with 4 (110 cfm) "in" case fans & 3 (110 cfm) "out" case fans, would this be adequate for a CPU with a 220W Thermal Design Power?

Accepted Answer

I have this cooler and it is Amazing! Once you go with a powerful fanless cooler, you will never want to go back. The cooler fits with 0mm to spare in my Zalman Z9 case. It is flush with the two top fans and I turned the back fan to pump air in. The case has a total of 6 fans, 3 in 2 out and 1 self contained to create positive air flow. Because the cooler fits so well in the case, the case is essentially the cooler and hot air vents most optimally. Much superior to a smaller cooler who's hot air is blocked by the case. If your case can fit this cooler and you have top vented cooling, get this cooler!

Question 5

IS PRODUCT COMPATIBLE WITH INTEL I5-4670K LGA1150 CPU & ASUS Z87M-PLUS MOBO?

Accepted Answer

it works great with my i7-4470k lga1150 cpu and gigabyte z87x-ud5h mobo.  the two motherboards look very similar to me in terms of layout.  i used memory with very low heat sink.  a tall memory heat sink would definitely cause a problem as the cpu cooler hangs over the memory slots.

cooling wise i have a tower case with a large low rpm fan at the top.  sofar nothing close to an overheat condition.

Question 6

The holes in the motherboard are on approximate centers of 67 mm by 113 mm.  Can the clips that come with this unit be used to secure it to the motherboard with securing holes in this rectangular form?

Accepted Answer

good question, Im leaning towards no becuase I only remember it having brackets in the standard intel and AMD patterns in 2013, I hope this helps, I did not recall any being rectangular, but i ONLY did this to a 775 intel

Question 7

Will this fit in a Thermaltake Core V1?

Accepted Answer

No. The height of this cooler is listed as 150mm, whereas the Thermaltake Core V1 has space for coolers up to 140mm.

Question 8

DOES IT FIT ON LGA 1366?

Accepted Answer

Yes it does, it has a universal mount that fits legacy CPU sockets.

Question 9

Does it matter which way the CPU is oriented?

Accepted Answer

It really doesn't matter how the cpu is oriented.  The fan can be placed in two different positions.  Just make sure that you have room in your case to fit the cooler.  And, make sure you RAM modules don't have extra large cooling fins.  Measure your case free space and compare against the dimension of the cooler.  I would recommend this cooler for everyday use computers.  People who play graphic intensive games or do heavy duty video encoding will need a better cooling solution.  I have it installed on Haswell i7 4770k.

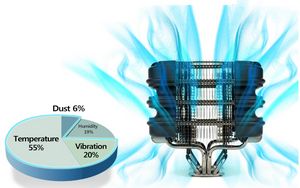

High durability The FX100 is the perfect cooling solution in places where noise, dust, and vibration are detrimental to the system and its surrounding areas.

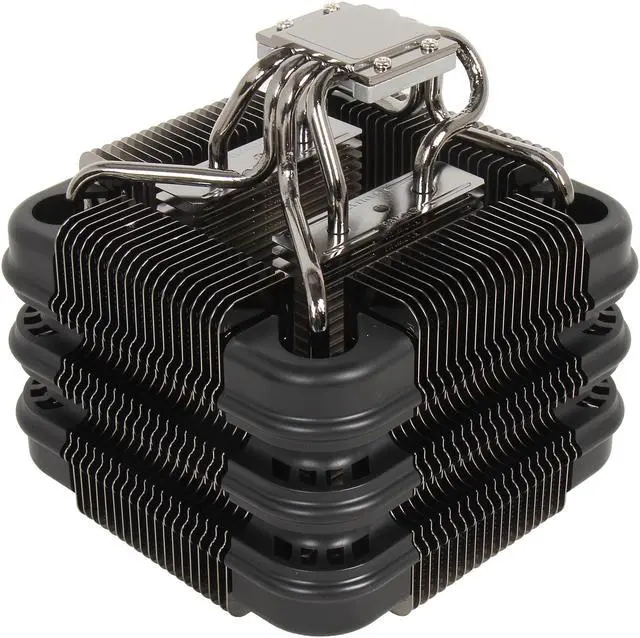

	Hexahedron heatsink Hexahedron (6-sided) structure offers maximum heat dissipation area with minimal space
10 high performance heatpipes Enjoy optimized heat transfer performance with 10 heatpipes applying multiple-heatpipe pressing joints (MPJ) technology.
	Wide compatibility The FX100 fits an ATX mid tower case (width 180mm) and is compatible with most CPU sockets. Compatible CPU sockets include: Intel Socket LGA 2011/1366/1155/1156/775 AMD Socket FM2/FM1/AM3+/AM3/AM2+/AM2 *Optional fan (92mm) ZM-F2Q (BL) is required for Intel LGA 2011/1366 CPUs
Black-pearl nickel plated heatsink Corrosion-resistance reinforced with a high quality finishing touch.
	Mirrored base Provides outstanding heat conduction for efficient heat dissipation.
ZM-STG2M provided High performance ZM-STG2 helps to maximize the heat transfer from the CPU to the CNPS9900DF base for optimal cooling performance.
	Optional fan can be added Supports up to a 130W / 92mm optional fan. Enjoy a next-to--noiseless environment with the Zalman LED Fan ZM-F2Q (BL) at 650rpm.

Brand	ZALMAN
Model	FX100

Color	Black
Type	Heatsinks only
Noise Level	0 dBA
Heatsink Material	Pure Copper and Aluminum

Heatsink Dimensions	156(L) x 156(W) x 157(H)mm
Weight	1.7 lbs.

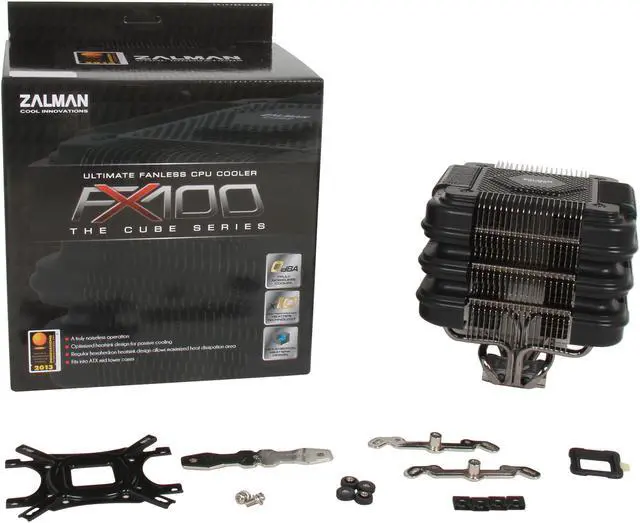

ZALMAN FX100 Ultimate Fanless CPU Cooler

Learn more about the Zalman FX100

Customer Reviews of the Zalman FX100

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16835118141
