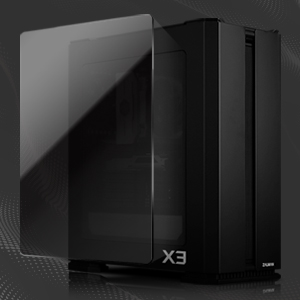

Integrated High Strength Tempered Glass

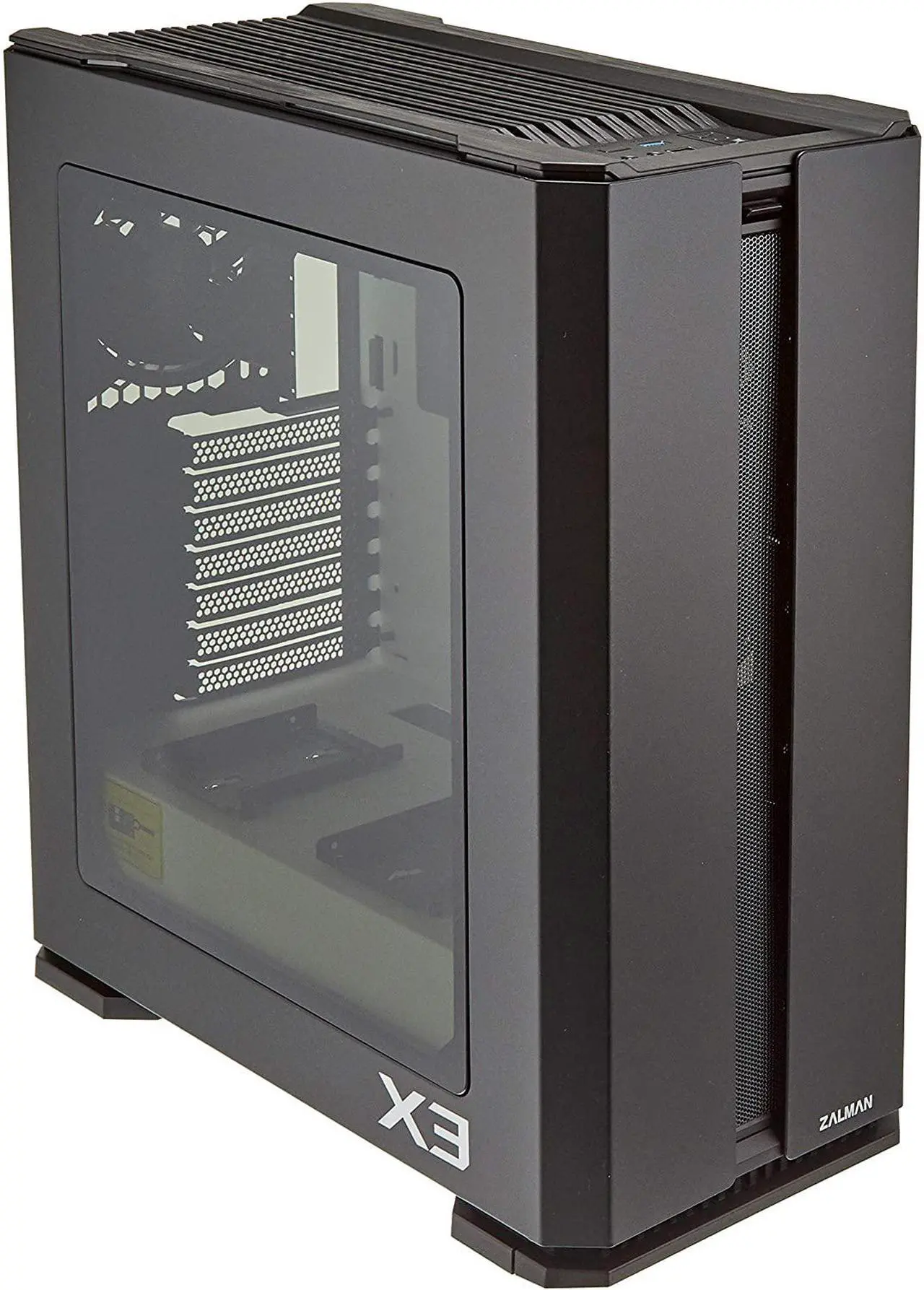

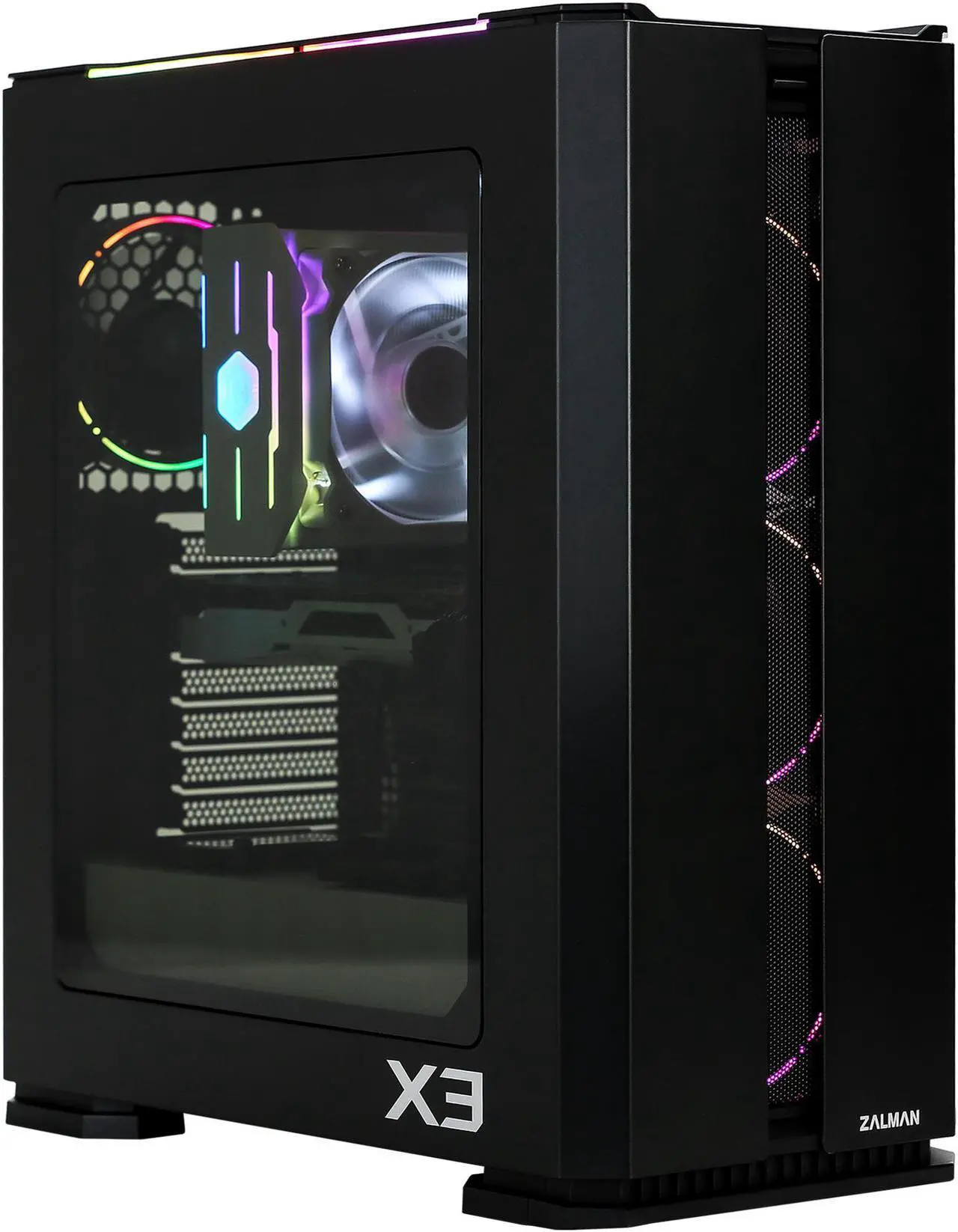

To provide a premium look to the X3 case, we integrated high-strength tempered glass with tint level of 20% on the side panel to showcase the custom RGB lighting.

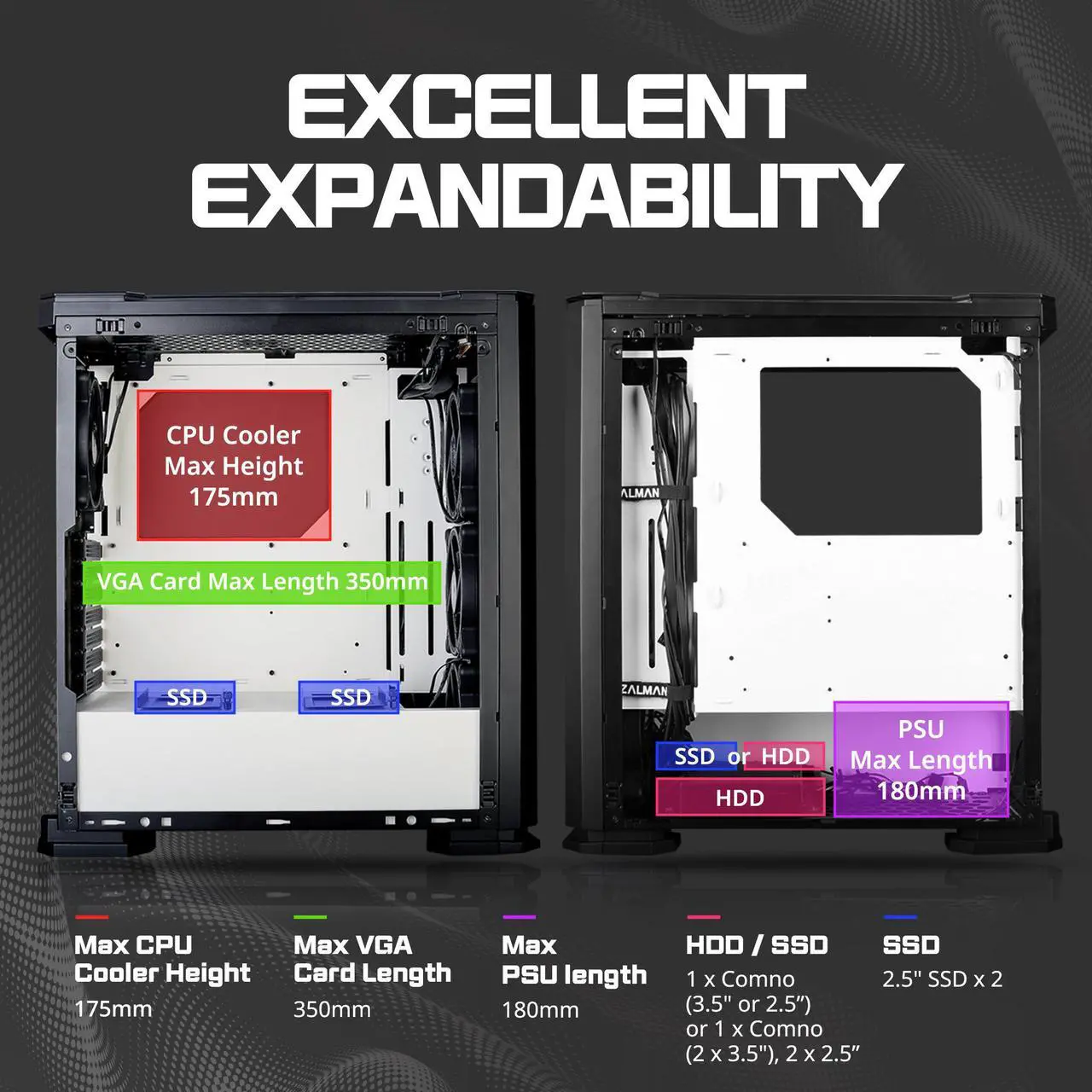

Expandability and Convenience
- CPU Cooler Max Height: 175mm
- VGA Card Max Length: 350mm
- SSD: 2.5" SSD x 2

- PSU Max Length: 180mm
- HDD & SSD: 1 x Combo (3.5" or 2.5") or Combo (2 x 3.5"), 2 x 2.5"

Motherboard Support
ATX, mATX, Mini-ITX

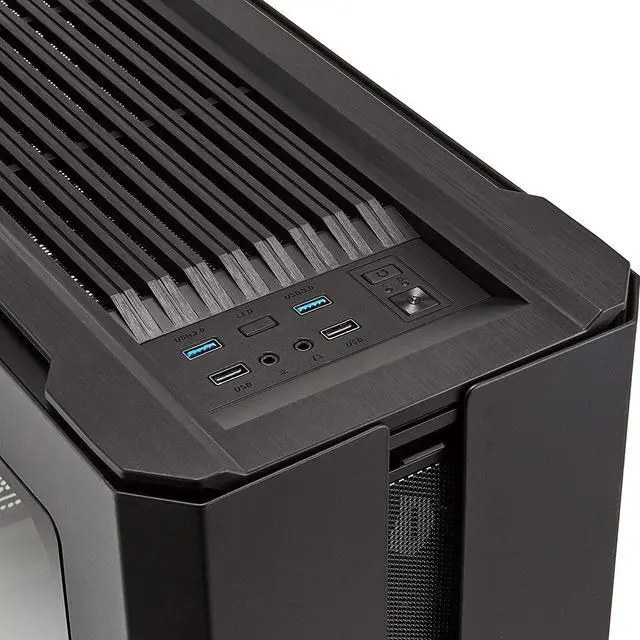

Top I/O Port Layout

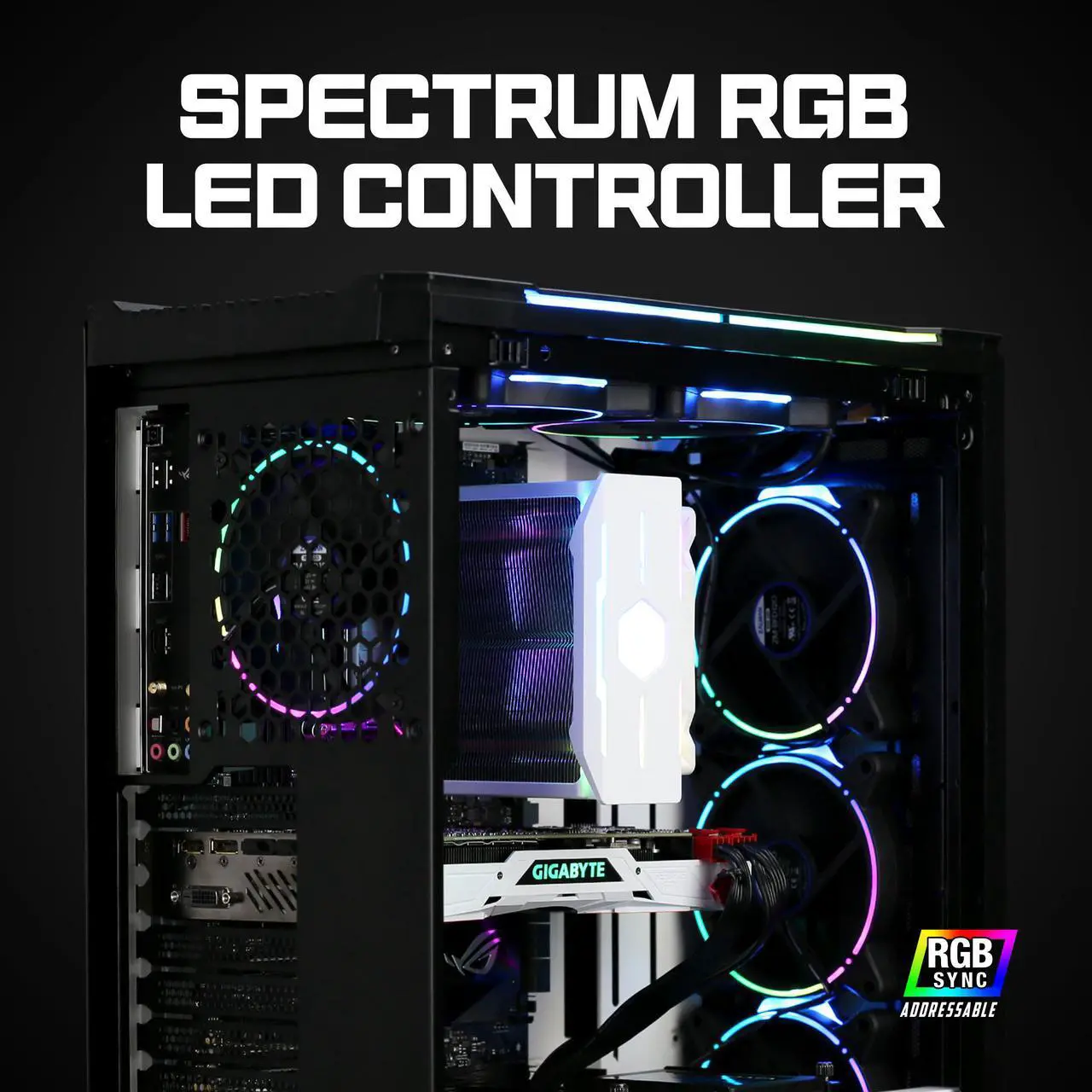

USB 3.0 x 2, USB 2.0 x 2, RGB LED Control Button, Headphone Jack, Microphone Jack, Reset Button, Power Button

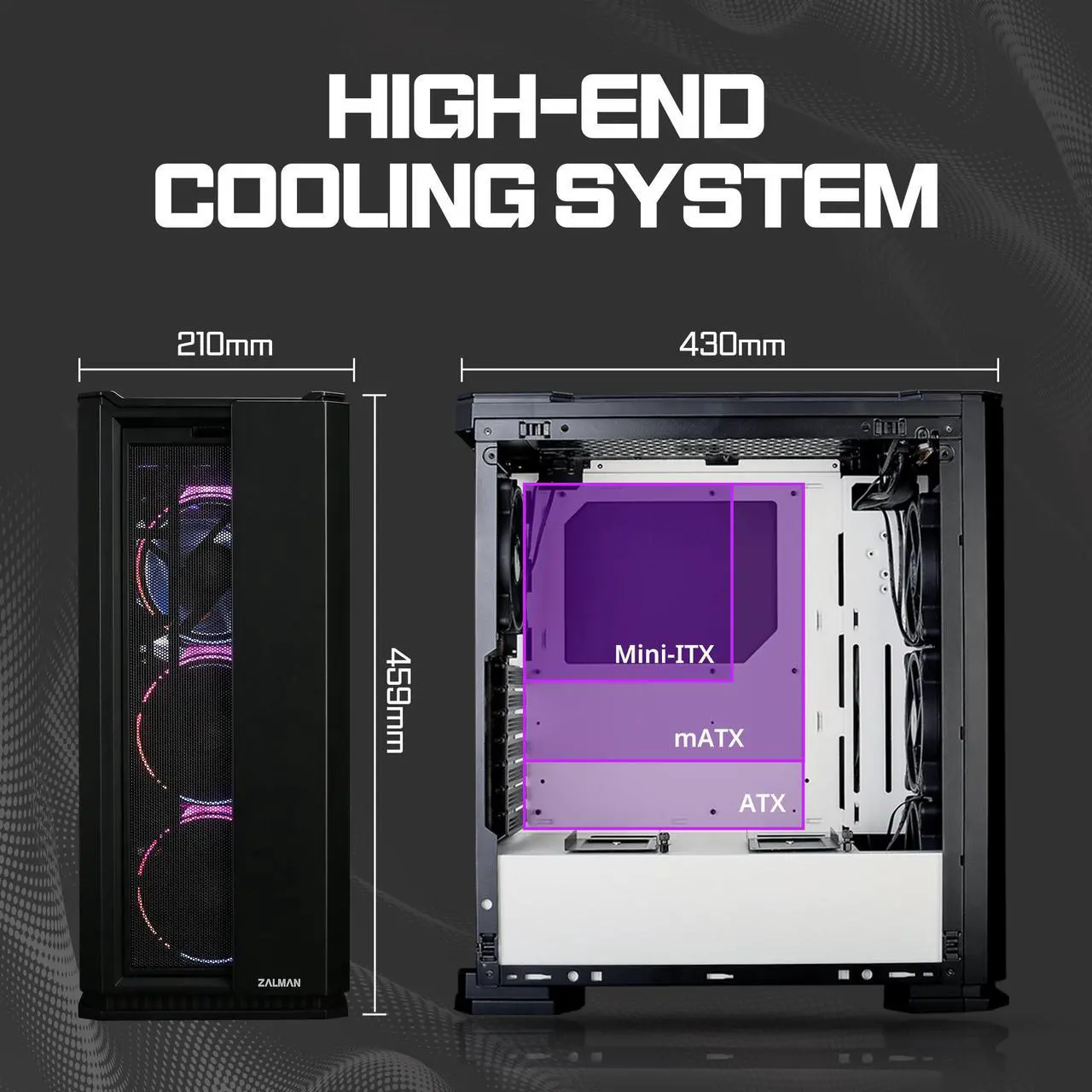

High-End Cooling System

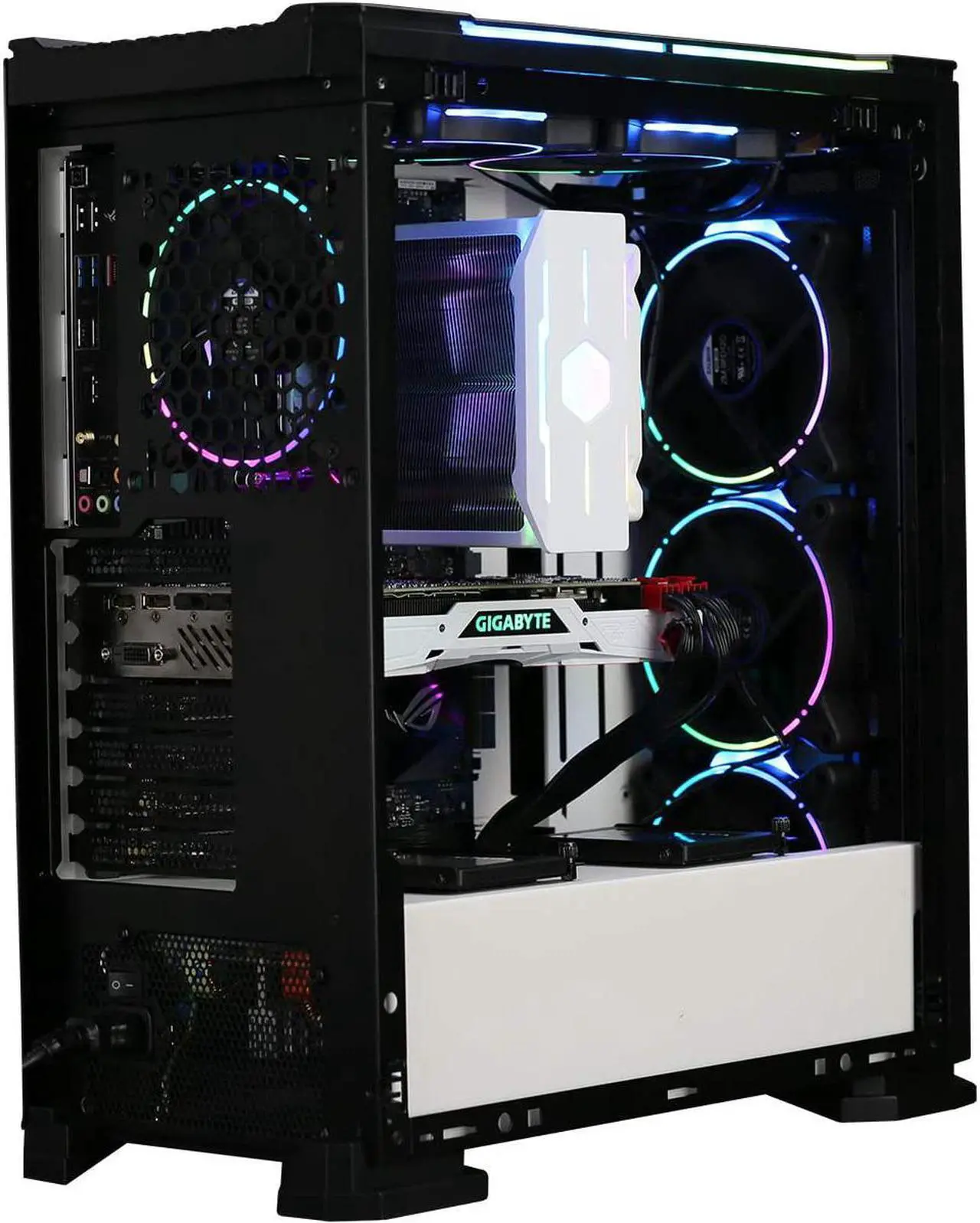

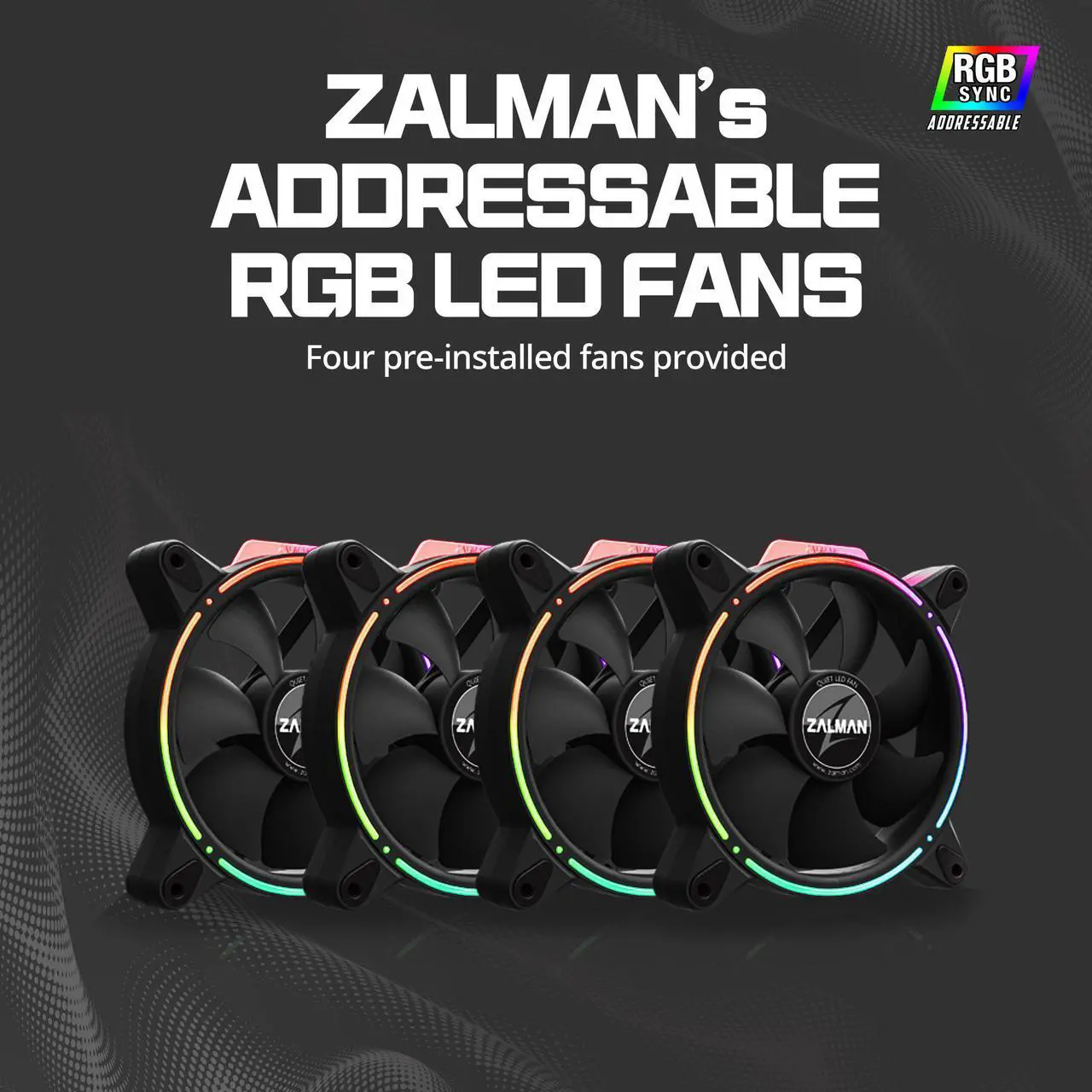

X3 has four pre-installed 120mm addressable RGB LED fans (Front x 3, Rear x 1) which creates a positive flow of air to provide an optimized gaming experience.
Specifications
Model | X3 Black |
---|---|
Case Form Factor | ATX Mid Tower |
Dimensions | 430(D) x 210(W) x 459(H)mm |
Weight | 9.1 kg |
Motherboard Support | ATX, mATX, Mini-ITX |
MAX VGA Length | 350mm |
MAX CPU Cooler Height | 175mm |
MAX PSU Length | 180mm |
PCI Expansion Slots | 7 |
Drive Bays | 1 x Combo (3.5" or 2.5") or 1 x Combo (2 x 3.5"), 2 x 2.5" |

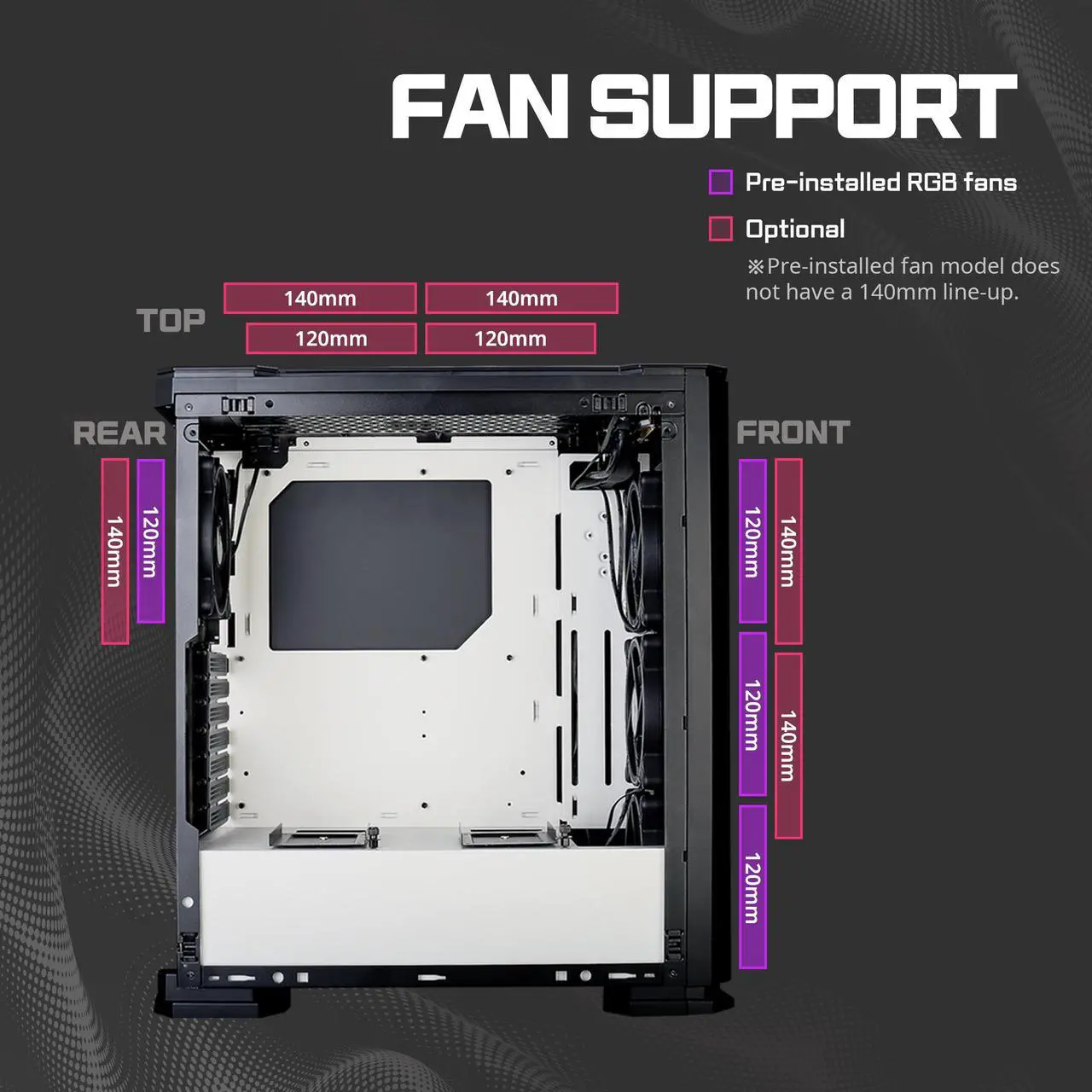

Fan Support | Front: 3 x 120mm, 2 x 140mm, Top: 2 x 120mm, 2 x 140mm, Rear: 1 x 120mm, 1 x 140mm |
Fan(s) Included | Front: Addressable RGB LED fan x 3, Rear: Addressable RGB LED fan x 1 |
Radiator Support | Front: 120mm, 240mm, 280mm, 360mm, Rear: 120mm |
I/O Ports | LED Controller, 1 x Headphone, 1 x Mic, 2 x USB 2.0, 2 x USB 3.0, Power, Reset |
