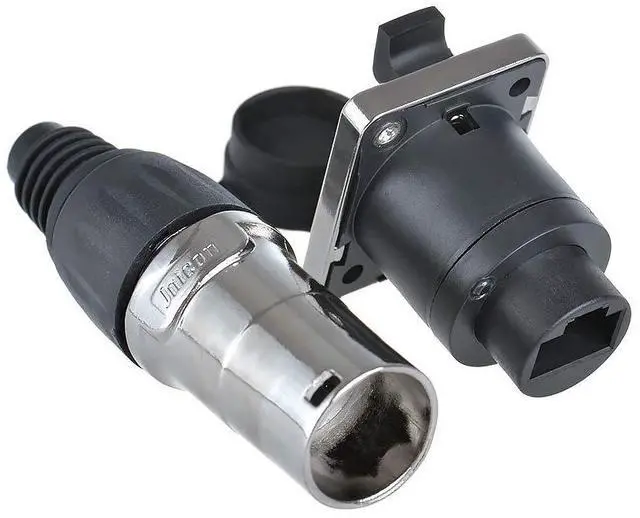

Waterproof RJ45 Panel Mount Coupler
RJ45 CAT6 Panel Mount Coupler
The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. It is designed to support data transfer rates up to 10 Gbps over twisted pair copper cabling, and is backward compatible with lower rated speeds such as 1000BASE-T and 100BASE-TX.

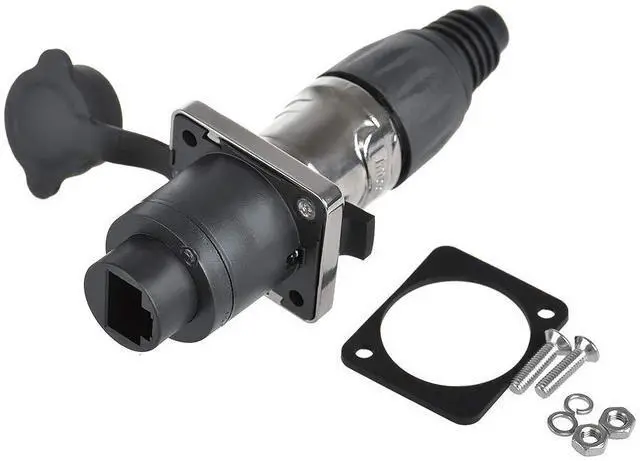

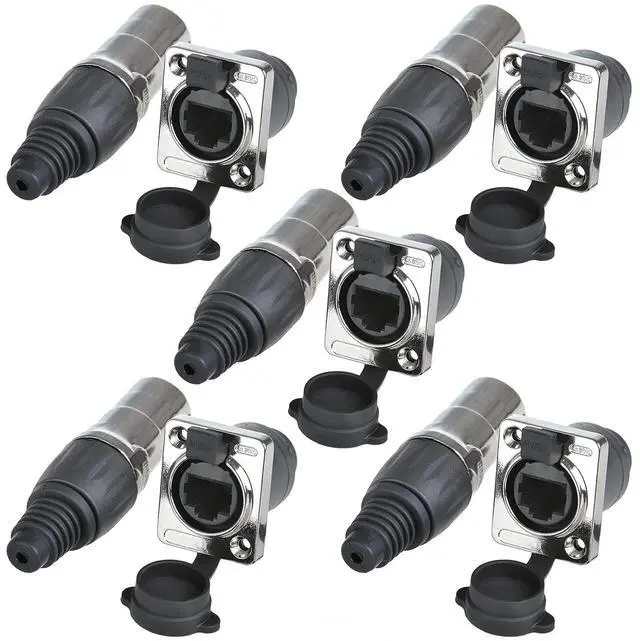

Package Included:
- 5x RJ45 CAT6 Coupler
- 5x Waterproof/Dust Cap Cover
- 5x Round IP67 Dustproof Waterproof Connector

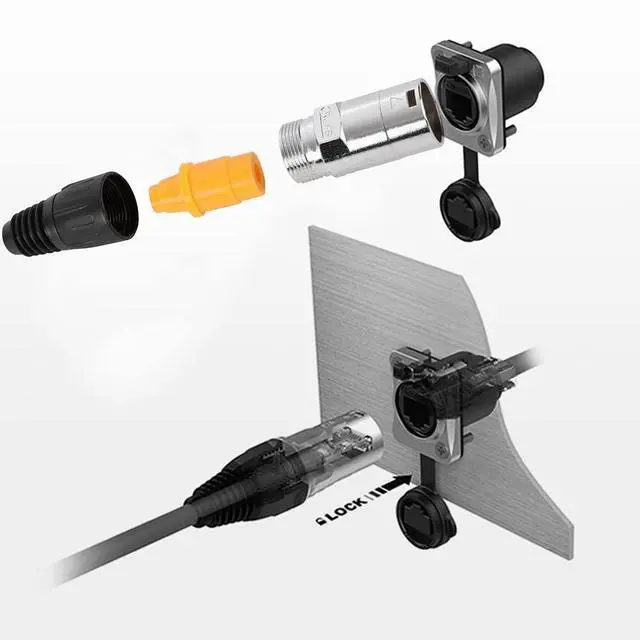

- 5 sets Install screws and nuts
Stable
The copper needles uses brass solid terminals and the surface is gold-plated. Stable current transmission.
Smooth Internet Access

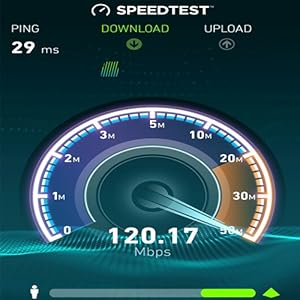

Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps. The internet is not lagging.
Durability
Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
Specifications
APPLICATIONS
Monitoring Equipment
Machinery Equipment
Automation Equipment
Stage Lighting Equipment
 M22 RJ45 Waterproof Connector |  ANMBEST 10PCS Shielded RJ45 Waterproof Panel Mount Connector IP68 Cat5/5e/6 8... |  ANMBEST 10PCS Panel Mounting Shielded CAT6 RJ45 Waterproof Connector Cat5/5e/... |  ANMBEST 5PCS Panel Mounting Shielded RJ45 Waterproof Cat5/5e/6 8P8C Connector... |  Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP67 | IP67(with cap) | IP67(with cap) | IP67 |
| Size | M22 | M23 | M23 | M20 | M20 |
Waterproof RJ45 Panel Mount Coupler
RJ45 CAT6 Panel Mount Coupler
The RJ45 CAT6 panel mount connector is a type of Ethernet port that can be mounted onto a panel or enclosure, providing easy access for connecting network devices. It is designed to support data transfer rates up to 10 Gbps over twisted pair copper cabling, and is backward compatible with lower rated speeds such as 1000BASE-T and 100BASE-TX.
Package Included:
- 5x RJ45 CAT6 Coupler
- 5x Waterproof/Dust Cap Cover
- 5x Round IP67 Dustproof Waterproof Connector
- 5 sets Install screws and nuts
Stable
The copper needles uses brass solid terminals and the surface is gold-plated. Stable current transmission.
Smooth Internet Access
Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps. The internet is not lagging.
Durability
Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
Specifications
| Pins | 8P8C |
| Connection Type | RJ45 |
| Transmission Category | CAT6 (TIA/EIA 586B, IEC11801) |
| Transfer Speed | 10BASE-T?100 BASE-T?1000 BASE-T?10000BASE-T |
| Rated Current | 1.5A |
| Rated Voltage | 125VAC, 75VDC |

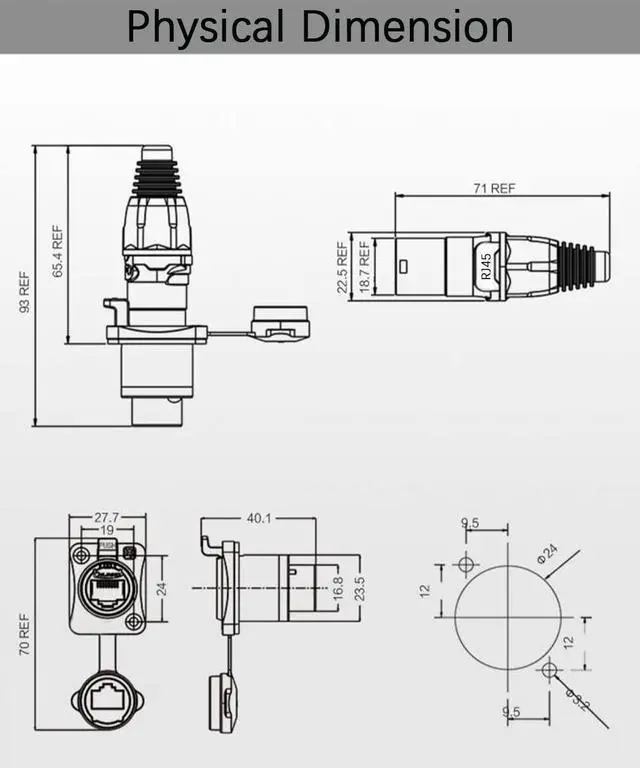

| Panel Thickness | Max 4mm |
| Withstand Voltage(AC.V)1min | 1000V |
| Durability | more than 1000 mating&unmating cycles |
| Shell Material | Zinc diecast (ZnAl4Cu1) |
| Socket Contact Pin Material | Bronze (CuSn8) |
| Contact Pin Plating | 7 µm Au over Ni plating |
| Waterproof Rubber Ring | PA6 15 % GR |
| Working Temperature | -40?~120? |
| Relative Humidity | less than 90% |
| Flame Retardant Rating | UL94V-0 |
APPLICATIONS
Monitoring Equipment
Machinery Equipment
Automation Equipment
Stage Lighting Equipment
M22 RJ45 Waterproof Connector | ANMBEST 10PCS Shielded RJ45 Waterproof Panel Mount Connector IP68 Cat5/5e/6 8... |  ANMBEST 10PCS Panel Mounting Shielded CAT6 RJ45 Waterproof Connector Cat5/5e/... |  ANMBEST 5PCS Panel Mounting Shielded RJ45 Waterproof Cat5/5e/6 8P8C Connector... |  Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP67 | IP67(with cap) | IP67(with cap) | IP67 |
| Size | M22 | M23 | M23 | M20 | M20 |
