ANMBEST IP68 Level Waterproof and Dustproof Panel Mounting RJ45 Shielded CAT6 Female to Female Coupler
Stable Connection High Speed Transmission
- Plug and connect to join two Ethernet patch cables. No tools are required to connect cables. Plug and play.
- Cat6 specification supports maximum 10Gbps(10000Mbps)Bandwidth 250MHZ signal transmission speed, Compatible with Cat5E/Cat5 ethernet cable.
- It is injection molded from PA66 nylon material, flame retardant, UV resistant, anti-aging, and has a longer service life.
- Perfect solution for outdoor equipment like IP camera, CCTV to prevent water from entering the interior of the product.

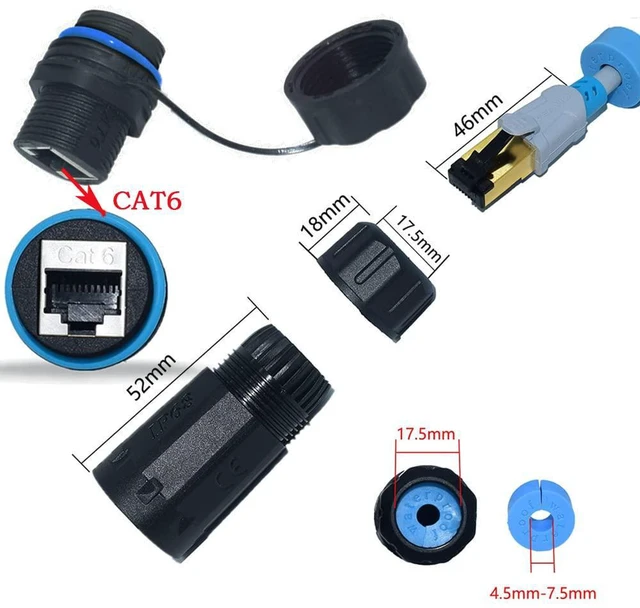

- Apply to cable size: Ø4.5-7.5mm. These RJ45 waterproof connectors can accommodate Ethernet cables as large as CAT6 CMX rated, down to standard CAT5.
High-speed Transmission
The copper needles uses brass solid terminals and the surface is gold-plated. Stabilize the current and reduce signal loss.
CAT6 standard provides performance of up to 250 MHz and backwards compatible with CAT5/CAT5E. Transfer speed up to 10Gbps (10000Mbps).
Durable
The RJ45 connector is made of PA66 nylon material, flame retardant, UV resistant, and anti-aging.

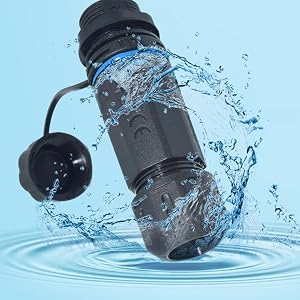

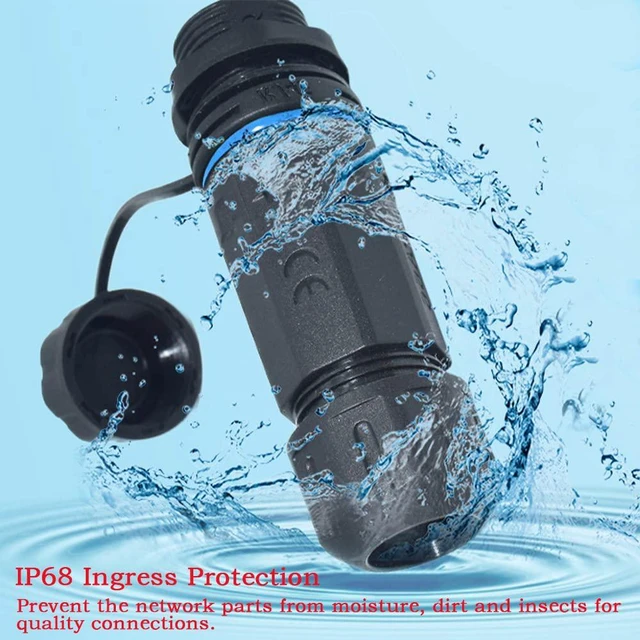

IP68 Waterproof
Providing excellent sealing performance and achieving the highest IP68 waterproof rating. Designed to withstand the harshest environments, indoor/outdoor, rainy, acid, alkali, oxidation and so on.
Specifications
Tool-free & Easy to Install
STEP1
1. Pass the ethernet cable through the elastic regulator
2. Pass through the sealing rubber ring
3. Pass through the middle waterproof connector
4. Connect the RJ45 connector
STEP2
5. After inserting the network cable, tighten the waterproof connector. Insert sealing rubber ring
STEP3
6.Tighten the elastic regulator
STEP4
7. The installation is complete
 M22 RJ45 Waterproof Connector |  ANMBEST 5PCS 3.23in Shielded RJ45 CAT6 Waterproof Connector M23 IP68 Waterpro... |  M20 RJ45 Waterproof Connector with Cable |  Panel Mounting RJ45 Connector |  Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP68 | IP67 | IP67(with cap) | IP67 |
| Size | M22 | M23 | M20 | M24 | M20 |
ANMBEST IP68 Level Waterproof and Dustproof Panel Mounting RJ45 Shielded CAT6 Female to Female Coupler
Stable Connection High Speed Transmission
- Plug and connect to join two Ethernet patch cables. No tools are required to connect cables. Plug and play.
- Cat6 specification supports maximum 10Gbps(10000Mbps)Bandwidth 250MHZ signal transmission speed, Compatible with Cat5E/Cat5 ethernet cable.
- It is injection molded from PA66 nylon material, flame retardant, UV resistant, anti-aging, and has a longer service life.
- Perfect solution for outdoor equipment like IP camera, CCTV to prevent water from entering the interior of the product.
- Apply to cable size: Ø4.5-7.5mm. These RJ45 waterproof connectors can accommodate Ethernet cables as large as CAT6 CMX rated, down to standard CAT5.
High-speed Transmission
The copper needles uses brass solid terminals and the surface is gold-plated. Stabilize the current and reduce signal loss.
CAT6 standard provides performance of up to 250 MHz and backwards compatible with CAT5/CAT5E. Transfer speed up to 10Gbps (10000Mbps).
Durable
The RJ45 connector is made of PA66 nylon material, flame retardant, UV resistant, and anti-aging.
IP68 Waterproof
Providing excellent sealing performance and achieving the highest IP68 waterproof rating. Designed to withstand the harshest environments, indoor/outdoor, rainy, acid, alkali, oxidation and so on.
Specifications
| Pins | 8P8C |
| Connection Type | RJ45 |
| Transmission Category | CAT6 |
| Transfer Speed | 10 Mbps, 100 Mbps, 1000 Mbps, 10000 Mbps network |
| Rated Current | 2.4A |
| Rated Voltage | 250VAC |
| Insulation Resistance | greater than 500MO |
| Withstand Voltage(AC.V)1min | AC1000V 50HZ or 60HZ for 1 minute |
| Durability | more than 500 mating&unmating cycles |
| Shell Material | nylon PA66 |
| Socket Contact Pin Material | 0.5mm diameter phosphor copper wire |
| Contact Pin Plating | 6FU gold |
| Waterproof Rubber Ring | silicone |
| Working Temperature | -40?~120? |
| Relative Humidity | less than 90% |
| Flame Retardant Rating | UL94V-0 |

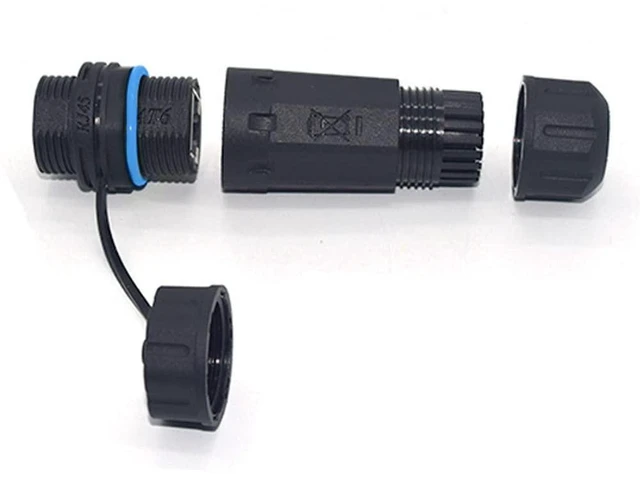

Tool-free & Easy to Install
STEP1
1. Pass the ethernet cable through the elastic regulator
2. Pass through the sealing rubber ring
3. Pass through the middle waterproof connector
4. Connect the RJ45 connector
STEP2
5. After inserting the network cable, tighten the waterproof connector. Insert sealing rubber ring
STEP3
6.Tighten the elastic regulator
STEP4
7. The installation is complete
M22 RJ45 Waterproof Connector | ANMBEST 5PCS 3.23in Shielded RJ45 CAT6 Waterproof Connector M23 IP68 Waterpro... | M20 RJ45 Waterproof Connector with Cable | Panel Mounting RJ45 Connector | Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP68 | IP67 | IP67(with cap) | IP67 |
| Size | M22 | M23 | M20 | M24 | M20 |
