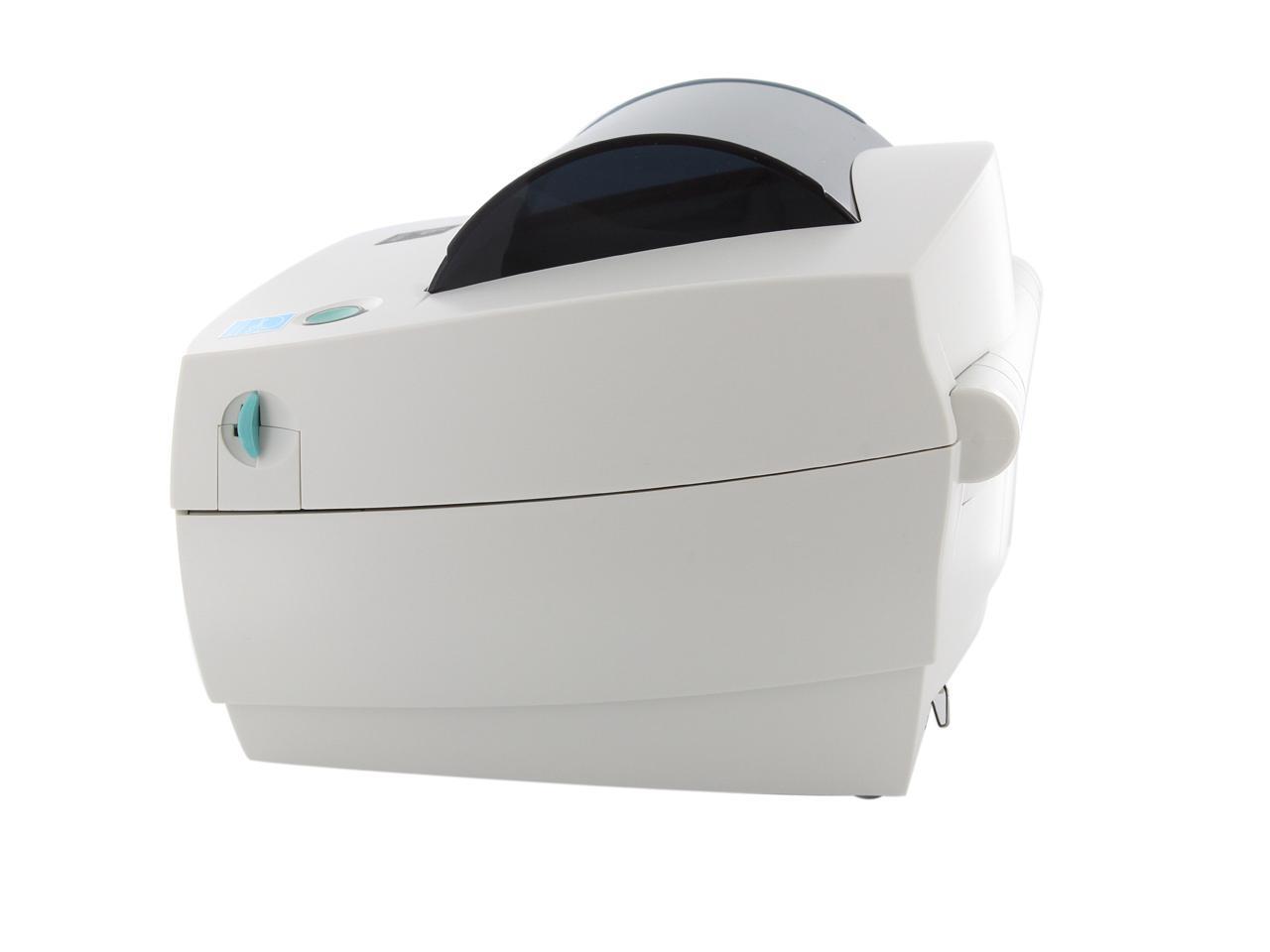

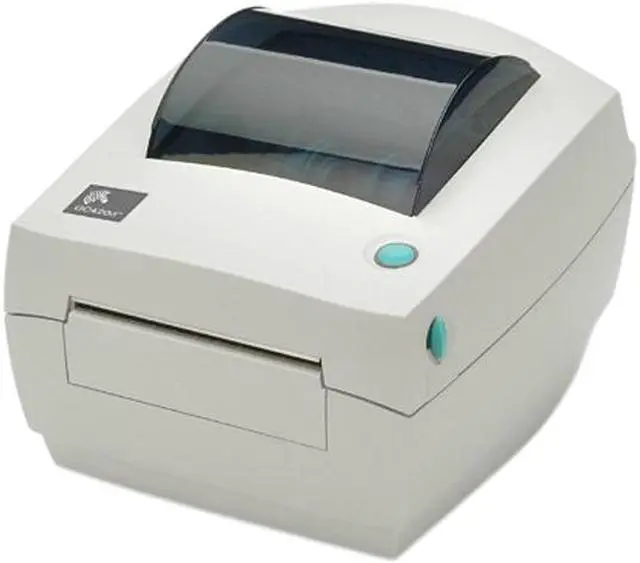

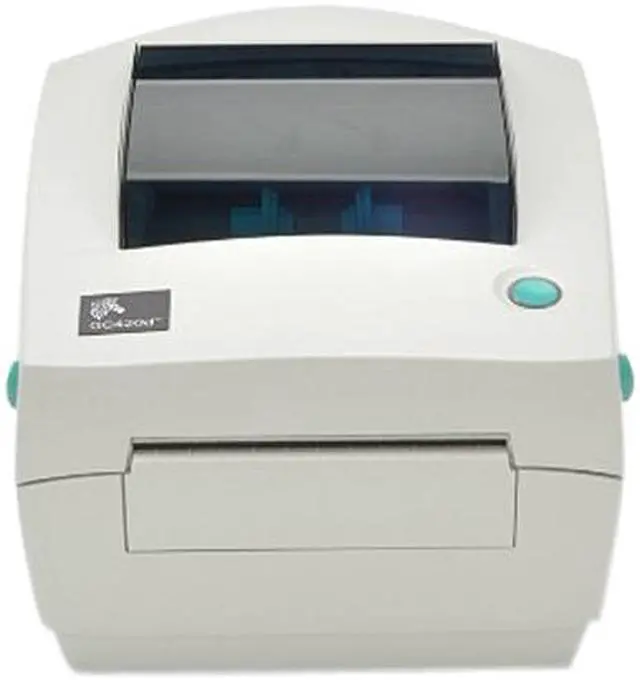

Zebra GC420d 4" Desktop Direct Thermal Label Printer, 203 dpi, USB, Serial, Parallel (Centronics), 8MB Standard Flash/8MB SDRAM, EPL/ZPL - GC420-200510-000

OPEN BOX

203 dpi @ 4 ips, 4.09" print width
The GC420 printer’s compact, space-saving design contains a powerful 32-bit processor for fast label throughput & 8 MB Flash memory for increased storage of fonts & graphics
Supports media widths up to 4.25” for standard desktop applications
It also includes both EPL2 & powerful ZPL II programming languages, making it easy to integrate w/ other Zebra printers
OpenACCESS design for easy media loading
Head-up sensor
Reflective and transmissive media sensing
Metal tear edge
5"outside diameter media capability
Fan-fold media feed slot
5 resident expandable bitmap fonts (USA, European)
Multiple DOS and Windows codepage support
Linear & 2-D barcode symbologies
Includes US Cord

Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Zebra GC420-200510-000

Printer
Print Technology	Direct Thermal
Printer Type	Desktop
Print Speed	4.00" / 102.00 mm per second (maximum)
Max Resolution(B&W)	203 dpi (8 dots / mm)
Memory	Standard Memory: 8 MB Memory Technology: SDRAM Flash Memory: 8 MB
Fonts Included	16 resident expandable ZPL fonts One resident scalable ZPL font 5 resident expandable EPL2 fonts Supports user-defined fonts and graphics - including custom logos
Barcode Type	Bar Code Ratios: 2:1 (non-rotated) and 3:1 Linear Bar Codes: Code 11, Code 39, Code 93, Code 128A, B & C (User selectable/Auto), UCC/EAN-128, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E with 2 and 5 add on, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar™ (formerly RSS), Postnet (5, 9, 11 & 13 digit) Japanese Postnet, Plessey (MSI-1), MSI-3, German Post Code, RSS-14 (limited, truncated, stacked). 2-Dimensional: PDF417 (MicroPDF-417 and MacroPDF-417), Code 49, Maxicode, Codablock, Data Matrix, QR code, and Aztec.
Cutter	Tear Bar

Media Handling
Media Type	Roll-fed or fan fold Label stock (die cut or continous, direct thermal or thermal transfer) Tag stock (die cut or continous, direct thermal or thermal transfer) Receipt paper (continous, direct thermal) Wristband stock (direct thermal or thermal transfer
Media sizes supported	Maximum label and liner width: 4.25" (108.00 mm) Minimum label and liner width: 1.00" (25.40 mm) Maximum label and liner length: 39.00" (991.00 mm) Maximum roll diameter: 5.00" (127.00 mm) Core diameter: 1.00" (25.40 mm) and 1.50" (38.00 mm) Media thickness: 0.003" (0.08 mm) to 0.007" (0.18 mm)
Print Size	Print width: 4.09" (104.00 mm) maximum Print length: 39.00" (991.00 mm) maximum

Connections
Interface	Centronics parallel (36 pin) connector ports RS-232 Serial interface USB V1.1 interface, bi-directional

Features
Features	32 bit RISC processor EPL2 and ZPLII programming languages Triple connectivity: Serial, USB and Parallel 4 ips maximum print speed Direct Thermal (d) and Thermal Transfer (t) printing of barcodes, text and graphics OpenACCESS design for easy media loading Head-up sensor Reflective and transmissive media sensing Metal tear edge 5.00"outside diameter media capability Fan-fold media feed slot 5 resident expandable bitmap fonts (USA, European) Multiple DOS and Windows codepage support Linear & 2-D barcode symbologies

Dimensions & Weight
Dimensions	6.70" x 7.90" x 8.20"
Weight	3.00 lbs.
