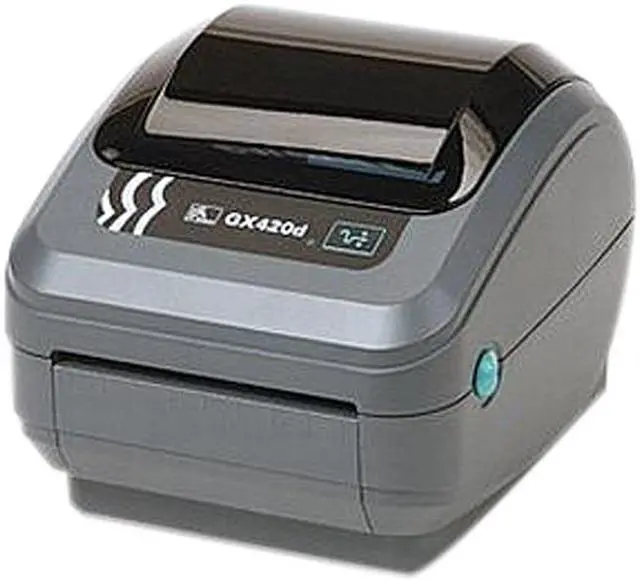

Zebra GX42-202410-150 GX420 G-Series Compact Desktop Printers

Be the first to review this product...

Direct thermal
203 dpi, 4.09" Print Width
USB/RS-232/Ethernet interfaces
Real-time clock
Adjustable Black line Sensor

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The best-in-class enhanced GX420d direct thermal printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420d has a sleek and compact design, boasts the smallest footprint in a 4-inch desktop printer, and supports a variety of applications and industries.

General
Brand	Zebra
Series	GX420t
Model	GX42-202410-150

Printer
Print Technology	Direct Thermal
Print Speed	6"/152 mm per second
Max Resolution(B&W)	203 dpi / 8dots per mm
Memory	Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user) Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user)
Fonts Included	16 resident expandable ZPL II bitmap fonts One resident scalable ZPL font Five resident expandable EPL2 bitmap fonts Supports user-defined fonts and graphics - including customer logos
Barcode Type	Linear Codabar Code 11 Code 128 Code 128 with subsets A/B/C Code 39 Code 93 EAN-13 EAN-14 EAN-8 EAN-8 and EAN-13 with 2 or 5 digit extensions German Post Code Industrial 2-of-5 Interleaved 2-of-5 Japanese Postnet Logmars MSI MSI-3 Postnet RSS (reduced space symbology) Standard 2-of-5 UCC/EAN-128 UPC and EAN 2 or 5 digit extensions UPC-A UPC-A and UPC-E with 2 or 5 digit extensions UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MacroPDF417 MaxiCode MicroPDF417 PDF417 QR Code RSS / GS1 DataBar family (12 barcodes)
Cutter	Cutter for various media types

Media Handling
Media Type	Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands
Media sizes supported	Maximum label and liner width: 4.25" (108 mm) Minimum label and liner width: 0.75" (19 mm) Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm) Maximum roll diameter: 5" (127 mm) Core diameter: 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (37.1 mm) Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm)

Connections
Interface	Serial / USB / Ethernet

Features
Features	Print method: direct thermal EPL and ZPL programming languages standard OpenACCESS design for easy media loading Smallest footprint in a 4-inch thermal printer Dual-wall reinforced plastic construction 32 bit RISC processor XML-enabled printing

Dimensions & Weight
Dimensions	6.00" x 6.75" x 8.25"
Weight	3.10 lbs.

Additional Information
First Listed on Newegg	April 22, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.
