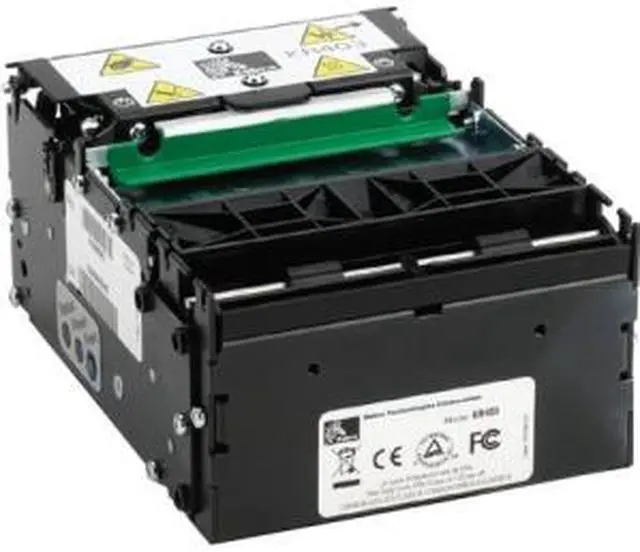

Zebra P1009545 KR403 Kiosk Receipt Printer

Building on Zebra® kiosk printers' reputation for reliable performance in tough printing environments, the KR403™ receipt printer offers enhancements ranging from excellent print quality to expanded memory, fonts and barcode sets - including the retail-industry-required GS1 barcode.

The KR403 is easy to integrate into kiosk designs thanks to its compact footprint, range of mounting configurations, and Zebra Programming Language (ZPL®), which increases functionality and allows for a wide variety of applications. And, it decreases total cost of ownership and raises customer satisfaction with features that reduce upkeep and downtime. The large 9.8" (250mm) media roll capacity, for example, means fewer roll changes. Paper-low and other automatic remote alerts enable proactive diagnostics and maintenance. And, to curtail paper jams, count on the patented looping presenter with integrated cutter and a retract function that retains left-behind printouts - protecting kiosk user's privacy and reducing litter.

The KR403 offers a variety of ways to connect - from serial and USB interfaces to 10/100 Ethernet - for simple kiosk integration. Enabling easy setup and configuration via Zebra advanced printer management tools, the KR403 optional Ethernet connectivity offers optimal integration for today's network environment.

KR400 Series Printers Offer:

Unremitting Reliability to Keep Kiosks Printing

Optimized for tough printing environments where durability, reliability, minimal maintenance and ease of use are critical, Zebra printers maximize uptime and minimize upkeep.

Easy to Integrate in Kiosk Designs

A small footprint and flexible mounting options make our printers ideal for a variety of applications - whether embedded in a custom kiosk solution or Zebra's Kiosk Print Station.

End Benefits

As an integral part of a self-service kiosk solution, Zebra printers help companies improve service, raise customer satisfaction, increase revenue and lower operational costs. More Standard Features

• Print methods: direct thermal receipt and label printing for 2.3"/58mm to 3.25" (82.5mm) width media
• Patented looping presenter with pull detector and retract & retain function
• Auto media loading
• Horizontal and vertical mounting capability
• Various media mounting options behind and below give flexibility to kiosk design, up to 9.8" (250mm) diameter media rolls
• USB and RS232 serial connectivity
• 203dpi Printing
• Excellent print quality achieved through printhead alignment features and Element Energy Equalizer™ (E3™)
• Windows® drivers for plug and play
• 21 resident 1-D and 10 resident 2-D barcodes
• 15 Bitmap fonts and 1 scalable font
• Unicode™-compliant
• 1.5MB Flash memory supports a wide range of graphic types
• Maintenance alerts
• Numerous software tools for commissioning, using and troubleshooting the printer
• ENERGY STAR®-qualified

Printer Specifications

Resolution: 203dpi (8 dots/mm) Print width

• 2.3" (58mm)
• 2.4" (60mm)
• 3.1" (80mm)
• 3.3" (82.5mm)

• Print length: 2.75" (70mm) to 23.6" (600mm)
• Print speed: 6" (152mm)/sec

Media Characteristics

• Maximum roll diameter: 9.8" (250mm)
• Core diameter: 1" (25mm)
• Media thickness: 0.002" (0.054mm) to 0.004" (.11mm)
• Media types: Roll or fanfold

Operating Characteristics

• Operating temperature DT: Operating temperature: 14®F (-10®C) to 122® F (50®C)
• Direct thermal Storage temperatures: 14®F (-10®C) to 122®F (50®C)
• Operating humidity: 10 - 95% non-condensing R.H.
• Electrical: 24VDC, ± 5%, average 2A when printing

Physical Characteristics

• Width: 4.2" (107mm)
• Height: 2.7" (68mm)
• Depth: 5.7" (144mm)
• Weight: 2.4lbs (1.1kg)

Kiosk Characteristics

Max / Min Receipt Width: 3.3" (82.5mm) / 2.3" (58mm) Related Products

Communication and Interface Capabilities

• Serial RS-232 and USB 1.1 (2.0 compatible)
• 10/100 Ethernet (option)
• Windows XP, Vista, 7, Server 2003, OPOS and Linux

Options and Accessories

• Media guides: 58, 60, 80 and 82.5mm
• Roll holder "universal" variable position, 7.9" (200mm) diameter max
• Adapter for roll holder below position, 9.8" (250mm) diameter max
• Roll holder wall mount, 5.9" (150mm) diameter max
• Quick fit hubs for easy mounting and removal of printer
• Paper-low sensor with 11.8" (300mm) cable
• Adapter plate and spindle for 0.5" (12mm) media rolls
• Paper-low sensor with 19.7" (500mm) cable
• Output bezel for easier integration
• Output shutter to protect the printer from intrusion or damage
• Accessory kits for quick deployment
• ZBI 2.0™ - Zebra Basic Interpreter for stand-alone applications
• Expanded 64 MB Flash memory
• Large media roll adapter
• Small media core adapter
• Paper-low sensor with 19.7" (500mm) cable
• 10/100 Ethernet and USB 1.1 connectivity
