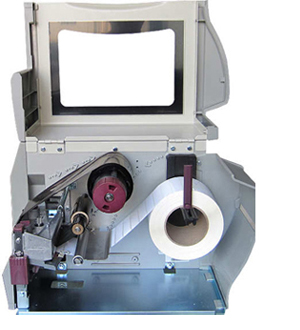

Zebra S4M Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print

Key Features

• More ways to connect
• Unicode™-compliant
• Side-loading design

Ideal For

• Compliance labelling
• Manufacturing
• Distribution
• Healthcare Patient Safety
• Post and Parcel

Standard Features

• Print methods: Direct thermal or Thermal transfer (optional)
• Construction: Die-cast metal frame with sheet-metal enclosure
• Metal media cover with large clear window
• Element Energy Equalizer™ (E3™) for superior print quality
• Back-lit LCD control panel
• Parallel, USB 1.1 and RS-232 serial ports

Printer Specifications

• 203dpi (8 dots per mm); 300dpi (12 dots per mm) (optional)

• Standard: 4MB flash, 8MB DRAM

• 4.09" (104mm)

• 203dpi: 157" (3,988mm)
• 300dpi: 73" (1,854mm) (optional)

• 6" (152mm) per second

• Transmissive and reflective sensors

Media Characteristics

• Maximum non-continuous label length: 39" (991mm)

• 0.75" (19.4mm) to 4.50" (114mm)

• 8.0" (203mm) O.D. on a 3.0" (76mm) I.D. core
• 5.9" (152mm) O.D. on a 1.0" (25mm) I.D. core

• 0.003" (0.076mm) to 0.010" (0.25mm)

• Continuous, die-cut, tags, black-mark

Ribbon Characteristics (Thermal Transfer Option Only)

• 3.2" (81.3mm)

• 984' (300m) or 1476' (450m)

• 2:1 media roll to ribbon ratio for 984' (300m)
• 3:1 media roll ribbon ratio for 1476' (450m)

• 1.57" (40mm) to 4.33" 110mm

• Ribbon wound ink-side out

• 1.0" (25.4mm)

Operating Characteristics

• Operating temperature: 41 to 104°F (5 to 40°C) (Thermal Transfer) and 32 to 104°F (0 to 40°C) (Direct Thermal)
• Storage temperature: -40 to 140°F (-40 to 60°C)
• Operating humidity: 20% to 85% non-condensing
• Storage humidity: 5% to 85% non-condensing

• Universal auto-ranging (PFC-compliant) power supply 90 ~ 265VAC; 48 - 62Hz

• IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
• Markings: cULus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, IRAM, CCC, GOST-R

Physical Characteristics

• Width: 10.7" (272mm)
• Height: 11.6" (295mm)
• Depth: 18.8" (477mm)
• Weight: 27.2lb (12.4kg)
• Shipping weight: 33.5lb (15.2kg)

Options and Accessories

• Printhead 300dpi (12 dots per mm)
• Peel – A front-mounted, passive-peel option with no take-up spindle
• Factory-installed 64MB flash memory option
• Real-time clock (RTC) option
• Thermal transfer ribbon-handling system
• Keyboard display unit (KDU)

Zebralink™ Solutions

• ZebraDesigner™ Pro (optional)
• ZebraDesigner
• ZebraNet™ Bridge Enterprise
• ZebraNet Utilities v 7.0
• Zebra Universal Driver
• ZBI-Developer™

• ZebraNet Internal Wireless Plus PrintServer
• ZebraNet 10/100 PrintServer option (internal or external)

• ZPL II®
• Zebra Global Printing Solution
• EPL2™
• Web View
• Alert
• ZBI 2.0™
• ZBI-Developer

Bar Code Symbologies

• Linear bar codes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
• 2-Dimensional: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS (ZPL only, other firmware languages may vary)

Fonts and Graphics

• Seven bitmapped, one smooth-scalable (CG Triumvirate™ Bold Condensed)
• International character sets supporting the following code page: IBM® Code Page 850 International character set
• Supports user-defined fonts and graphics, including custom logos
• ZPL II drawing commands including boxes and lines
• Contains UFST® from Monotype Imaging Inc.
