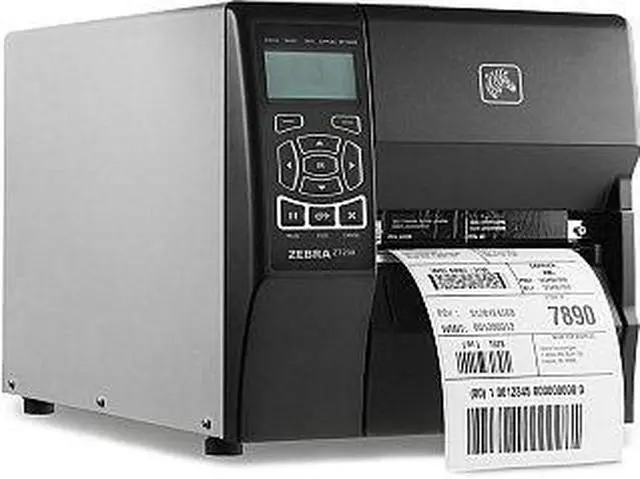

Zebra ZT230 4” Industrial Direct Thermal Label Printer, LCD, 203 dpi, Serial, USB, ZPL, EPL, EPL2, XML Support - ZT23042-D01000FZ

OPEN BOX

203 dpi @ 6 ips
32 bit, 400 MHz processor, 128MB RAM/128MB Flash memory
Icon-based LCD multilingual graphical user interface & full function keypad
Rugged all-metal case for long-lasting use
Thin film printhead w/ E3 Element Energy Equalizer
Dual media sensors, transmissive & reflective sensing technology, selectable through software or front panel
Side-loading metal print mechanism w/ head-open lock withstands general wear & tear & facilitates media loading
Robust gold user touch points simplify operation by directing user to key areas for adjustment
Space saving design w/ unique bi-fold door (requires 4 in. / 102 mm of opening space) decreases overall operating space by 35%
Built for light industrial & commercial environments
Easy, tool-less platen & printhead removal enable simple cleaning & replacement
Virtual Devices apps enable Link-OS printers to support well-known legacy & competitor printer languages in addition to ZPL & EPL
Includes US cord

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Zebra ZT230 (ZT23042-D01000FZ)

Printer
Print Technology	Direct Thermal
Printer Type	Industrial
Print Speed	6 ips
Max Resolution(B&W)	203 dpi (8 dots/mm)
Memory	128 MB Flash, 128 MB RAM
Ribbon Characteristics	Outside diameter: 3.20" / 81.30 mm on a 1.00" / 25.00 mm I.D. core Ratio: 3:1 media-roll-to-ribbon ratio for ZT230 Width: 1.57" / 40.00 mm to 4.33" / 110.00 mm

Media Handling
Media Type	Continuous, die-cut, notch, black mark
Media sizes supported	Maximum label and liner width: 4.50" / 114.00 mm Media Width: 0.75" / 19.40 mm to 4.50" / 114.00 mm Maximum Media Roll Size: 8.00" (203.00 mm) O.D. on a 3.00" (76.00 mm) I.D. core 6.00" (152.00 mm) O.D. on a 1.00" (25.00 mm) I.D. core
Print Size	4.00" print width

Connections
Interface	Serial / USB

Dimensions & Weight
Dimensions	10.90" x 9.50" x 17.00"
Weight	20.00 lbs.

Additional Information
First Listed on Newegg	January 16, 2015
