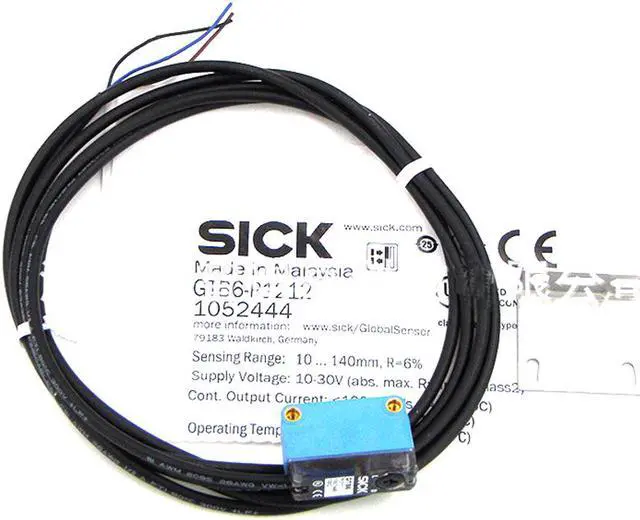

SICK GTB6-P1212 Miniature Photoelectric Sensors PNP New
- SICK GTB6-P1212 Miniature Photoelectric Sensors PNP New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SICK GTB6-P1212 Miniature Photoelectric Sensors PNP New
Features
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Housing design (light emission) Rectangular
Sensing range max. 5 mm ... 250 mm 1)
Sensing range 35 mm ... 140 mm
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 6 mm (100 mm)
Wave length 650 nm
Adjustment Mechanical spindle, 5 turns
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx. 0 V
Output current Imax. = 100 mA 4)
Response time < 625 µs 5)
Switching frequency 1,000 Hz 6)
Connection type Cable, 3-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.14 mm²
Circuit protection
A 8)
B 9)
D 10)
Protection class III
Weight 60 g
Housing material Plastic, ABS/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Ambient operating temperature –25 °C ... +55 °C 11)
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
Features
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Housing design (light emission) Rectangular
Sensing range max. 5 mm ... 250 mm 1)
Sensing range 35 mm ... 140 mm
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 6 mm (100 mm)
Wave length 650 nm
Adjustment Mechanical spindle, 5 turns
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx. 0 V
Output current Imax. = 100 mA 4)
Response time < 625 µs 5)
Switching frequency 1,000 Hz 6)
Connection type Cable, 3-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.14 mm²
Circuit protection
A 8)
B 9)
D 10)
Protection class III
Weight 60 g
Housing material Plastic, ABS/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Ambient operating temperature –25 °C ... +55 °C 11)
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
