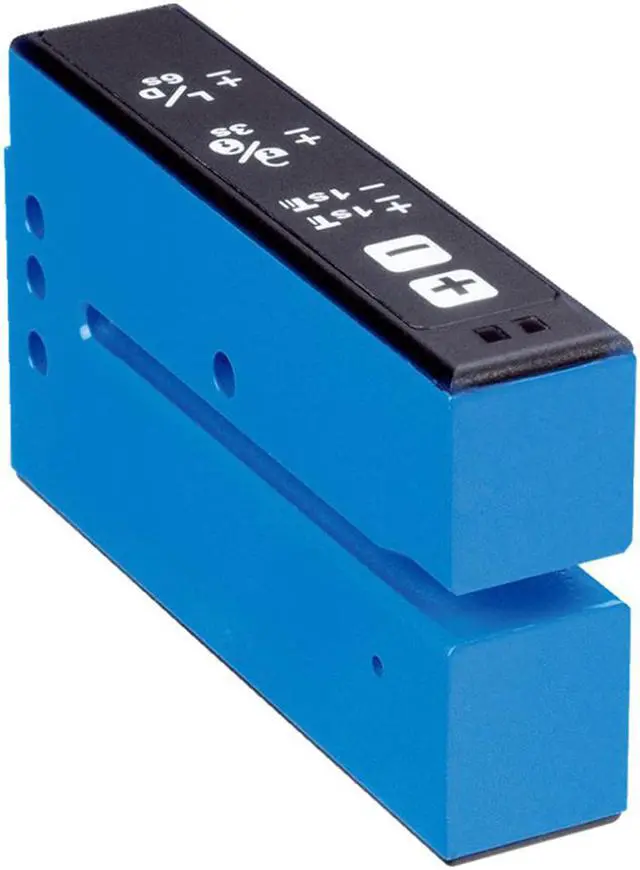

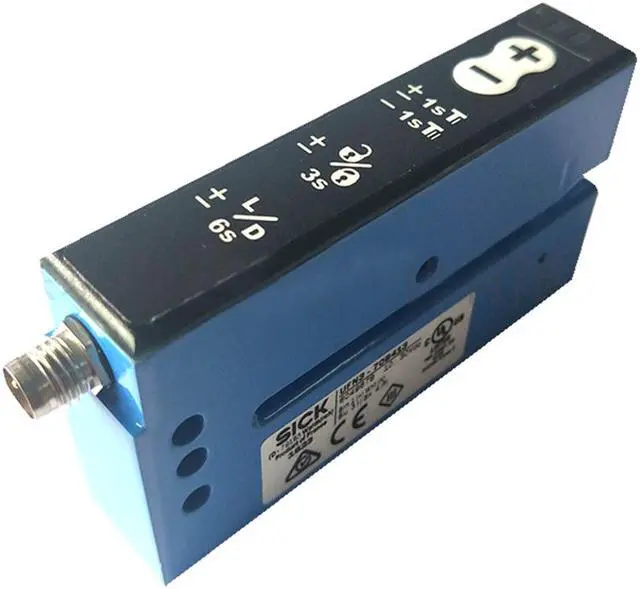

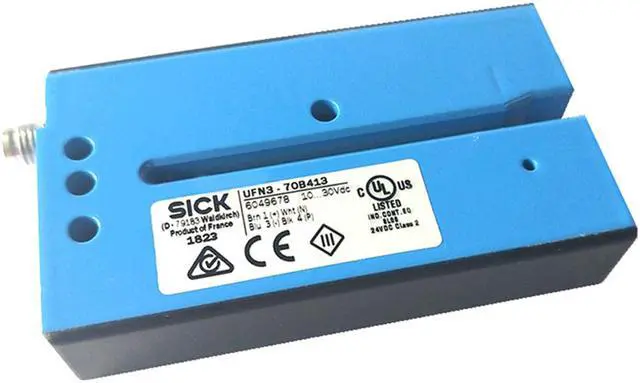

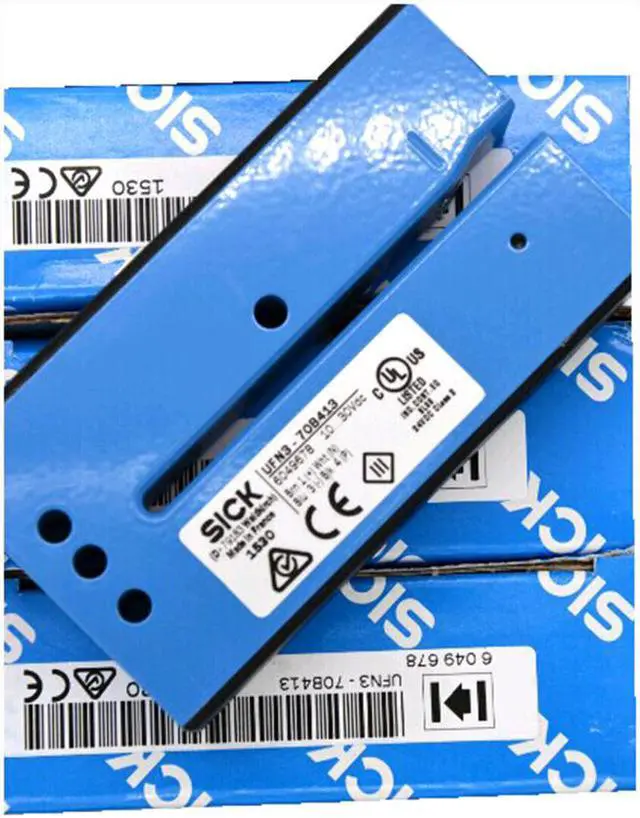

Sick UFN3-70B413 Ultrasonic Sensors , New
- Sick UFN3-70B413 Ultrasonic Sensors , New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Functional principle Ultrasonic detection principle Dimensions (W x H x D) 18 mm x 47.5 mm x 92.5 mm Housing design (light emission) Fork shaped Fork width 3 mm Fork depth 69 mm Minimum detectable object (MDO) Gap between Labels /
Size of labels: 2 mm 1) Label detection? Adjustment Plus/minus button (Teach-in, sensitivity, light/dark switching) Teach-in mode 2-point teach-in Dynamic Teach-in Output function Light/darkswitching, selectable via button Supply voltage 10 V DC... 30 V DC 1) Ripple < 10 % 2) Power consumption 40 mA 3) Switching frequency 1.5 kHz 4) Response time 250 µs 5) Switching output PNP, NPN Switching output (voltage)
PNP: HIGH = VS– = 2 V / LOW approx.
0 V NPN: HIGH = approx. VS / LOW = 2 V Switching output Light/dark switching Output current Imax. 100 mA 6) Initialization time 100 ms Connection type Male connector M8, 4-pin Protection class III 7) Circuit protection Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight 95 g Housing material Aluminum
Size of labels: 2 mm 1) Label detection? Adjustment Plus/minus button (Teach-in, sensitivity, light/dark switching) Teach-in mode 2-point teach-in Dynamic Teach-in Output function Light/darkswitching, selectable via button Supply voltage 10 V DC... 30 V DC 1) Ripple < 10 % 2) Power consumption 40 mA 3) Switching frequency 1.5 kHz 4) Response time 250 µs 5) Switching output PNP, NPN Switching output (voltage)
PNP: HIGH = VS– = 2 V / LOW approx.
0 V NPN: HIGH = approx. VS / LOW = 2 V Switching output Light/dark switching Output current Imax. 100 mA 6) Initialization time 100 ms Connection type Male connector M8, 4-pin Protection class III 7) Circuit protection Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight 95 g Housing material Aluminum
