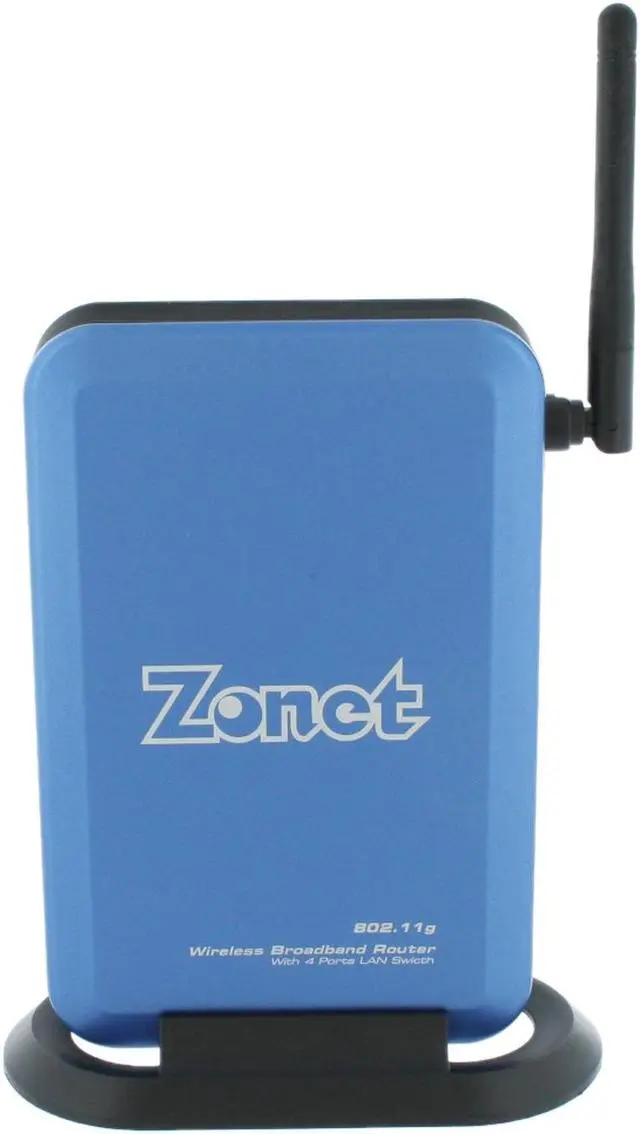

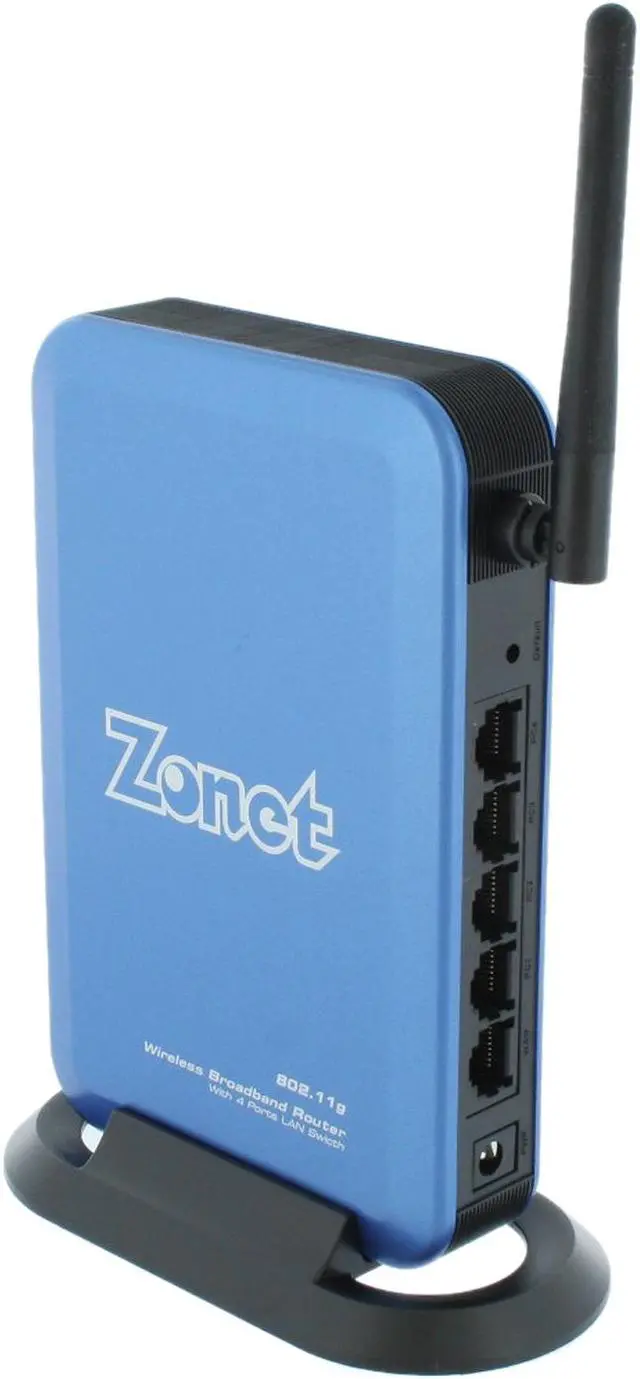

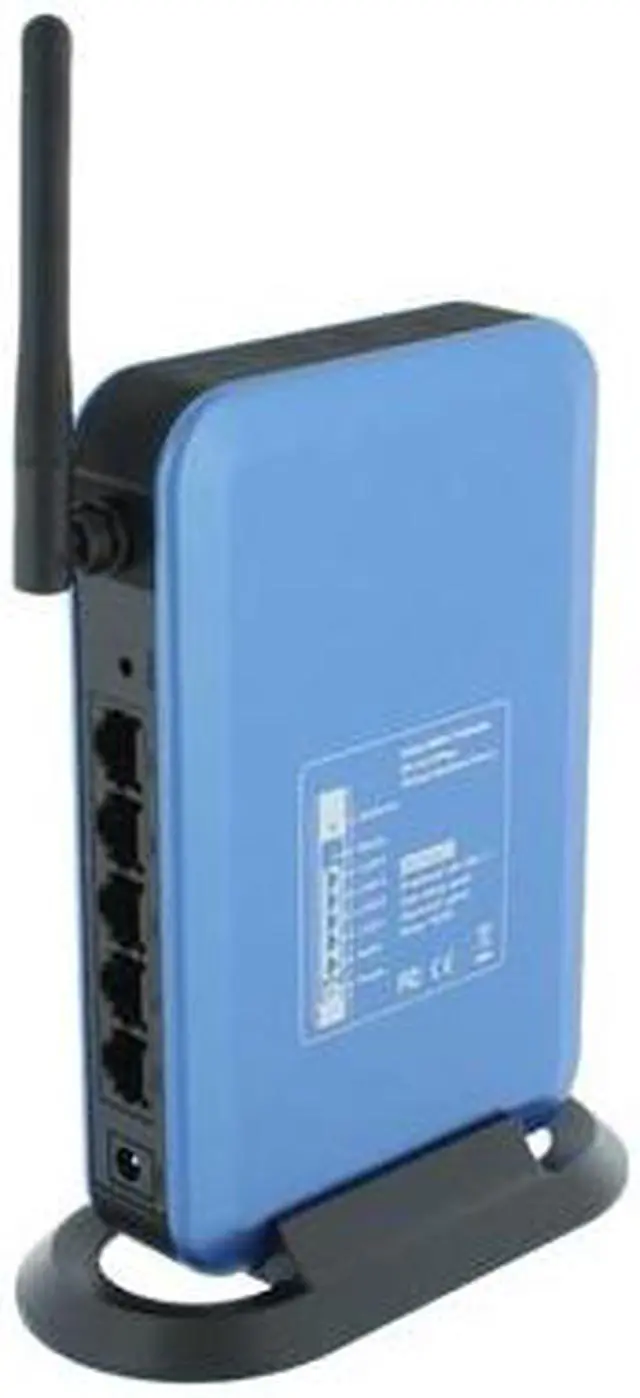

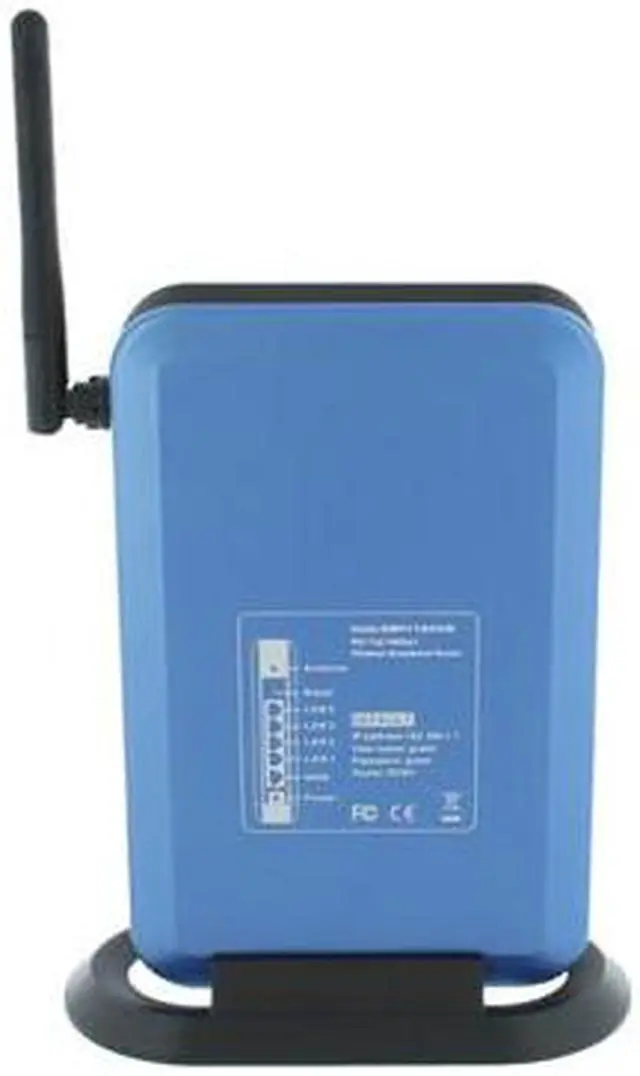

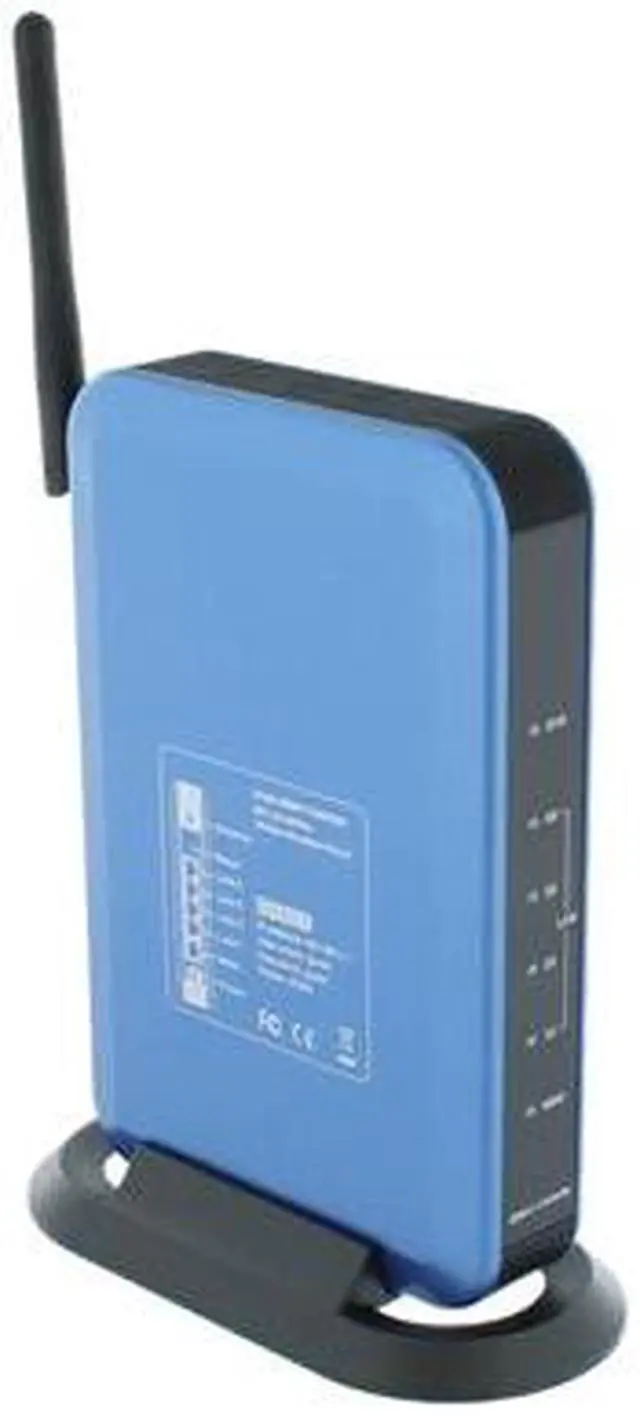

Zonet ZSR1134WE Wireless Broadband Router w/ 4pt LAN Switch IEEE 802.3/3u, IEEE 802.11b/g
- IEEE 802.3/3u, IEEE 802.11b/g
- Up to 54Mbps Wireless Data Rates
Specs
Reviews (68)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Zonet Technologies, Inc. ZSR1134WE
| Brand | Zonet |
|---|---|
| Model | ZSR1134WE |
| Standards | IEEE 802.3/3u, IEEE 802.11b/g |
|---|---|
| Device Management | Web-Based |
| Security | Hardware-Based Encryption/Decryption using 64/128-bit WEP keys and also support WPA/WPA2 |
| WPA | WPA2 |
| WAN Ports | 1 x 10/100M |
| LAN Ports | 4 x 10/100M |
| LEDs | Power/Link/Activity, WAN, LAN |
| Wireless Data Rates | Up to 54Mbps |
| Operating Range | Indoor: Up to 100m, Outdoor: Up to 300m |
| Modulation | DBPSK, QPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) |
| Frequency Band | 2.412 GHz - 2.4835 GHz |
| Antenna | 2dBi Omni-Directional antenna |
| Transmitted Power | 54Mbps OFDM : 15dBm +/- 2dBm 11Mbps CCK : 16dBm ~ 18dBm |
| Interface | Ethernet Port |
| VPN support | VPN Pass Through |
| Dimensions | 6.1" x 4.0" x 1.2" |
| Temperature | 0°C - 50°C (32°F - 122°F) |
| Humidity | 5% - 90%, Non-Condensing |
| Features | Chip: Realtek RTL8186+RTL8306S+RTL8225VF Firewall Features: NAT (Network Address Translation) with VPN pass-through. MAC and IP address filtering. URL filtering. Certifications: FCC, CE Built-in 4 10/100BASE-TX ports with auto MDI/MDIX switch. Built-in DHCP server. |
|---|

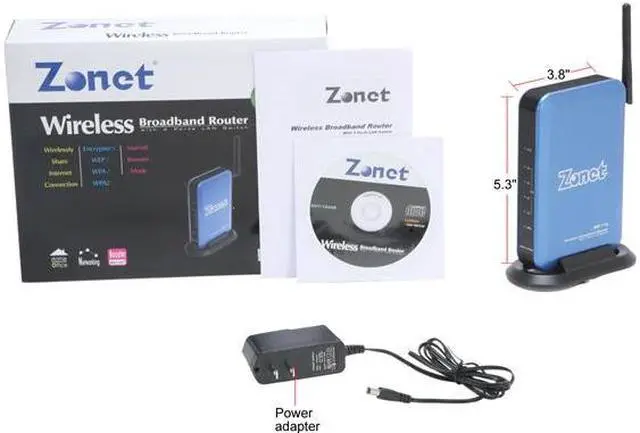

| Package Contents | ZSR1134WE Quick Installation Guide Installation CD Power Adapter Antenna x 1 Cradle |
|---|
| First Listed on Newegg | October 19, 2007 |
|---|
