Zoom 5654 ADSL 2/2+ Modem/Router/Gateway/Firewall/4-port Switch 24Mbps Downstream, 1Mbps Upstream USB and Ethernet 10/100Base-T Full-rate ANSI T1.413 Issue 2, ITU G.dmt (G.992.1) standards Splitterless G.lite (G.992.2) specification ITU G.9
- 24Mbps Downstream, 1Mbps Upstream
- USB and Ethernet 10/100Base-T
- Full-rate ANSI T1.413 Issue 2, ITU G.dmt (G.992.1) standards Splitterless G.lite (G.992.2) specification ITU G.992.3 ADSL Annex L (reach extended DSL) G.992.5 DMT modulation and demodulation Supports splitterless ADSL implementation Interoperable with all major DSLAM manufacturers WAN mode support: PPP over ATM (RFC 2364) and PPP over Ethernet (RFC 2516) LAN mode support: Bridged/Routed IP over ATM (RFC 1483) and Classical IP over ATM (RFC 1577) ATM Forum UNI 3.1/4.0 PVC Up to eight virtual circuits ATM segmentation and re-assembly ATM AAL5 (adaption layer type 5) OAM F4/F5 Static routing DNS Proxy IP filtering DHCP (Dynamic Host Configuration Protocol) server and client and Relay NAT (Network Address Translation) NAPT (Network Address and Port Translation) RIP V1 and V2 PPP Half Bridge Dynamic DNS Virtual Server/DMZ Support Simultaneous USB and Ethernet operation Stateful Packet Inspection (SPI) User authentication
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Zoom Technologies Inc. 5654
| Brand | Zoom |
|---|---|
| Model | 5654 |
| Type | Modem Router Combo |
|---|---|
| Interface | USB and Ethernet 10/100Base-T |
| Standards | Full-rate ANSI T1.413 Issue 2, ITU G.dmt (G.992.1) standards Splitterless G.lite (G.992.2) specification ITU G.992.3 ADSL Annex L (reach extended DSL) G.992.5 DMT modulation and demodulation Supports splitterless ADSL implementation Interoperable with all major DSLAM manufacturers WAN mode support: PPP over ATM (RFC 2364) and PPP over Ethernet (RFC 2516) LAN mode support: Bridged/Routed IP over ATM (RFC 1483) and Classical IP over ATM (RFC 1577) ATM Forum UNI 3.1/4.0 PVC Up to eight virtual circuits ATM segmentation and re-assembly ATM AAL5 (adaption layer type 5) OAM F4/F5 Static routing DNS Proxy IP filtering DHCP (Dynamic Host Configuration Protocol) server and client and Relay NAT (Network Address Translation) NAPT (Network Address and Port Translation) RIP V1 and V2 PPP Half Bridge Dynamic DNS Virtual Server/DMZ Support Simultaneous USB and Ethernet operation Stateful Packet Inspection (SPI) User authentication for PPP PAP (Password Authentication Protocol) CHAP (Challenge Authentication Protocol) Password protected system management VPN passthrough: PPTP, L2TP, IPsec tunnel Bridge filtering IP filtering Blocked Protocols Black Lists Attack Protection Denial of Service Protection |
| Max Transmission Rate | 24Mbps Downstream, 1Mbps Upstream |
| Features | ADSL 2/2+ compliant for faster ADSL speeds and extended distances at which high-speed data can be delivered Built-in router provides shared Internet access for up to 253 concurrent users Built-in 10/100 four port Ethernet switch Allows concurrent use of USB and Ethernet ports for Internet sharing Advanced security from hacker attacks with Stateful Packet Inspection (SPI) and Network Address Translation (NAT) firewalls Works with all popular ADSL services Fast and easy installation with auto configuration Software upgradeable Ethernet interface for use with most operating systems USB for connection to Windows computers SNMP support (Simple Network Management Protocol) Documentation provided in English, French, German, Greek, Portuguese, Spanish, and Turkish Works great with wireless access points or gateways Works with most computer operating systems, including Windows, Macintosh, and Linux |
|---|

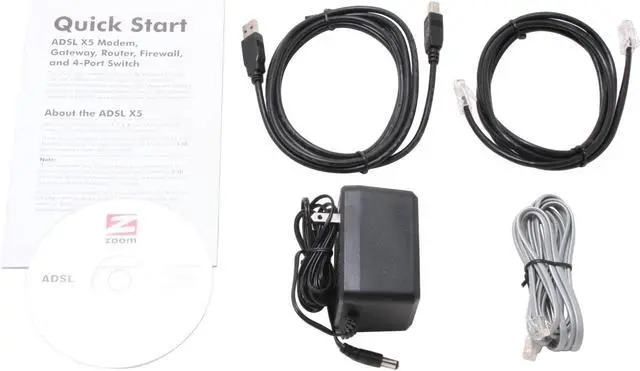

| Package Contents | 5654 Quick Start Guide Resource Disk USB Cable RJ11 Cable RJ45 Cable Power Adapter |
|---|
| First Listed on Newegg | November 03, 2005 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 7 years
- Limited Warranty period (labor): 7 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 561-997-9686
- Support Website
- View other products from Zoom Technologies Inc.
