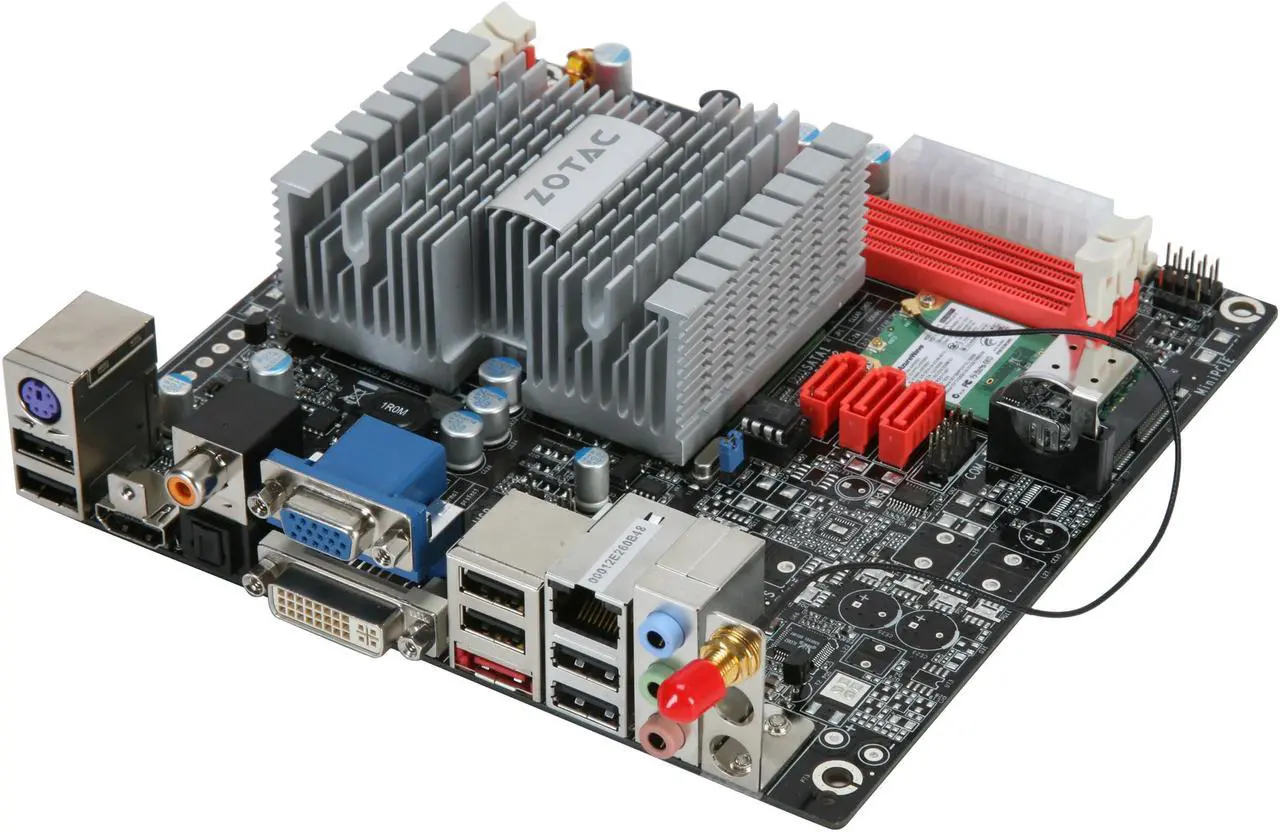

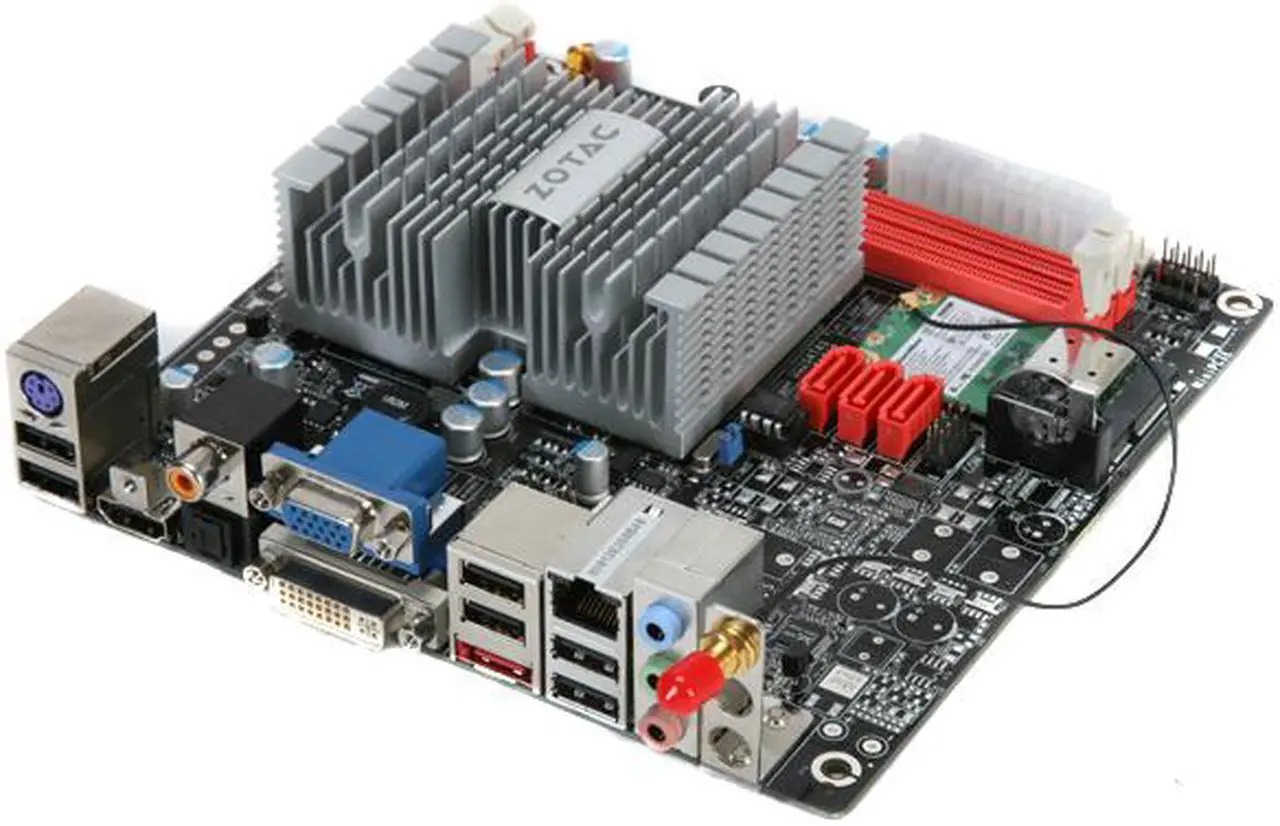

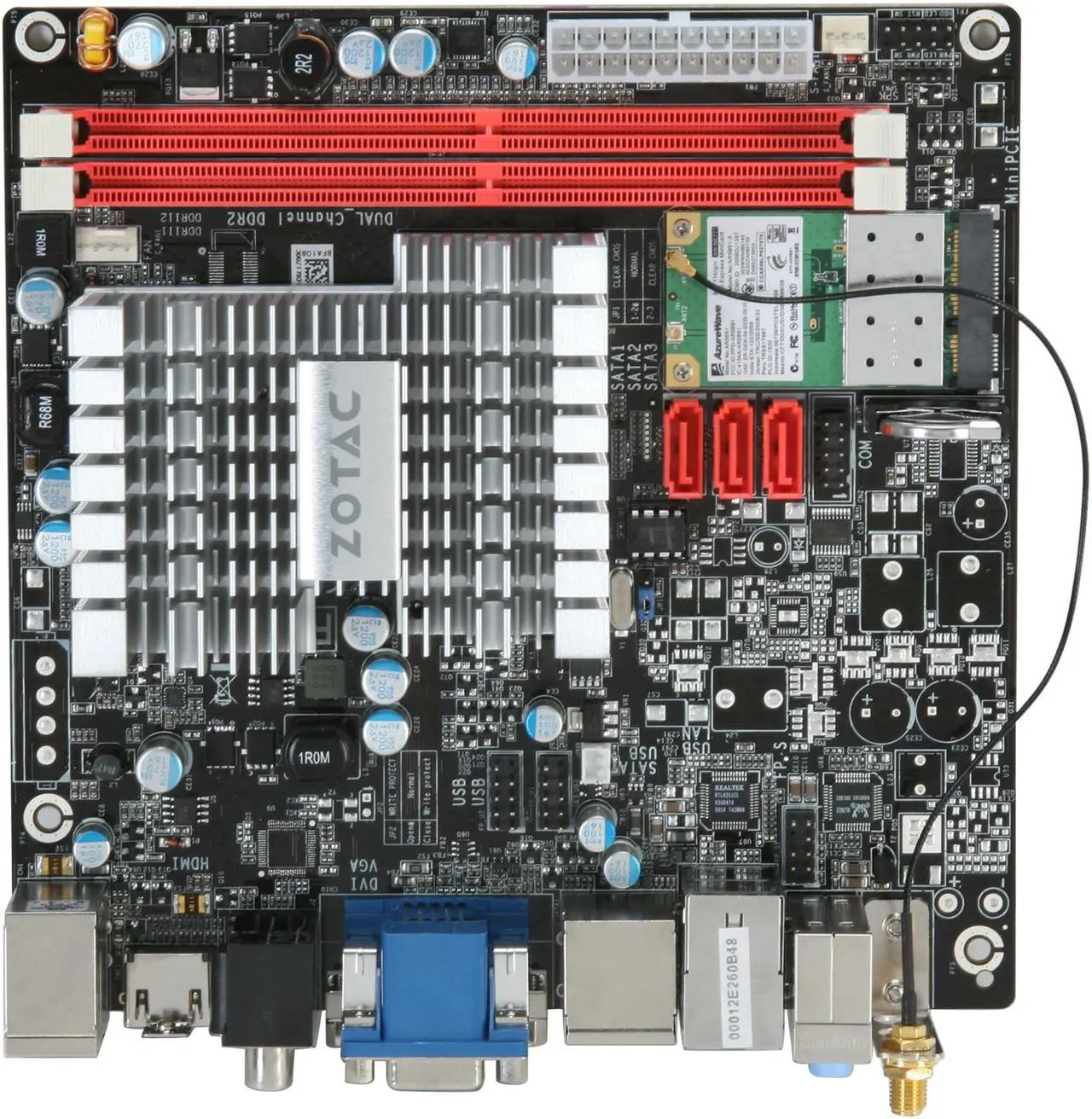

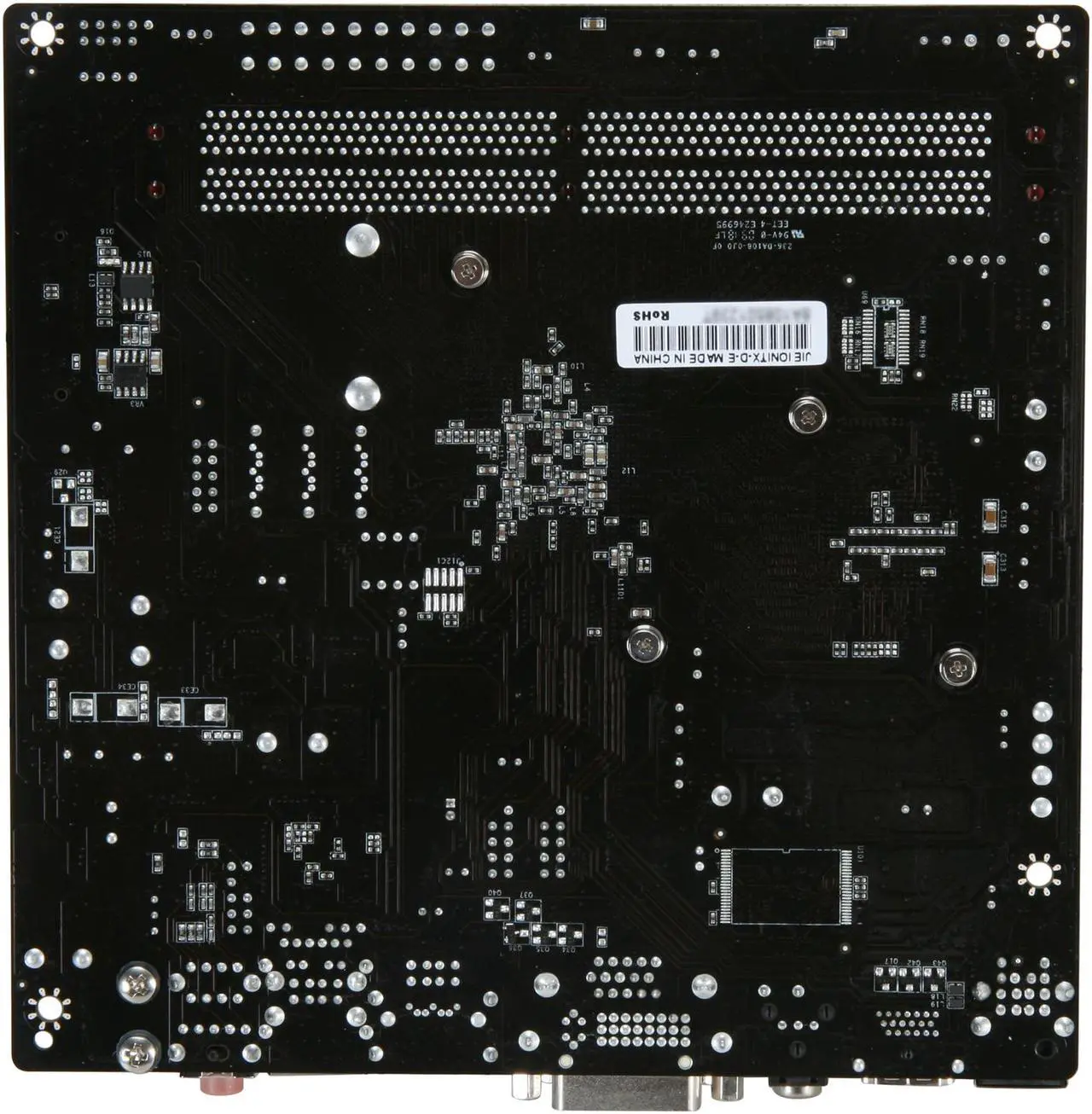

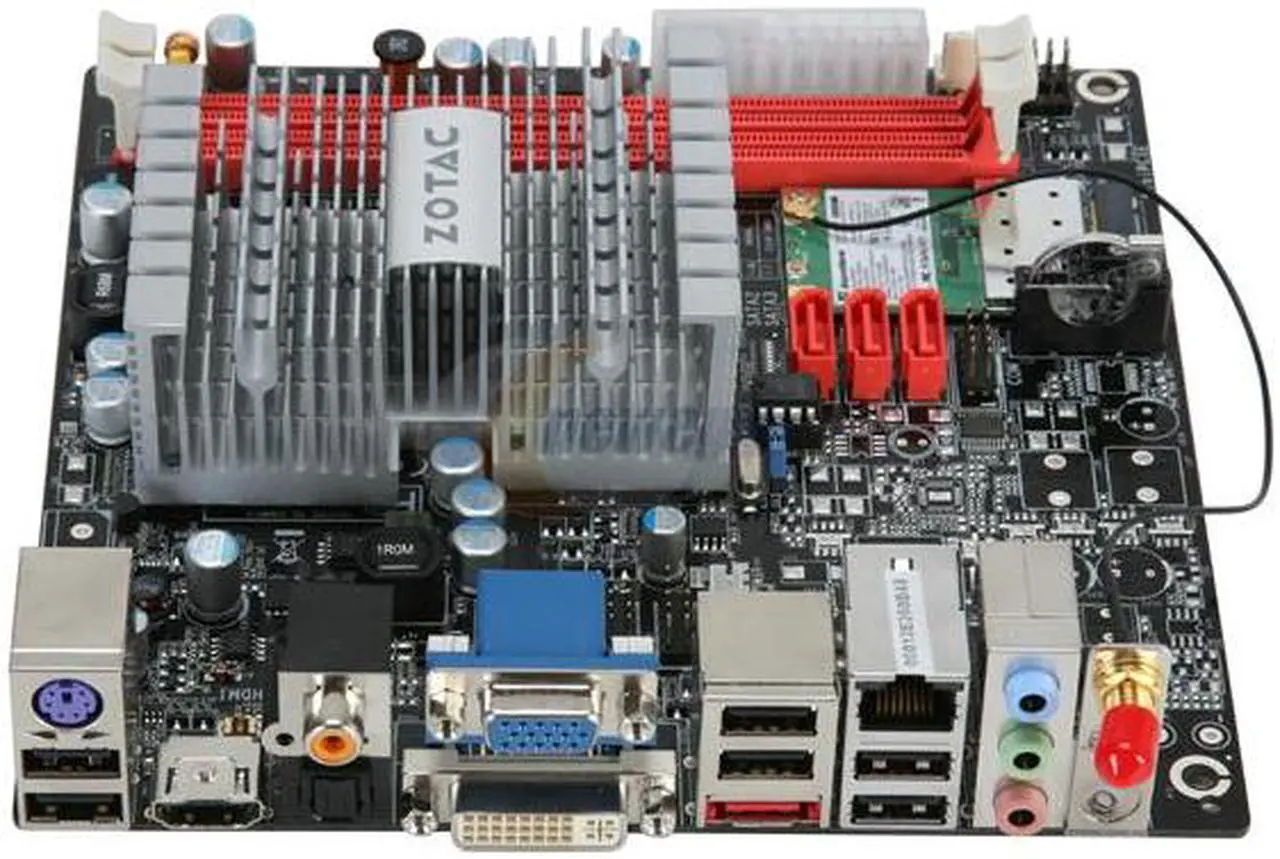

ZOTAC IONITX-D-E Intel Atom 330 Dual Core 1.6 GHz 441 NVIDIA ION Mini ITX Motherboard / CPU Combo
- Intel Atom
- DDR2 667/800
- NVIDIA GeForce 9400M
Specs
Reviews (54)
Learn more about the ZOTAC IONITX-D-E
| Brand | ZOTAC |
|---|---|
| Model | IONITX-D-E |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Atom 330 Dual Core 1.6 GHz |
|---|---|
| With Cooler | Yes |
| CPU Socket Type | 441 |
|---|---|
| CPU Type | Intel Atom |
| FSB | 533MHz |
| North Bridge | NVIDIA ION |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667/800 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x1 | 1 x Mini PCI Express x1 |
|---|
| SATA | 3 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | 0/1/0+1 |
| Onboard Video Chipset | NVIDIA GeForce 9400M |
|---|
| Audio Channels | 6 Channels |
|---|
| Wireless LAN | WiFi IEEE 802.11 n |
|---|
| PS/2 | 1 |
|---|---|
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 1 x eSATA II |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Features | Integrated 802.11n WiFi |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |

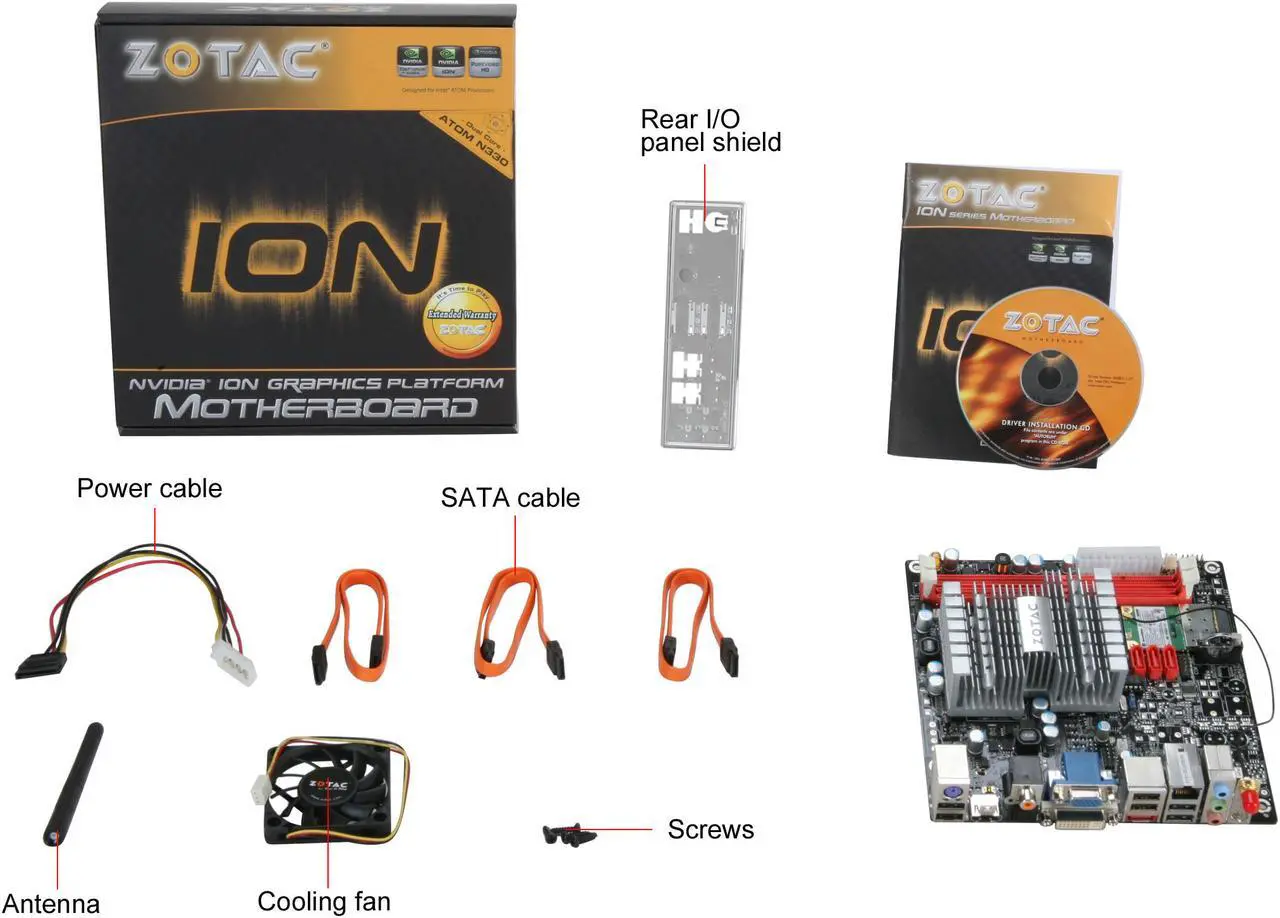

| Package Contents | IONITX-D-E Motherboard/CPU Set Rear I/O panel shield User manual Drive CD Power cable SATA cable x 3 WiFi antenna CPU cooling fan Screws |
|---|
| Date First Available | May 28, 2009 |
|---|
