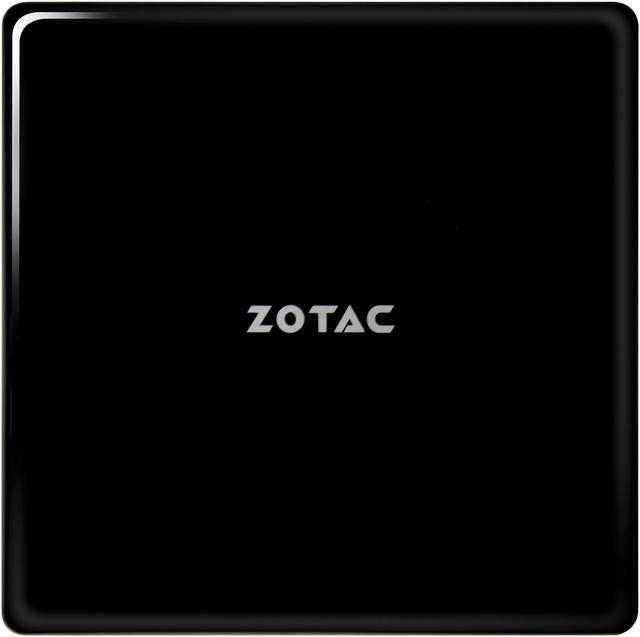

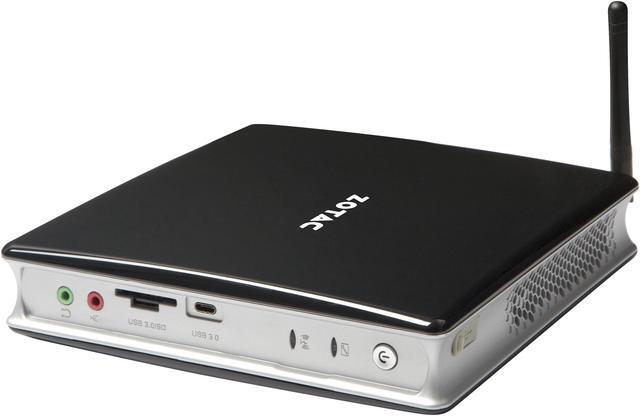

Zotac ZBOX-BI323-U Mini / Booksize Barebone System

(3) Write a Review
  • Intel Processor N3150 (quad core, 1.6GHz. Up to 2.08GHz)
  • 2 x 204Pin SO-DIMM DDR3L 1600
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ZOTAC ZBOX-BI323-U

Model
Brand Zotac
Model ZBOX-BI323-U
CPU Supported
CPU Type Intel Processor N3150 (quad core, 1.6GHz. Up to 2.08GHz)
Memory Supported
Memory installed No Memory
Memory slot 2 x 204Pin SO-DIMM
Memory Type Supported DDR3L 1600
Max Memory Supported 8GB
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA 6.0Gb/s
Graphics
Intergrated Graphics Intel HD Graphics
Audio
Onboard Audio Digital 8 Channel Audio (LPCM/bitstream via HDMI), optical SPDIF
Channel 8 Channel
Communications
Max LAN Speed 10/100/1000Mbps
Extension Bays
2.5" Internal Bays 2.5-inch SATA 6.0 Gb/s HDD/SSD bay

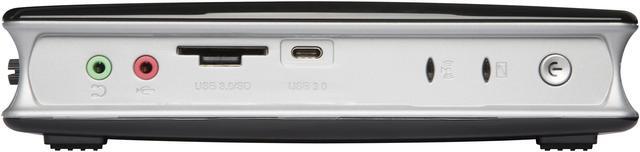

Front Panel Ports
Front USB 2 x USB 3.0 (1 from USB 3.0/SD combo & 1 type-C on front)
Card Reader 3-in-1 card reader SD/SDHC/SDXC
Other Front Ports Microphone input
Headphone output

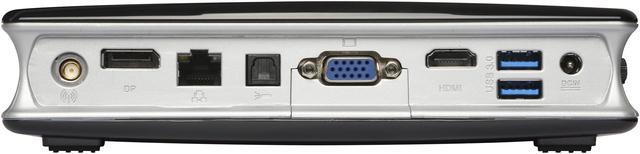

Back Panel Ports
VGA 1 x VGA output
HDMI 1 x HDMI 1.4b
DisplayPort 1 x DP 1.1a
Rear USB 2 x USB 3.0
Power Supply
Power Supply AC 100-240V, 50/60Hz, 19V, 3.42A, Max 65W
Physical SPEC
Dimensions 1.73" x 7.40" x 7.40"
Weight 3.1
Features
Features New ZBOX B-series with Intel Braswell Processor

Intel HD graphics
- Intel Quick Sync Video
- Intel Clear Video HD technology
- Native 4K support (H.265, H.264 decode)

Low CPU power (6W TDP)

3 displays output (DP,HDMI & VGA)

One USB 3.0 type-C reversible-plug connector on front

Windows 7 & 8.1 64-bit, Windows 10 32/64-bit ready
Packaging
Packaging Bundled with Stand, wireless antenna
Additional Information
Date First Available October 27, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
