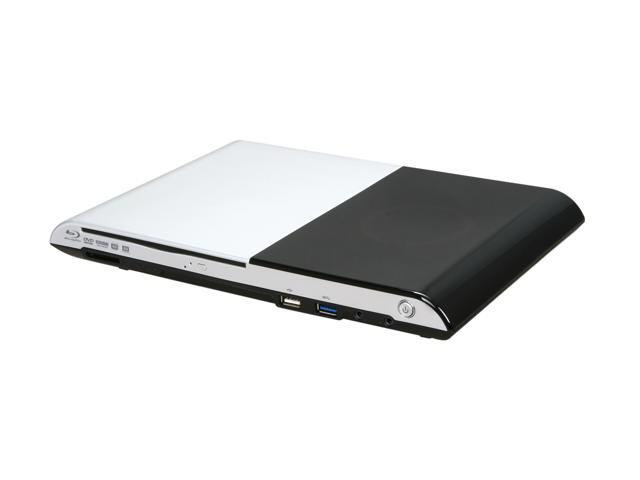

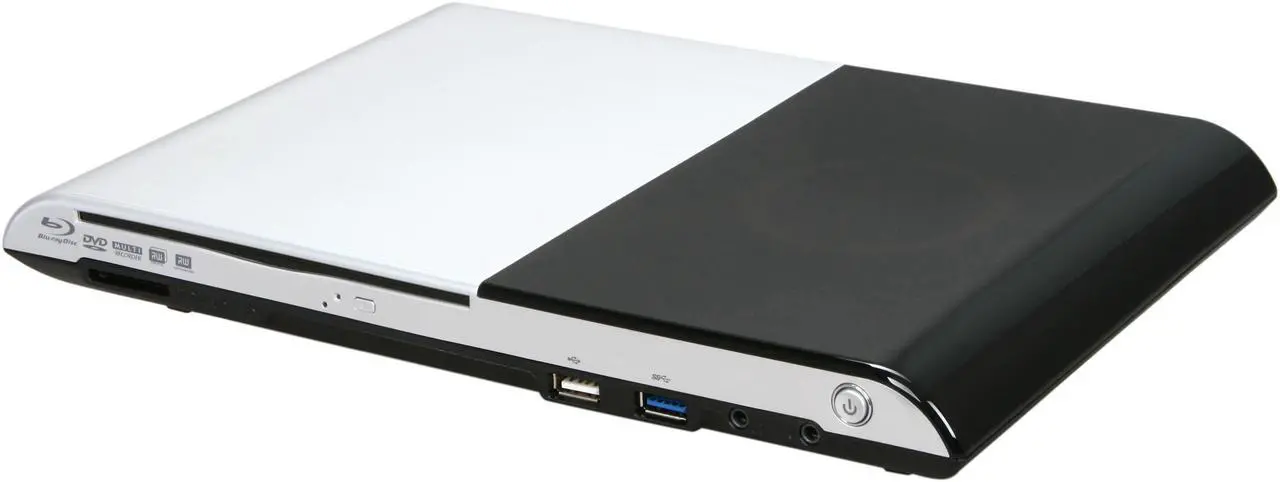

Zotac ZBOX Blu-ray Series ZBOXHD-ID33BR-U Intel NM10 Mini / Booksize Barebone System

(12) Write a Review
  • Intel Atom D525 (1.8GHz, dual-core)
  • 2 x 200Pin SODIMM DDR2 800
Specs
Reviews (12)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ZOTAC ZBOXHD-ID33BR-U

General
Brand Zotac
Series ZBOX Blu-ray Series
Model ZBOXHD-ID33BR-U
CPU Supported
CPU Type Intel Atom D525 (1.8GHz, dual-core)
Chipset
North Bridge Intel NM10
Memory Supported
Memory slot 2 x 200Pin SODIMM
Memory Type Supported DDR2 800
Max Memory Supported 4GB
Expansion Slots
Other 1 mini-PCI Express slots
Storage
Serial ATA 1 x SATA 3.0Gb/s
Graphics
Integrated Graphics Next-generation NVIDIA ION graphics
Audio
Channel 8 Channel
Communications
Max LAN Speed 10/100/1000Mbps
Wireless LAN 802.11b/g/n WiFi (300Mbps)
Extension Bays
Slim ODD Blu-ray Combo Burner
2.5" Internal Bays 1

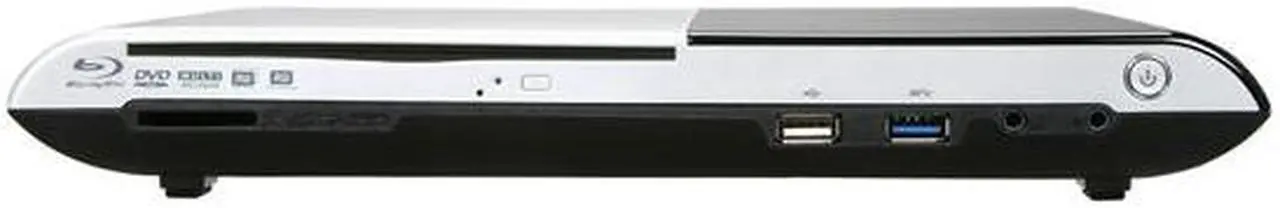

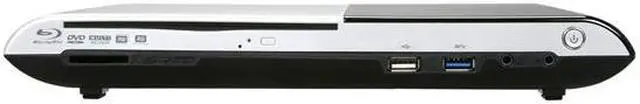

Front Panel Ports
Front USB 2 (1 x USB 2.0, 1 x USB 3.0)
Card Reader 6-in-1 memory card reader (SD/SDHC/XD/MS/MSPro/MMC)
- up to 32GB SDHC Class 4/6 support

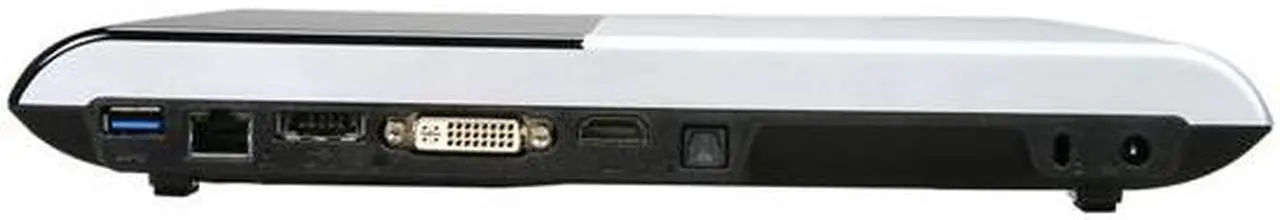

Back Panel Ports
DVI 1 x DVI
HDMI 1
Rear USB 1 x USB 3.0
Rear e-SATA Ports 1 x Combo eSATA / USB 2.0 port
RJ45 1
Rear S/PDIF Out 1 x Optical output
Power Supply
Power Supply AC 100-240V, 50/60Hz, 19V, 4.74A, Max 90W
Physical SPEC
Dimensions 11.02" x 7.36" x 1.5"
Features
Features Slim Slot-load Blu-ray drive (4x BD Read, 8x DVD±R/RW/ROM read/write, 24x CD-R/RW/ROM read/write)

Next-Generation NVIDIA ION GPU

Dedicated 512MB DDR3 video memory

2 x USB 3.0 (rear, front), 1 x USB 2.0 ports (front)

1 x combo eSATA 3.0 Gb/s / USB 2.0 port

Digital 8-Channel Audio (LPCM via HDMI)

Included VESA 75/100 standard mount
Additional Information
First Listed on Newegg November 09, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
