Question 1

I have a 1TB Seagate Barracuda 7200.12 pn: 9SL154-336 will this case this HDD ?

Accepted Answer

Henry:

COMMENT 1
It's wise to ask this question, as I bought this drive case because it seemed to fit 2.5" (laptop-type) SSDs. Only after I received it did I find that it fits larger 3.5" (desktop-style) drives. I had such a drive available so I kept the unit but I wish I had asked a question such as your before.

ANSWER
Per my research, the drive you list has the following specs:
Brand: Seagate
Family: Barracuda
Form Factor: 3.5"
Capacity: 1TB
Spin Speed: 7200 rpm
Drive Interface: SATA
Cache: 32MB
Data Transfer: 3Gbps
Part Number: 9SL154-336

So, yes, this case should fit the drive well and support the 3Gbps SATA interface. No reason not to buy it.

COMMENT 2
There is a small slide switch on the back of the case that turns the fan on or off. With the fan running, the case can be a bit loud. With it off you hear only the whine from the drive (if any). The case dissipates heat very well even with the fan off, so I suggest you turn the fan off and monitor temperatures for a while. If the don't go too high, keep the fan turned off and enjoy some peace and quiet. This is what I did with my 1TB drive that is very similar to yours.

Question 2

Is the (Western Digital RE WD2000FYYZ 2TB 7200 RPM 64MB) compatable with (ORICO 3519SUS3-BK Aluminum Alloy HDD External Enclosure with E-SATA and USB3.0 Interface) Case?

Accepted Answer

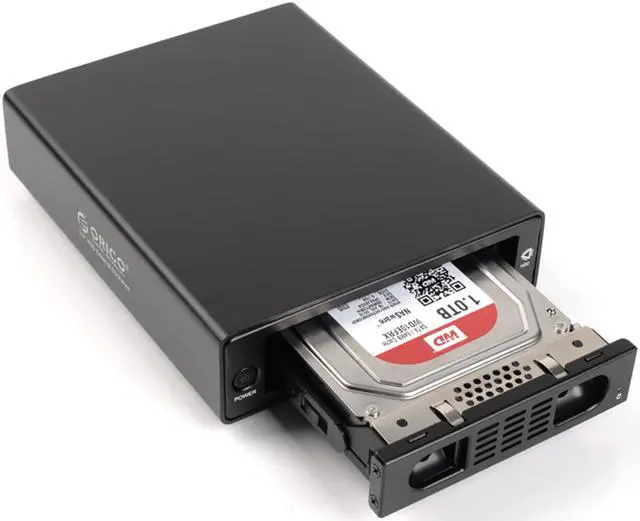

The enclosure must be compatible with the WD2000FYYZ, as that hard drive has the same form factor and physical dimensions as other 3.5-inch SATA drives.  I put a WD 1 TB drive in the ORICO external enclosure, and ORICO say they support up to 3 TB drives. The physical differences between the 1 and 2 TB WD drives are internal, in the number of platters & heads, with the FYYZ having more - 5 platters, 10 heads, and about 2 more ounces in weight. They both have 22-pin SATA connectors.

The 3.5" form factor external dimensions are:
  Height	  1.028 Inches
  Depth	  5.787 Inches
  Width	  4.00 Inches
  Weight      1.66 Pounds (for the FYYZ 2 TB drive)

Question 3

I have a WD20EADS hard drive from a dead MyBook enclosure.  When put into the enclosure and powered up, the drive is recognized under Disk Utility on my MBP but I cannot partition or format it.  The drive capacity is also grossly over stated in Disk Utility.  Is the firmware on this enclosure incompatible with my drive? I also tried under Storage Manager on a Windows 7 laptop and ran into the same issue.  Please help.

Thank you!

Accepted Answer

I have used WD 1TB Black and WD 2TB Black drives in the enclosure as well as 2TB Seagate drive without issues. I have not had any issues with the enclosure at all and this is on a windows 8.1 desktop and Windows 7 and Windows 8.1 laptops. I don't know the specs of the WD20EADS drive but from what I've seen the enclosure should handle the drive without issues. sorry if this isn't a lot of help but that has been my experience over the last 5 months with the enclosure. no problems at all.

Question 4

this enclosure will work with western digital black  WD2003FZEX?

I need to be sure.  Im planning to buy both of them to you guys.

Accepted Answer

I cannot say that I have tested that particular drive with that particular device but as a data recovery for 12 years I can tell you that if the drive interface and the device interface (the way they connect together) are compatible then, all other things being equal, data will flow between them. I hope this answers your question.

Color	Black
Size	3.5"
AC Adapter	Yes
Material	Aluminum
Internal Interface	SATA
External Interface	USB 3.0 & eSATA
Maximum Capacity (per Bay)	Up to 4TB
Fan	Yes

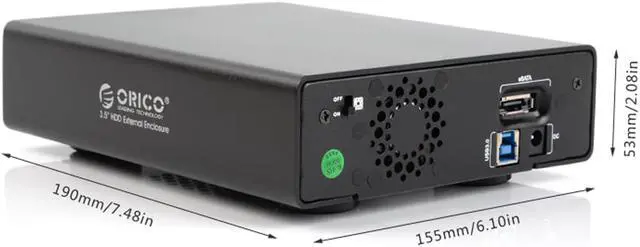

Dimensions	L190D155H53mm
Weight	678g
