Item#: N82E16881102068

TRENDnet TV-IP672PI 1280 x 800 MAX Resolution RJ45 Megapixel PoE Day/Night PTZ Internet Camera

  • 1280 x 800 MAX Resolution
  • Day/Night w/ICR
  • PoE
  • Pan/Tilt
  • 2 Way Audio, Built-in microphone
  • Motion detection
  • Free App for smart phones
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...

The Megapixel PoE PTZ Internet Camera, model TV- IP672P, provides security over a large area. Pan the camera side-to-side a remarkable 340? and tilt up-and-down 115? from any Internet connection. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology (See TRENDnet PoE Switches and Injectors). The Megapixel PoE PTZ Internet Camera, model TV- IP672P, provides security over a large area. Pan the camera side-to-side a remarkable 340? and tilt up-and-down 115? from any Internet connection. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology (See TRENDnet PoE Switches and Injectors).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan / tilt, Auto-Patrol, H.264 / MPEG-4 / MJPEG image compression, date-and-time overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four times digital zoom. A wall / ceiling mounting kit is included and the camera's off white housing blends into most environments.

The Megapixel PoE Day / Night PTZ Internet Camera, model TV-IP672PI, provides day and night security over a large area. Pan the camera side-to-side a remarkable 340? and tilt up-and-down 115? from any Internet connection. Record indoor video in complete darkness for distances of up to 7.5 meters. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology (See TRENDnet PoE Switches and Injectors).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan / tilt, Auto-Patrol, H.264 / MPEG-4 / MJPEG image compression, date-and-time overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four times digital zoom. A wall / ceiling mounting kit is included and the camera's off white housing blends into most environments.


Learn more about the TRENDnet TV-IP672PI

Model

Brand
TRENDnet
Model
TV-IP672PI
Color
White

Spec

Network Camera
Yes
Type
Wired Camera
Connection Type
RJ45
Ports
1 x 10/100Mbps Auto-MDIX Fast Ethernet
Micro SD Slot
Networking Protocol
IPv4, ARP, TCP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP
Samba Client
PPPoE
UPnP
LLTD
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)
3GPP (video only)
Pan/Tilt/Zoom
Pan: - 170 ~ + 170 degree
Tilt: up 90 and down 25 degree
Digital Zoom: 4x
Sensor
1/4" CMOS Sensor
Pixels
Megapixel
MAX Resolution
1280 x 800
Frame Rate
30fps
Lens Type
Board Lens
Focal Length: 4 mm
F/No: 1.5
Night Vision
Yes
Audio
Built-in omni-directional microphone
Sensitivity: -40dB +/- 3dB (5 meters max.)
Frequency: 100~20000Hz
S/N: >60dB
Format: PCM/ADPCM
External speaker output (speaker sold separately)
Two-way audio with echo canceling
Operating Systems Supported
Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows Server 2003, 2008
Power over Ethernet
IEEE 802.3af Power over Ethernet (PoE)
Power
Input: 100~240V, 50/60Hz 0.5A
Output: 12V, 1.25A external power adapter
Camera Type
POE Night Vision

Feature

Features
Day/Night:
Built-in ICR
Nigh vision (IR) supports up to 7.5 meters

LED: Power, Link/Act

Reset Button: Reset to factory default

Privacy Button: Privacy mode on/off

Management Interface: Internet Explorer 7.0 or above, Firefox, Safari, and Chrome

Management:
System: Web based administration
Access: Up to 20 user accounts
Backup / Restore: Save/retrieve configuration files
Log: System log up to 500 entries
Micro SD: View, download, delete files, Format and remove Micro SD card

Video Setting:
-Profile 1: H.264 / MPEG-4
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
-Profile 2: H.264 / MPEG-4
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
-Profile 3: MJPEG
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 1280 x 800 @ 5fps, 640 x 400/320 x 192@30fps
JPEG quality: Low, Fair, Standard, Good, Excellent
-Profile 4: H.264 / MPEG-4
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
RTSP: http://ipcamera_ip/3gpp

Quick Universal Plug and Play (UPnP) installation

Packaging

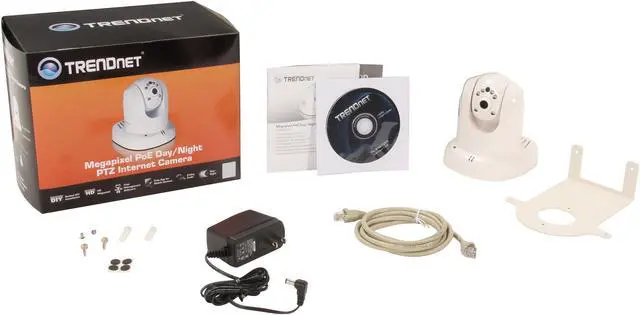

Package Contents
TV-IP672PI
CD-ROM (Utility & User's Guide)
Multi-Language Quick Installation Guide
Network cable (1.5 m / 5 ft.)
Power adapter (12V, 1.25A)
Camera mounting kit

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the TRENDnet TV-IP672PI

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go

Showing 2 of 2 reviews - Clear Filters

  • Edward S.
  • 8/22/2014 8:29:30 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsHad these running for over a year now.

This review is from: TRENDnet TV-IP672PI 1280 x 800 MAX Resolution RJ45 Megapixel PoE Day/Night PTZ Internet Camera

Pros: Higer resolution than most.

Remotely controllable Pan-n-Tilt capability through client software.

Automatic IR for night time use.

Can record to network share.

Has e-mail notificaion for motion detection.

Has good control of masking for motion detection.

Works off of POE when used with appropriate injector.

Cons: The only problem I've run into so far is that when the camera is used in a hot environment (over 95 degrees F), the image can develop noise or fail. Once at a lower temperature however, the camera returned to normal.

The only other comment I have is that the audio microphone is not super sensitive, and has limited clarity. But that isn't a suprise since the primary function is the camera for security.

Other Thoughts: I've had two of these cameras running 24/7 for over a year, with both recording video at its highest resolution to the same network shared drive without any real problems. I also have the e-mail motion dectection notification enabled on the cameras at the same time. I have both accessible from the internet, and can access them both with client software. And I have both setup to run on Power-over-Ethernet. The only feature that I haven't really tried is hooking a speaker up to allow audio in both directions.

Did you find this review helpful? Yes No

  • Anonymous
  • 8/16/2013 11:42:13 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsDecent Camera

This review is from: TRENDnet TV-IP672PI 1280 x 800 MAX Resolution RJ45 Megapixel PoE Day/Night PTZ Internet Camera

Pros: Its a good quality camera for the price.

Cons: It doesn't come with a POE injector, I had one that I thought might work but it doesn't. The one I had came with a 40 dollar AP, I would expect this to have one given how expensive it is, and how cheap the injectors are. Its just annoying that it doesn't.

1 out of 1 people found this review helpful. Did you? Yes No
