Question 1

is the ac power supplied in a weather proof enclosure ?

Accepted Answer

The power supply does not have a weather proof enclosure. We have used outlet enclosures when necessary. What I have done is purchase outdoor rated network cable, installed the power supply inside a building and then run the outdoor cable to the device. In one instance, the power had to be placed on a post near a pool so we used outdoor outlet enclosures in that setup.

Question 2

Does the AP include mounting hardware for mounting on a wall/ceiling/post, etc?

Accepted Answer

Yes, It has a back plate that you mount with screws and it has a round metal clap that you can use around a pole

Question 3

what is the power source?

Accepted Answer

It comes with a 48V POE Injector. Or you can use a POE Switch so long as it will output 48V, the unit also has a second pass through port that is also POE for another access point or an IP Camera.

Question 4

Will this provide a true 600 feet? Has it been tested? My application is 500 ft poolside 100 feet (fitness center) 100  feet (clubhouse) ? Is the antennas omnidirectional?

Accepted Answer

If you mount it out side with line of site to the pool house it will work well with good security. I use these a lot. If you have any trouble, setup a second one at the pool house and they connect together to form one large network.
I wouldn't go that way. setting up 2 has a tendency to be hard to setup unless you have done it before. So if you want distance, I use a nanostation m, like a nsm2. It has amazing distance, good speed and you will only need 1.
I love Ubiquiti. I use a lot of the AP outdoor+ but I have better luck with the nsm2.
And yes it is omnidirectional.
Check it out.

Question 5

Does anyone know if this is compatible with Ubiquiti's AP controller software?

Accepted Answer

Yes. I believe you'll need at least version 3.1, though 3.2.5 is the latest release, so that should be used..


	UAP	UAP-LR	UAP-PRO	UAP-AC
Frequency	2.4 GHz	2.4 GHz	2.4 GHz, 5 GHz	2.4 GHz, 5 GHz
2.4 GHz Throughput	300 Mbps	300 Mbps	450 Mbps	450 Mbps
5 GHz Throughput	N/A	N/A	300 Mbps	1300 Mbps
Range	122 m	183 m	122 m	122 m


	UAP-Outdoor+	UAP-Outdoor5	UAP-AC Outdoor
Frequency	2.4 GHz	5 GHz	2.4 GHz, 5 GHz
2.4 GHz Throughput	300 Mbps	N/A	450 Mbps
5 GHz Throughput	N/A	300 Mbps	1300 Mbps
Range	183 m	183 m	183 m

Brand	Ubiquiti Networks
Model	UAP-Outdoor+

Standards	IEEE 802.11b/g/n
Security	WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Frequency Band	2.4 GHz
Antenna	2 x External 5 dBi Omni Antennas Included 191mm (Length), 13mm (Diameter)
Interface	2 x 10/100 Ethernet Ports
Buttons	Reset
Power Supply	Power Method: Passive Power over Ethernet (48V), 802.3af Supported Power Supply: 48V, 0.5A PoE Adapter (Included) Maximum Power Consumption: 8W Max TX Power: 28 dBm

Temperature	Operating Temperature: -30 ~ 65 degree Celsius
Humidity	5% - 95%, Non-Condensing

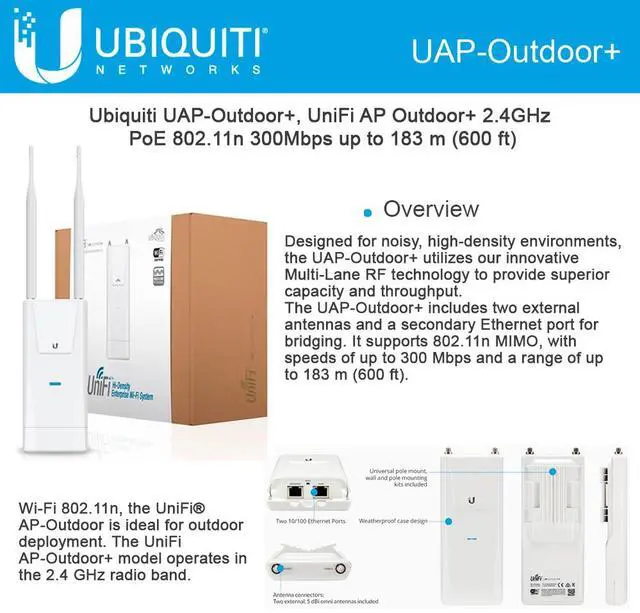

Ubiquiti UAP-Outdoor+ UniFi Access Point Enterprise Wi-Fi System

Sleek Industrial Design

Scalable Enterprise Wi-Fi Management

Advanced Software Features

Model Comparison

Learn more about the Ubiquiti Networks UAP-Outdoor+

Customer Reviews of the Ubiquiti Networks UAP-Outdoor+

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Dimensions	1.46" x 8.07" x 3.27"
Weight	0.55 lb. (without Antennas) 0.65 lb. (with Antennas)
