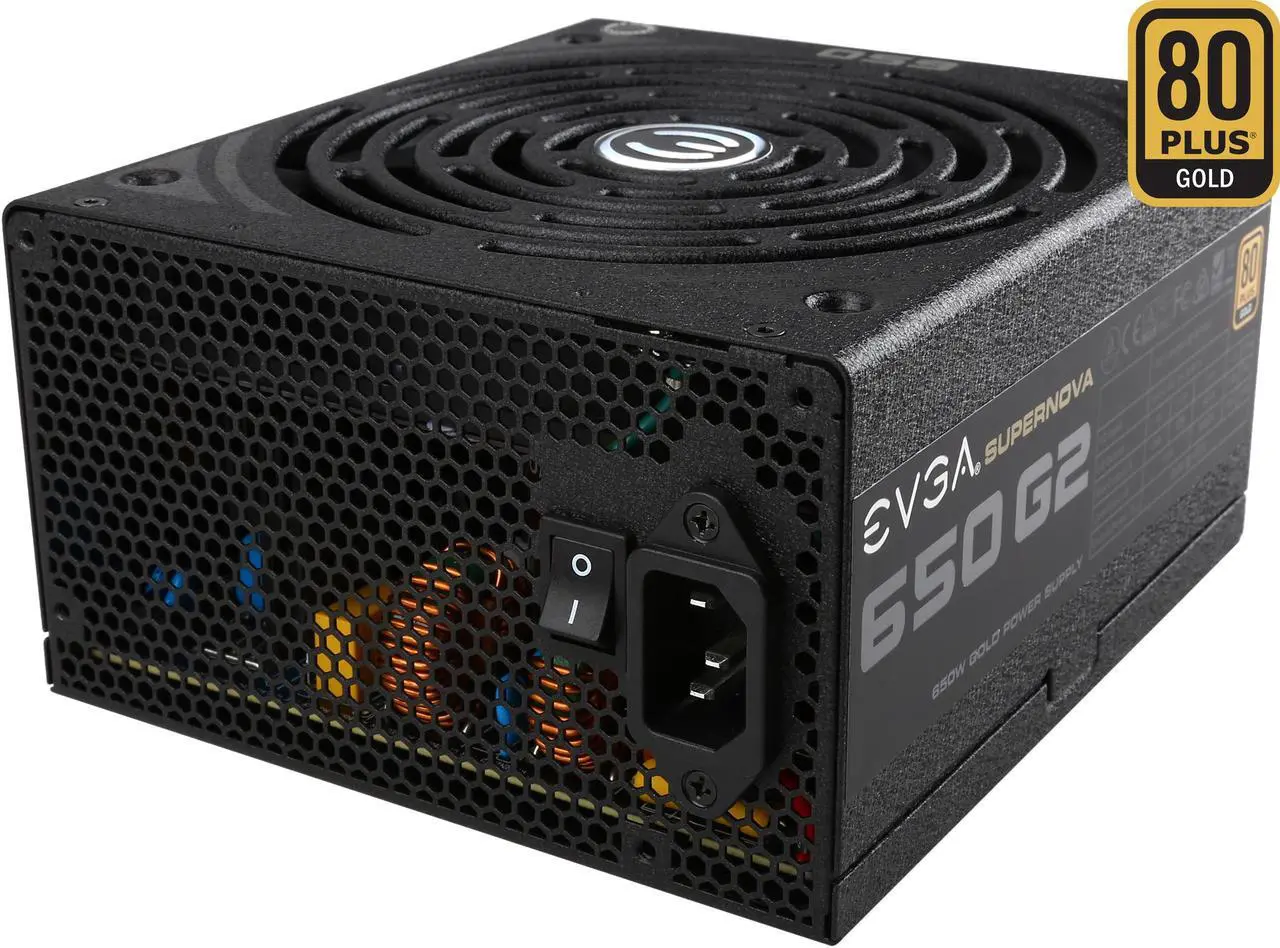

EVGA SuperNOVA 650 G2 220-G2-0650-Y1 80+ GOLD 650W Fully Modular EVGA ECO Mode Includes FREE Power On Self Tester Power Supply
- ATX12V / EPS12V
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50 - 60 Hz
- +3.3V@24A, +5V@22A, [email protected], [email protected], [email protected]
+
+
Overview
Specs
Reviews (1,641)
Efficiency: 90%Number of Fans: 1Modular: YesATI CrossFire Supported: YesNVIDIA SLI Supported: YesInput Voltage: 120 V AC, 230 V ACNumber of +12V Rails: 1Output Voltage: 3.3 V DC @ 24 A, 5 V DC @ 22 A, 12 V DC @ 54.10 A, -12 V DC @ 500 mA, 5 V DC @ 3 AOutput Power: 650 WForm Factor: InternalHeight: 3.3"Width: 5.9"Depth: 6.5"Weight (Approximate): 6 lbGreen Compliant: YesGreen Compliance Certificate/Authority: cTUVus, WEEE, RoHS, ErP Lot 6, 80 Plus GoldLimited Warranty: 7 YearThe unbeatable performance of the EVGA SuperNOVA G2 power supply line is now available in 650 watts. Based on the award winning G2 power supplies, this unit features 80 Plus Gold rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low load to medium load operations. Backed by an award winning 7 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 650 G2 power supply offers unbeatable performance at an unbeatable value.
The unbeatable performance of the EVGA SuperNOVA G2 power supply line is now available in 650 watt. Based on the award winning G2 power supplies, these units feature 80 Plus Gold rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during load to medium load operations. Backed by an award winning 7 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 650 G2 power supplies offer unbeatable performance at an unbeatable value.
Eco Mode
Fan does not switch on until PSU load is above 25%
Standard ATX Form Factor
Will fit most mATX, ATX, EATX, HPTX, and XLATX cases
Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow

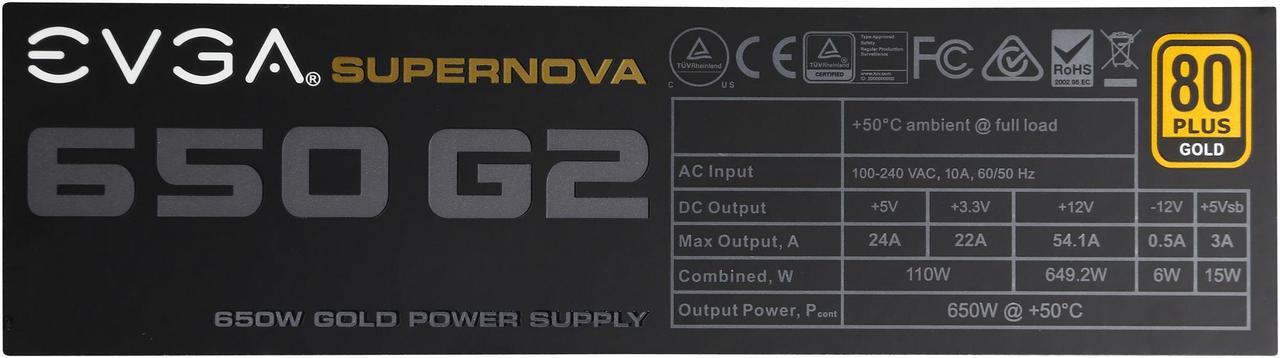

| AC Input | Large 54.1 amp single + 12v rail 100 - 240 VAC, 10A, 50 - 60 Hz |
||||
| DC Output | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 22A | 54.1A | 3.0A | 0.5A |
| Combined | 110W | 649.2W | 15W | 6W | |
| Output | 650W@+50C Industrial grade testing all load and regulation testing done at 50c |
||||
SINGLE +12V RAIL
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.
LLC RESONANT CIRCUIT LAYOUT
Full DC to DC, LLC resonant circuit design improves efficiency.

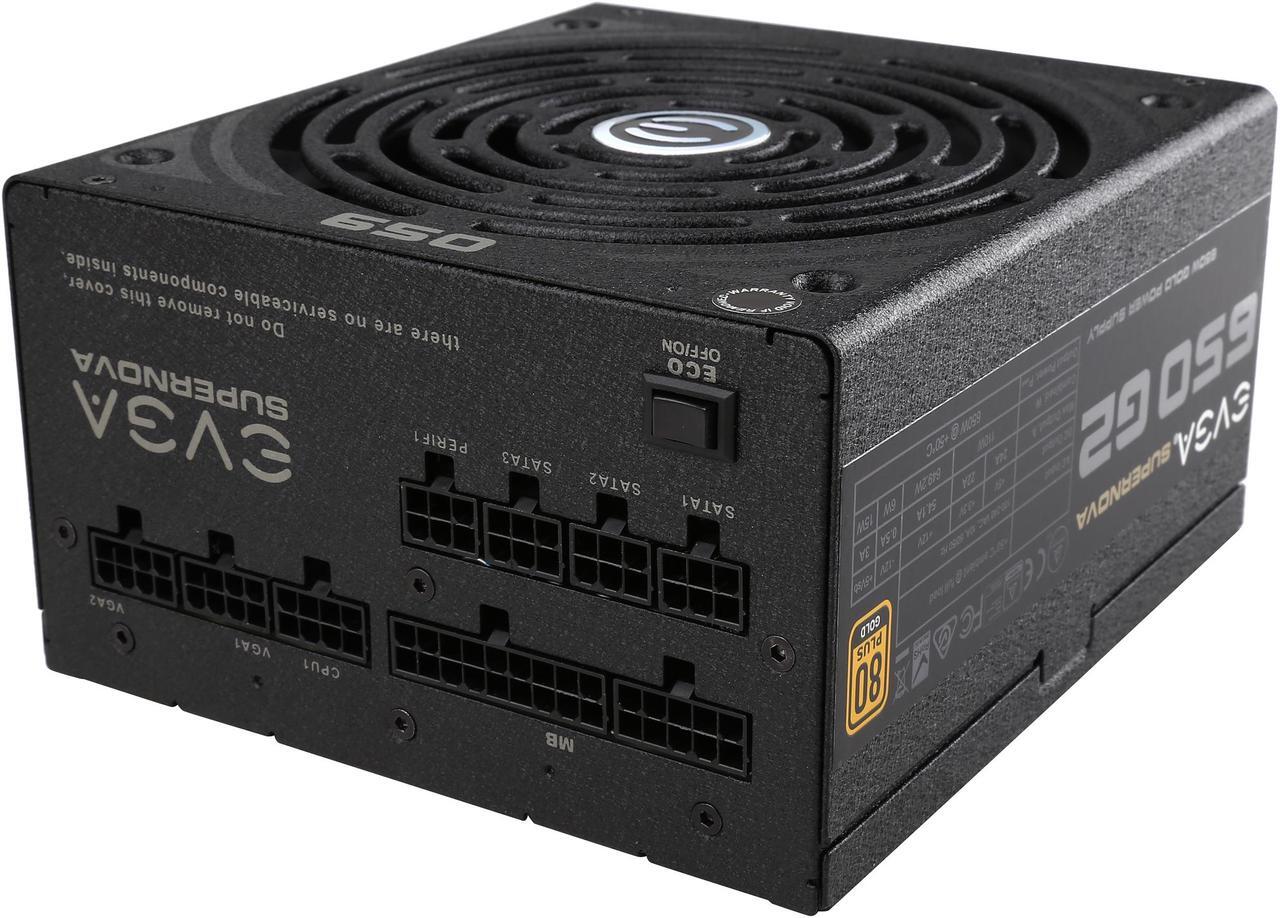

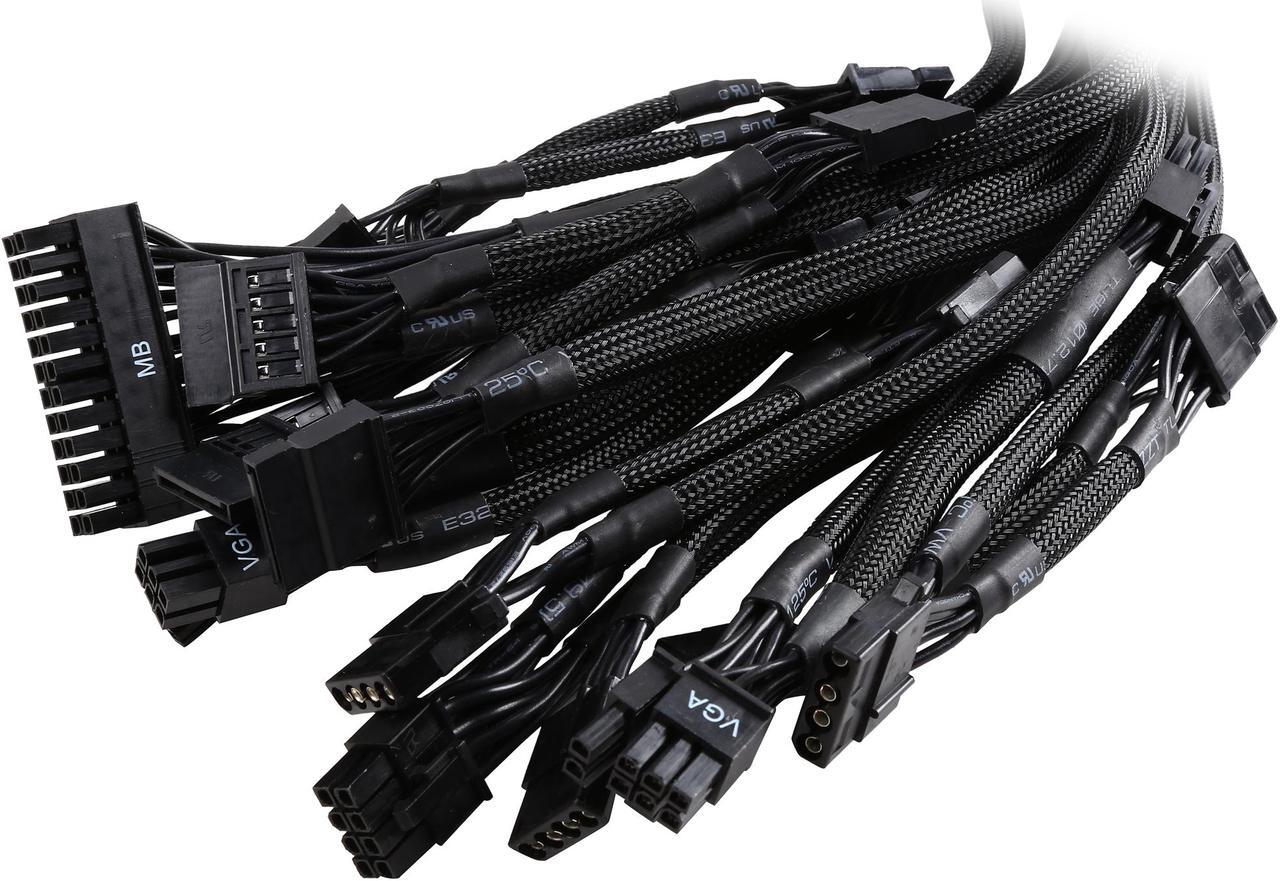

FULLY MODULAR
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.
HIGHEST QUALITY JAPANESE NIPPON CHEMI-CON SOLID STATE CAPACITORS
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

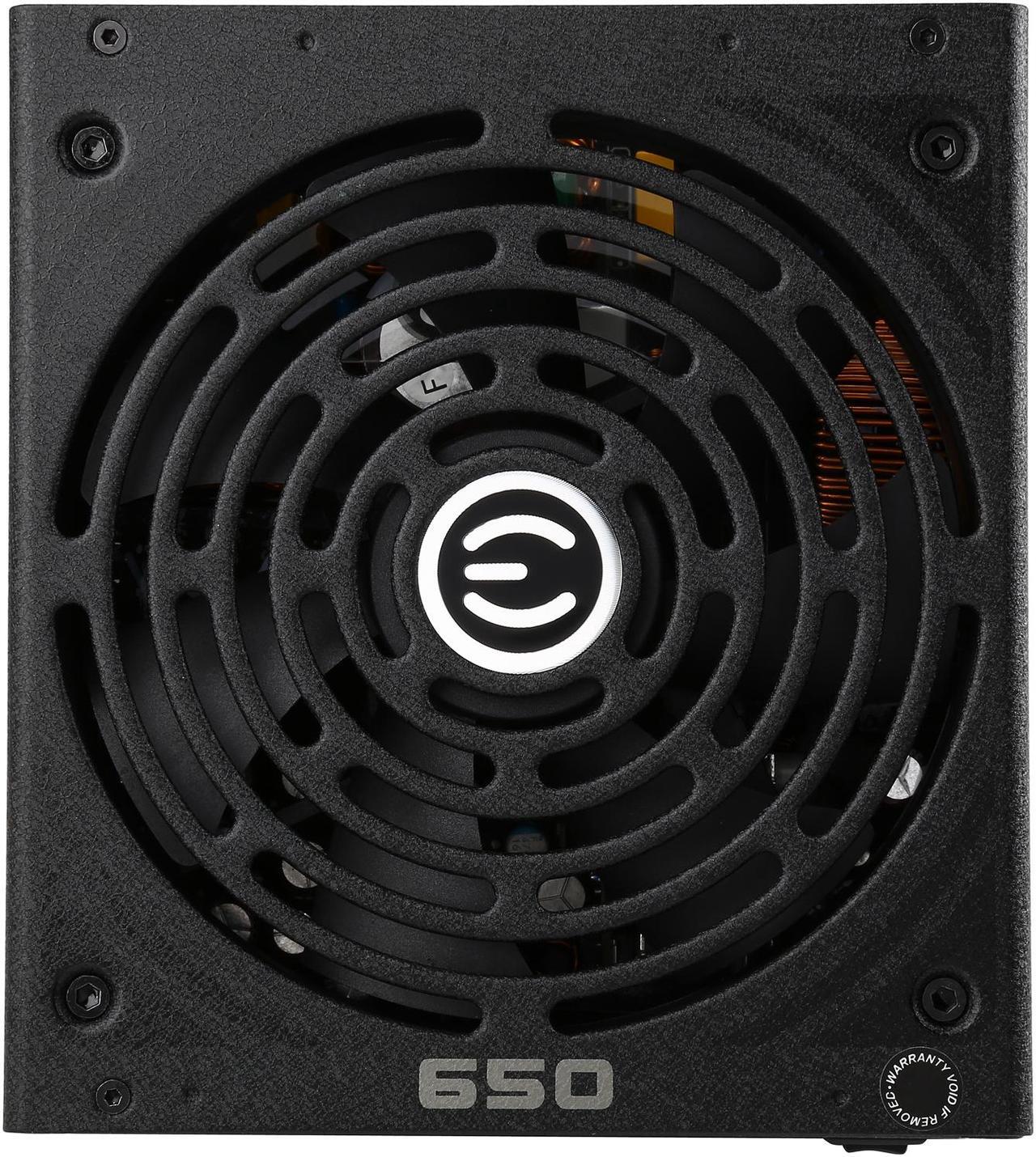

DOUBLE BALL BEARING FAN
A high-quality dual-ball bearing fan gives the SuperNOVA 650 G2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.
GOLD RATED EFFICIENCY
80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is 90% efficient or higher.
ECO mode, keeps the fan off when unneeded, and is only ran at the lowest speed needed to keep the internals cool.
While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections to keep you running strong and your hardware safe.
