Question 1

why do you need usb 3.0?

Accepted Answer

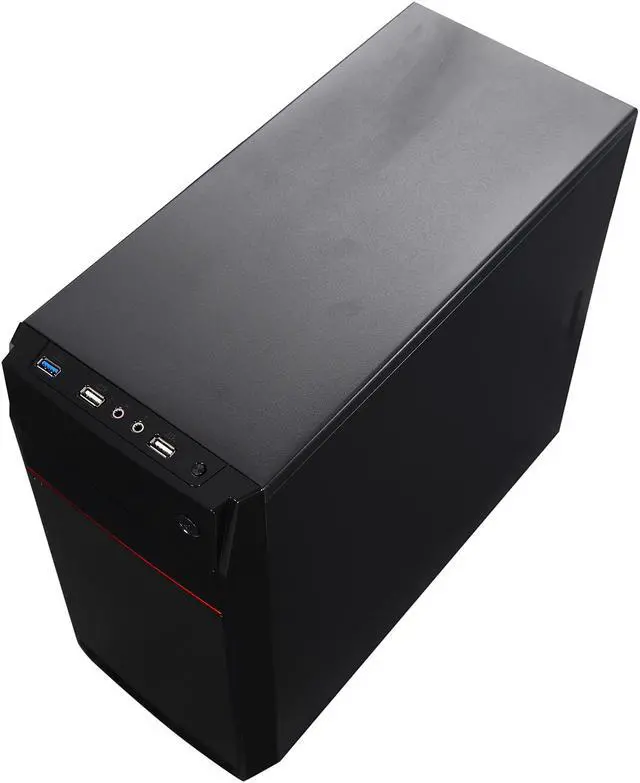

I suppose you are referring to Rosewill's advisement to "make sure your motherboard equipped with on-board USB 3.0 socket before purchasing."  In English, this is telling you that the USB 3.0 port at the front of the case has a wired connector that must be plugged into a 20-pin socket on your motherboard to function. Some motherboards do not have this 20-pin socket. Therefore, the case's USB 3.0 port can't be used with these motherboards. If your motherboard is one of these, you can still use the  USB 2.0 front ports of the case by connecting them to the motherboard.

Question 2

What is the max graphics card length it can fit?

Accepted Answer

you can install a maximum-size graphic card in this case.  The only difference between this case and the larger size cases is the amount of room to maneuver your hands.  This case will leave you very little room to work on other components, once you install a large graphic card.

Question 3

Is there enough clearance for a DVD drive, motherboard and power supply?  There is not a photo showing the case with components installed to judge if the DVD/Blueray writer drive will work in this case.

Accepted Answer

Yes, there is. We do not like this case so much as it looks to much like a IBM Thinkcenter.  The Thermaltake Versa H15 SPCC Micro ATX is a better "inexpensive case" just because of the plastic front this Rosewill has.

Question 4

could this support a 240mm radiator?

Accepted Answer

Probably not. There's an 80MM fan in the back...and there's not room for much more than that.

Question 5

will this support a 120mm radiator?

Accepted Answer

I think you should use a bigger tower case.

Question 6

What are the dimensions of this case? The "Specifications" tab is non-functional.

Accepted Answer

15.25" L x 11.875" H x 7.0" W

Question 7

will this support micro atx motherboard?

Accepted Answer

Yes

Brand	Rosewill
Model	SCM-01

Type	Micro ATX Mini Tower
Color	Black
Case Material	Steel / Plastic
With Power Supply	No
Power Supply Mounted	Top
Motherboard Compatibility	Micro ATX / Mini-ITX
Side Panel Window	No

External 5.25" Drive Bays	1
Internal 3.5" Drive Bays	3
Internal 2.5" Drive Bays	3
Expansion Slots	4

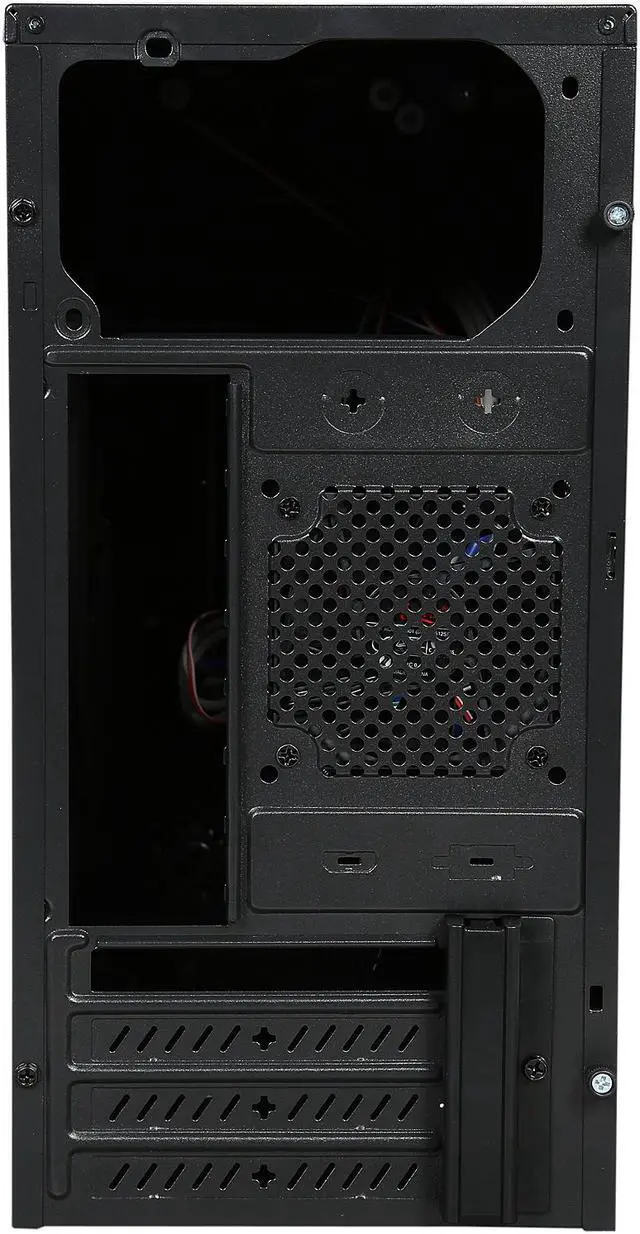

Fan Options	Front: 1 x 120mm fan (optional) Rear: 1 x 80mm fan (pre-installed)

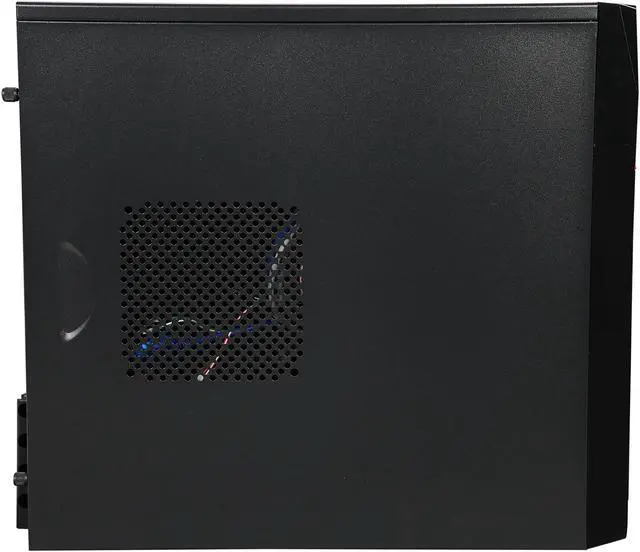

Side Air duct	Yes

Max CPU Cooler Height	140 mm
Dimensions	14.96" x 6.89" x 13.78"
Weight	6.61 lbs.

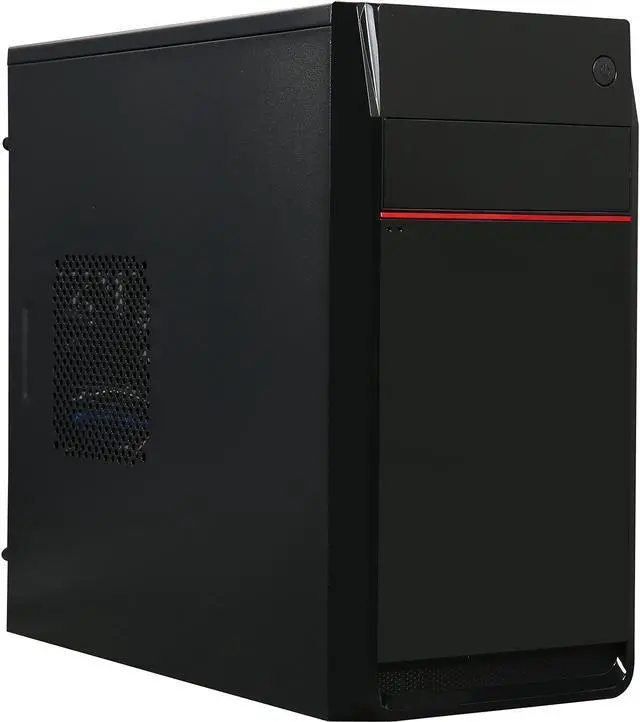

Rosewill Micro ATX Mini Tower Computer Case, Supports Micro-ATX/Mini-ITX M/B, Supports CPU Cooler Height up to 140 mm - SCM-01
