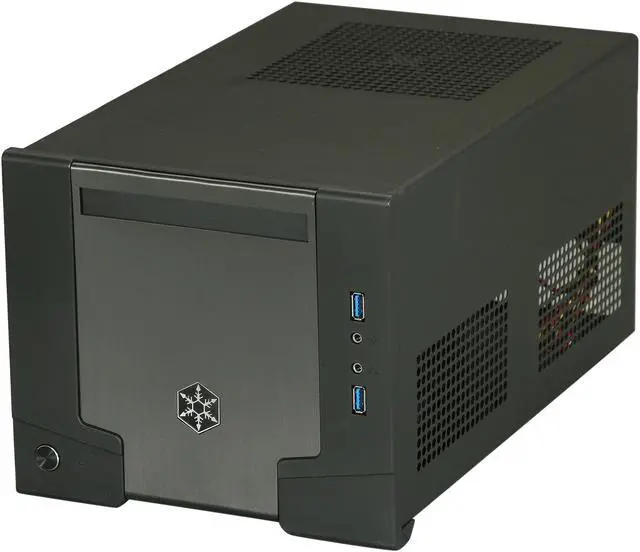

SilverStone Sugo Series SG07B-USB3.0 Black Aluminum / SECC Mini-ITX Desktop Computer Case 600W 80+ Bronze Certified / Single +12V rail Power Supply with 2X USB3.0 ports

(4) |

Write a Review

Aluminum / SECC Mini-ITX Desktop
USB 3.0 x 2, Audio x 1, MIC x 1 Front Ports
Custom 600W with 80 PLUS Bronze certification and single +12V rail Power Supply
Side Air duct
1 Internal 3.5" Drive

The Sugo SG07, with a size that slots in between the venerable SG01 Micro-ATX SFF case from 2005 and the SG05, a powerful Mini-ITX case released in 2009, was designed to take the Mini-ITX platform to a whole new level. It is twice as powerful as the SG05 but only 37% bigger. Its custom 600W power supply, which is rated up to 50?with 80 PLUS Bronze level efficiency and single +12V rail, was carefully chosen and optimized for SG07.

Exhaustive testing was conducted to create unique VGA fan duct and exhaust vents that enable SG07 to not only accommodate the longest consumer graphics cards physically (up to 12.2 inches/310mm) but also capable of supporting graphics thermal profile of up to 400W through overclocking. For the CPU and motherboard area, a record-breaking use of 180mm fan (bigger than the Mini-ITX motherboard!) with vortex generating design was utilized to provide possibility of fanless CPU cooling of up to 95W (via CPU cooler such as SilverStone’s NT06-E). But despite having tremendous amount of cooling performance, the SG07 is easy to maintain as well. It employs positive pressure layout with all intake areas fitted with removable filters so dust will not accumulate inside. If the goal is to make the ultimate Mini-ITX system, the SG07 is hard to beat.

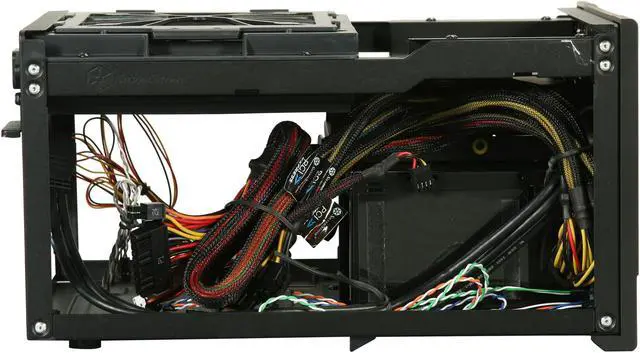

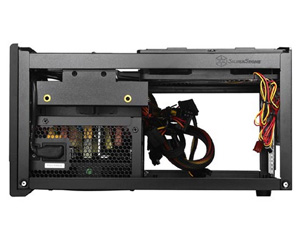

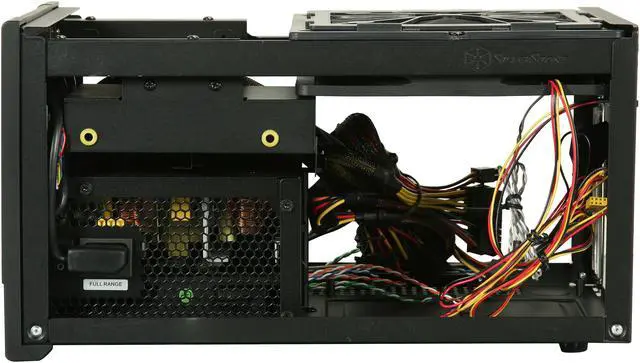

Massive Performance, Little Enclosure The Silverstone SG07B-USB3.0 comes in an ultra compact form factor but features a smart interior layout to accommodate Mini-ITX/DTX motherboard, 1x slim ODD, 1x 3.5" HDD or 2x 2.5" HDD/SSD, graphics card up to 12.2" in length and CPU cooler up to 117mm in height.
Peerless Cooling 1x 180mm Air Penetrator fan, which operates at 700/1200rpm, 18/34dBA and is bigger than the Mini-ITX motherboard, works in concert with a wealth of air vents on panels to produce tremendous air flow to cool the entire system.
Dedicated VGA Duct An adjustable VGA fan duct in combination with a number of mesh holes delivers optimized cooling for even up to 400w high-end graphics card. GPU vent divider prevents air exhaust recycling back into PSU.

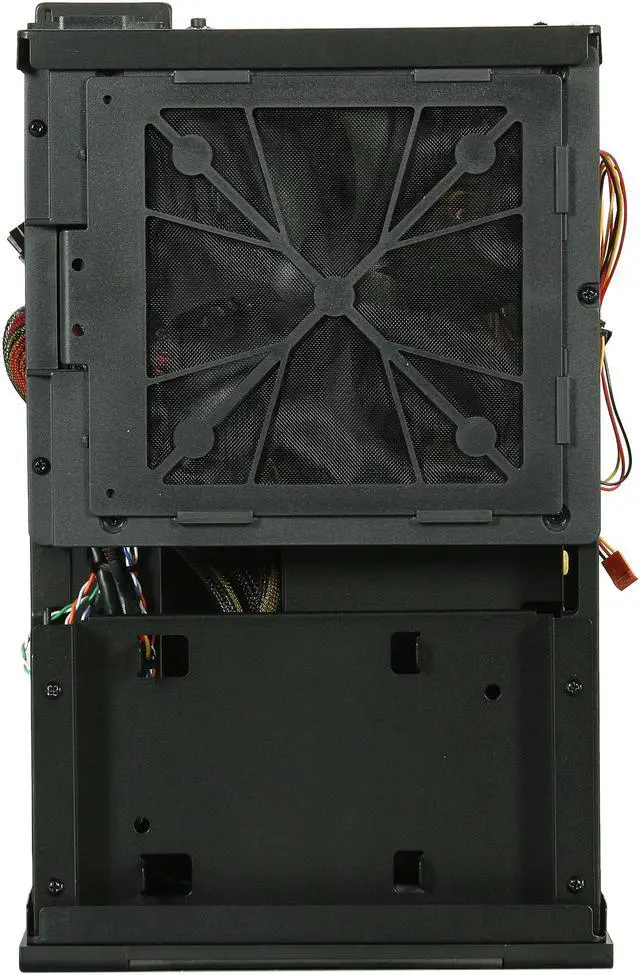

Easy Maintenance Removable fan filters for case fan, PSU, and VGA duct are included to keep dirt and dust out for a clean inner system and better heat dissipation.

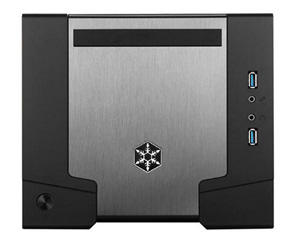

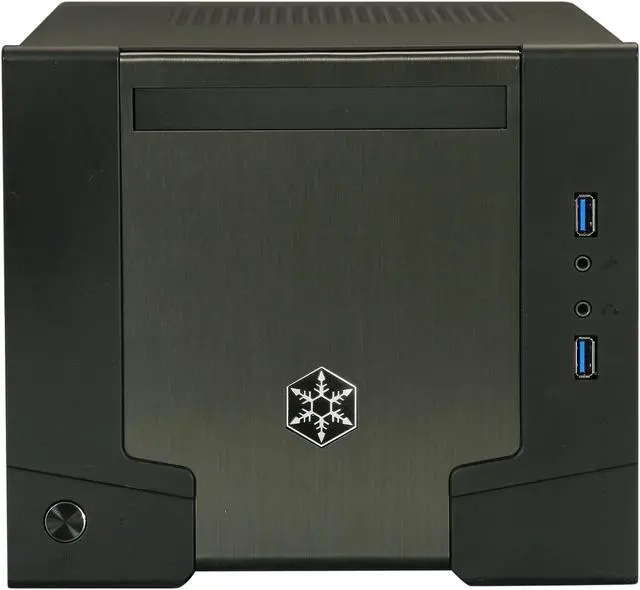

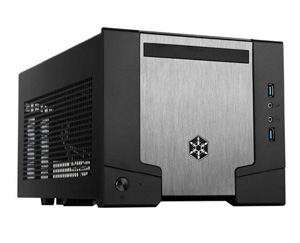

USB 3.0 Multimedia I/O Ports 2x USB 3.0 ports and 2x audio ports on front panel allow easy connection to wide range of peripherals.
600W 80 PLUS BRONZE Certified PSU An 80 PLUS Bronze Certified PSU deliver rated 600w of robust and stable power for all your components with minimum efficiency of 82% at any load between 20% and 100%.

Learn more about the Silverstone SG07B-USB3.0

Model

Brand: SilverStone

Series: Sugo

Model: SG07B-USB3.0

Spec

Type: Mini-ITX Desktop

Color: Black

Case Material: Aluminum / SECC

With Power Supply: Yes

Power Supply: Custom 600W with 80 PLUS Bronze certification and single +12V rail

Power Supply Mounted: Bottom

PSU Main Connector: 20+4Pin

Motherboard Compatibility: DTX, Mini-ITX

With Side Panel Window: No

Expansion

Internal 3.5" Drive Bays: 1

Internal 2.5" Drive Bays: 2

Expansion Slots: 2

Front Ports

Front Ports: USB 3.0 x 2, Audio x 1, MIC x 1

Cooling System

80mm Fans: No

180mm Fans: 1 x 180mm Air Penetrator 700/1200rpm, 18/34dBA

Side Air duct: Yes

Physical Spec

Dimensions: 8.74" x 7.48" x 13.78"

Weight: 10.8 lbs.

Features

Features: New USB3.0 upgraded from SG07B (http://www.newegg.com/Product/Product.aspx?Item=N82E16811163169)

Class leading SFF chassis with 180mm fan and positive pressure cooling

Ample space for CPU cooling (117mm in height)

Elevated standoff for motherboard back side components

Support for two 2.5" SSD/hard drives and one 3.5" hard drive

Includes 80 PLUS Bronze certified 600W@50 Degrees PSU with single +12V rail

Adjustable VGA fan duct for improved cooling efficiency

Removable fan filters included for case fan, PSU, and VGA duct

Support graphics cards up to 12.2 inches and 400W

Quick Info

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year

Manufacturer Contact Info

Manufacturer Product Page|
Website: http://www.silverstonetek.com|
Support Phone: +1-909-465-9596
Support Email: usasupport@silverstonetek.com|
View other products from Silverstone
Read news from Silverstone|

Customer Reviews of the Silverstone SG07B-USB3.0

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (2) All Reviews (4) 75% (3) 0% (0) 0% (0) 0% (0) 25% (1) Verified Owners Video Reviews Mfr. Responses keyword Go
N/A 2/4/2013 12:32:12 PM Tech Level: 4/5 Ownership: 3/5 Verified Owner	Rating: 5/5Crazy Awesome Pros: Incredible case. Very well designed. All of my components fit right in. Nice and quiet. The massive amount of USB 3.0 ports is a huge plus for me. Cons: None. Other Thoughts: Bought this to build a nice desktop for myself. The Core i5 I bought had a faulty heatsink/fan, but that huge fan on top of the case kept the CPU idle at 40C. After replacing the fan, it hardly ever goes above 31C. This is the ITX case to get. Bar none. Did you find this review helpful? Thanks for the valuable feedback you provided!
edbro 12/31/2012 1:11:15 AM Tech Level: 4/5 Ownership: 5/5	Rating: 5/5Bought from 3DGameMan in 2011 Pros: Excellent finish thoughout. Quiet PSU and top fan. Filters for both fans. Cons: The front headphone jack picks up noise when anything is plugged into either of the front USB ports. The top fan was very difficult to get seated into place when I first built the machine. The top filter can only be accessed by removing the case cover. Other Thoughts: Gigabyte GA-H55N-USB3 i5 760, aftermarket cooler 4GB G.Skill DDR3 Memory 1TB Green Western Digital Plextor 128GB SSD Samsung Slimline DVD-R/W EVGA GTX 460 Samsung 25.5" T260HD Shimian Achieva 27" QH270-lite monitor 2 out of 2 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
ChrisF 10/20/2012 3:41:57 PM Tech Level: 5/5 Ownership: 2/5 Verified Owner	Rating: 1/5Terrible quality control Pros: Great psu, nice design and great cooling. Cons: The front metal is glued on and super cheap, mine was not glued on right and was popping off. Big scratch on the inside and paint missing. Other Thoughts: I spend a lot on cases, lian li etc and this is my third and last silverstone. The quality was really poor i am disgusted the aluminium was glued on and super thin almost like card. It had lots of big scuffs on the inside too but the badly glued on metal that made the dvd burner look crooked was a joke. pretty gutted and I wont take a chance on a second. 10 day RMA's make it not worth while. Manufacturer Response: Thank you very much for purchasing a SilverStone and we would like to have a chance to keep you as a customer. Please contact our US office directly so we can help you get the issue sorted out to your satisfaction: 909-465-9596 usarma@silverstonetek.com 1 out of 7 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

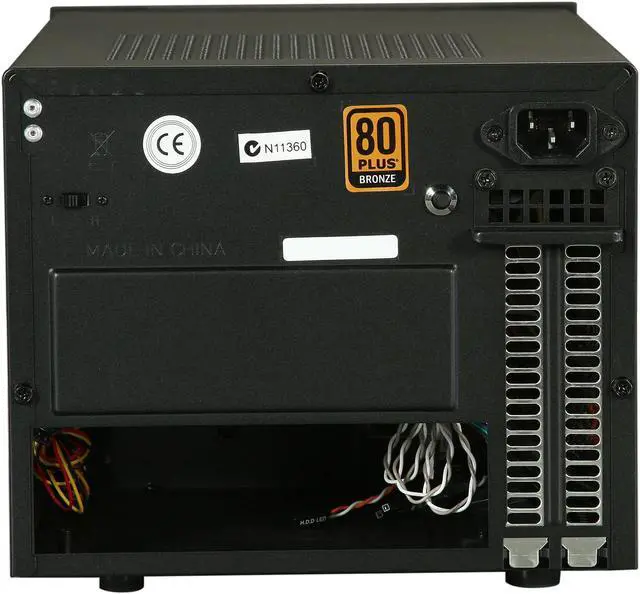

Black Blader V 10/3/2012 8:34:06 PM Tech Level: 5/5 Ownership: 4/5	Rating: 5/5Best in it's class Pros: Absolutely perfect design. Custom Silverstone 600 watt power supply included that is mounted in front of the case on it's side that draws air in from the bottom and expels it out of the side. Top 180mm fan mounted over top of the motherboard area does a fantastic job of keeping the hottest area of you case cool. Drive Very clever drive bay holds 2 X 2.5 inch drives and 1 X 3.5 in drive. The one piece removable shell may be what I like most about Silverstone SFF cases. No fumbling with multiple side panels and micro sized screws when trying to access the interior (i'm looking at you Lian-Li). No problem fitting my Evga Gtx 480, possibly one of the bulkiest Nvidia cards out there, heat pipes and all. Two front USB 3.0 ports. Cons: If anything, the finish on rear of the case isn't as nice as the rest of the case and the reset button is on the rear of the case. I would have liked the Silverstone emblem on the front of the case to be removable/optional, but that's just nitpicking. Some might say having to use a slim dvd burner is a con also, but that's just a matter of opinion because I knew this before buying. I used a Sony Optical AD-7690H-01 slot loader and a StarTech.com 20-Inch Slimline SATA to SATA with LP4 Power Cable Adapter (SLSATAF20). Other Thoughts: I eventually removed the stock Intel cpu cooler and the top 180mm fan and installed an Antec Kuhler H20 620 water cooling unit with an additional fan in a push/pull config. The included bracket for the 180mm Silverstone fan has mounting holes for a 120mm fan, so it fit perfectly. Tight, but perfectly. Everything about this case just worked out great. Parts used: Intel core i5-2500k sandy bridge 1 X 120GB Kingston Hyper X SSD 1 X 500GB Western Digital black laptop drive 1 X 2TB Western Digital black 8GB Kingston Hyper X PC3 12800 (2 X 4GB sticks) Evga Geforce Gtx 480 Sony optical dvd burner Antec Kuhler H20 620 4 out of 4 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
