Item#: N82E16811233060

GIGABYTE GZ-SPIM51-P0B Black 0.6 mm SECC / ABS Mini-ITX Desktop Computer Case 65W adapter Power Supply

  • 0.6 mm SECC / ABS Mini-ITX Desktop
  • 2 x USB 2.0 / 1 x Audio Set (AC'97/HD) Front Ports
  • 65W adapter Power Supply
ICON Loading...

Learn more about the GIGABYTE GZ-SPIM51-P0B

Model

Brand
GIGABYTE
Model
GZ-SPIM51-P0B

Spec

Type
Mini-ITX Desktop
Color
Black
Case Material
0.6 mm SECC / ABS
With Power Supply
Yes
Power Supply
65W adapter
Motherboard Compatibility
Mini ITX (6.75" x 6.75")

Front Ports

Front Ports
2 x USB 2.0 / 1 x Audio Set (AC'97/HD)

Cooling System

80mm Fans
No

Physical Spec

Dimensions
17.52" x 9.84" x 2.56"
Weight
9.26 lbs.

Features

Features

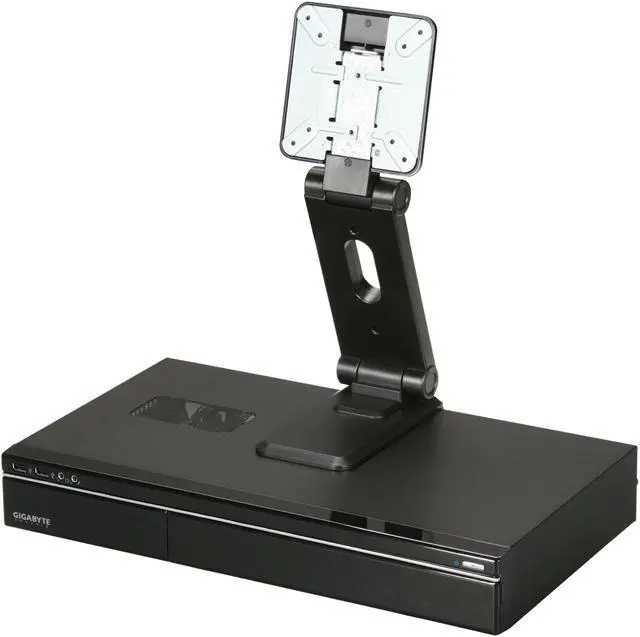

Easy monitor height and tilt angle adjustments

MIB hinge can be detached for standalone case usage

MIB saves space by simply replacing a monitor stand

Support 19"~23" LCD monitors with 10x10cm and 7.5x7.5cm VESA standards

Hinge Lock for Extra Stability

Hinge Hole for Cable Management

CD-ROM bezel flap to keep the front looks uniform

Elegant power button Design

3.5" Drive Bay for Easy Expansions

Tool-less installation of MIB hinge and monitor

Surface with anodized mirror finish

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the GIGABYTE GZ-SPIM51-P0B

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Jeffrey M.
  • 2/11/2012 2:02:12 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggs

Pros: Nice looking and well built. With the built in monitor stand it takes up only slightly more space than the monitor itself. Well ventilated on motherboard side, my setup is fanless and silent.

Cons: Power supply has 20 pin main connector. Make sure you order an adapter if you plan on using it.

Other Thoughts: 65 watt power supply is more than adequate for my setup. Using a low power Atom board, 4GB RAM, 2.5" 320 GB laptop hard drive, LITE-ON DVD Burner, and 3.5" Rosewill card reader.

Did you find this review helpful? Yes No

  • Steven D.
  • 1/19/2012 5:38:44 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNice Case

Pros: Sweet little mini ITX case, enough space for a full size dvd and 2 3.5 hds. A bloodless install even with my big hands! Looks more expensive then it is. Wife Approved!

Cons: Limited expansion but you should know that going in.

Other Thoughts: I questioned the 65 watt psu, but it works well with Asus e350 setup 4 megs ram, dvd and 5400 hd

Did you find this review helpful? Yes No

  • Jeffrey H.
  • 4/4/2011 5:03:15 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSpouse Approved

Pros: Looks great, blends in nicely with my other home theater equipment. I especially liked the full 5.25" external bay and space for 2 3.5" drives (including 1 external).

Cons: None

Other Thoughts: It was a little bit larger than I anticipated and mine didn't come with a power cord so I had to use a spare, but neither of these were big deals. I've also experienced the power light not working, but as this is an HTPC case, I like it that way.

Did you find this review helpful? Yes No

  • Christopher M.
  • 3/27/2011 6:38:25 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Very happy with this case! Fits right in with my A/V equipment, and I appreciate that it comes with the low power 65W PSU and also supports a full size cd/dvd rom drive.

Cons: The MicroATX board is a bit of a tight fit, but its a SFF case so that is not entirely unexpected.

Did you find this review helpful? Yes No

  • Bryan H.
  • 12/15/2010 3:25:15 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggswah-wah. discontinued

Pros: Great case. Built several general purpose workstations out of them. End users loved the size and integration with VESA monitor.

Cons: Discontinued. Still featured prominently on their site, but I contacted them to find out why I couldn't locate them anywhere. They are no more.

2 out of 3 people found this review helpful. Did you? Yes No

  • Anonymous
  • 12/7/2010 9:33:34 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsPerfect HTPC Client Case

Pros: Very slim but still easy to work in. I built a SageTV Client out of one of these and couldn't be happier. Had to replace the PSU, but that was no biggie. Price beats the heck out of any slim HTPC cases on the market

Cons: Weak PSU for my setup. Would have been fine for an Atom though.

Other Thoughts: Other Hardware:
J&W Minix MB785G-128SP
AMD Athlon II X2 240
Asus BR Drive
Samsung 160gb 2.5" hdd
Thermaltake MeOrb HSF
Samsung DDR2 800 1gb SODIMM x2
Pico-PSU 150XT w/ 150W AC Adapter

System maxes out at 80W during BR playback, so the 150XT was a little overkill. I figured better safe than sorry. Installe Win 7 Home Premium and all is right with the world!!

2 out of 3 people found this review helpful. Did you? Yes No

  • Darrell G.
  • 11/14/2010 9:30:43 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsAwesome Little Case

Pros: Compact - looks just like a dvd player, roughly .5 inches wider than the one it is currently replacing. It's not as tiny as it could possibly be but it's designed to run with full sized components (which is a huge advantage) the fact that it is "only" as small as everything else in your stereo cabinet is moot. The case itself only has a slightly larger footprint than the monitor stand it replaced.

Innovative and Versatile - monitor stand built into the case is not only a great idea, it is extremely well executed. The range of angles and heights available from this stand is impressive, anywhere from directly in front of the computer itself facing outward, to aiming the monitor straight up to the ceiling.

Quality - As usual I am impressed with Gigabyte quality, although this is the first case of theirs I've purchased. Fit and finish are beautiful. Overall layout is spacious (for ITX), efficient, and very attractive.

Cons: Low Power - at 65 watts I wouldn't recommend anything more than an Atom board in this setup. It shouldn't be an issue to an informed builder. There is also no way to add any expansion cards at all since there are simply no expansion slots.

Ventilation - Airflow would be a concern were I not using an atom board. There is a screened ventilation duct over the CPU and some perforation in the side closest to the motherboard; no fans or anywhere to install fans on that side. There is however space for 1 60mm exhaust fan behind the 3.5" cage, although a 60X60X25 fan barely fits with a drive installed. I generally dislike 60mm fans but in this case it should draw at least some air left to right through the case across the MB.

Other Thoughts: Bought this case on the free case shipping promo a week or two ago. If there is a deal-breaker on this it's the $19 or so it'd cost to ship it otherwise.

I have this stacked on top of my cable box in a small entertainment center with a gigabyte d525 board installed. VGA/audio out from the case to the attached 23" HDMI monitor which doubles as a television when switched to the cable box's HDMI out. The vesa monitor mount works extremely well for my purposes.

Running Lubuntu 10.10, it is generally used (by kids) for viewing media over the network and playing web/educational games as well as web browsing via chromium.

I had wanted a case like this for years and had planned on building one myself. Between the cost of a Pico-PSU (which this comes with) and my time, this is a much much better solution.

1 out of 2 people found this review helpful. Did you? Yes No

  • Patrick R.
  • 8/27/2010 9:37:04 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsWAF for HTPC

Pros: Has the footprint of a DVD player and just a hair taller than a 5.25" drive. Can hold 2 internal 3.5" drives. Takes a full-size optical drive (do not have to use a slim drive).
Looks very nice for a high Wife Approval Factor. I put in a Zotac Atom 330 + Nvidia ION motherboard (with its own onboard 90W power supply), a 64GB SSD (2.5" - used velcro) main drive, a 2TB green media drive, an LG blu-ray optical, Win 7 media center with Media Browser and TotalMedia Theatre 3. Not using the vesa arm for a monitor.

Cons: The power light is not bright but could be a touch dimmer. I removed the onboard 65W power supply and bought one that comes with its own 90W onboard power because I did not feel I could fire up drives and a motherboard with it. Has no slots for a PCI card if your MB supports one.

Other Thoughts: I am a linux person and was only going to try out Win7 media center enough to be disillusioned and install MythTV or something. Wow am I shocked. This makes an EXCELLENT home theatre PC case - is small enough to look like a slightly thick DVD player, and looks nice enough to have a good Wife Approval Factor.

3 out of 4 people found this review helpful. Did you? Yes No

  • David K.
  • 3/2/2010 7:51:28 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat Case for sub $500 Portable Gaming

Pros: Easy to Install Components into case, well constructed, good value. The monitor arm is the best thing I have ever seen. I have been looking to make a DIY all in one PC that isn't several thousand dollars. This Did the trick.
I used a Zotac Ion Motherboard with a LGA775 Socket
2GB 800HZ OCZ Memory
500 GB HDD
DVD BURNER
2.8 GHz Duo Core Processor
Running Ubuntu 9.10
I bought this case to be able to take it with me to other peoples houses to play games. With a 22" monitor and the hinge folded up the case is around 8" high.

Cons: Low wattage power Supply, but this case was meant to be used with an Atom and I knew that before buying.

Other Thoughts: Bought a Mini Itx Power Supply without really looking into it. Since this was a mini-itx case I thought it would fit no problem, well it doesn't fit, though I got everything to power up, I have the case open with lots of cords hanging out. Ordered a PicoPSU 150 Watt from an external website. I should have listened to previous reviews.

7 out of 8 people found this review helpful. Did you? Yes No

  • Vernon B.
  • 1/21/2010 10:07:46 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsPerfect media PC case

Pros: Almost perfect design and look for a media PC case. The advantage of this case over others is the use of full size drives (2 each 3.5 hardrive spaces and a fullsize 5.25 for the CD/DVD/BD drive slot. It's the same size as the typical DVD player. It also has pretty decent crossflow cooling which intakes on the side the mini-itx board and flows out just behind the hard drives. I am using the Silenex 60mm fan for the exhaust and the system is dead silent.

Cons: The only con is a flip down door for the optical drive and the lack of a built in front firewire port. These are not really cons, just minor gripes from my standpoint. Some people may like the flipdown door since it hides the CD drive face which may not match the glossy black of the housing. The hard drive cage is not rubber mounted so there could be noise if you use loud drives. These are not huge cons and shouldn't keep looking for something else since I have yet to find a case with the same formfactor and features.

Other Thoughts: Very slick case. Is the only one that looks like your other typical VCR/DVD player formfactor. The 60 watt supply is only adequate for an ATOM setup not so good for the ION and all hard drives. I bought the ION with it's 90 watt built in supply which is much better and saved the 60watt for some other project.

6 out of 8 people found this review helpful. Did you? Yes No
