Item#: N82E16811233114

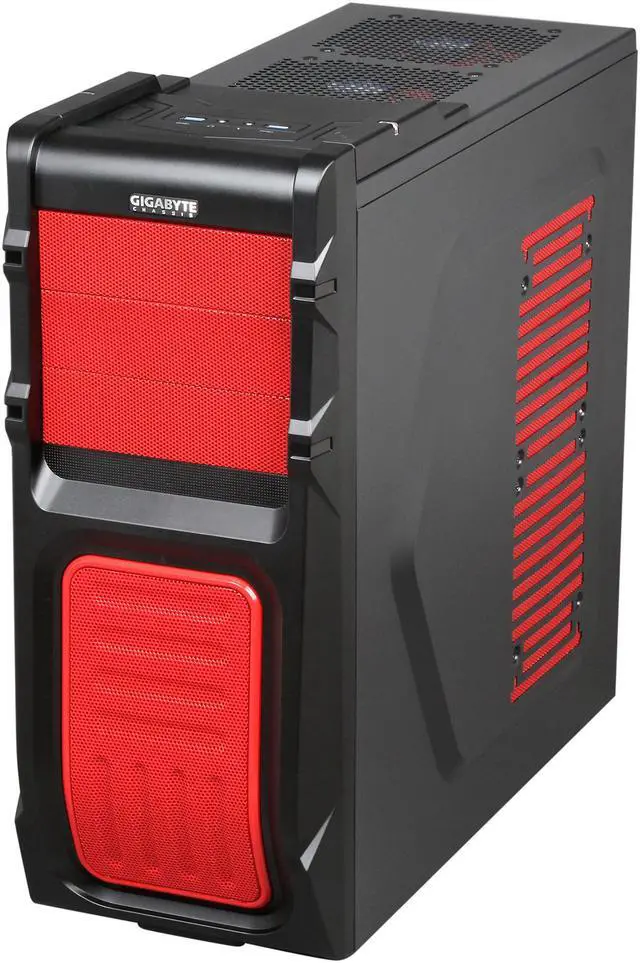

GIGABYTE Luxo M10 GZ-ZLM10RS Red Plastic / 0.5mm Steel ATX Mid Tower Computer Case

  • Plastic / 0.5mm Steel ATX Mid Tower
  • USB 3.0 x 2 / HD AUDIO Front Ports
  • 3 External 5.25" Drive Bays
  • 8 Internal 3.5" Drive Bays
ICON Loading...

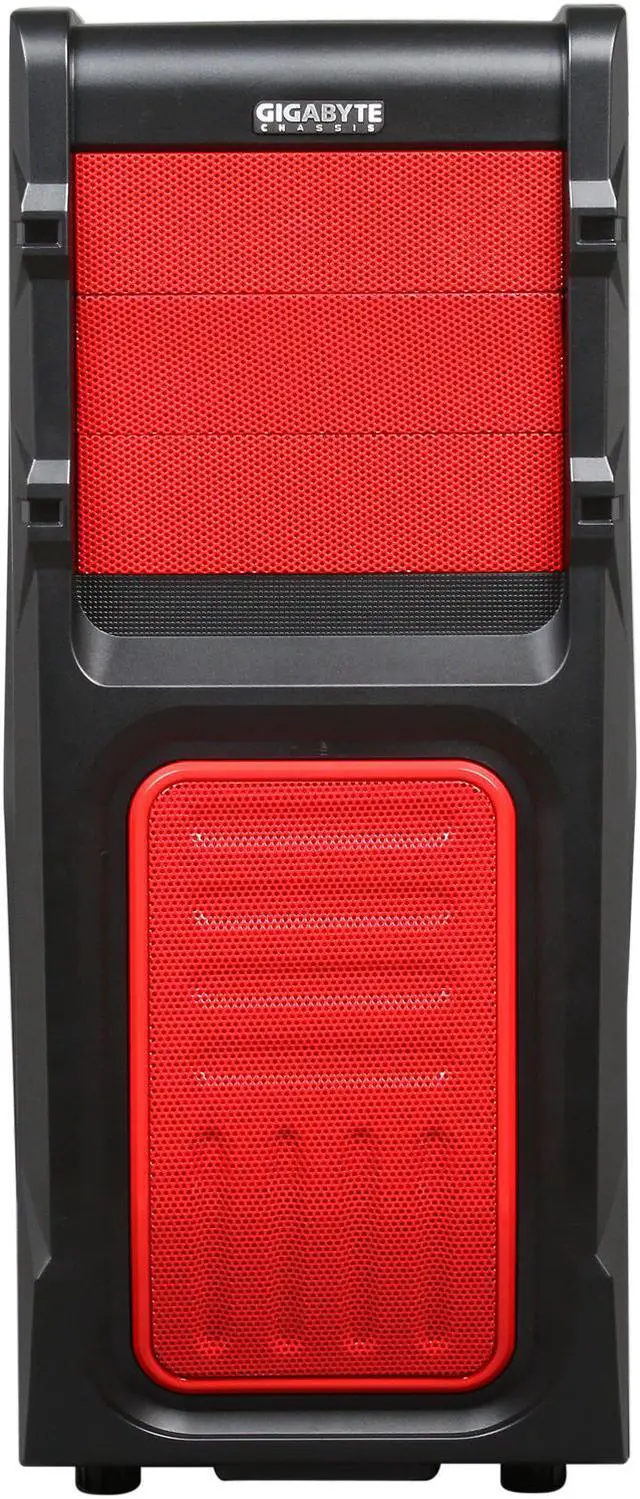

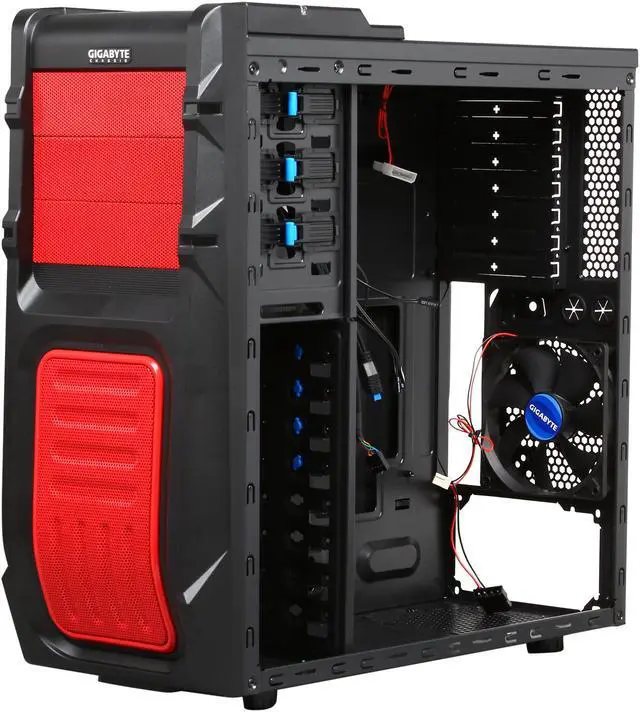

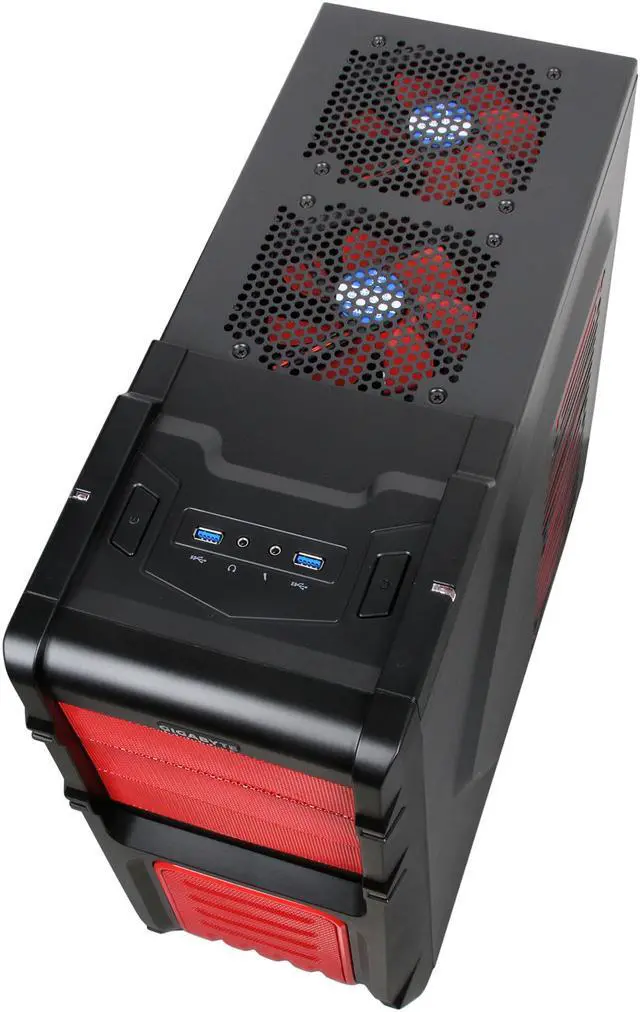

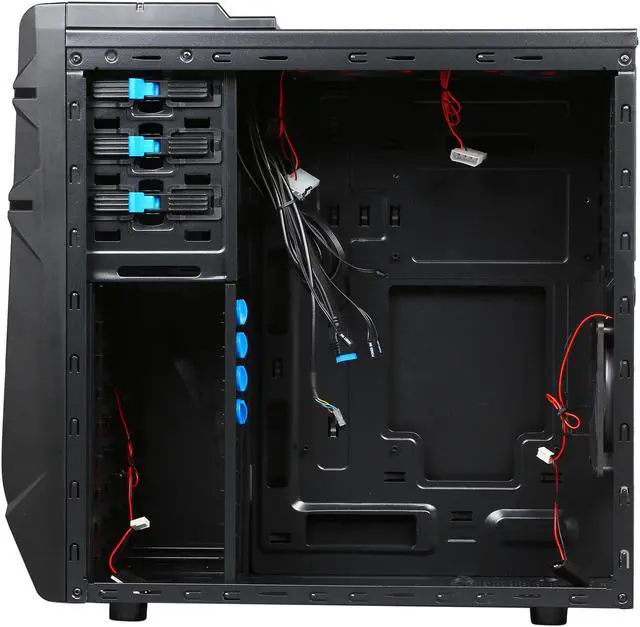

GIGABYTE unleashes another new member to the Luxo series - Luxo M10. It is a right side installation chassis, featuring the classic color combination of black and red - sophisticated and passionate. The right side installation benefits users by supporting long VGA cards (290mm) and eliminating cable length restriction. Uniquely designed side panel enhances air flow capacity. Detachable front panel allows easy cleaning of the front fan. PSU is positioned at the bottom, lowering the center of gravity. Two USB 3.0 ports on the top for easy access allows speedy transmission saving users’ time. Supports to six cooling fans to provide excellent thermal performance.

Luxo M10

Specifications

Dimensions (W x H x D) 7.5 x 17 x 17.3in. (192 x 430 x 440mm)
Material Plastic & 0.5mm Steel
Colors Black & Red

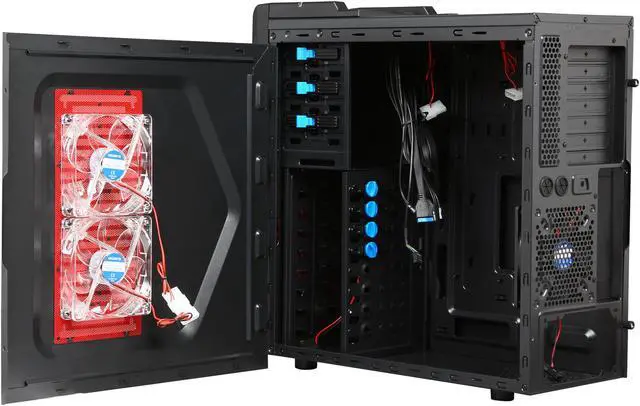

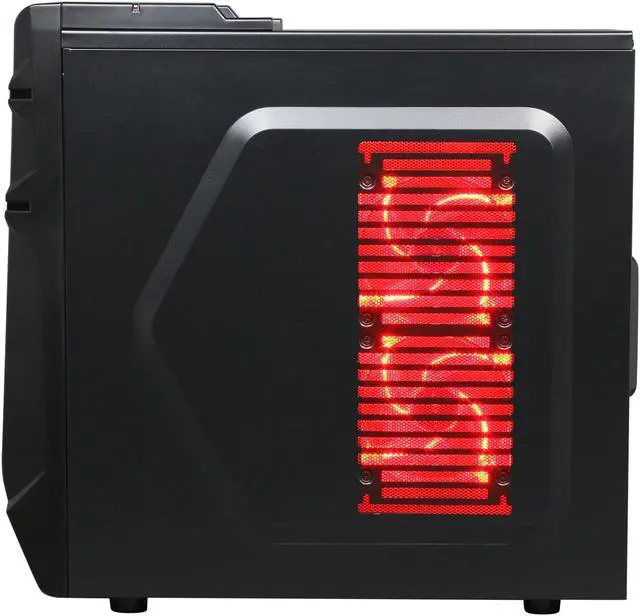

Side Panels 12cm LED Fan x 2
Drive Bays 5.25" x 3, 3.5" x 8 (internal)
Expansion Slots 7
Form Factor ATX / Micro ATX
I/O ports USB 3.0 x 2+ HD AUDIO
Fans Front: 120mm fan x 1
Rear: 120mm fan x 1
Top: 120mm fan x 2
Weight 12.8lb (5.8kg)

Learn more about the GIGABYTE GZ-ZLM10RS

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the GIGABYTE GZ-ZLM10RS

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Justin H.
  • 8/10/2013 12:58:10 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGood

Pros: Elevated off ground giving your power supply access to air with the inverted set up. Lots of quiet fans. Good Usb and Power/Reset button layout if you have your PC lower then you sit. Case also comes with hardware to mount anything u might have. DVD drives and most hard drives wont even need screws with the case's built in systems.

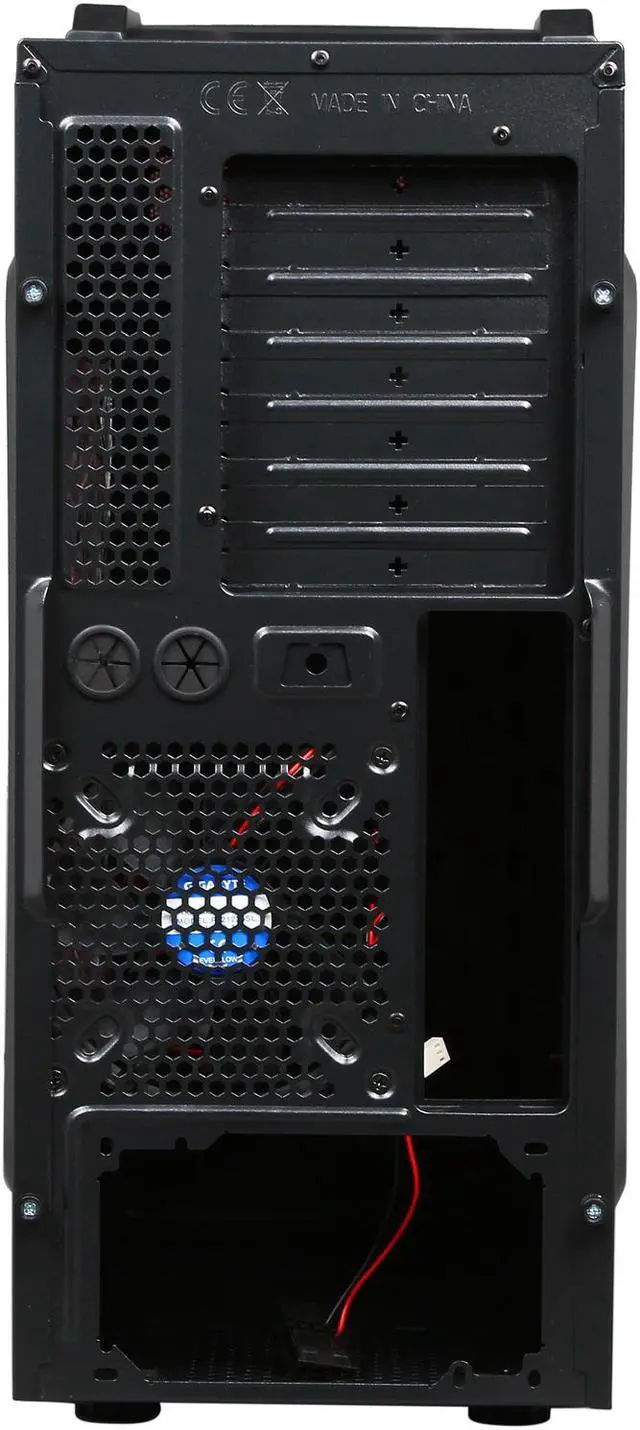

Cons: PCI tabs on back are break off disposables, once they out u aren't putting them back like they were. My XFX 7970 graphic cards screw slots were slightly off from the back of the cases, I had to push on the back of the case to get the screws in, not a very big deal. My solid state drive and its mounting bracket since its so small fit into a slot but I wasn't able to get it to "lock in" with either a screw or the cases snaps so it can slide around somewhat.

Other Thoughts: Had to use screws that came with the case for my Biostar motherboard as its screws did not fit into the cases threads.

Did you find this review helpful? Yes No

  • Susan S.
  • 7/5/2013 7:15:00 PM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsFairly Decent

Pros: 6 fans give it good cooling and so far no fan problems or wonky vibrations. Front Fan has an easy pop out mesh filter at the bottom front.

Inverted design and MOBO backing cutouts allow better than average cable management and also goes to compliment the cooling by keeping cables out of the way.

USB/Audio placement is perfect if your computer is going to be lower than you are, and having two USB 3.0 slots in the front is cooler than only having 1.

Tool-less HDD and Optical Drive were convenient.

Cons: Not a big issue for me, but is not a quiet gaming case. This is designed to cool better, not to sound quieter.

If the case is not going to be floor level or lower than you are sitting, the top placement of USB and Audio ports may be a bit awkward.

Does not have 2.5' drive slots. With how popular SSD's are these days, this is a bit weird imo but fixable if your SDD has a 3.5 adapter.

Most of the fans don't have 3 pin adapters, so expect them to run full speed if hooked up. Again not really an issue for me but will be for some people.

Looks wise, I think the plastic face that covers the front inherently sticks out a bit much. A sleeker design for the plastic front would have been better and wouldn't make it stand out so much from the rest of the case. Not a functionality issue, but so many more cases nail that "smooth", almost seamless and flowing look even with plastic fronts.

It's a bit hard justifying the high $80+ pricetag. This case only starts to make sense below $70 imo. There are too many solid sub $100 cases, potentially with rebates, to make this a value play normally. Catch it on sale if you can!

The back slots where the end of PCI cards stick out, are breakout slots. They are not reuseable.

Other Thoughts: Overall I'm happy with the case and the 1 egg off is for the minor things combined. It's a decent case... if the price is right. Otherwise for a similar amount of money, you'd probably be better off with something a bit more fancy around that sub $100 price range.

Did you find this review helpful? Yes No
