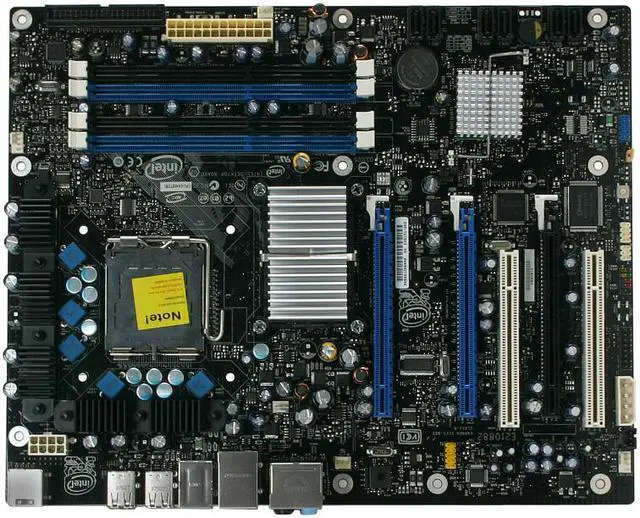

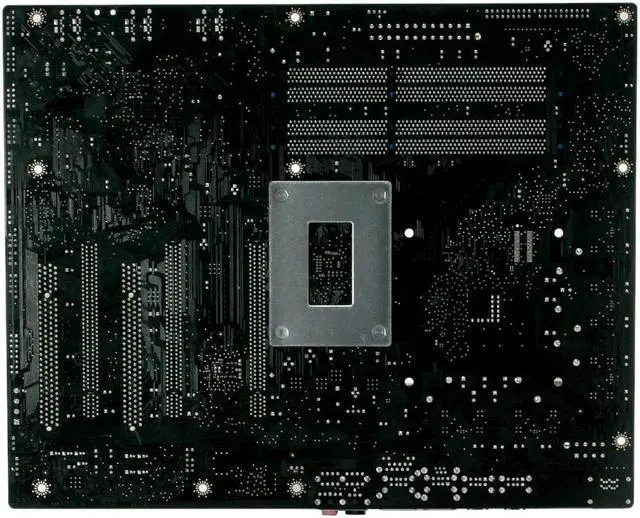

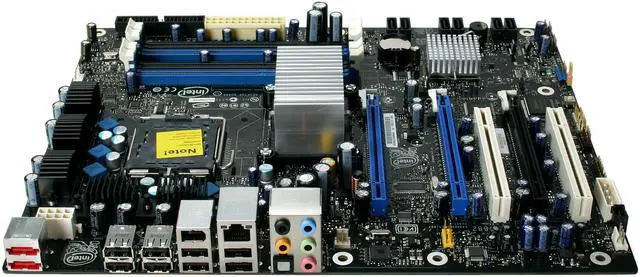

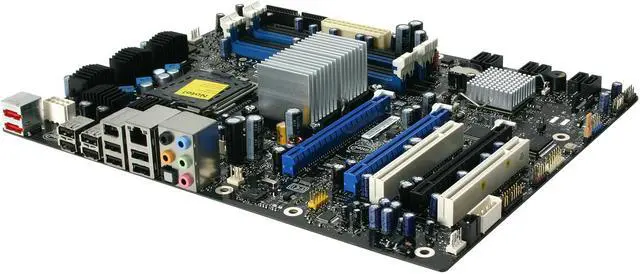

Intel BOXDX48BT2 LGA 775 Intel X48 ATX Intel Motherboard
- LGA 775
- Intel X48
- 4×240pin DDR3 1600
Specs
Reviews (106)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BOXDX48BT2
| Brand | Intel |
|---|---|
| Model | BOXDX48BT2 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Core 2 Extreme / Core 2 Quad |
| FSB | 1600/1333 MHz |
| Chipset | Intel X48 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 (electrical x4) |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | SigmaTel STAC9274D |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel 82566DC |
|---|---|
| Max LAN Speed | 1Gbps |
| USB 1.1/2.0 | 8 x USB 2.0 |
|---|---|
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 2 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | April 11, 2008 |
|---|
