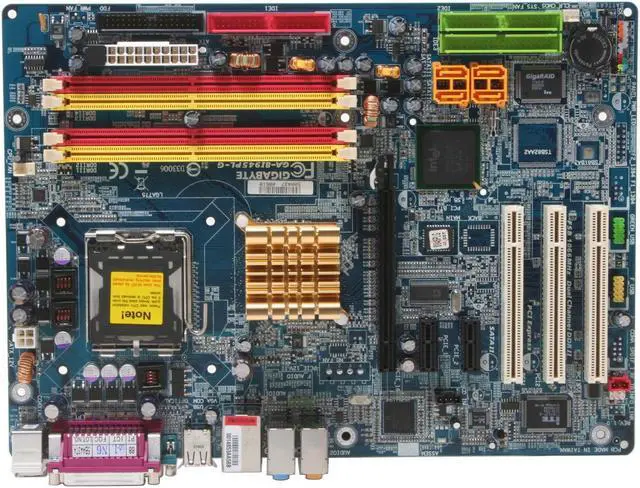

GIGABYTE GA-8I945PL-G LGA 775 Intel 945PL Express ATX Intel Motherboard
- Intel 945PL Express
- Pentium D / Pentium 4 HT / Celeron D
- DDR2 533
Specs
Reviews (21)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-8I945PL-G
| Brand | GIGABYTE |
|---|---|
| Model | GA-8I945PL-G |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium D / Pentium 4 HT / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945PL Express |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 3 x ATA100 6 Dev Max. |
|---|---|
| PATA RAID | 0/1/0+1 |
| Additional RAID Controller | ITE 8212 |
| Audio Chipset | Realtek ALC882M |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Broadcom BCM5789 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website |
|---|

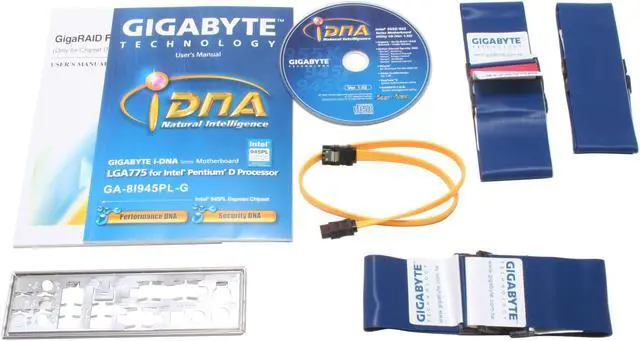

| Package Contents | GA-8I945PL-G Driver Disk 2 x User Manual Rear I/O Panel Shield 2 x IDE/PATA Cable FDD Cable SATA Cable |
|---|
| First Listed on Newegg | December 13, 2005 |
|---|
