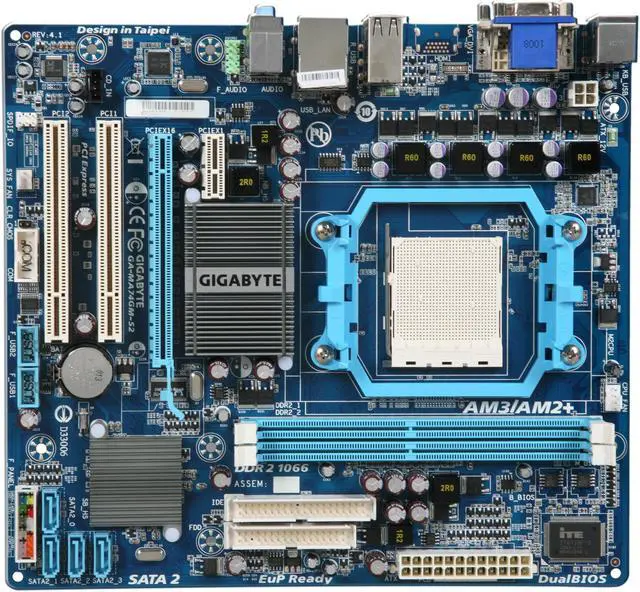

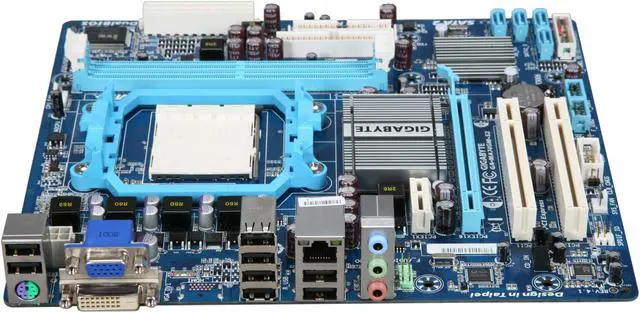

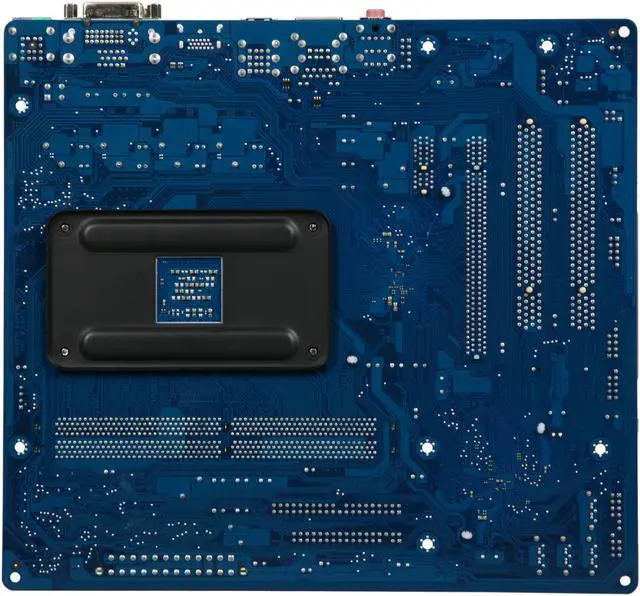

GIGABYTE GA-MA74GM-S2 AM3/AM2+/AM2 AMD 740G Micro ATX AMD Motherboard
- AMD 740G
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron
- DDR2 1066*/800/667 * DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules
Specs
Reviews (316)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-MA74GM-S2
| Brand | GIGABYTE |
|---|---|
| Model | GA-MA74GM-S2 |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron |
| FSB | 1000 MHz |
| Chipset | AMD 740G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 1066*/800/667 * DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | ATI Radeon 2100 |
|---|
| Audio Chipset | Realtek ALC888B |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111D |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 |
|---|---|
| LPT | 1 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 8 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0/1.1 headers (support up to 4 x USB 2.0 ports) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |
| Power Pin | 24 Pin |

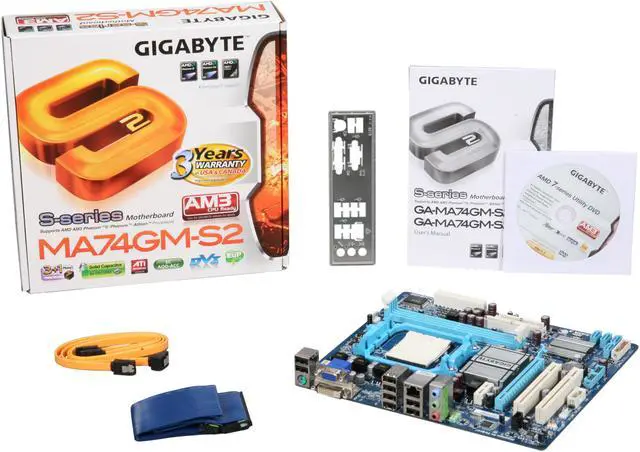

| Package Contents | GA-MA74GM-S2 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | June 13, 2008 |
|---|
