Deactivated Item
-
-
Similar Items
Not the product you're looking for? We can make some suggestions to help you decide on a product that fits your needs.
view similar products
-
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 52%
- 4
-
- 15%
- 3
-
- 0%
- 2
-
- 3%
- 1
-
- 30%
| Product Rating: |

|
| Total Reviews: |
33 |
No Windows 7 support
- Pros: Working very stable. no problems at all
- Cons: Windows 7 not fully supported. gigabyte website says it win7 certified. yes, win 7 installed without problems but..
TPM not working under Win 7
Etherner port teaming not working too.
I am not sure about other gigabyte utilitys. thay may not compartible with win 7 too.
overall rating bad - because of no win 7 support
asus, msi - continue support P45 motherboards.
- Other Thoughts: excellent choice for XP or Vista.
Junk Board
- Pros: It'll fit nicely in your trashcan
- Cons: Gigabyte makes the worst board, in my experience. They don't last, tons of compatibility issues and just bad build quality. This one didn't last a month and had to go through the hassle. Last Gigabyte board had RAM incompatibility issues.
- Other Thoughts: To add insult to the injury. They have the worst customer service know to man. Avoid them like a plague.
Very poor board
- Pros: Lots of Ethernet ports, nice layout, looks solid.
- Cons: I could only get this board to boot a couple of times. Then it would go into a reboot loop and would not post.
- Other Thoughts: Don't bother with this board, Gigabyte has many other good boards, but not this one.
| Model |
| Brand |
GIGABYTE |
| Model |
GA-EP45-DQ6 |
| Supported CPU |
| CPU Socket Type |
LGA 775 |
| CPU Type |
Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB |
1600/1333MHz |
| Chipsets |
| North Bridge |
Intel P45 |
| South Bridge |
Intel ICH10R |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 1200 |
| Maximum Memory Supported |
16GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express 2.0 x16 |
1 x PCI Express 2.0 x16 slot
1 x PCI Express 2.0 x8 slot |
| PCI Express x4 |
2 |
| PCI Express x1 |
1 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
10 |
| SATA RAID |
0/1/5/10 |
| Additional RAID Controller |
SiI5723 |
| Onboard Audio |
| Audio Chipset |
Realtek ALC889A |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
4 x Realtek 8111C |
| Max LAN Speed |
Quad 10/100/1000Mbps |

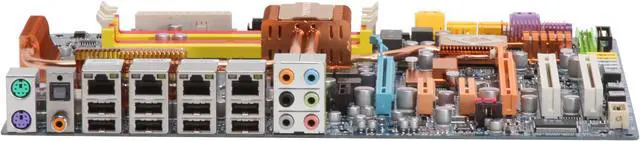

| Rear Panel Ports |
| PS/2 |
2 |
| USB 1.1/2.0 |
8 x USB 2.0 |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
4 x USB 2.0 |
| Onboard 1394 |
| Onboard 1394 |
3x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Power Pin |
24 Pin |
| Packaging |

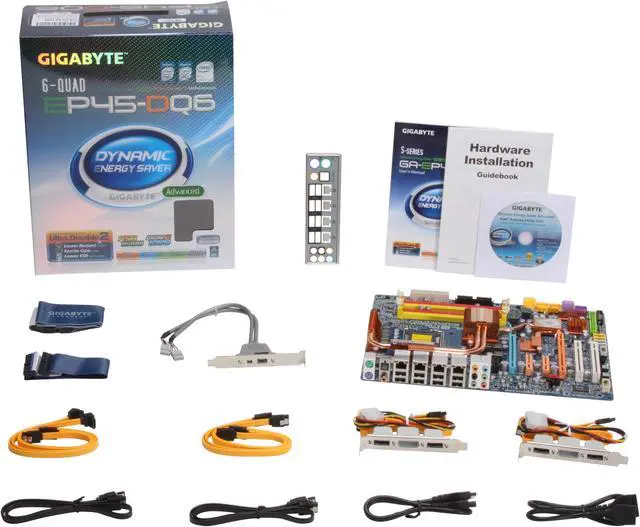

| Package Contents |
GA-EP45-DQ6
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
IEEE 1394 Bracket
eSATA Bracket
eSATA Cable & Power Cord |
|
|
Reviewed By: on 10/28/2009
Tech Level: high - Ownership: 1 month to 1 year
